USA Lab -80°C 30L Recirculating Chiller UC-30/80 30L/Min With Touchscreen PLC

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Reservoir Capacity: 30L
Reservoir Dimensions: 13.7″ x 13.7″
External Dimensions: 39″ x 31.9″ x 48.4″
Temperature Range: Room Temp to -80°C / -112°F
Power Requirements: 220-240V 60Hz 30A 5250W Single Phase
Refrigeration BTUs: 16,000BTU – 1,450BTU
Pump Wattage: 100W
Temperature Accuracy: +/- 0.5°C
Weight: 473lbs
Warranty: 1 Year

$16,798.80

SKU: UC-3080 Category: Brand:

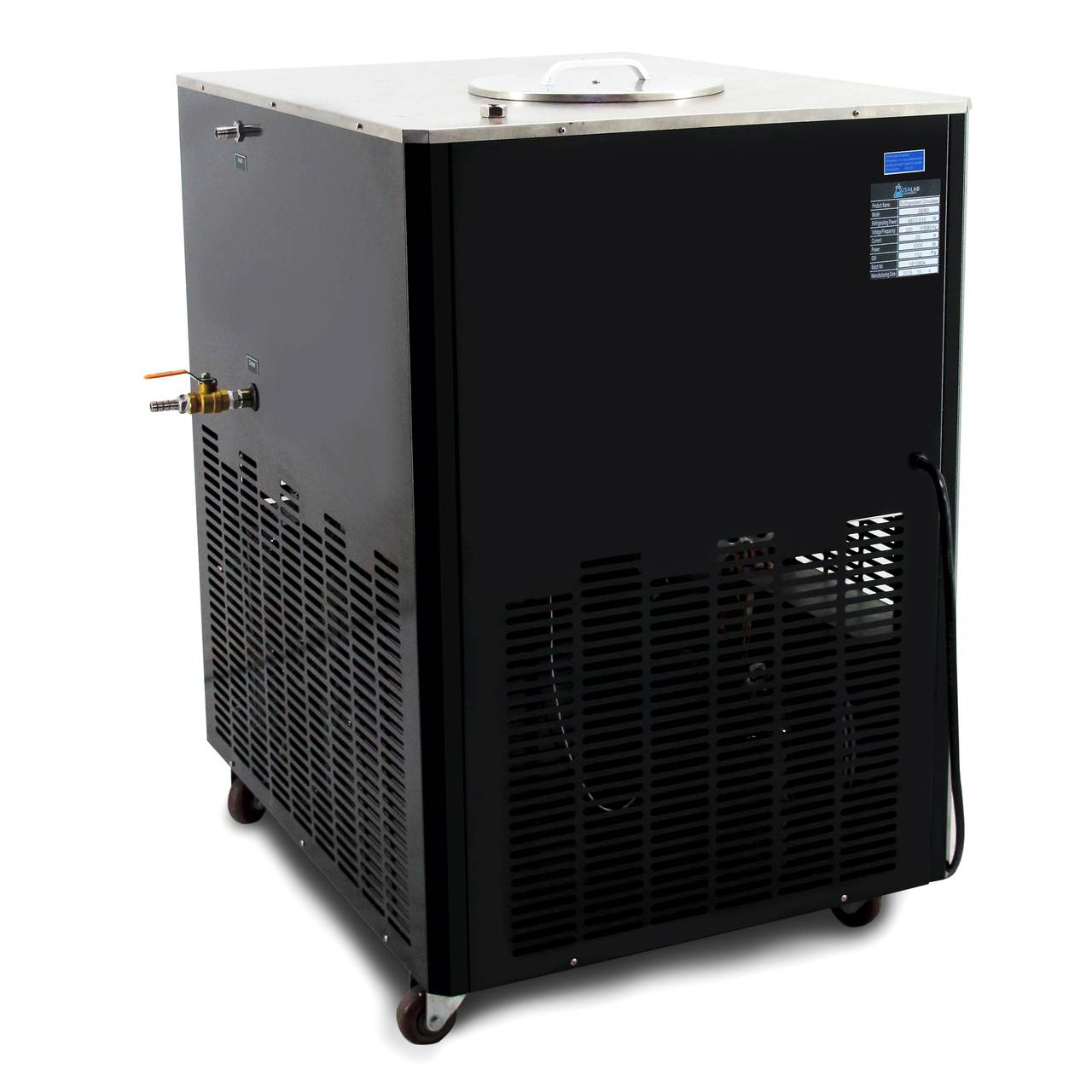

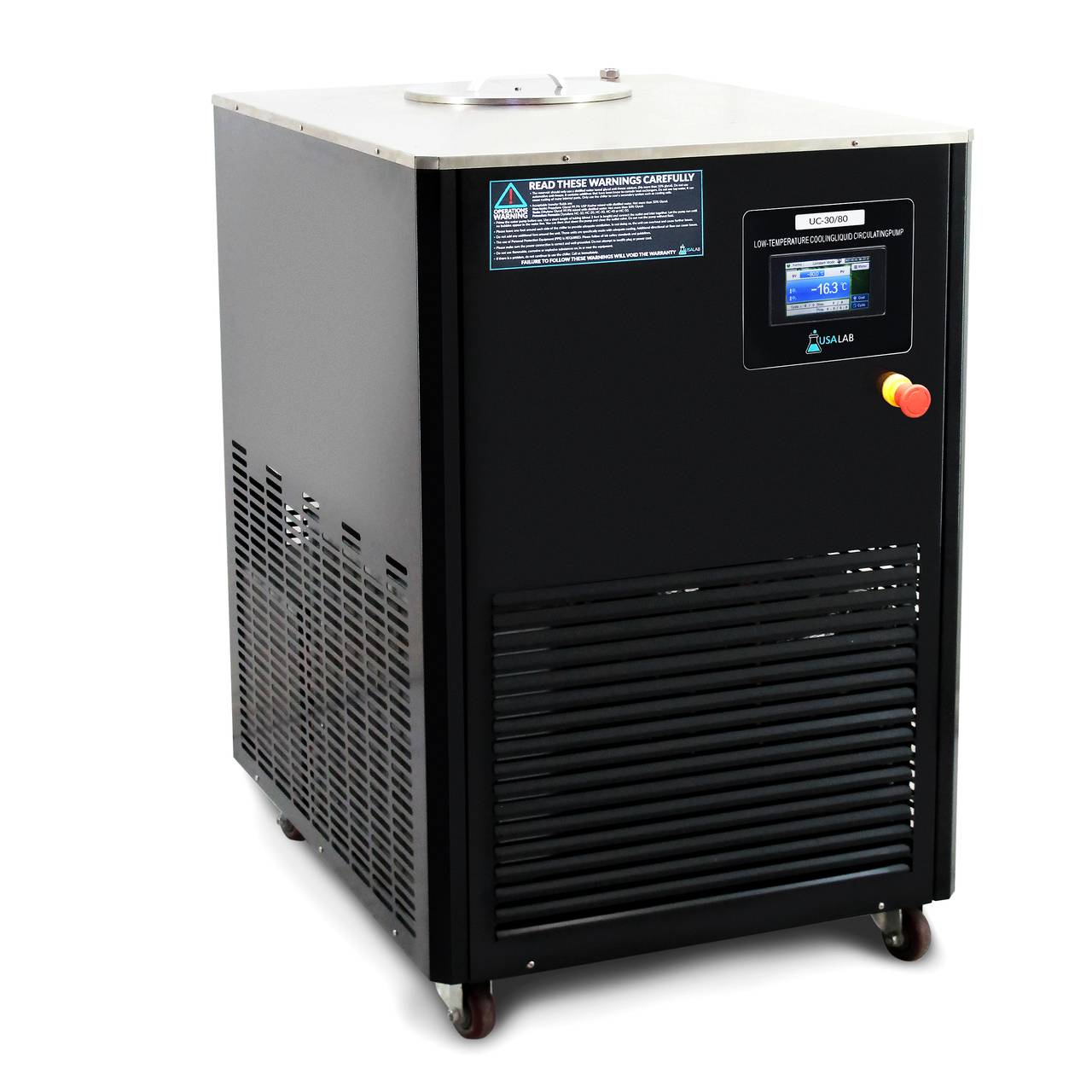

The USA Lab UC-30/80 is a powerful -80°C Chiller with a 30L Reservoir. This UC recirculating chiller is a true lab chiller ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.

The USA Lab UC-30/80 chillers offer unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.



SPECIFICATIONS

Model

UC-30/80

Reservoir Capacity

30L

Reservoir Dimensions

13.7″ x 13.7″

Temperature Range

Room Temp to -80°C / -112°F

Power Requirements

220-240V 60Hz 30A 5250W Single Phase

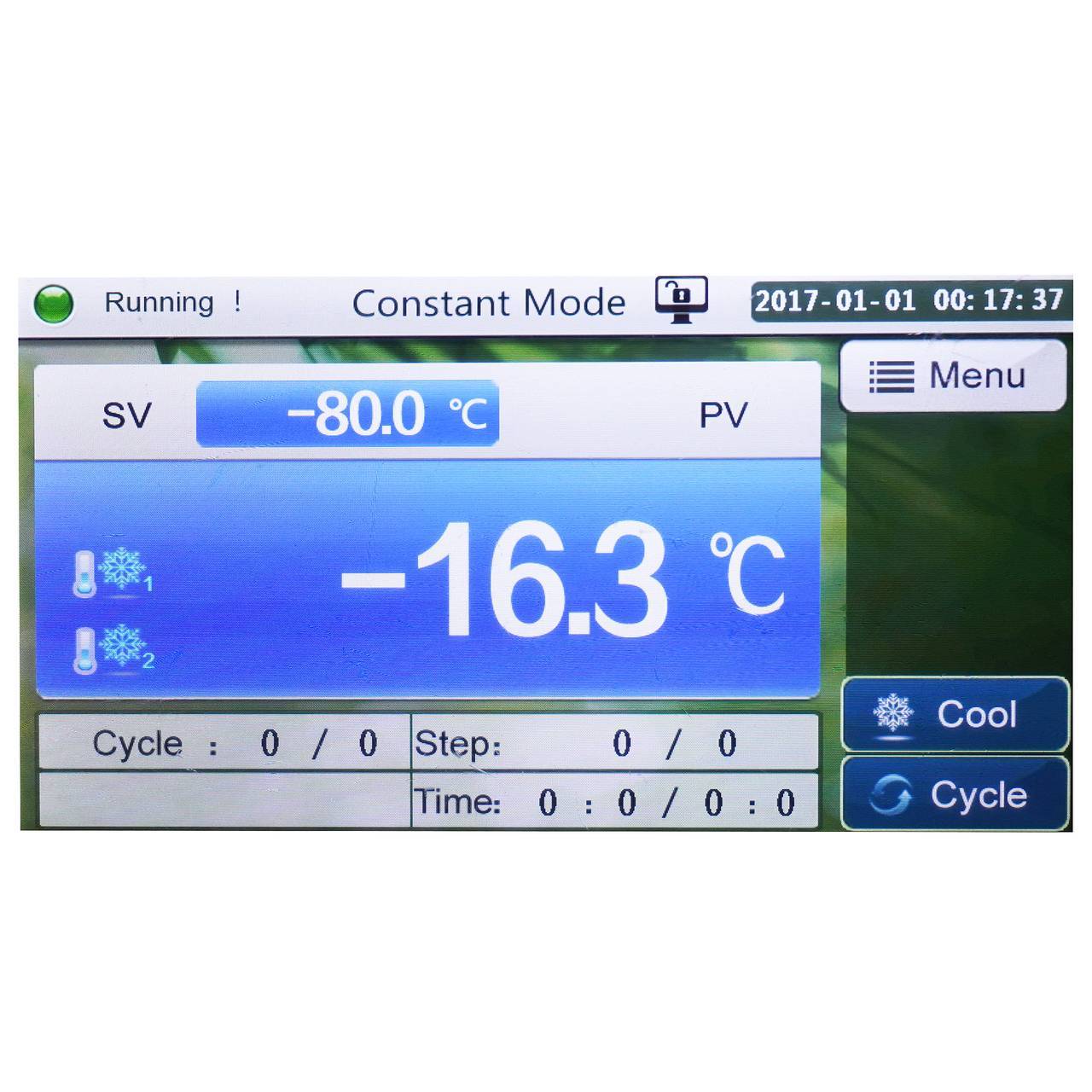

Control Type

PLC Touchscreen

Refrigeration BTUs

16,000BTU – 1,450BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Lift (Max Pumping Height)

4m (12ft)

Pump Pressure

2.2bar

Barb Size

5/8″

Refrigerant

R404

External Dimensions

39″ x 31.9″ x 48.4″

Weight

473lbs

Warranty

1 Year



PACKING LIST

Model

Quantity

USA Lab UC-30/80 -80°C Chiller

1

5/8″ Insulated Tubing

11Ft

5/8″ Barbed Valve

1

PTFE Sealing Tape

1

 Manual

1

For Technical Support, Questions, or Other Issues Please Email or Call Us!
