USA Lab 60L -80°C Recirculating Chiller W/ Touch Screen CLC-60/80 42L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Tank Capacity: 32L
Temperature Range: RT to -80°C / -112°F
Power Requirements: 220-240V 60Hz 37A Single Phase – Hardwired Only
Refrigeration BTUs / Wattage: 75,237BTU – 1,255BTU / 22,050-368W
Total power: Nominal: 8kW / 37A | Peak: 17kW / 77A
Compressor Type: 5HP Invotech x 2pcs (UL Listed)
Circulating Pump Wattage: 370W
Inlet / Outlet Size: 3/4″ MNPT
External Dimensions: 43.3″ x 33.3″ x 51.2″
Weight: 514lbs
Warranty: 1 Year

$20,398.80

SKU: CLC-6080-PLC Category: Brand:

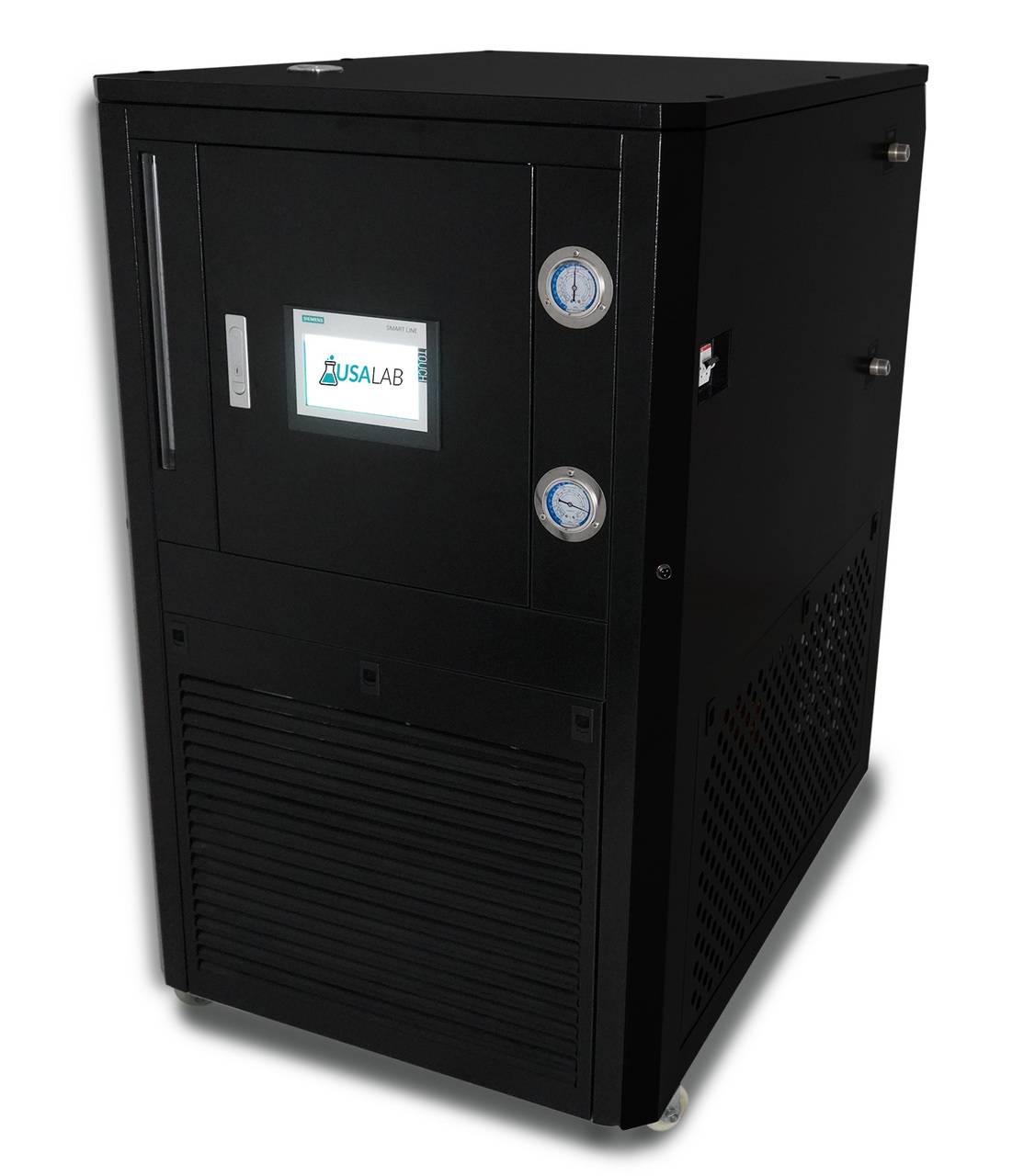

The USA Lab CLC-60/80 is a powerful -80°C Chiller with a 32L Closed Loop Reservoir. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large reactors and other large vessel.

The USA Lab CLC-60/80 chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.

This unit includes a Programmable Logic Controller (PLC).

A PLC will control whether the unit will cool or heat depending on the programmed steps and cycles overtime. The PLC also has an option for a static control to operate like a standard chiller.

Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery.



CLC-60/80 Features

• Powerful chilling capacities and high BTU range.

• High quality UL Listed compressor.

• Touchscreen Siemens HMI display.

• R404 refrigerant.

• 12ft of tubing included with Tri-Clamp connections.

• 1 Year warranty with US based parts and support.

• Versatile Siemens PLC controller with external probe.



CLC-60/80 Specifications

Expansion Tank Capacity

32L

Tank Dimensions

15.75″ x 7.9″ x 15.75″

Temperature Range

RT to -80°C (-112°F)

Power Requirements

220-240V 60HZ Single Phase – Hardwire ONLY

Control Type

Siemens PLC S-700 Controller with External Probe

Refrigeration BTUs / Wattage

75,237BTU – 1,255BTU / 22,050-368W

Total Power

Nominal: 8kW / 37A | Peak: 17kW / 77A

Plate Type Heating Area

Heating Exchanger Surface Area 1.46m² (Quantity: 2)

Compressor Type

5HP Invotech (UL Listed) (Quantity: 2pcs)

Circulating Pump Wattage

370W (Quantity: 1)

Fan Wattage

280W (Quantity: 1) | 185W (Quantity: 1)

Temperature Accuracy

+/- 0.5°C (PT100)

Pump Flow

11 gpm (42L/Min)

Lift

91 ft (28 m)

Pump Pressure

40.6 psi (2.8 bar)

Inlet / Outlet Size

3/4″ MNPT

Refrigerant

R404 High Stage | R23 Low Stage

External Dimensions

43.3″ x 33.3″ x 51.2″

Weight

514lbs

Warranty

1 Year



CLC-60/80 Packing List

Item

Quantity

USA Lab CLC-60/80 Chiller

1

Insulated Tubing

2x 6ft (12ft Total)

Manual

1



For Technical Support, Questions, or Other Issues Please Email or Call Us!
