The USA Lab 50L Single Jacketed Glass Reactor is the best reactor on the market. Each reactor has an outer jacket allowing circulation of liquid ranging in temperature from -80°C to 250°C.
No expense has been spared with these reactors, yet we crush the market on pricing to provide great value at a low cost. Our reactors are the best value on the market and each one comes with fantastic customer service . Bring your lab to the next level, and get started with a USA Lab single jacketed reactor today!
JR-50 SPECIFICATIONS
•Glass Material: GG-17 Borosilicate Glass
•Reaction Vessel Capacity: 50L
•Material Flask Capacity: 5L
•Fluid Jacket Capacity: 13L
•Rotary Speed: 0-450RPM
•Glass Temperature Range: -80°C to 250°C / -112°F to 482
•Power Requirements: 110-120V 60Hz 15A Single Phase
•Stirrer Wattage: 90W
•Vacuum Level: Under 0.098Mpa
•Dimensions: 41″L x 23″W x 90″H
•Weight: 205lbs
•Speed Regulation: Digital Step-Less
•Condenser and Feed Valve Barbs: 10MM – 3/8″
•Bottom Drain Port: 35MM – 1 3/8″
•Receiving Flask Barb: 16MM – 5/8″
•Fluid Connection: 16MM – 5/8″ barb or 1/2″ NPT

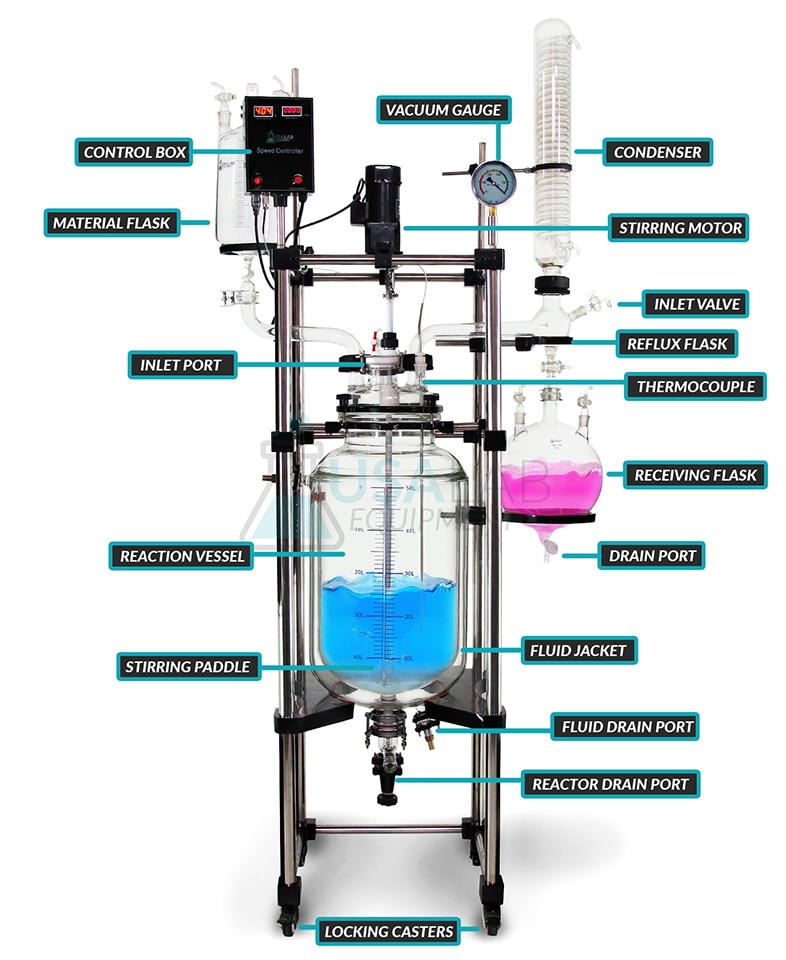

JR-50 PACKING LIST
USA Lab 50L Jacketed Reactor JR-50
1 set
Main Condenser
1 pc
5L Material Flask
1 pc
10L Receiving Flask
1 pc
Reflux Flask with Valve
1 pc
Feed Ports
6 sets
Stopper
1 pc
Clamp for Material Flask
1 pc
Strap for Condenser
1 sets
Sealing Screw / Flange
3 sets
Fluid Line Sealing Clamp / Flange
2 sets
Control Box
1 pc
Vacuum Gauge
1 pc
Support Rings
2 pcs
Stirring Motor w/ Paddle
1 set
Temperature Probe
1 pc
Liquid 5/8″ Connections
2 pcs
Metal Clamp
2 pc
3oz. Vacuum Grease
1 pc
Vacuum Hose
10 ft.
Specification: USA Lab 50L Single Jacketed Glass Reactor
