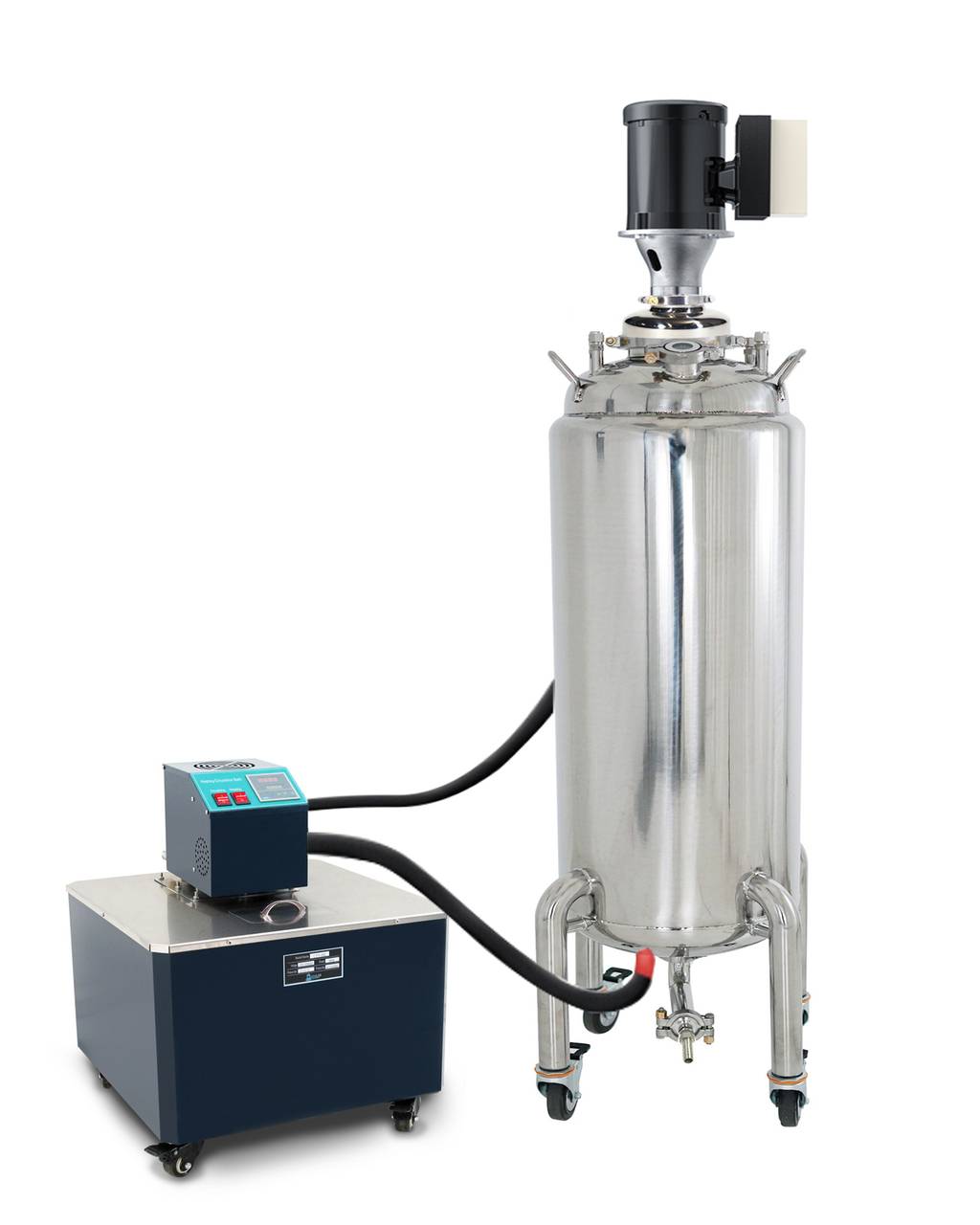

USA Lab 50L/100lb Mixing Solvent Tank w/ RH-30L and 1/2 HP USA Made Motor

TANK SPECIFICATIONS

•Material: 304 Stainless Steel

•Capacity: 50L

•Lid Size: 6″ Tri-Clamp

•Tank PSI Rating: 150psi

•Motor Gasket PSI Rating: 3psi

•Lid Connections: (4 x 1/2″ Compression Ports) (1x 6″ Tri-Clamp x 3″ Tri-Clamp)

•Drain Connection: 1.5″ Tri-clamp ( to 1/2″ Barb)

•Exterior Dimensions: 19″ L x 22″ W x 55″ H

HEATER SPECIFICATIONS

•Reservoir Capacity: 30L

•Reservoir Dimensions: 20″ x 20″ x 24″

•Temperature Range: Room Temperature to 200°C SILICONE OIL ONLY

•Power Requirements: 220-240V 50-60Hz 30A Single Phase 6-30P Plug

•Heating Wattage: 5000W / 22.7A

•Temperature Accuracy: +/- 0.2°C

•Pump Flow: 18.3L/Min

•Total Pump Lift: 6m

•Connection Size: 1/2″ MNPT

•Dimensions: 19″ x 19″ x 24″

•Weight: 68lbs

STIRRER SPECIFICATIONS

•Horse Power: 0.5

•Impeller Diameter: 4″ (2 included)

•Power Requirements: 110-120V 50-60Hz 15A

•Motor: 1/2 HP, TEFC, IP55

•RPM: 350-1750

•Mount Type: 3″ Tri-Clamp

•Bearing: SS, Carbon Steel Coupler

•Seal: FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous

•Shaft: .625″ Diameter x 32″ Exposed – 316SS, No Polish

•Impeller: (2) 4″ Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw

PACKING LIST

50L Solvent tank (100LB) w/ 12″ Bend 1.5″ TC

1pc

6″x3″ Hemi Reducer

1pc

1.5″ HP TC

2pcs

3″ HP TC

3pc

6″ HP TC

1pc

1.5″ Buna-N Gasket

2pcs

3″ Buna-N Gasket

1pc

6″ Buna-N Gasket

1pc

1.5″ Sight Glasses w/ Gaskets

2pcs

RH-30L 30L 200°C Heater

1pc

RH-30L Hosing – 6ft

2pcs

1/2 HP USA Made Variable Speed Tri-Clamp Motor

1pc

32″ Rod

1pc

4″ Impellers

2pcs

1.5″ TC x 1/2″ Compression

1pc

USALOK 1/2″ MNPT to 1/2″ Tube Stub

2pc

1/2″ Compression cap

1pc

1/2″ Superlok Compression Ball Valve

1pc

1/2″ Tube Stub x 1/2″ Barb

1pc
