Our XTC-45-TK 100L Centrifuge turnkey system allows users the ability to extract botanical compounds to achieve superb results and separation while maintaining a closed-loop system. The XTC-45 system takes 25–40lbs of biomass and 25-40 gallons of ethanol per batch for approximately 432-675lbs of dry material per 8-hour shift with a single operator. The XTC system comes with two 150Lstorage vessels for ethanol pre-storage as well as ethanol mixture post storage.
Each tank is fully jacketed and fully assembledto allow for fluids circulation with temperatures of up to -80°C, a 12” lid connection for numerous port connections, and a 6” bottom for ease of cleaning/draining. Fluid can transfer from each vessel via two diaphragm operated fluid pumps being operated by an air compressor. These pumps are easily operated and allow for up to 10 gallons per minute of fluid transfer. Each pump has a bypass which allows full line clear when the units are not in operation as well as easily adjustable air inlet, and inlet/outlet valves.

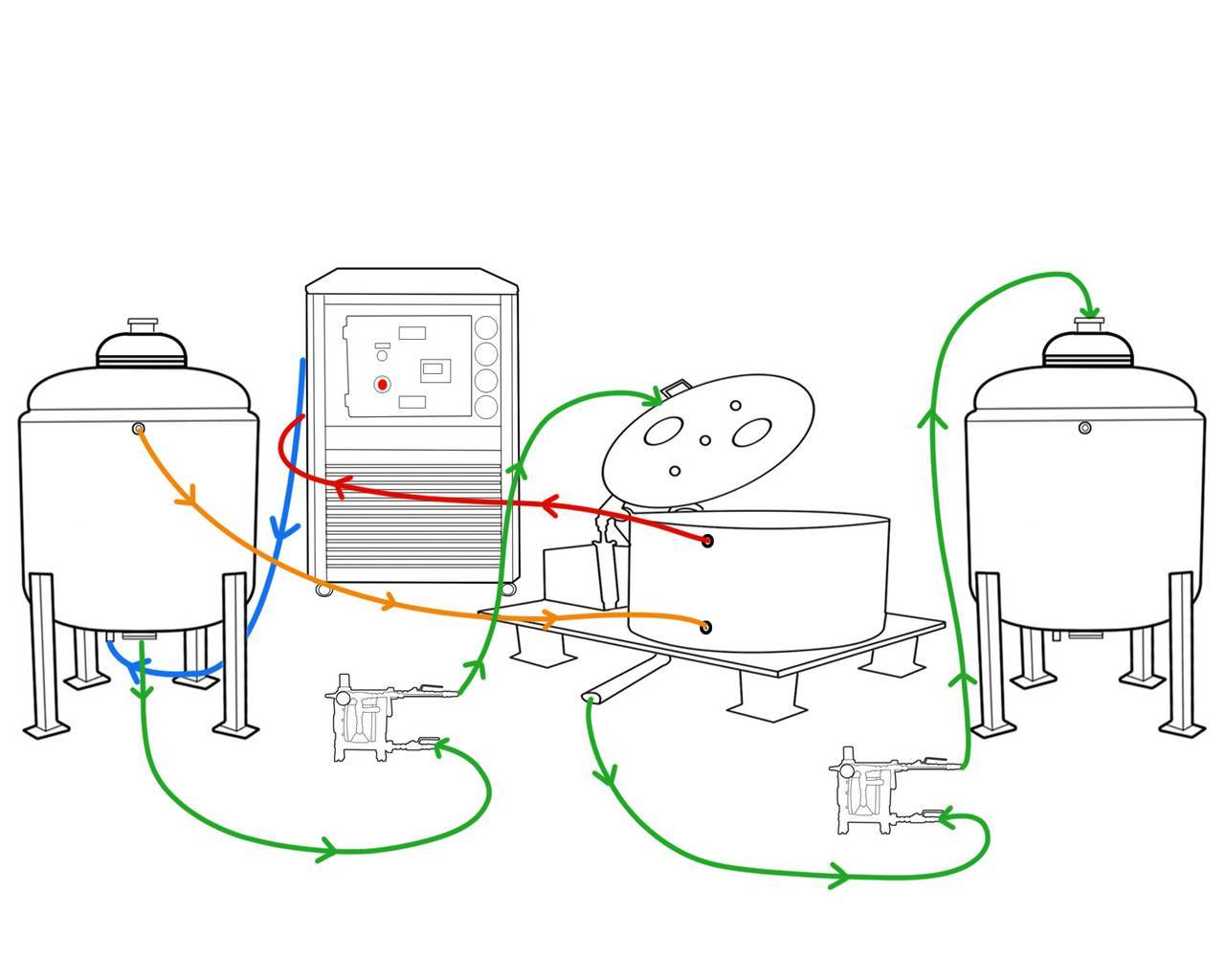

The XTC system also comes packed with one of USA Lab’s most advanced chillers, the CLC-100/80 100L -80°C chiller. This chiller can be run in tandem with the inlet ethanol storage tank that then is connected to the centrifuge jacket allowing for ultimate temperature control of the ethanol and mixture. The XTC-45-TK system is an easy-to-use turnkey ethanol extraction system that can fit into any lab setting with ease. This system fits in perfectly pre-filtration and recovery to act as a modular fit for a full system.
XTC-45L Turnkey Packing List
ITEM
QTY
45L Jacketed Stainless Steel Centrifuge
1
-80°C 100L Recirculating Chiller UC-100/80
1
USA Lab 150L Stainless Steel Jacketed Storage Vessel
2
Hemispherical Reducer – Tri Clamp 6″ to 1/2 FNPT – S
ARO Diaphragm Fluid Transfer Pump, Kynar® Fully Assembled
2
Superlok FNPT 210 Series Ball Valve – 1/2″
6
Superlok FNPT 210 Series Ball Valve – 3/8″
2
Glycerin Compound Gauge -1/4″
2
MNPT To Barb Adapter [ 1/2″ Barb x 1/2″ MNPT ]
10
MNPT to FNPT Street Elbow [ 1/2″ X 1/2″ ]
4
1/2″ Male Elbow NPT 90 Degrees
2
MNPT To Barb Adapter [ 3/8″ Barb x 3/8″ MNPT ]
2
Polycarbonate Sight Glass -[ 2″]
4
Solid Tri Clamp End Cap [ 3″ ]
2
Buna – 2″
4
Buna – 3″
2
Buna – 6″
2
Buna – 12″
2
SPTC – 2″
4
SPTC – 3″
2
SPTC 6- “
2
SPTC -12″
2
1/2 ” Silicone Hose Tubing – 10FT
2
****THIS IS NOT CERTIFIED AND CARRIES NO UL, NRTL, OR C1D1 RATING. PLEASE KEEP THIS IN MIND PRIOR TO PURCHASING****
***DISCLAIMER*** Our closed loop systems are intended for legal purposes only.
They are to be used in well ventilated areas and under accordance with local laws.
XTC-45 Specifications
Material
304 Stainless Steel
Electrical
240V 3-Phase 3kW 9A
Explosion Proof Motor
Max RPM
1500 rpm
Max Plant Load
30-40lbs
Basket Volume
45L
Jacket Size
35L
Lid Connections
3x 1.5″ Tri-Clamp
Jacket Connections
2x 1.5″ Tri-Clamp
Drain Connections
2″ Tri-Clamp
Gasket Material
PTFE
Lid Gasket Material
Silicone
Exterior Dimensions
51″ L x 35″ W x 35″ H
Weight
1,984lbs
**Will need to add Explosion Proof Conduit from centrifuge to controller. Not included.

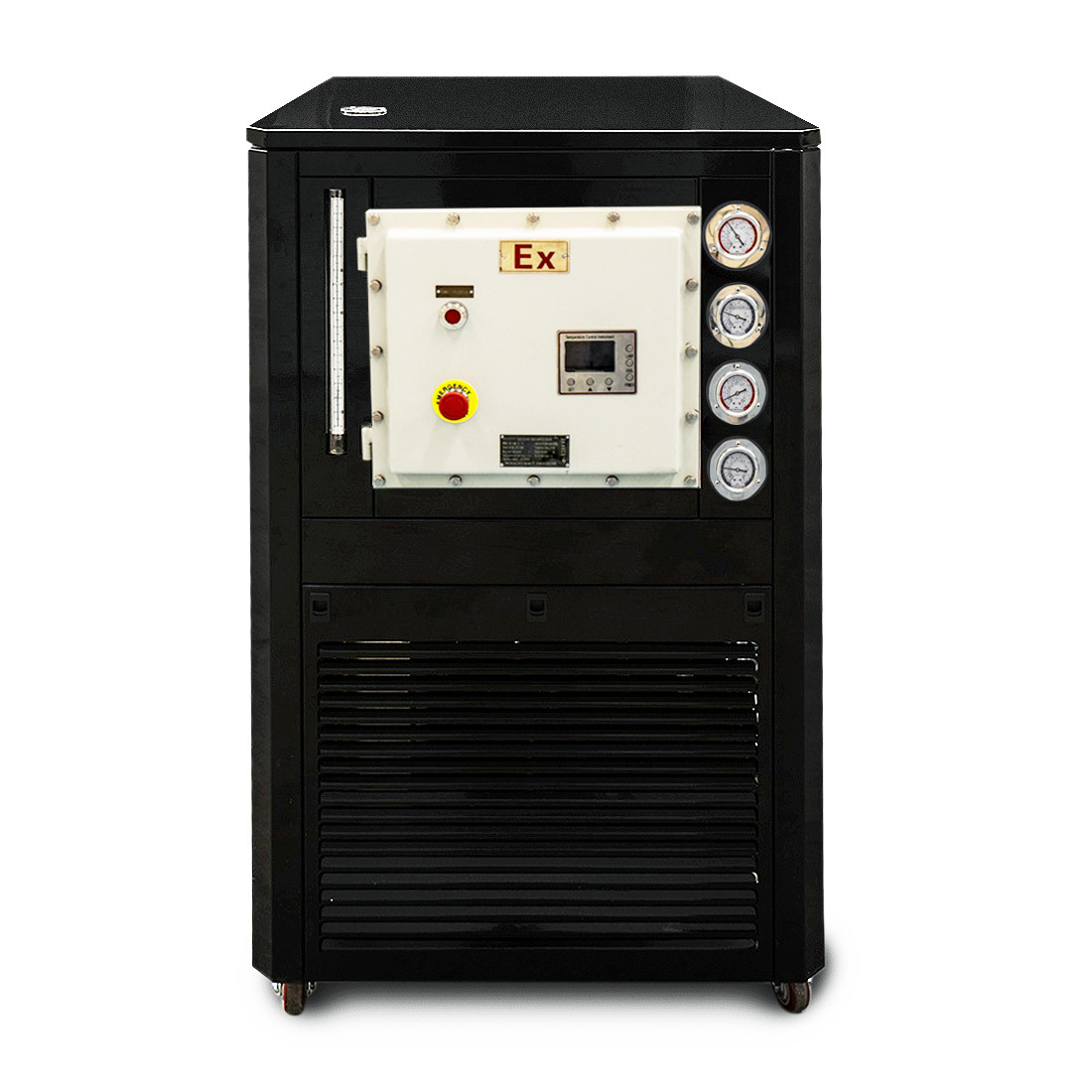

The USA Lab CLC-100/80 is a powerful -80°C Chiller with a 32L Closed Loop Reservoir. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.
The USA Lab CLC-100/80 chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
CLC-100/80 FEATURES
• Powerful chilling capacities and high BTU range.
• High quality UL Listed compressor.
• Easy to read LCD digital display.
• R404 refrigerant.
• 12ft of tubing included.
• 1 Year warranty with US based parts and support.
• Closed loop for higher thermal transfer performance.
• Explosion proof controller enclosure to protect against vapors.
Specifications
Model
CLC-100/80
Tank Capacity
32L
Tank Dimensions
15.74″ x 7.87″ x 15.74″
Temperature Range
RT to -80°C / -112°F
Power Requirements
240V 60Hz 41.56A 17,280W Three Phase – Hardwired Only
Control Type
Explosion Proof Digital PID
Refrigeration BTUs / Wattage
150,000BTU – 1,250BTU / 44100-735W
Total Power
17040 W
Plate Type Heating Area
Heating exchange area 2.50m2
Compressor Type
10HP Danfoss x 2pcs (UL Listed)
Circulating Pump Wattage
1500W (UL Listed)
Fan Wattage
280W x 3pcs
Temperature Accuracy
+/- 0.5°C
Pump Flow
30L/Min
Lift
35 m
Pump Pressure
3.5 bar
Inlet / Outlet Size
1.5″ FNPT
Refrigerant
R404
External Dimensions
58.6″ x 31.4″ x 56.7″
Weight
600lbs
Warranty
1 Year
Packing List
Model
Quantity
USA Lab CLC-100/80 Chiller
1
Silicone Tubing
11Ft
Manual
1
Our 300L Stainless Steel Jacketed Storage Vessel come with a 12″ opening and a 6″ bottom for ease of use and access. Each vessel is fully jacketed with 1/2″ FNPT inlet ports to allow circulation of warm or cold fluids. These reactors are great for filtration, chilling solvents, mixing, winterization, and even ethanol extraction!
300L-JSSR Specifications
•Material/Rating: 304SS/150PSI
•Exterior Dimensions: 24″ L x 24″ W x 63″ H
•Lid size: 12″ Tri-clamp
•Bottom size: 6″ Tri-clamp
•Jacket Connections: 1/2″ FNPT
•Ground to Bottom: 14″
•Jacket Capacity: 35L
Offering high volume delivery even at low air pressure this ARO® double diaphragm pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. Pump can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.
*We recommend an Air Compressor with 8 CFM or more.*
ARO Specifications
Item
Double Diaphragm Pump
Pump Operation Type
Air Operated
Max. Flow
14 gpm
Max. Temp – Pumps
150°F
Housing Material – Pumps
Polypropylene
Inlet / Outlet Size
1/2″
Connection Style
NPT
Air Inlet Size
1/4″ FNPT
Diaphragm Material – Pumps
Santoprene(R)
Agency Compliance
CE, REACH, RoHS
Valve Type
Ball
Max. Operating Pressure
100 psi
Ball Material
Santoprene(R)
Check Seat Material
Polypropylene
Max. Dia. Solids
3/32″
Manifold Connection
Multiport
Length
13.75″
Width
7.5″
Height
11.625″
Self-Priming Dry
10ft
Self-Priming Wet
15ft
Manufacturer’s Warranty Length
5 years
Packing List for Assembled Pump
ITEM
QTY
ARO 1/2 ” Diaphragm Pump
1
Superlok Compression 210 Series Ball Valve -65ºC to 21ºC at 1000PSI [ 1/4″ ]
1
Superlok Compression 210 Series Ball Valve -65ºC to 21ºC at 1000PSI [ 1/2″ ]
2
Superlok FNPT 210 Series Ball Valve – 316SS -53ºC to 21ºC at 1000PSI [1/4″]
1
FNPT x MNPT x MNPT 3-Way Street Tee [1/4″]
1
MNPT to FNPT Street Elbow [1/4″ X 1/4″]
1
MNPT x MNPT Hex Nipple Union [1/4″ x 1/4″]
2
Superlok O.D. Tube X MNPT Connector – SMC [1/4″]
1
Superlok MNPT Connector X O.D. Tube – SMA [ 1/2″ ]
2
Superlok 1/2″ HB X 1/2″ TUBE STUB
2
Superlok Compression Reducing Tee – SRUT [ 1/2″” X 1/4″ ]
1
MNPT Hex Plug [1/2″]
3
NORGREN Regulator,1/4 In
1
GRAINGER Pressure Gauge
1
ColorConnex Connector
1
