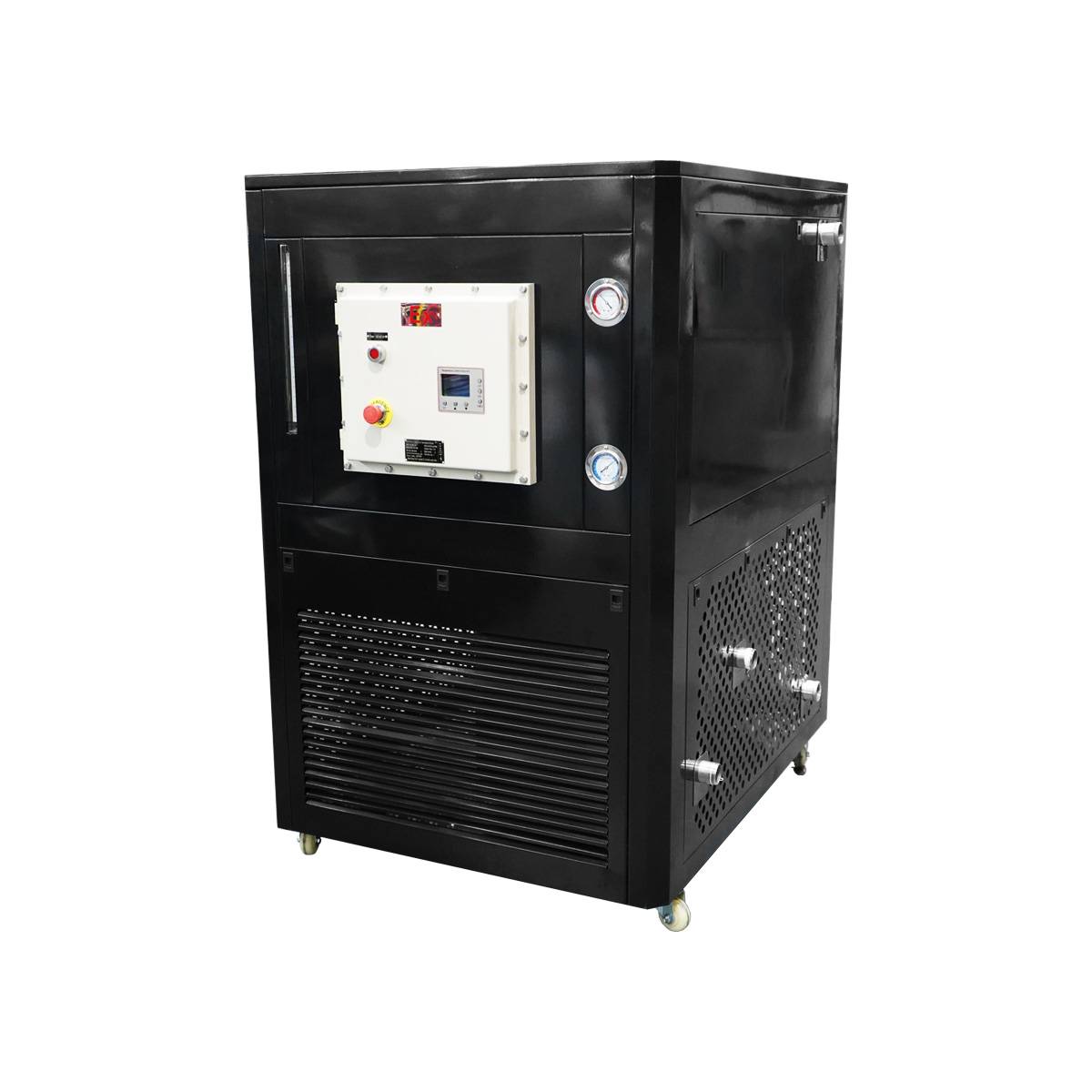

USA Lab -40°C 230L Water Cooled Closed Loop Chiller EXP-WC-10T 315L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Tank Capacity: 230L
Tank Dimensions: 53.15″ x 13.78″ x 19.69″
Power Requirements: 240V 60Hz 45.92A Three Phase – Hardwired Only – NO 208V
Temperature Accuracy: +/- 0.5°C
Inlet / Outlet Size: 2″ Tri-clamp
Weight: 1300
External Dimensions: 49.21″ x 36.61″ x 59.84″
Warranty: 1 Year

$20,000.00

SKU: EXP-WC-10T Category: Brand:

The Water cooled chiller is great for keeping a constant temperature. With a cooling range of -40°C, this chiller is great for maintaining cold temperatures when trying to condense gas or cool other liquids/objects.





EXP-WC-10T FEATURES

• Powerful chilling and high BTU range

• High quality UL Listed compressor

• Easy to read LCD digital display

• R404 refrigerant

• 12ft of tubing included

• 1 Year warranty with US based parts and support

• Closed loop for higher thermal transfer performance

• Explosion proof controller enclosure to protect against vapors



EXP-WC-10T Specifications

Model

EXP-WC-10T

Tank Capacity

230L

Tank Dimensions

53.15″ x 13.78″ x 19.69″

Temperature Range

RT to -40°C  / -40°F

Power Requirements

240V 60Hz 45.92A Three Phase –
 Hardwired Only – NO 208V

Control Type

Explosion Proof Digital PID

Refrigeration BTUs / Wattage

TBD

Total Power

11,020W / 45.92A

Plate Type Heating Area

Heating exchange area 4.06m2

Compressor Type

12.5HP Panasonic (UL Listed)

Circulating Pump Wattage

2200 W (UL Listed)

Temperature Accuracy

+/- 0.5°C

Pump Flow

315L/Min

Lift

30m

Pump Pressure

3 bar

Inlet / Outlet Size

2″ Tri-Clamp

Refrigerant

R404

External Dimensions

49.21″ x 36.61″ x 59.84″

Weight

1300lbs

Warranty

1 Year



EXP-WC-10T Packing List

Model

Quantity

USA Lab EXP-WC-10T Chiller

1

2″ Tri-Clamp Hosing

4

Manual

1



For Technical Support, Questions, or Other Issues Please Email or Call Us!
