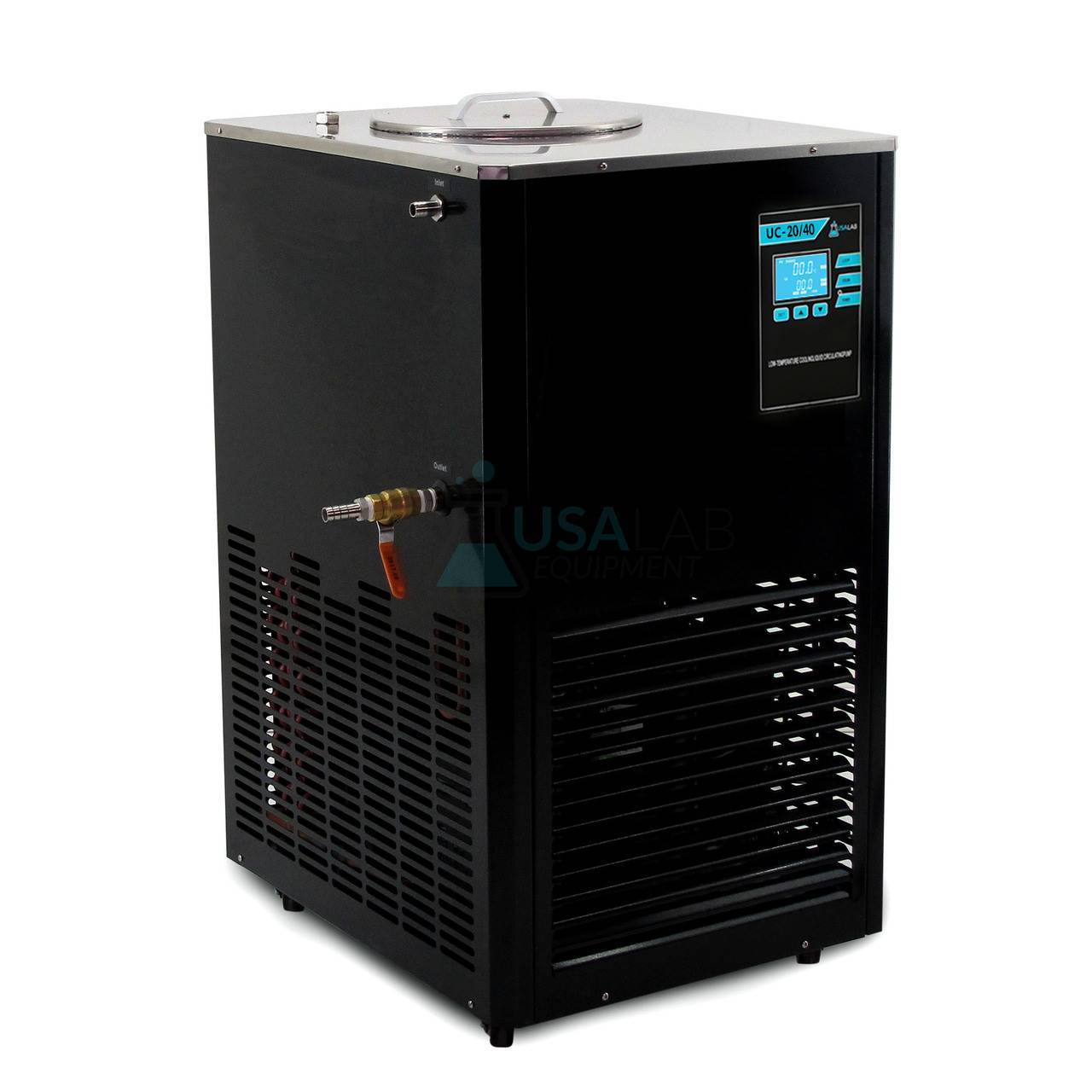

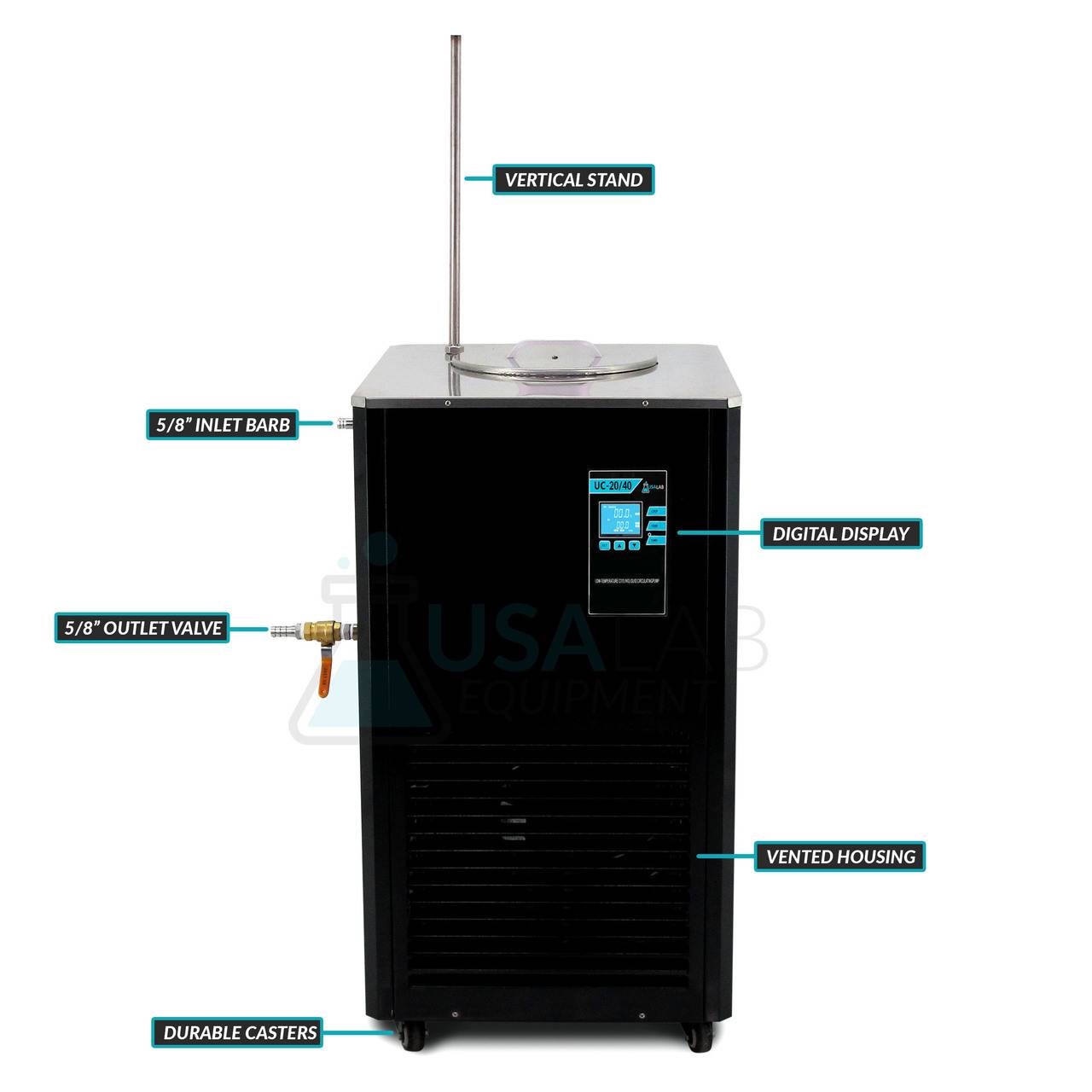

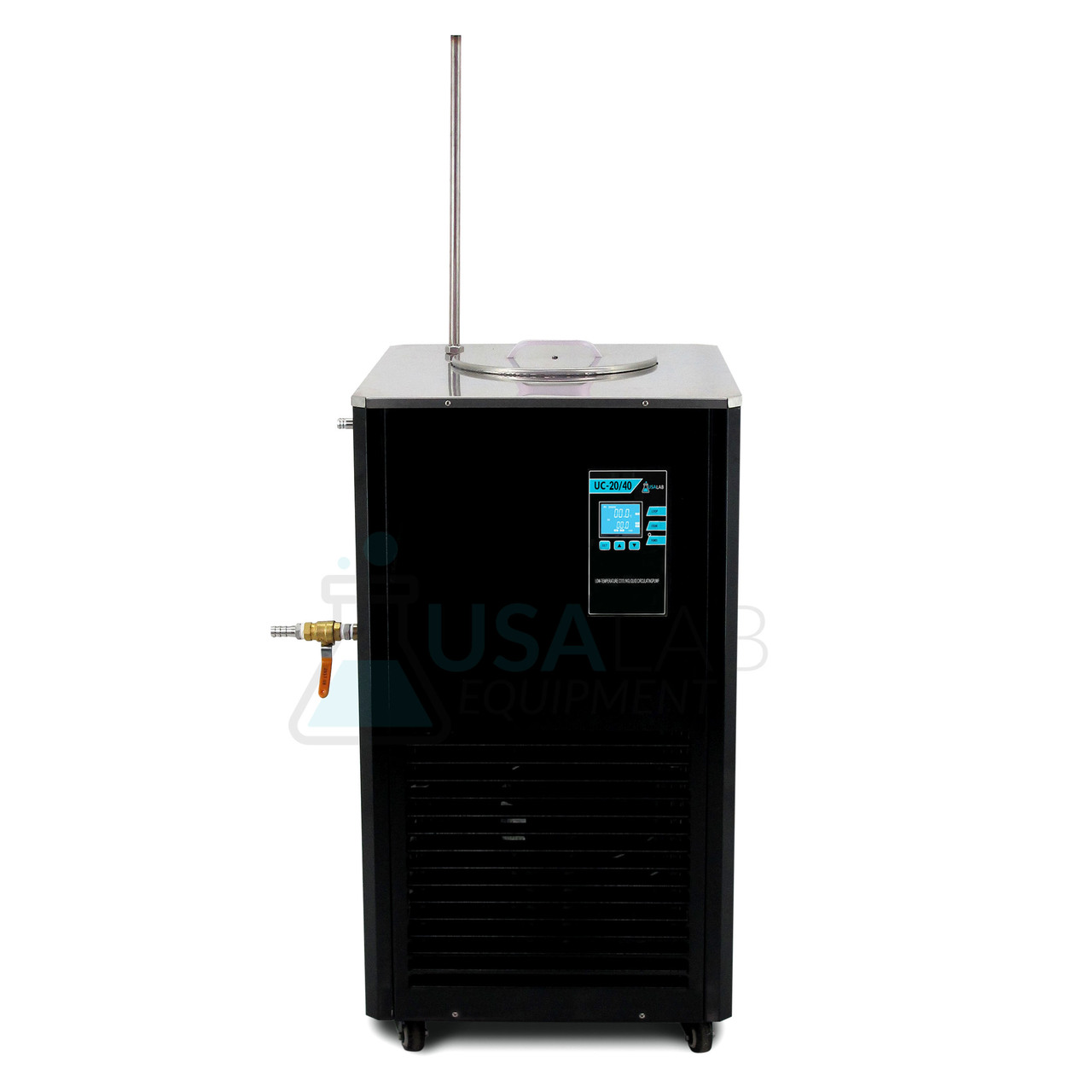

USA Lab -40°C 20L Recirculating Chiller UC-20/40 30L/Min
| Model: | UC-20/40 |
| Modified Item: | No |
| Custom Bundle: | No |
| MPN: | UC-20/40 |
| Brand: | USA Lab |
| Non-Domestic Product: | No |
| Power Requirements: | 220-240V 50-60Hz 20A 1800W Single Phase |
$7,317.60
The USA Lab UC-20/40 is a powerful -40°C Chiller with a 20L Reservoir. This chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.
The USA Lab UC-20/40 chillers offer unbeatable performance, ease of use, and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
|
UC-20/40 Specifications |
|
|
Model |
UC-2040 |
|

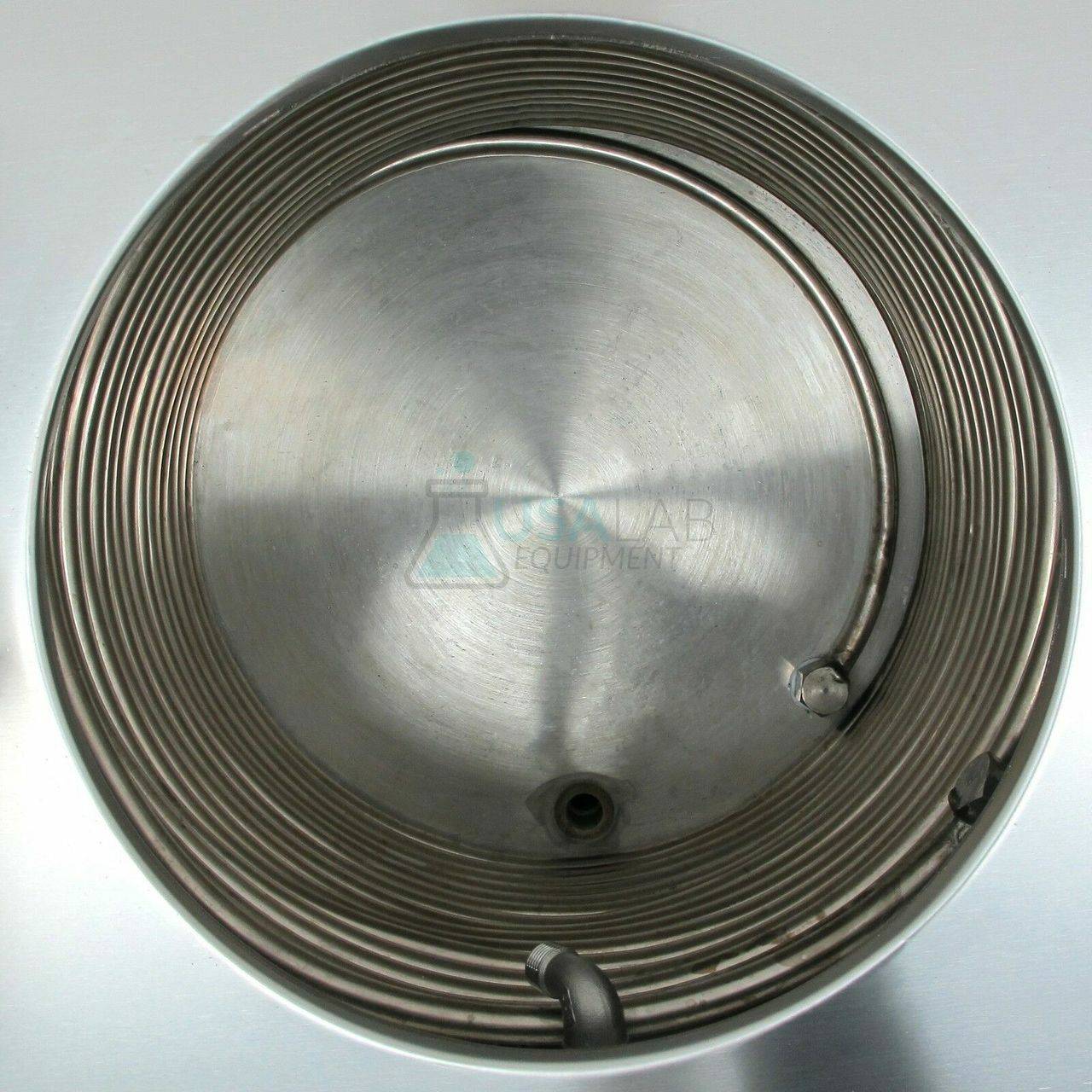

Reservoir Capacity |
20L |
|
Reservoir Dimensions |
11.8″ x 11.8″ |
|
Temperature Range |
Room Temperature to -40°C / -40°F |
|
Power Requirements |
220-240V 60Hz 20A 1800W Single Phase |
|
Refrigerating BTUs |
3,300BTU – 12,400BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure (lift/height) |
2.2bar (4m/12ft) |
|
Barb Size |
5/8″ |
|
Refrigerant |
R404 |
|
Dimensions |
24.8″ x 20.8″ x 43.3″ |
|
Weight |
164lbs |
|
UC-20/40 Packing List |
|
|
USA Lab UC-20/40 Chiller |
1 PC |
|
5/8″ Insulated Tubing |
11ft |
|
5/8″ barbed Valve |
1 PC |
|
PTFE Sealing Tape |
1 PC |
-40°C Temperatures are tested under empty load.
