USA Lab -40°C 100L Closed Loop Recirculating Chiller W/ Touch Screen CLC-100/40-PLC 135L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Oil Tank Capacity: 32L
Temperature Range: RT to -40°C / -40°F
Power Requirements: 200-240V 60Hz 20.4A Three Phase – Hardwired Only
Refrigeration BTUs / Wattage: 75,000BTU – 1,250BTU / 22050-368W
Compressor Type: 10HP Danfoss (UL Listed)
Circulating Pump Wattage: 750W (UL Listed)
Inlet / Outlet Size: 1.5″ FNPT
External Dimensions: 43.3″ x 31.4″ x 51.2″
Weight: 430lbs
Warranty: 1 Year

$20,278.80

SKU: CLC-10040-PLC Category: Brand:

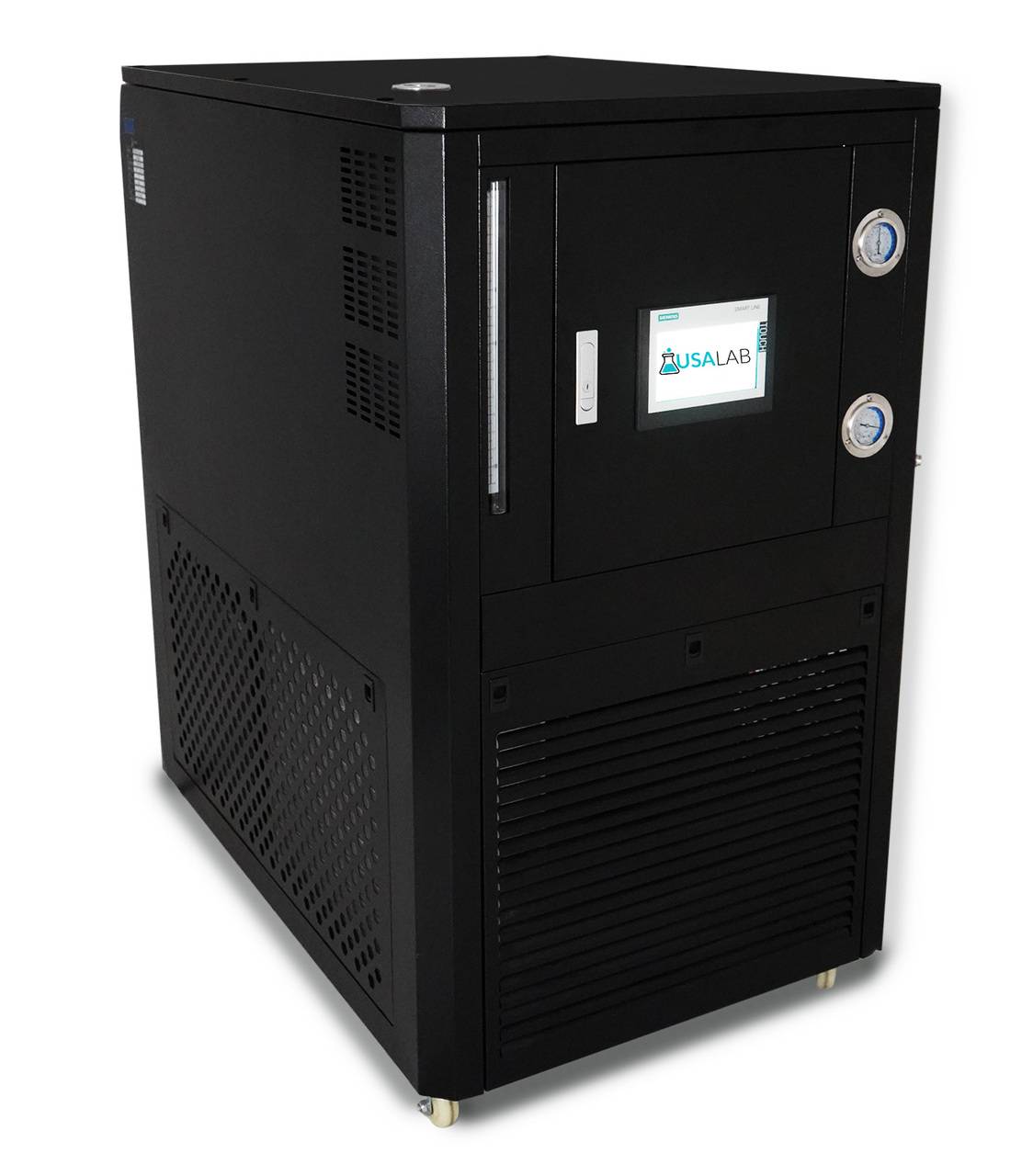

The USA Lab CLC-100/40-PLC is a powerful -40°C Chiller with a 32L Expansion Tank. This unit is a true lab chiller that is ideal for applications involving vacuum systems,

jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.



The USA Lab CLC-100/40-PLC chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for

constant flow rates to match the needs of demanding applications.



This unit includes a Programmable Logic Controller (PLC).

A PLC will control whether the unit will cool or heat depending on the programmed steps and cycles overtime. The PLC also has an option for a static control to operate like a standard chiller.

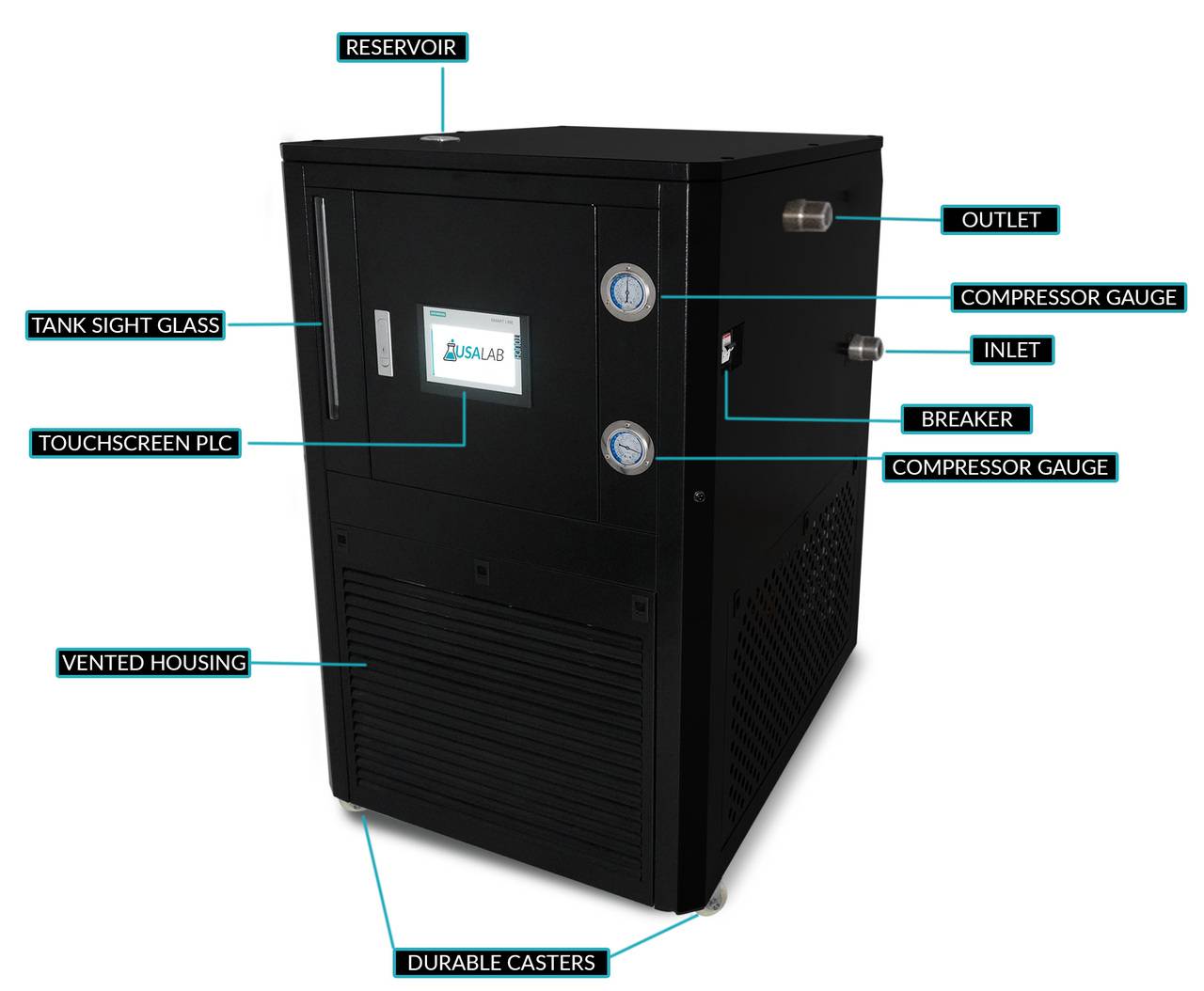

CLC-100/40-PLC FEATURES

• Powerful chilling and high BTU range.

• High quality UL Listed compressor.

• Touchscreen Siemens HMI display.

• R404 refrigerant.

• 12ft of tubing included with Tri-Clamp connections.

• 1 Year warranty with US based parts and support.

• Closed loop for higher thermal transfer performance.

• Versatile Siemens PLC controller with external probe.

SPECIFICATIONS

Model

CLC-100/40

Expansion Tank Capacity

32L

Tank Dimensions

15.74″ x 7.87″ x 15.74″

Temperature Range

RT to -40°C  / -40°F

Power Requirements

200-240V 60Hz 20.4A Three Phase – Hardwired Only

Control Type

SIEMENS PLC S7-200 controller with external probe

Refrigeration BTUs / Wattage

75,000BTU – 1,250BTU / 22050-368W

Total Power

8460 W / 20.4A

Plate Type Heating Area

Heating exchange area 2.50m2

Compressor Type

10HP Danfoss (UL Listed)

Circulating Pump Wattage

750 W (UL Listed)

Fan Wattage

280W x 2pcs

Temperature Accuracy

+/- 0.5°C

Pump Flow

35.7gpm (135L/Min)

Lift

82ft (25m)

Pump Pressure

36.3psi (2.5bar)

Inlet / Outlet Size

1.5″ FNPT

Refrigerant

R404

External Dimensions

43.3″ x 31.4″ x 51.2″

Weight

430lbs

Warranty

1 Year

PACKING LIST

Model

Quantity

USA Lab CLC-100/40-PLC Chiller

1

Tri-Clamp Tubing

12ft Total (2x 6ft)

 Manual

1

Pump Curve:
