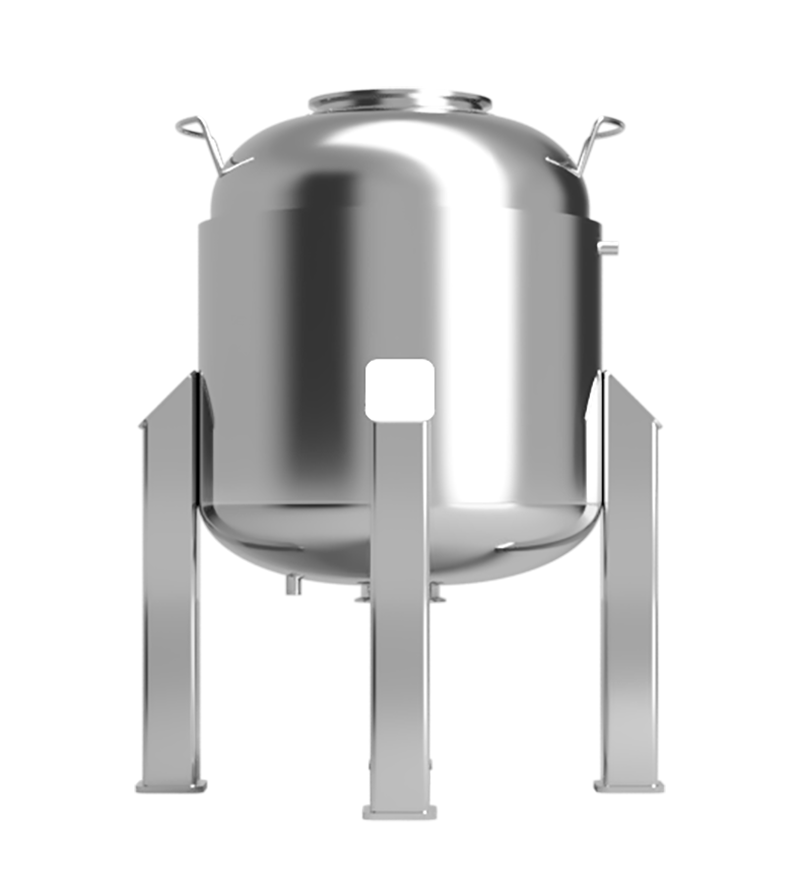

USA Lab 300L Stainless Steel Jacketed Storage Vessel – SS304
| Brand: | USA Lab |
| Material: | 304 Stainless |
$4,000.00
Our 300LÂ Stainless Steel Jacketed Storage Vessel come with a 12″ opening and a 6″ bottom for ease of use and access. Each vessel is fully jacketed with 1/2″ FNPT inlet ports to allow circulation of warm or cold fluids. These reactors are great for filtration, chilling solvents, mixing, winterization, and even ethanol extraction!
Â
Â
|
300L-JSSR Specifications |
|
|
Material |
304 Stainless Steel |
|
Jacket Connections |
1/2″ FNPT |
|
Top Tri-Clamp Connection |
12″ Tri-Clamp |
|
Bottom Tri-Clamp Connection |
6″ Tri-Clamp |
|
Jacket Capacity |
32.4L |
|
Weight |
300lbs |
|
Caster Weight Limit |
440lbs per wheel (1760lbs total) |
|
Diameter – Outer Legs |
36″ |
|
Diameter – Outer Tank |
31″ |
|
Diameter – Inner Tank |
27″ |
|
Height – Total |
56″ |
|
Height – Tri-Clamp to Tri-Clamp |
37″ |
|
Height – Inner Vessel |
34″ |
|
Height – 6″ Tri-Clamp to Floor |
18″ |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
