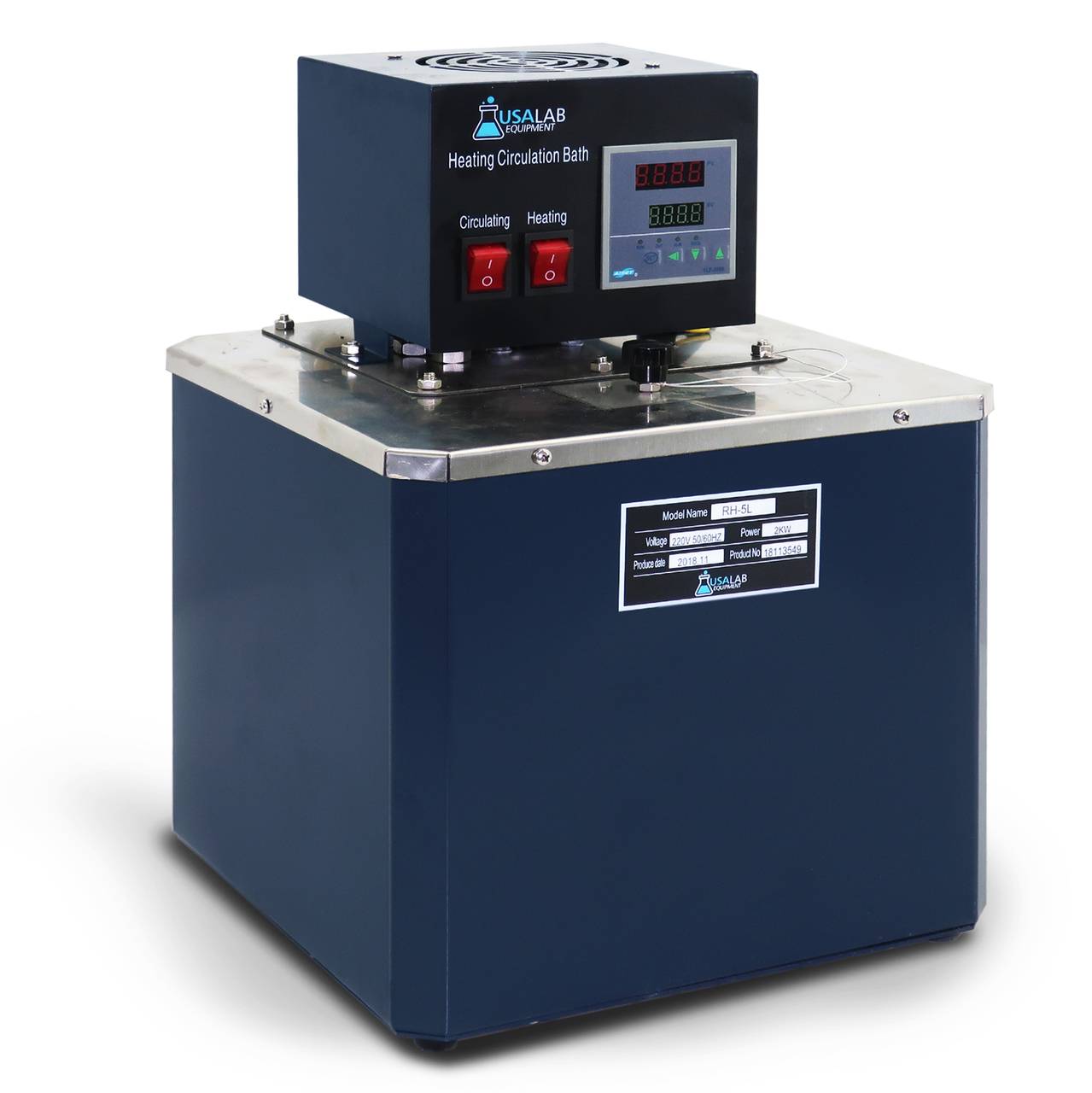

The USA Lab RH-5L Recirculating Lab Heater is built for high flow rates at temperatures of up to 200°C. Upgrade any system with a high temperature heater at an affordable price!
*SILICONE OIL ONLY*
RH-5L Specifications
Reservoir Capacity
5L
Reservoir Dimensions
11″ x 11″ x 10″
Temperature Range
70C to 200°C
Power Requirements
220-240V 50-60Hz 20A
Single Phase 6-20P Plug
Heating Wattage
2000W / 9.09 Amps
Temperature Accuracy
+/- 0.2°C
Pump Flow w/ Water
(Oil Flow May Vary)
18.3L/Min
Total Pump Lift
6m
Connection Size
1/2″ MNPT
Dimensions
12″ x 14″ x 16.5″
Weight
31lbs
RH-5L Packing List
USA Lab RH-5L 200°C Heater
1 pc

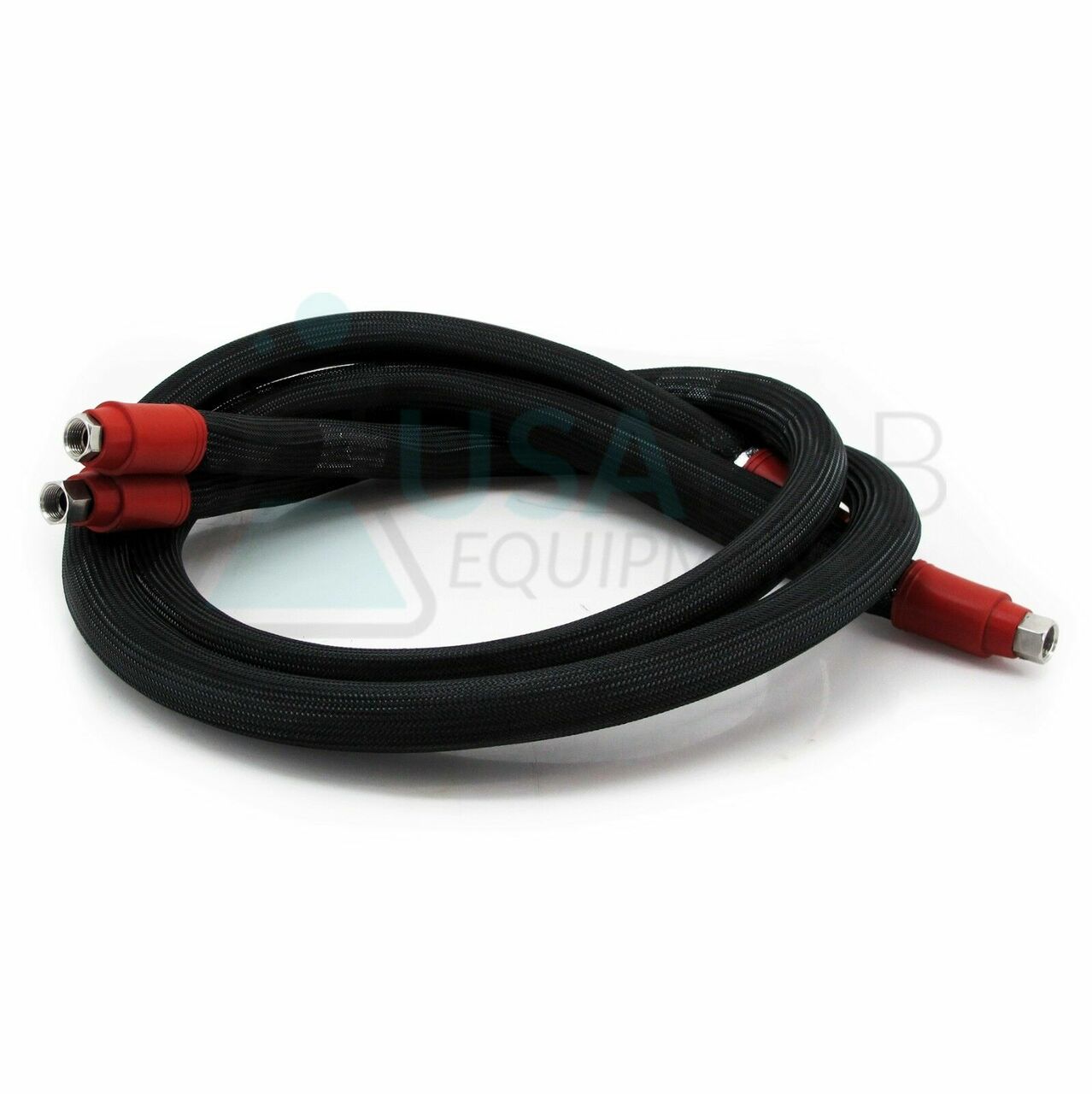

1/2″ FNPT Insulated Tubing – 6ft
2 pcs
1/2″ FNPT to 1/2″ Barb
2 pcs
Pre-installed 6-20P Plug
1 pc
For Technical Support, Questions, or Other Issues Please Email or Call Us!
