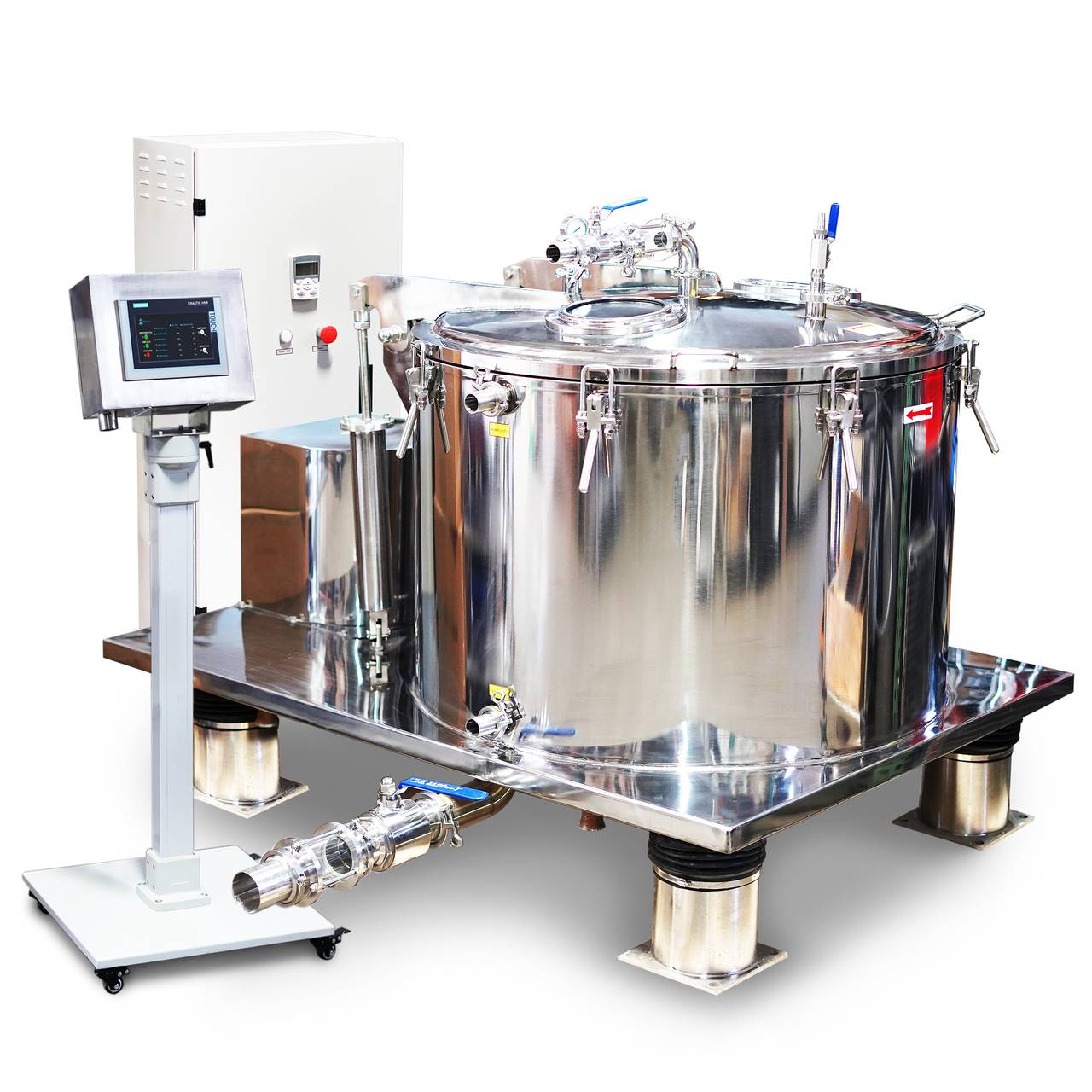

USA Lab 100L Jacketed Stainless Steel Centrifuge XTC-100
| MPN: | XTC-100 |
| Brand: | USA Lab |
| Power Requirements: | 240V 16A 60Hz Three Phase |
$21,999.00
****THIS IS NOT CERTIFIED AND CARRIES NO UL, NRTL, OR C1D1 RATING. PLEASE KEEP THIS IN MIND PRIOR TO PURCHASING****
***DISCLAIMER*** Our closed loop systems are intended for legal purposes only.
They are to be used in well ventilated areas and under accordance with local laws.

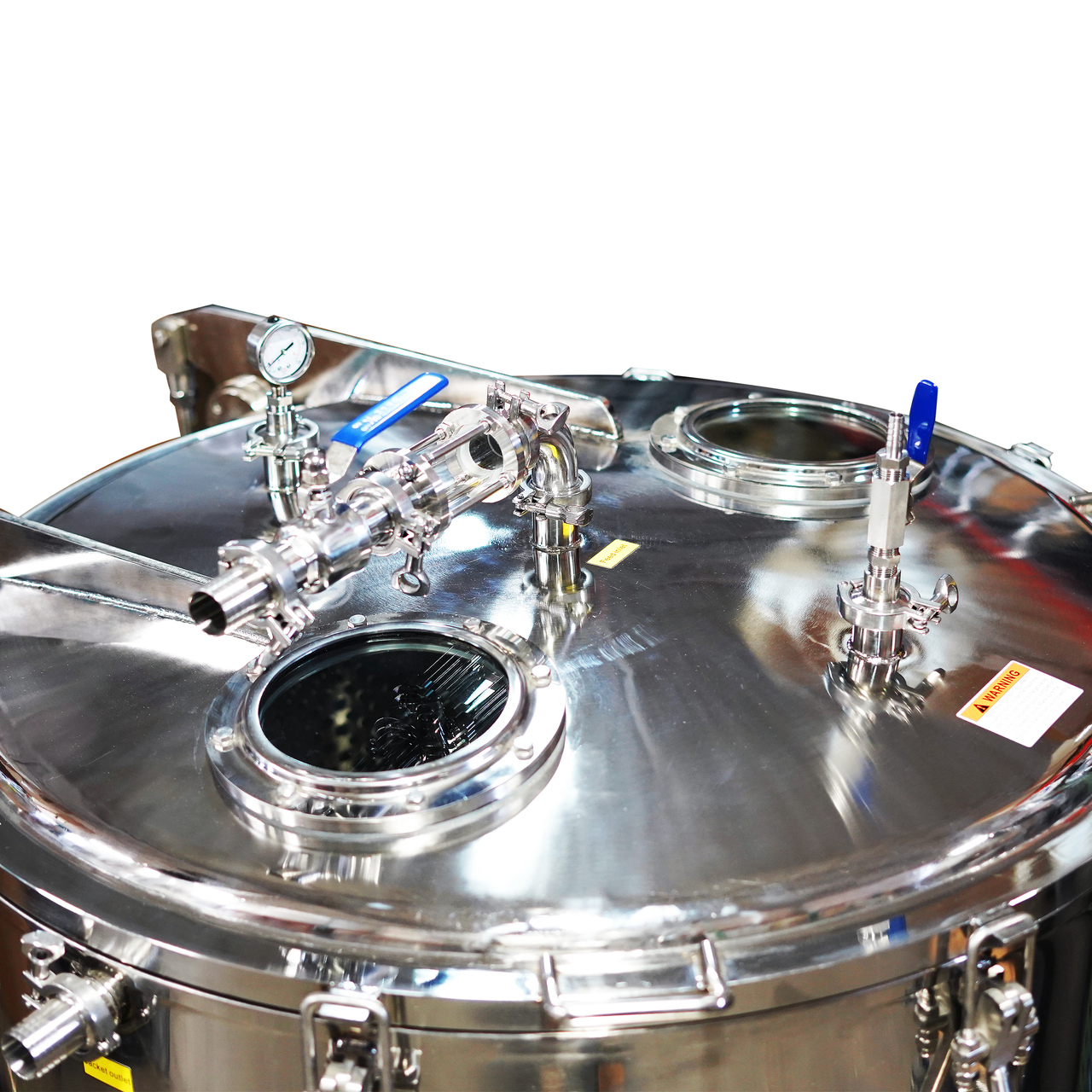

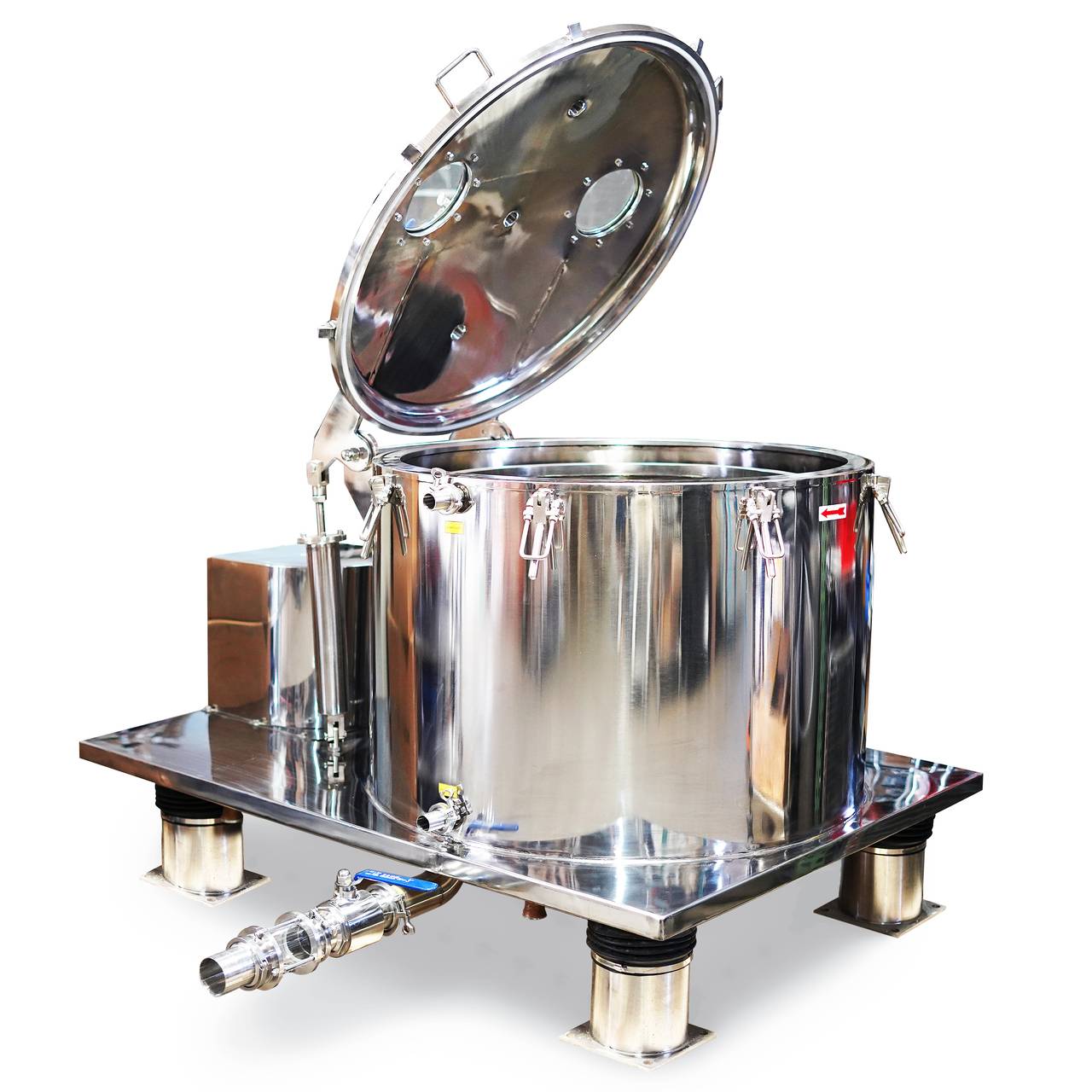

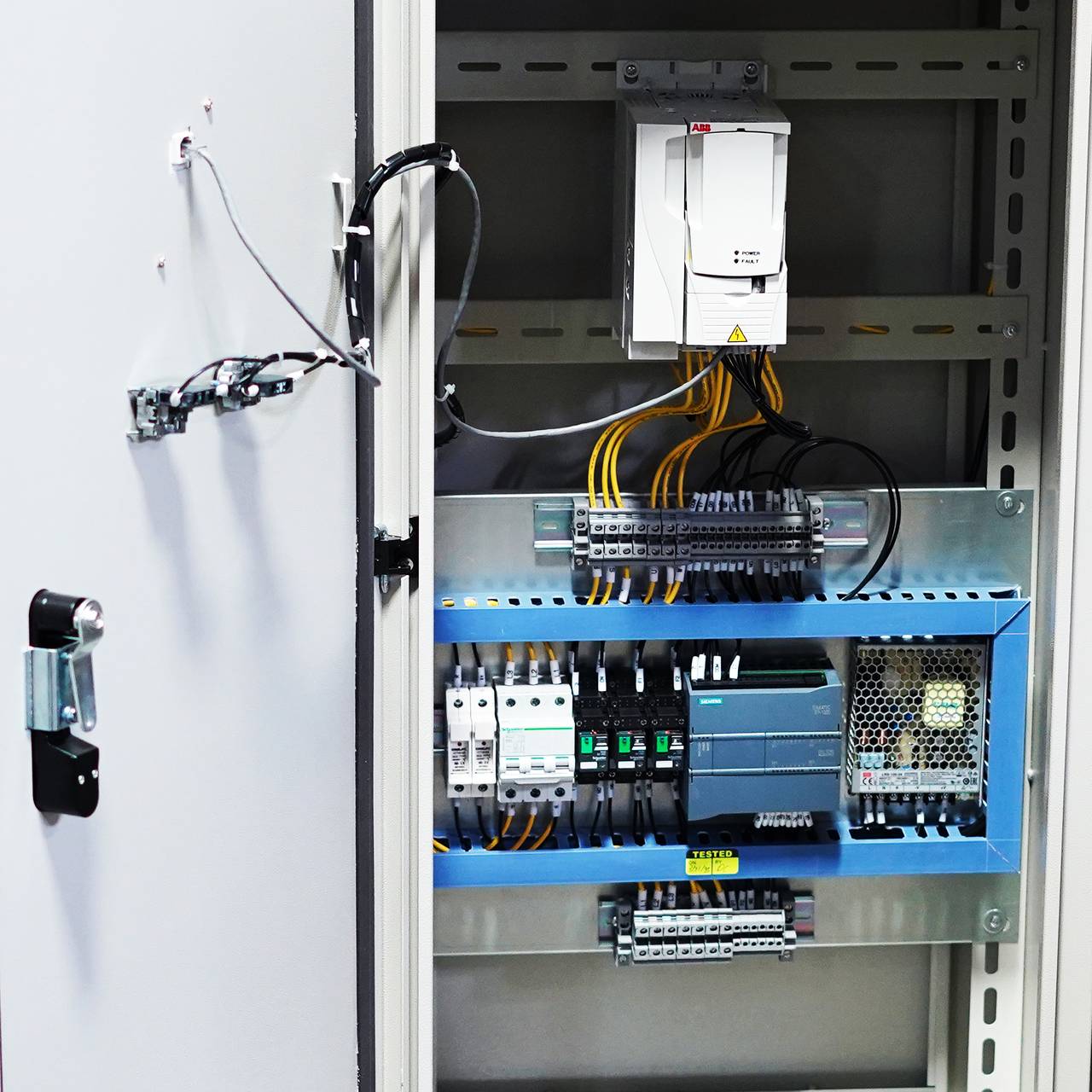

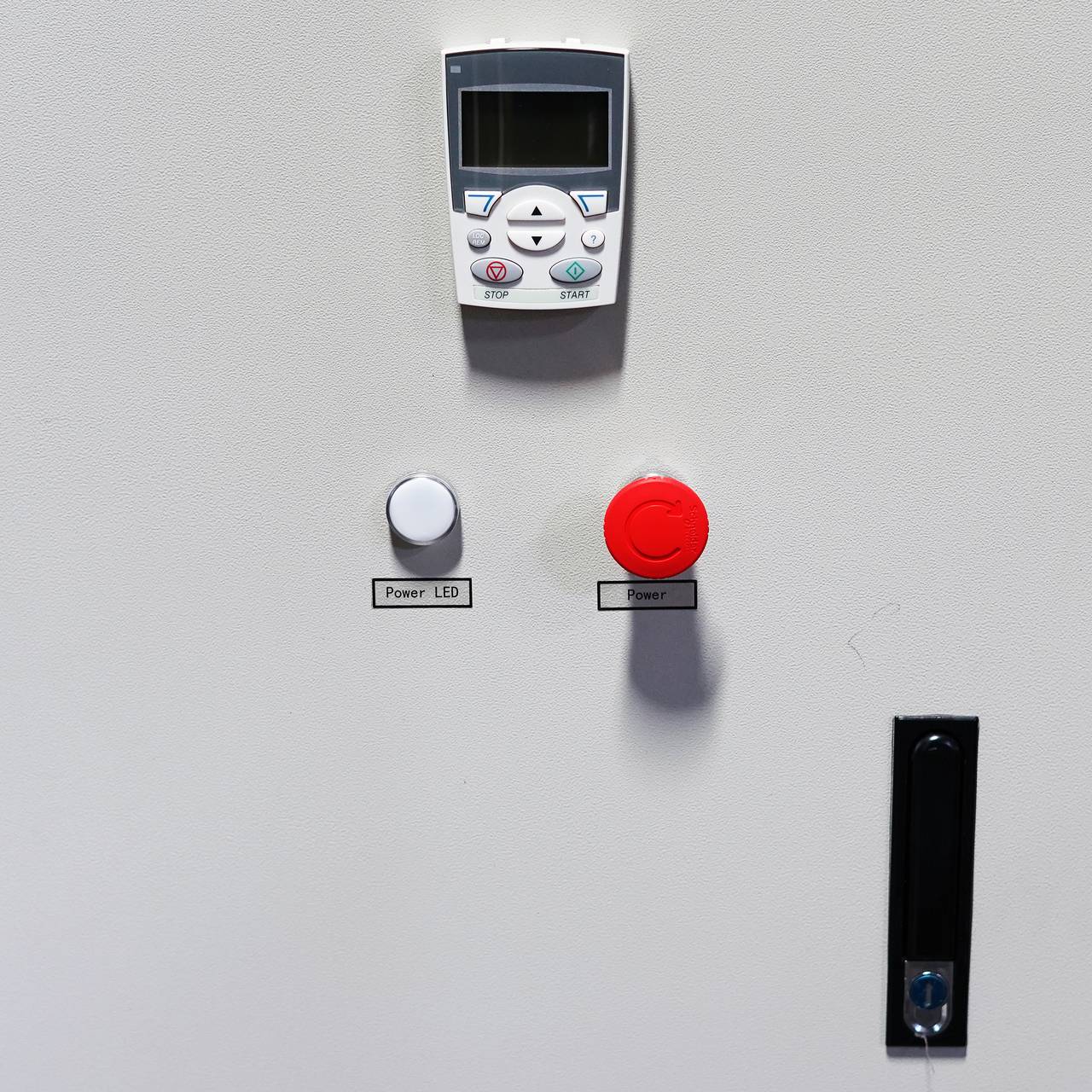

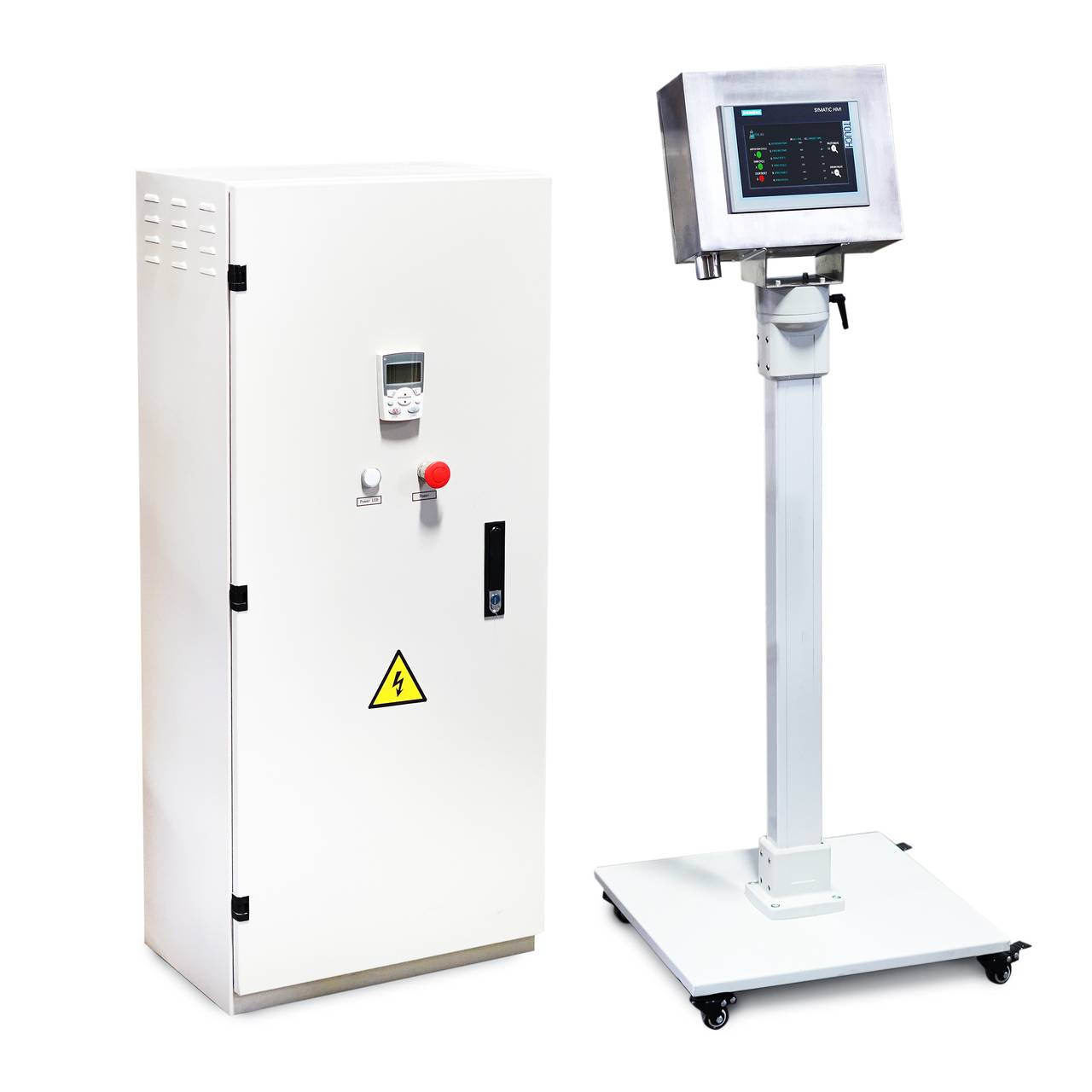

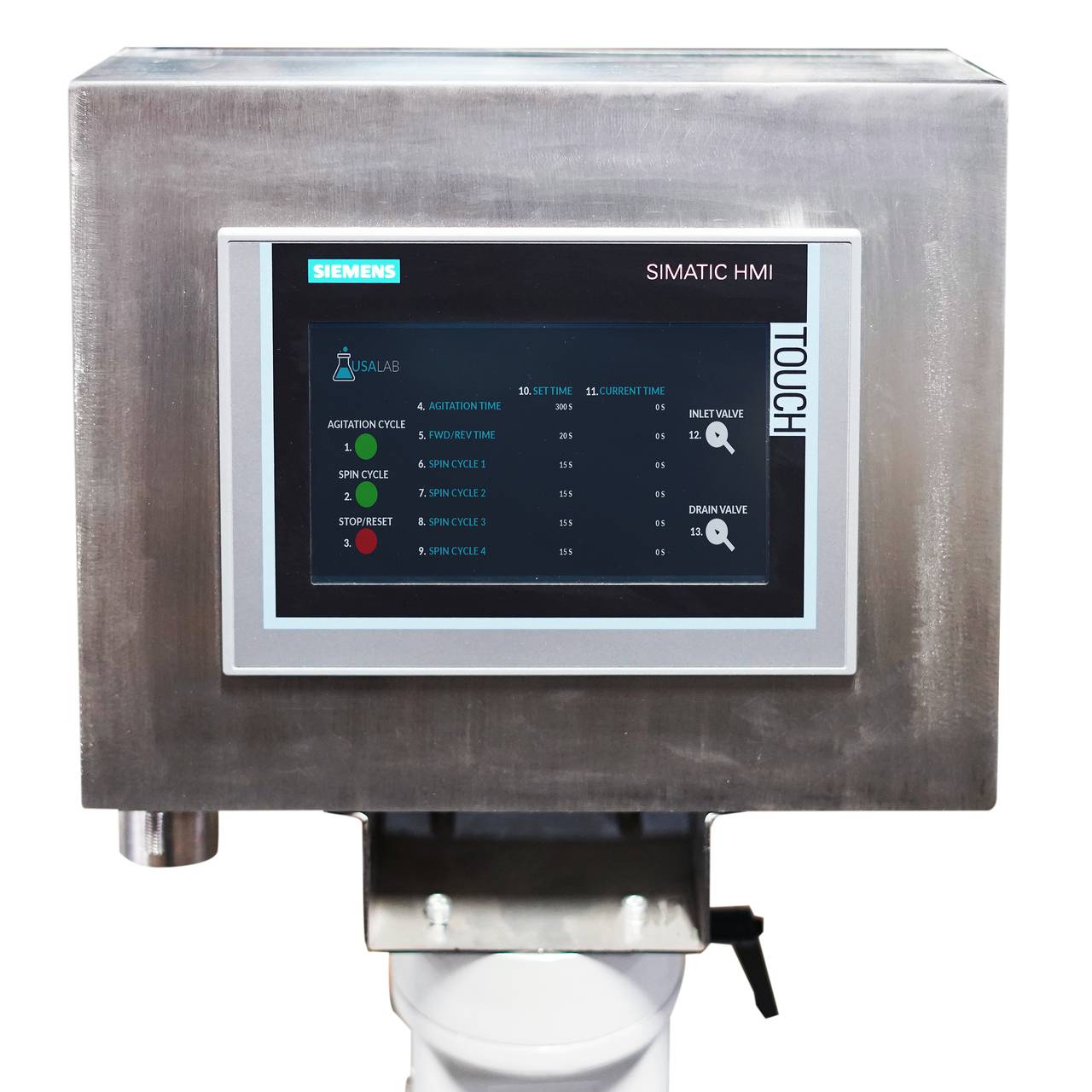

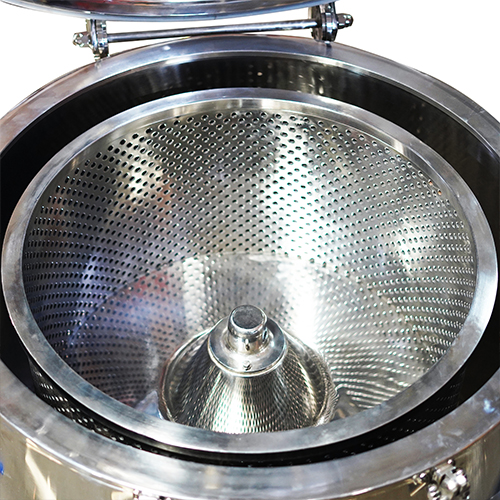

Our XTC-100 Stainless Steel Jacketed Centrifuge systems allow users to perform botanical extraction while maintaining a closed loop system, exposing no solvents to the air. Our system is designed for easy material loading and unloading. Our centrifuges have reinforced sight glass, bi-directional agitation, variable speed controller (VFD – variable frequency drive), resistive braking, explosion proof Siemens touch screen control, and all UL Parts for superior quality. No expense has been spared with this system to provide high quality parts at an affordable price.
|
XTC-100 Specifications |
|
|
Material |
304 Stainless Steel |
|
Electrical |
240V 3Ph 5.5kW 16A |
|
Max RPM |
1200 rpm |
|
Max Plant Load |
60-100lbs |
|
Basket Volume |
100L |
|
Jacket Volume |
65L |
|
Lid Connections |
3x 1.5″ Tri-Clamp |
|
Jacket Connections |
2x 1.5″ Tri-Clamp |
|
Drain Connections |
3″ Tri-Clamp |
|
Gasket Material |
PTFE |
|
Lid Gasket Material |
Silicone |
|
Basket Inner Dimensions |
30.5″ Diameter x 17.8″ H |
|
Inner Dimensions |
38″ Diameter x 17.8″ H |
|
Exterior Dimensions |
70″ L x 48″ W x 48″ H |
|
Weight |
4000lbs |
**Will need to add explosion proof conduit from centrifuge to controller. Not included.
