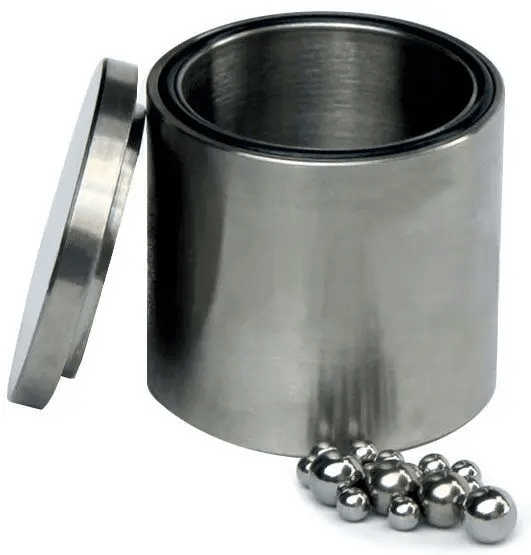

Stainless Steel (Grade 304) Grinding Jar with Lid
$199.00 – $899.00
Polished stainless steel (grade 304) grinding jars for planetary ball mills. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed sizes of stainless steel grinding balls (see detail table below).
Grade 304 is the most widely used austenite steel, also known as 18/8 for its composition of 18% chromium and 8% nickel. 304 may be referred to as A2 stainless (not to be confused with A2 grade steel, also named Tool steel, a steel).
Specifications
Jar size | 50 ml |
100 ml | 500 ml | 1 L |
Outer diameter (OD) |
64 mm | 64 mm | 105 mm | 135 mm |
Inner diameter (ID) | 42 mm | 52 mm | 90 mm | 119 mm |
Total height | 57 mm | 66 mm | 103 mm | 116 mm |
Depth | 39 mm | 52 mm | 88 mm | 100 mm |
Total weight | 1.8 lbs. |
2 lbs. | 6 lbs. |
13 lbs. |
Ball configurations
 |
50ml |
100ml |
500ml |
1000ml |
|
Ball size/qty |
6mm |
50 |
100 |
500 |
1000 |
10mm |
8 |
16 |
100 |
200 |
|
20mm |
|
|
2 |
3 |
Jar configurations
Planetary Ball Mill |
Capacity |
Compatible Non-Vacuum Jars |
Compatible Vacuum Jars |
Quantity |
PQ-N04 |
0.4L | 50ml – 100ml | 50ml | 4 |
PQ-N2 |
2L | 250ml – 500ml | 100ml – 250ml | 4 |
PQ-N4 |
4L | 500ml – 1000ml | 250ml – 500ml | 4 |
Tolerance: +/- 2-3 mm
