Condensing Coil Siphon Tube for Solvent Tank
$584.52 – $731.60

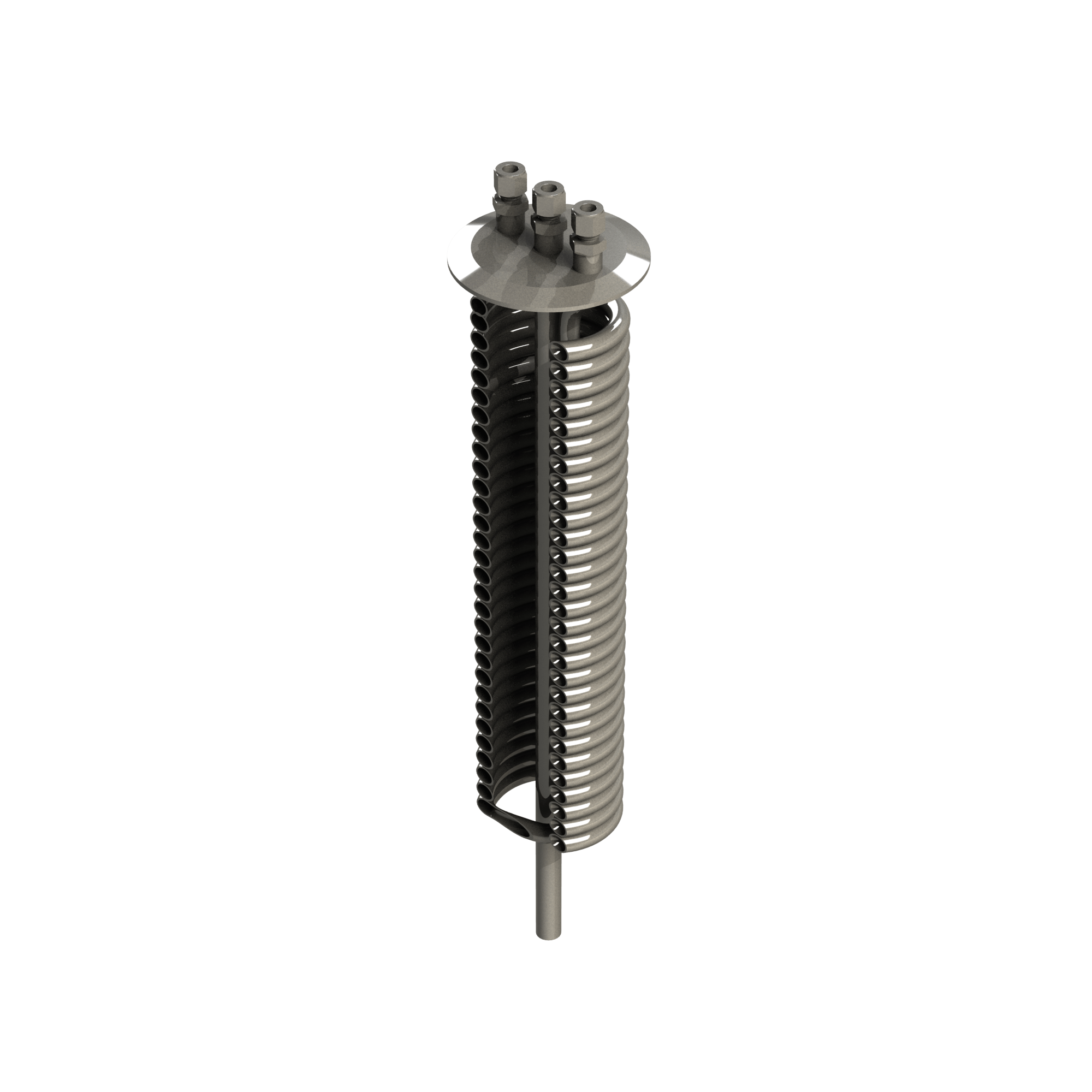

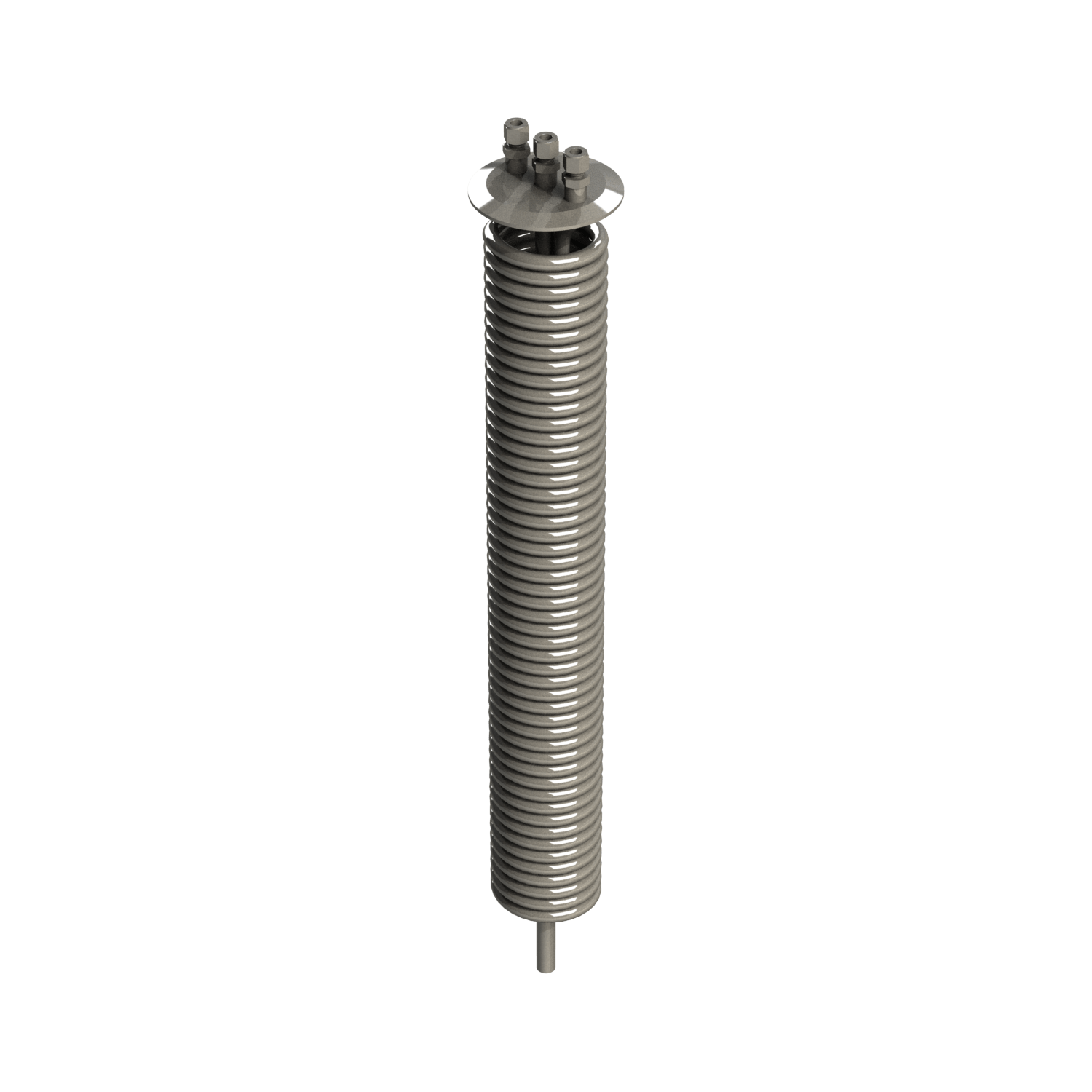

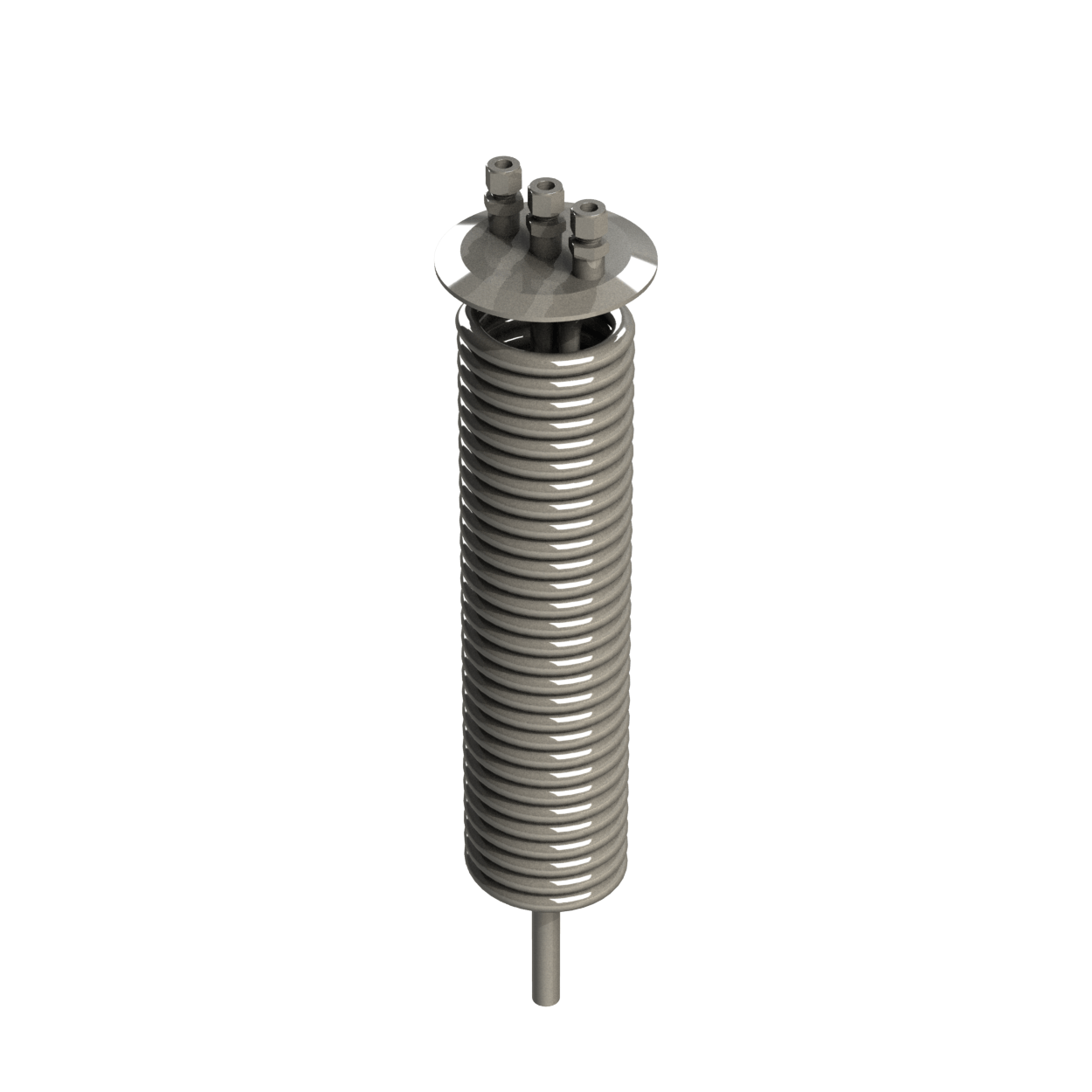

Solvent Tank Condensing Coil Siphon Tube
This coil increases your control of solvent temperature/pressure

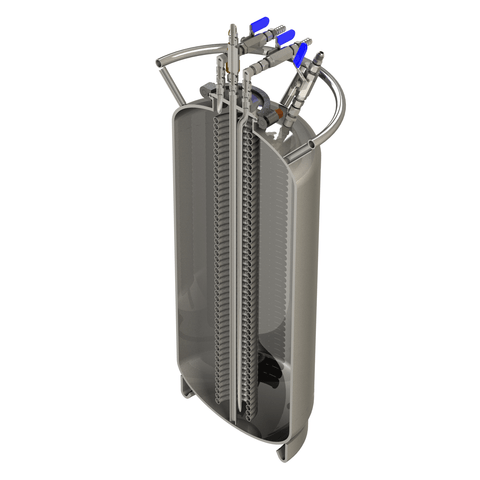

Circulate liquid in the coil while still allowing use of the dip tube
Comes with 3x 3/8″ Compression Fittings on a 4″ Tri-Clamp Flat Cap
Coil Tubing Diameter: 1/2″
COIL PATH LENGTHS |
| 25LB = 25FT |
| 50LB = 43FT |
COIL DIPTUBE LENGTHS(END OF DIPTUBE TO BOTTOM OF FLATCAP) |
| 25LB = 20.4IN |
| 50LB = 30.6IN |
TANK DIPTUBE LENGTHS(END OF DIPTUBE TO BOTTOM OF FLATCAP) |
| Non Jacketed 25LB = 20.4IN |
| Jacketed 50LB = 30.6IN |
| Non Jacketed 50LB = 28.375IN |
If you’re buying for a Non Jacketed 50LB Tank, at Checkout in the Section “ADD A COMMENT TO YOUR ORDER?”, please note:
“Cut dip tube for Non Jacketed 50LB Tank” or note other custom lengths needed in the Checkout Section
*DOES NOT FIT WITH OUR 25LB JACKETED TANKS
Replacement & Accessory Items |
|
  |
 Compression Ball Valve – 3/8″
|
 MJIC x 3/8″ Tube Stub
|
 1/2″ Hose Barb x 3/8″ Compression Tube Stub
|
 Nylon Hose Clamp, Max O.D. 0.875in.
|
 1/2″ ID Rubber Hose – Custom Length
|
