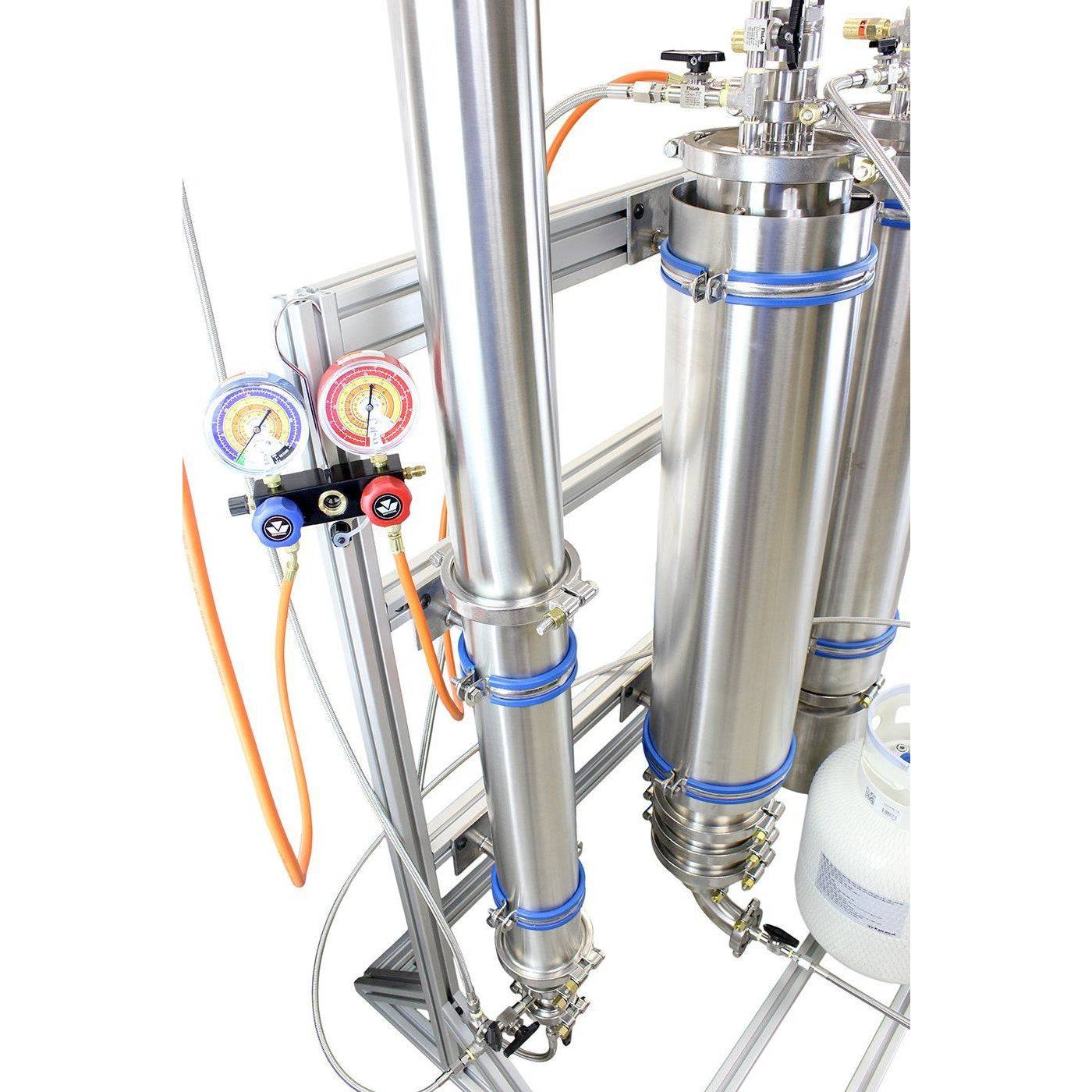

PSI Certified Poseidon Closed Loop Extraction System

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$16,832.55

PSI Certified Poseidon Closed Loop Extraction System

This system includes a lifetime warranty from BVV™

(warranty excludes consumable items and moving parts)

This Item will ship via Freight only and will carry a 1-week lead time

Note: Requires a C1D1 or Pneumatic Drive Pump.

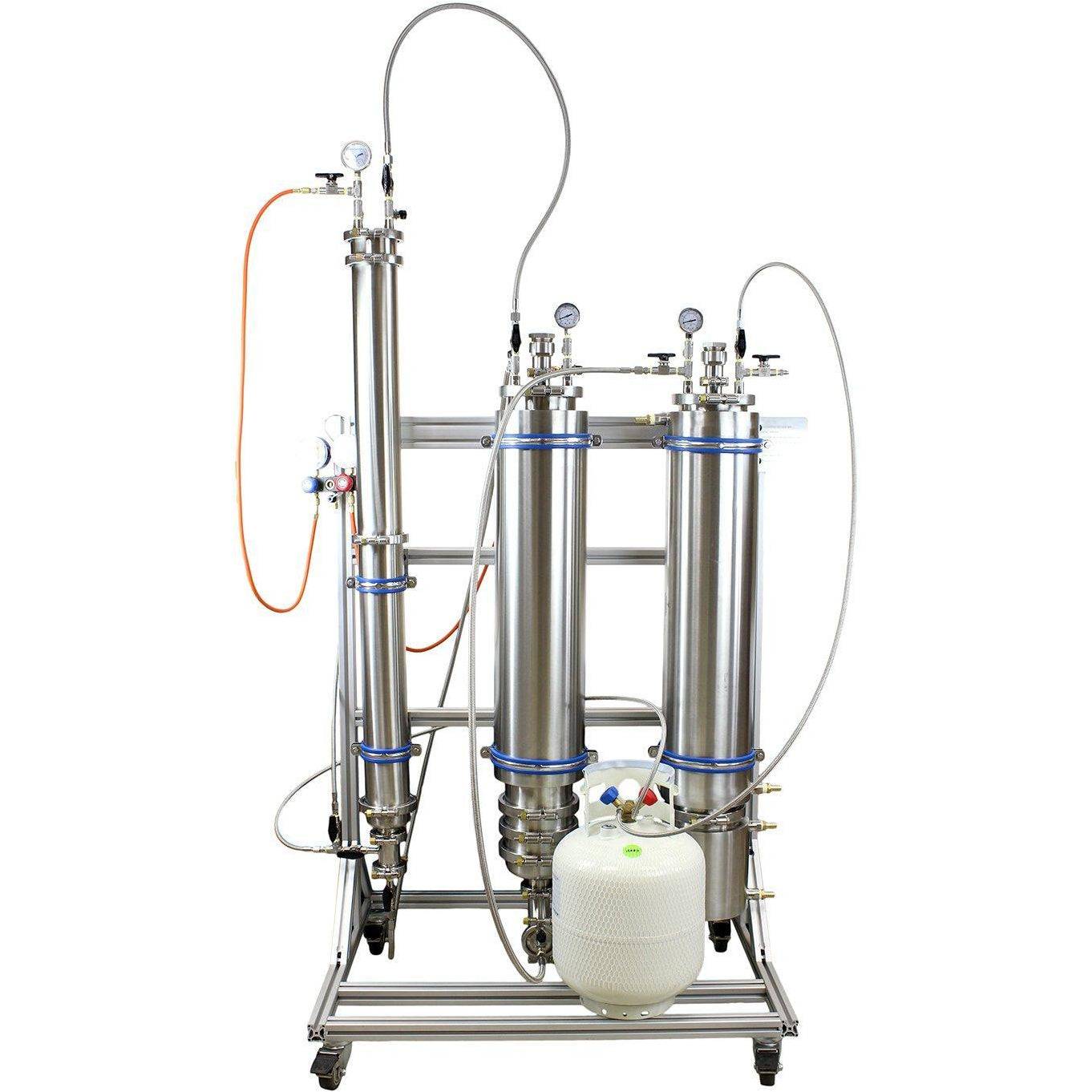

The Poseidon by BVV™ comes fully assembled, tested, and certified in California, Colorado, Maryland, Nevada, Oregon, Pennsylvania, and Washington. The Poseidon is a 2 – 5 lb hydrocarbon extraction system for use with butane. This system is intended to be run passively.

The Poseidon uses a modular material column, allowing users to choose a 2 or 5lb capacity. The system also allows full dewaxing inline by utilizing a secondary chamber to chill solvent by using dry ice in the sleeved column. Once the solvent is chilled, unwanted fats and waxes are filtered from the extracted oils. The collection column is fully jacketed and is heated using a Polyscience chiller.



The Poseidon has been reviewed using the following codes:

International Fire Code 2015 Edition

NFPA 58 Liquefied Petroleum Gas Code 2014 Edition

ASME Boiler and Pressure Vessel Code, Section VIII 2013 Edition



Details:

  • 4”x24” or 4”x48” Material Column

  • 6”x36” Dewaxer with Filters

  • 6”x44” Jacketed Collection Column

  • Third Party Engineer Peer Review

  • 304 Stainless Steel

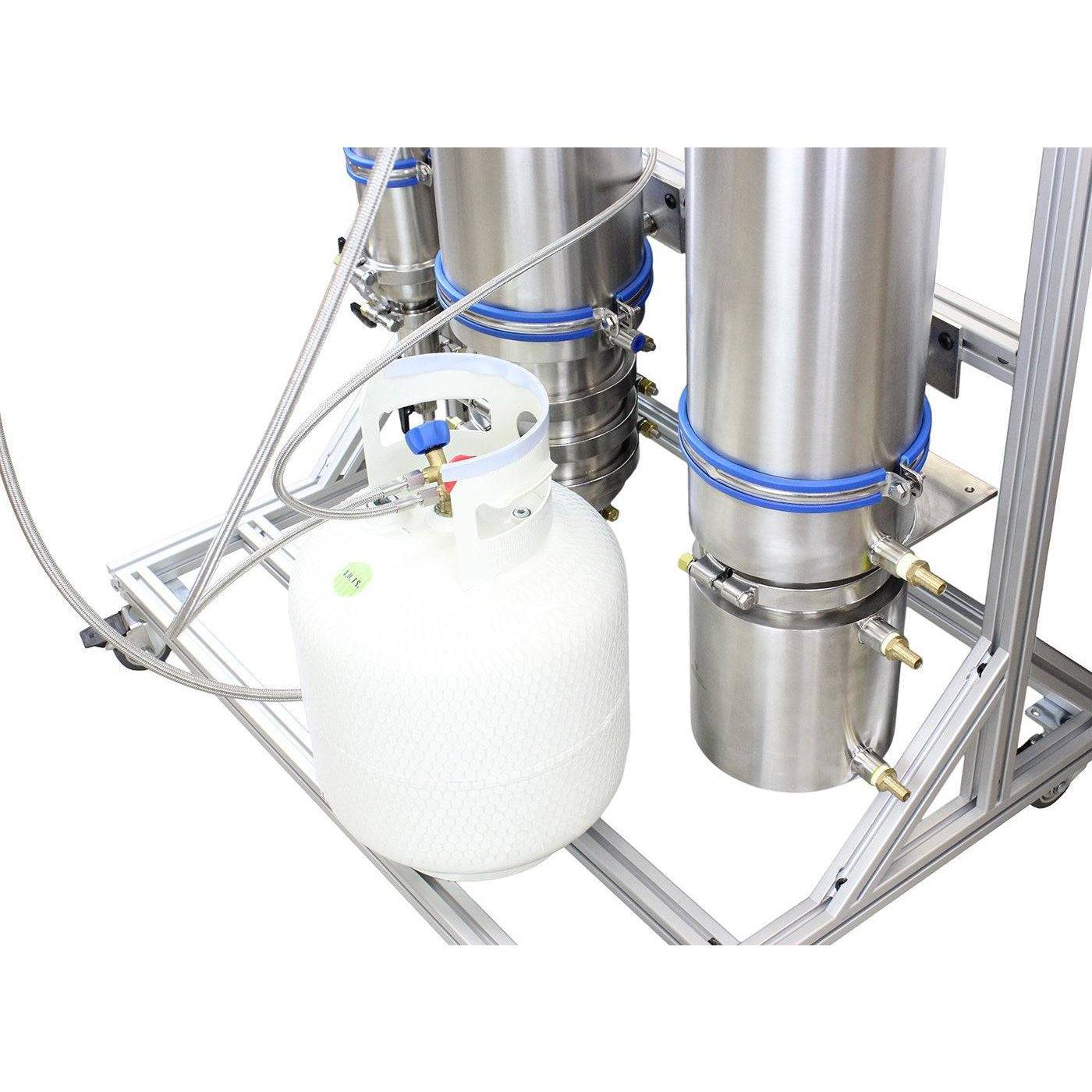

  • 50# LPG Rated DOT Storage Tank

  • Fully Encapsulated Ball Valves

  • High Pressure Clamps

  • High Pressure Sight Glass

  • Buna-N and PTFE Envelope Gaskets

  • PTFE Lined High Pressure Hoses

  • UL Listed Pressure Relief Valves



Additional Equipment Included:

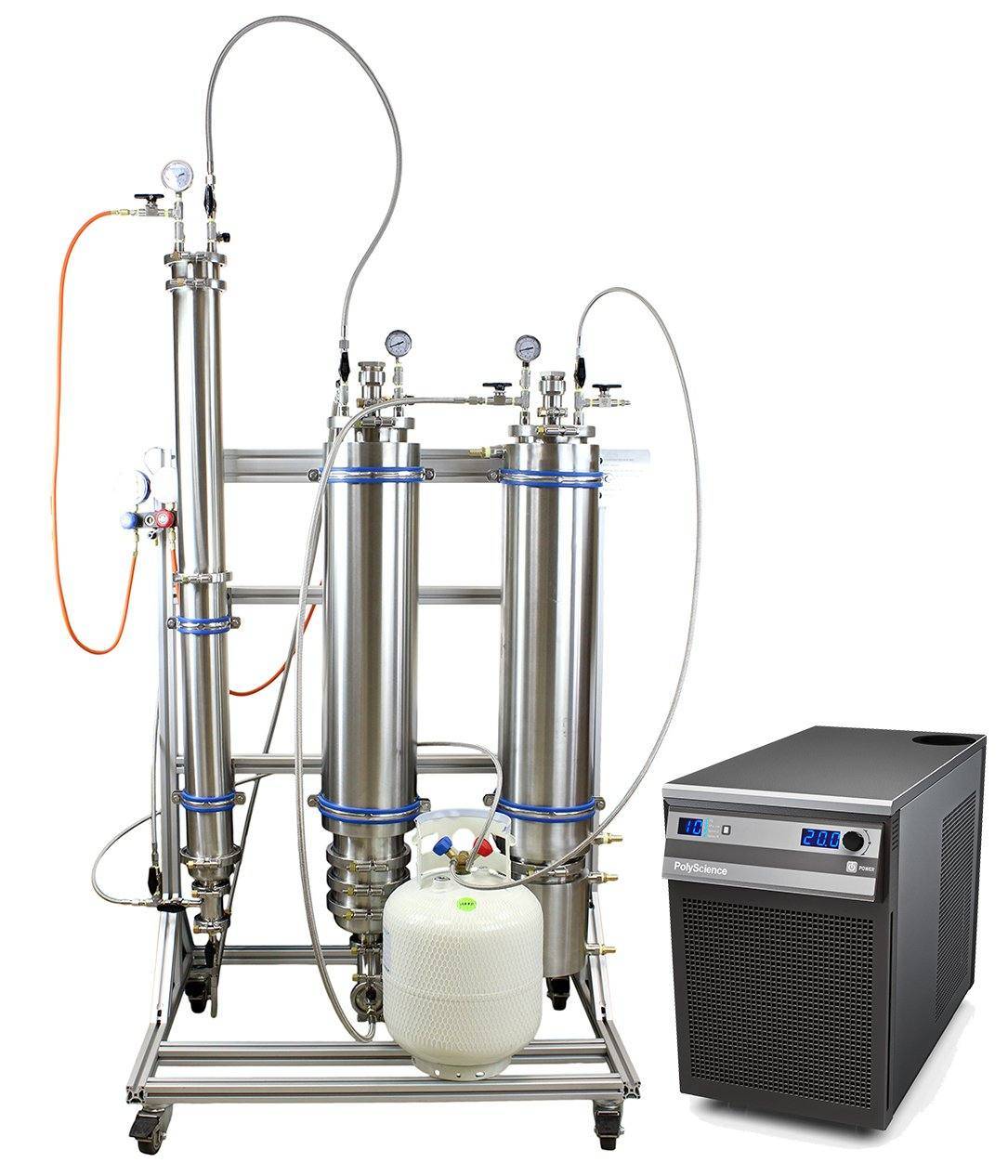

  • 6100 Series Polyscience Chiller

Operating Conditions:

  • 90 PSI @ -40F to 120F

Max Allowed Working Pressure:

  • 350 PSI @ 120F

  • Butane Only





*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.



***Note: This item will ship via Freight ONLY.

Cylinder Volume



Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =


Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material

Cans of Butane by Size


mL fl oz lbs # of Cans
420 14.2
300 10.1
200 6.7
150 5.07
