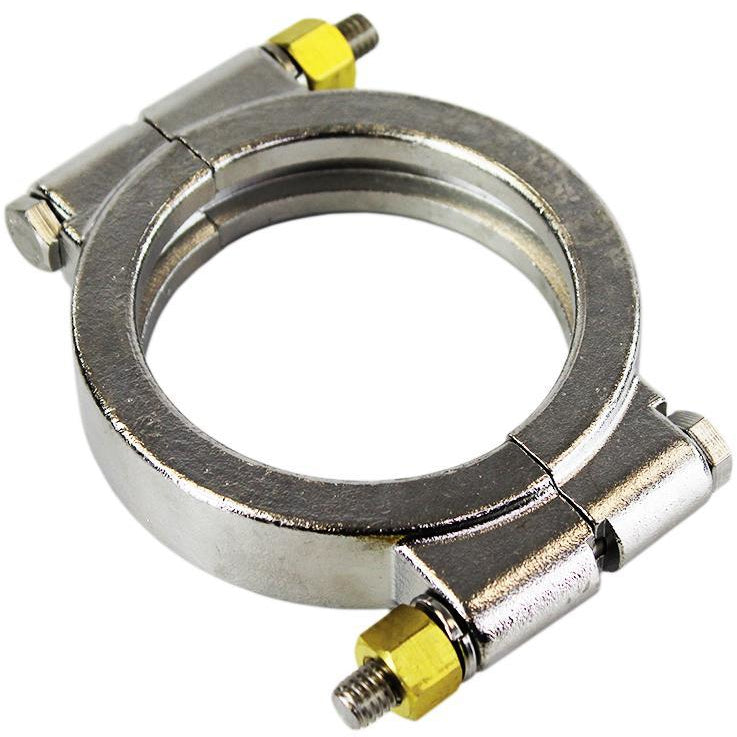

Pro Series High Pressure Clamps

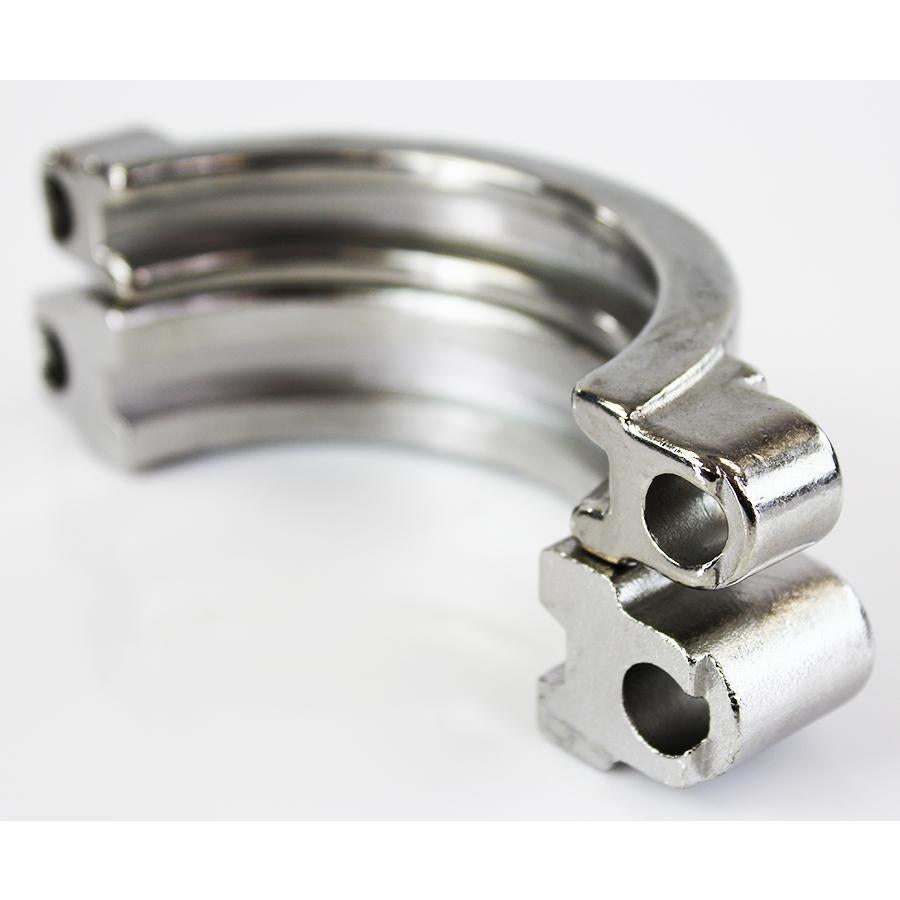

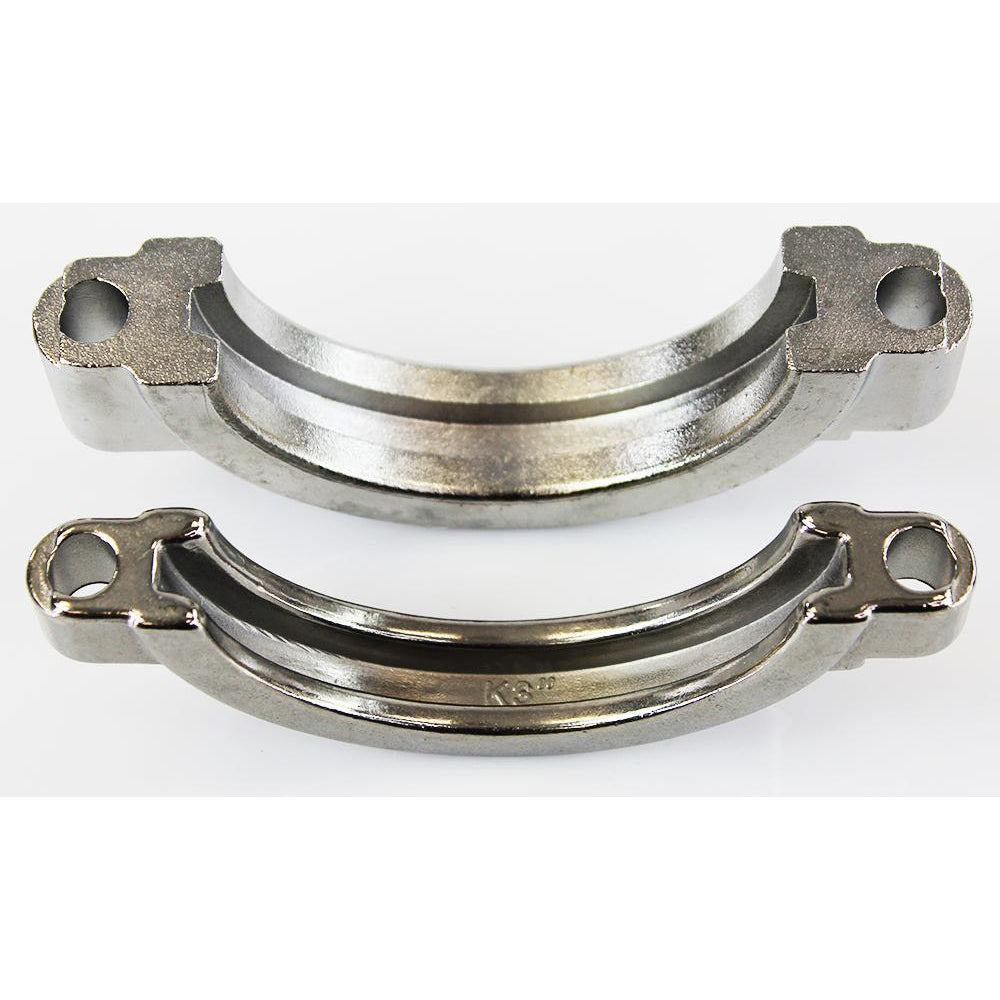

These are the Pro Series High Pressure Clamps for Heavy Duty Applications. These clamps are completely re-designed to be stronger and more industrial to last longer and stand up to higher pressure applications. The Internal flange of the clamp is much more precise offering better dispersion of pressure on the sealing face of the gasket which allows to the system to seal without having to overtighten the clamps.

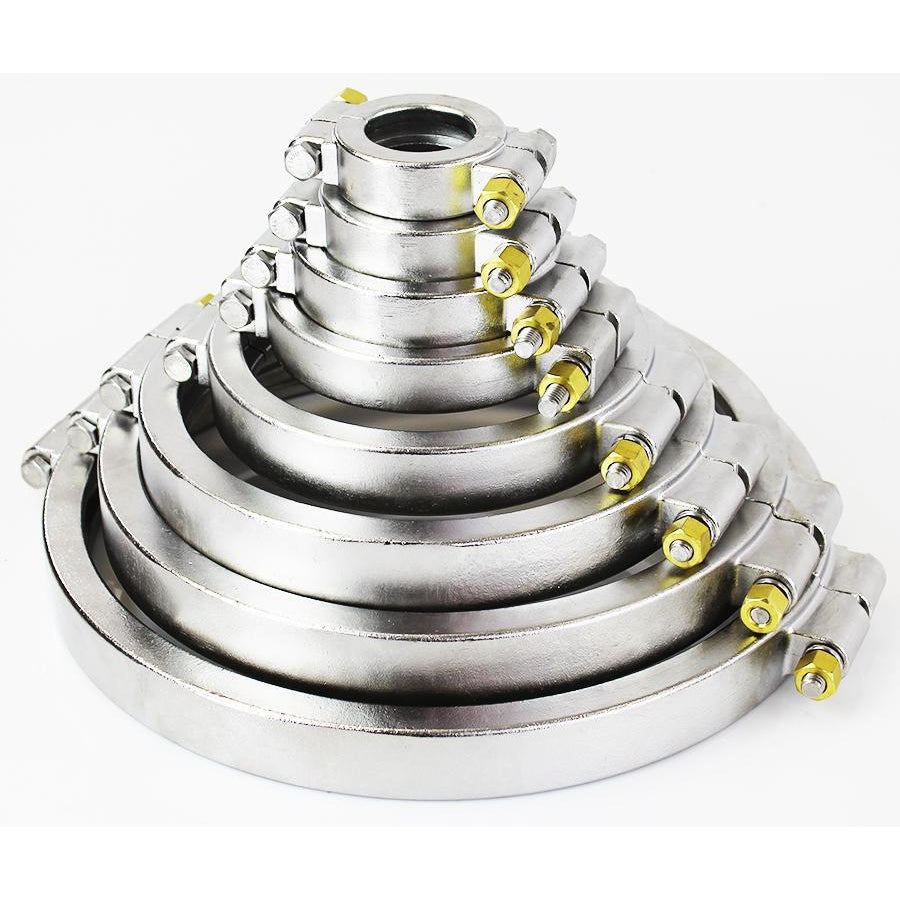

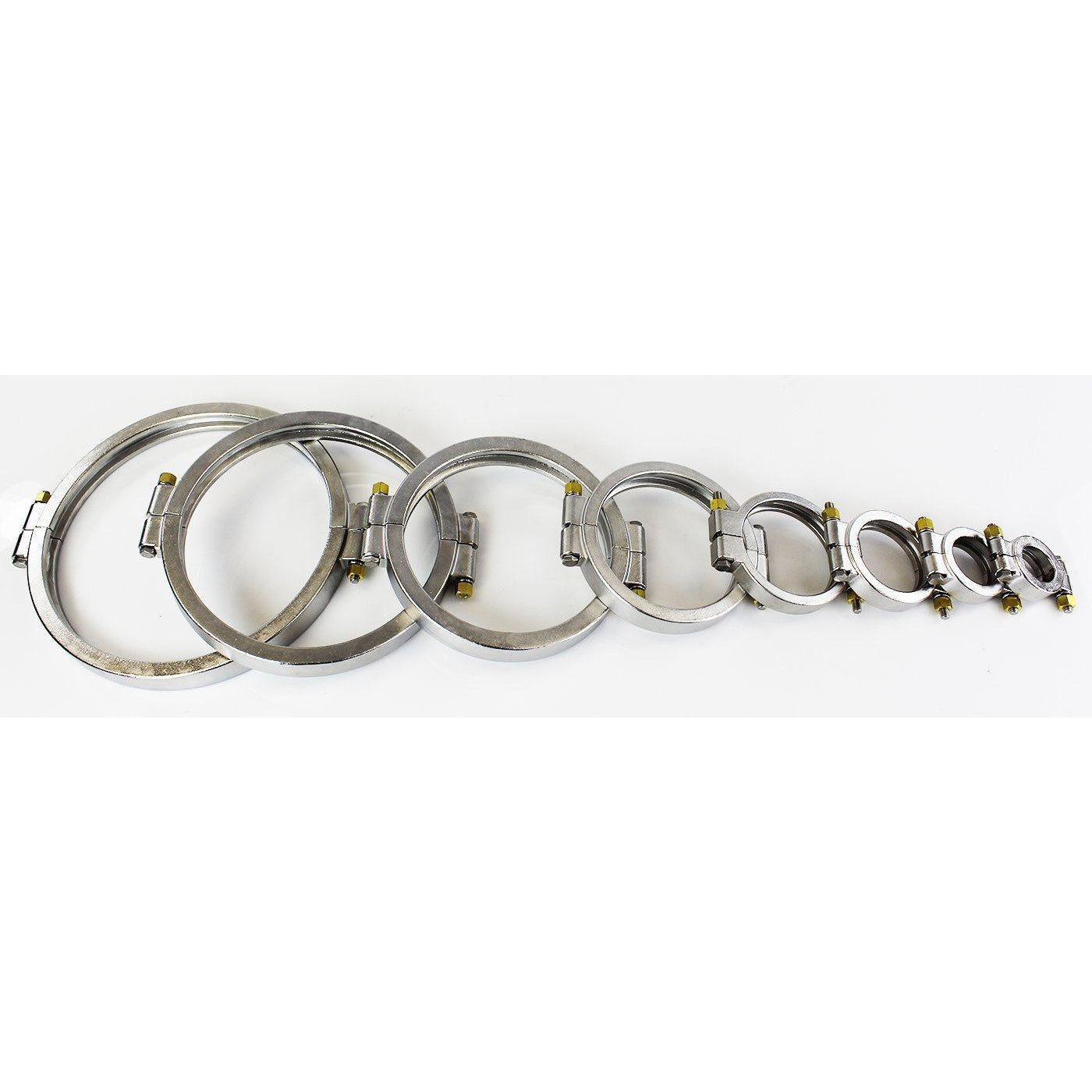

Sizes Available:

    • 1.5″ High Pressure Clamp

    • 2″ High Pressure Clamp

    • 3″ High Pressure Clamp

    • 4″ High Pressure Clamp

    • 6″ High Pressure Clamp

    • 8″ High Pressure Clamp

    • 10″ High Pressure Clamp

    • 12″ High Pressure Clamp

Specifications:

    • Hinge Type: Bolted

    • Material: 304 Stainless Steel

    • Connection Type: Tri-Clamp
    • Nut Size: 5/8″ for All Clamp Sizes

Sizes Max Torque (Nm / Ft Lbf / In Lbf)
Maximum Pressure @70F Maximum Pressure @250F
1.5″ 12-14 / 8.85-10 / 106-124 2500 1500
2″ 12-14 / 8.85-10 / 106-124 2500 1200
3″ 12-14 / 8.85-10 / 106-124 2500 1200
4″ 12-14 / 8.85-10 / 106-124 1800 1000
6″ 12-14 / 8.85-10 / 106-124 800 400
8″ 12-14 / 8.85-10 / 106-124 500 250
10″ 12-14 / 8.85-10 / 106-124 300 175
12″ 12-14 / 8.85-10 / 106-124 250 125
