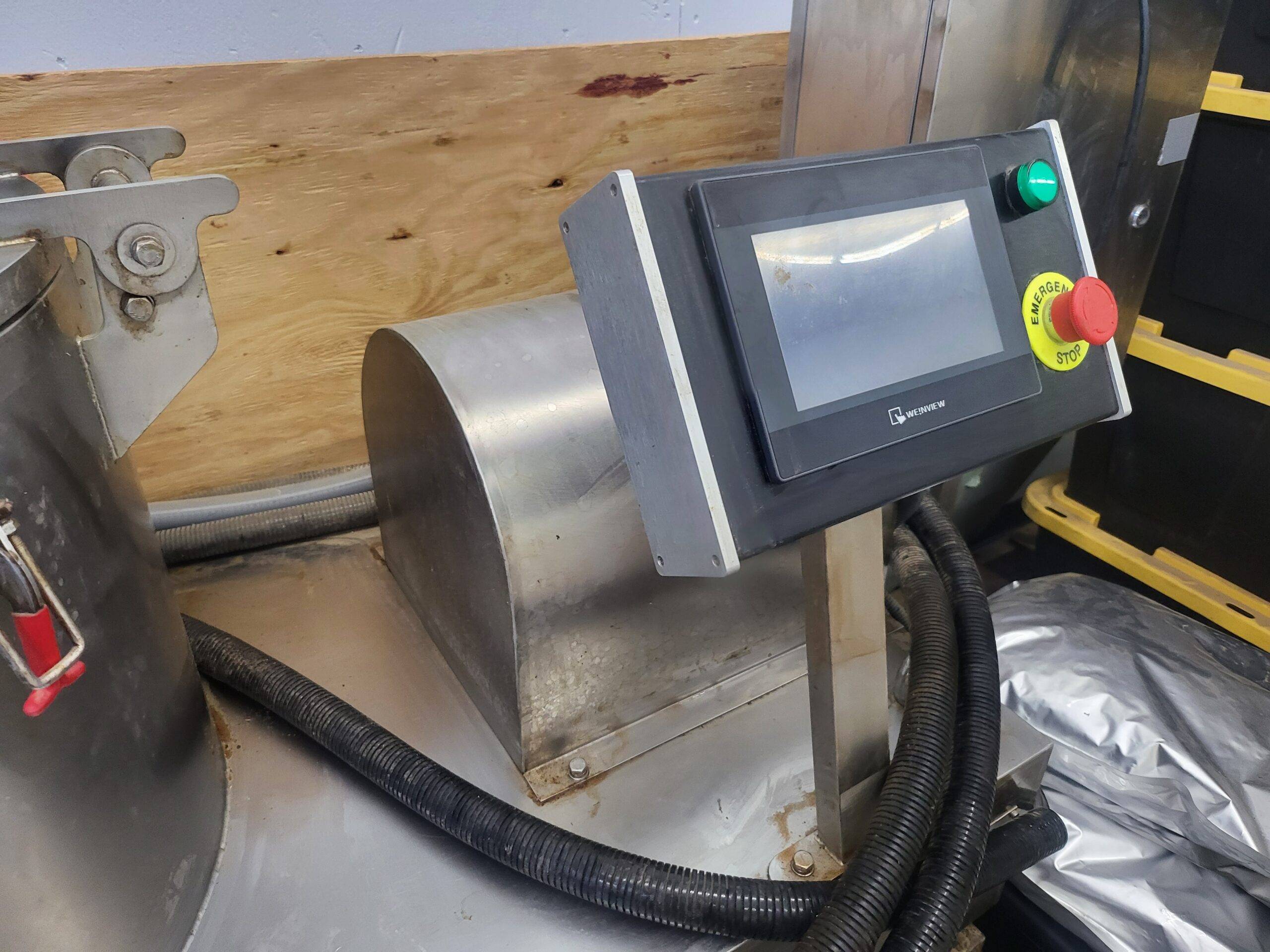

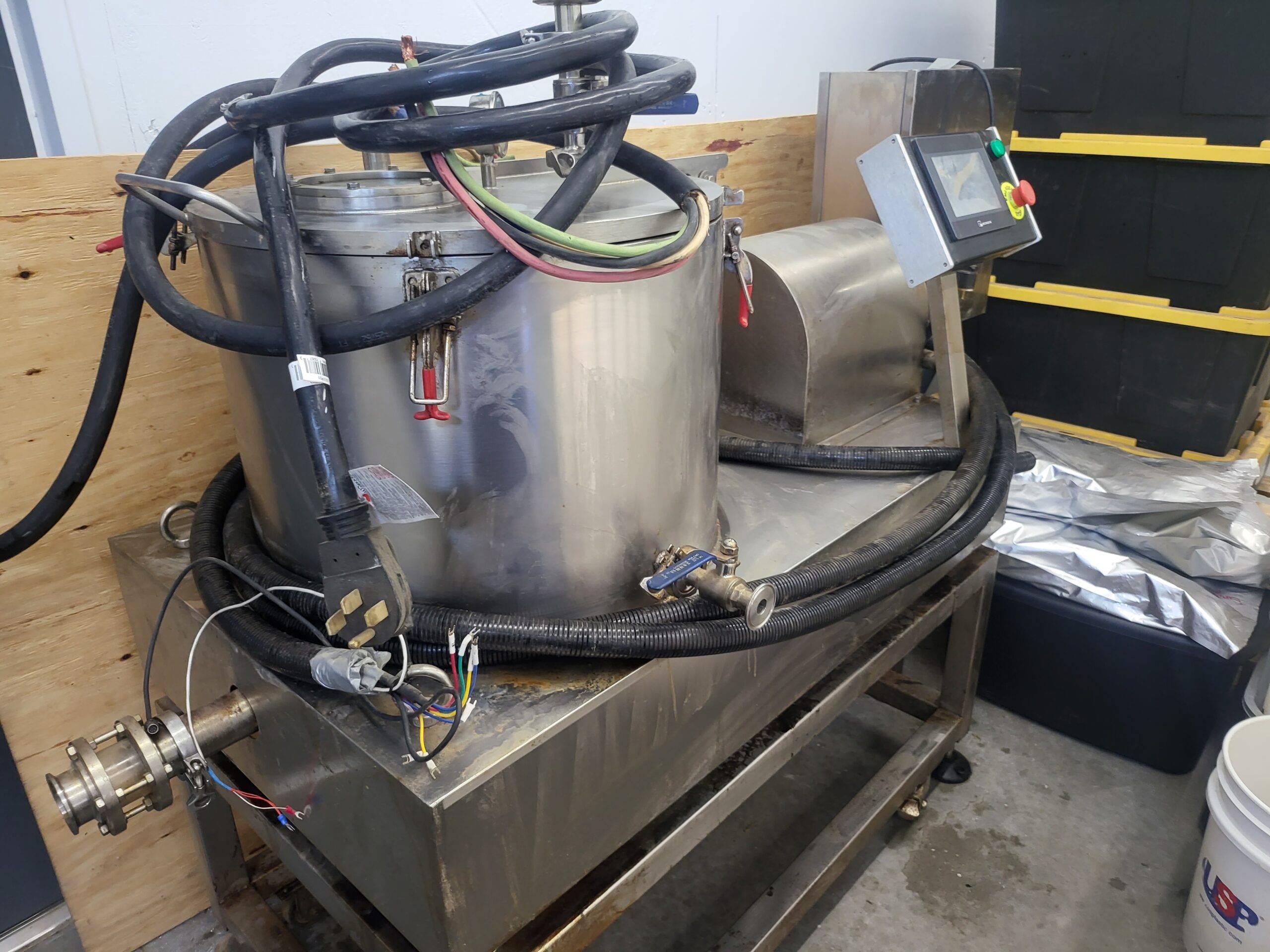

Pre-Owned LanPhan Centrifuge
** Specs for Reference – Call for Details **
$8,000.00
Lab Centrifugal Spray Dryer From Liquid To Powder 3KW AC220V
| Minimum Order Quantity : | 1 set | Price : | $3200 |
|---|---|---|---|
| Packaging Details : | Wooden Box or Customized Packing | Delivery Time : | 7-15 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 100 Sets per Month |
| Place of Origin: | Henan, China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE ISO | Model Number: | 2L |
|
Detail Information |
|||
| Product Name: | 2l Centrifugal Spray Dryer | Electric Heater Power: | 3KW AC220V |
|---|---|---|---|
| Evaporation: | 2000ml/h | Maximum Feeding Capacity: | 2000ml/h |
| Fan Power: | 0.55kw | Maximum Air Pressure: | 1020pa |
| Air Compressor Power: | 0.2kw | Nozzle Diameter: | 1mm |
| High Light: | Lab Centrifugal Spray Dryer
Centrifugal Spray Dryer 3KW AC220V Centrifugal Spray Dryer |
||
Centrifugal Spray Dryer Parameter
| Air inlet temperature | 30～300℃ |
| Air outlet temperature | 30～150℃ |
| Electric heater power | 3KW AC220V |
| Evaporation | 2000mL/H |
| Maximum feeding capacity | 2000mL/H |
| Fan power | 0.55KW |
| Maximum air volume | 5.6m³/min |
| Maximum air Pressure | 1020Pa |
| Air compressor power | 0.2KW |
| Nozzle diameter | 1.00mm |
| Operating Temperature | 10～40℃ |
| Dimension | 800 x 650 x 1300 ( mm ) |
| Weight | 125KG |
Centrifugal Spray Dryer Features
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
Centrifugal Spray Dryer Description
Spray dryer is a drying equipment for dealing with solution, suspension or slurry material. It is used to spray the material into droplets dispersed in hot air. The material and the hot air are parallel flow, countercurrent or mixed flow of the way to contact each other, so that the moisture evaporates quickly to achieve the purpose of drying.
Experimental spray dryer, compact design, self-contained, no other facilities can be run. One-click startup, color large LCD touch screen operation. Fully automatic or manual monitoring two modes of operation. It is the smallest volume, the least noise, drying effect is very excellent a spray dryer.
