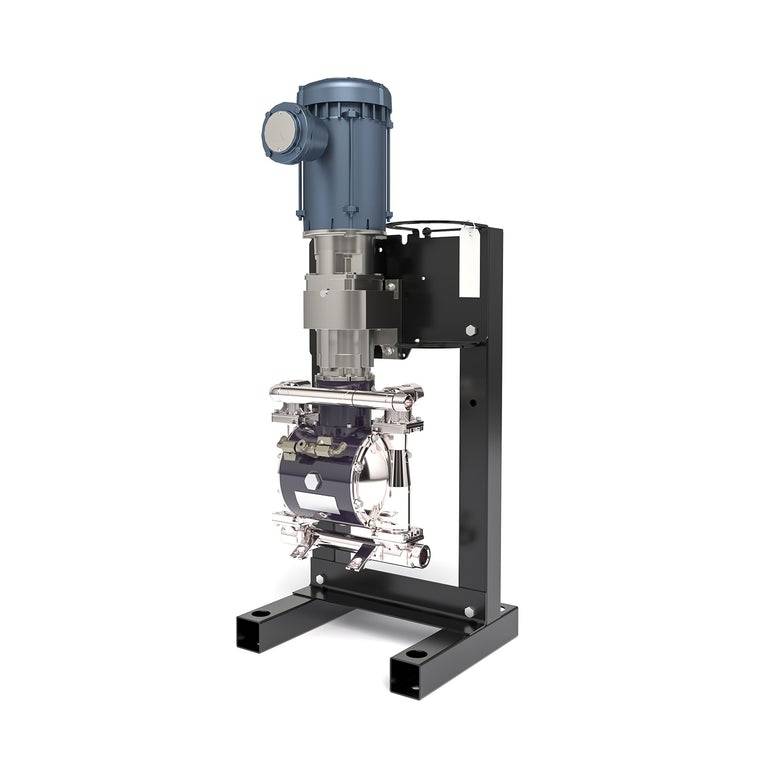

MVP Recovery Pump – Liquid
The Master Vapor Pump – Liquid is a certified liquid recovery pump designed for solvent extraction processing. This pump is designed specifically for LP-Gas and Ethanol liquid recovery and is ideal for LP-Gas or LP-Gas / Ethanol mixtures.
Original price was: $12,900.00.$12,800.00Current price is: $12,800.00.
Engineering Specifications:
- Maximum pumping outlet pressure – 70 PSI
- Center Section CO2 charge range 5 to 80 PSI
(10-15psi over inlet pressure recommended) - CO2 Inlet Size: 1 /4 in. npt(f)
- Maximum Pump Speed 135 cpm (cycle per minute)
- Process Inlet and Outlet Size: 1 in. npt
- Electric Motor: Explosion proof for C101 Hazardous areas
- Motor Specifications: 2HP, 3,600 rpm, 60Hz
- Size: 18.3” x 15.4” base x 42.3” tall
- Weight: 173.2 lb
Temperature Operating Details:
- FKM: -40° to 275°F (-40° to 135°C)
- PTFE: +40° to 220°F (+4° to 104°C)
Motor Option:
- Model MVP-LIQUID-1PH: Single-phase: 115/208-230V, 20/10 FLA (full load amps)
- Model MVP-LIQUID-3PH: Three-phase: 208-230/460V, 5.2/2.6 FLA, Inverter-rated
Compliance Details:
- Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
- One year manufacturer’s warranty (see Operation Manual)
- Made in the USA
Documentation:
Specification: MVP Recovery Pump – Liquid
|
||
| Dimensions | ||
|---|---|---|
|
||
