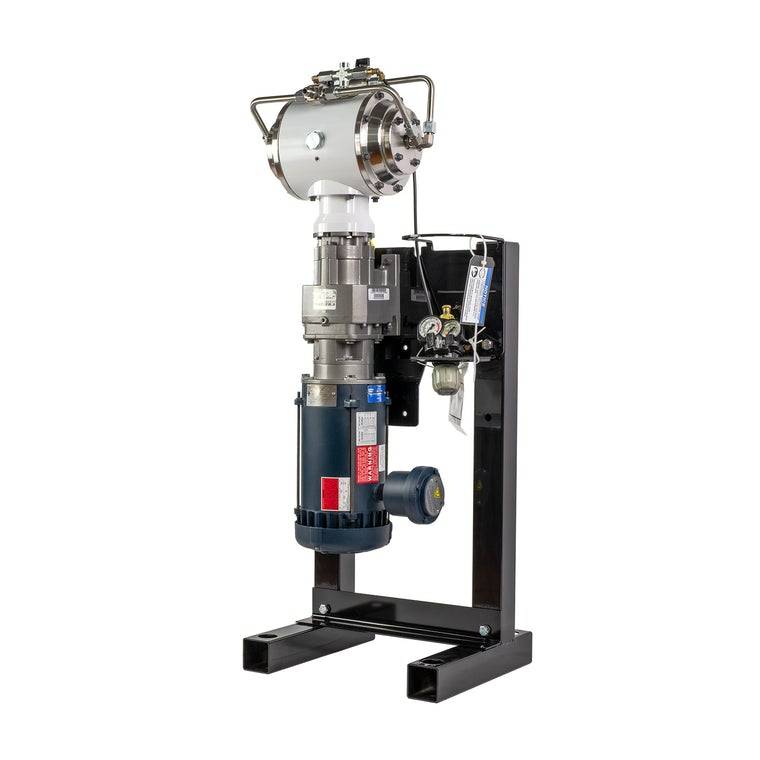

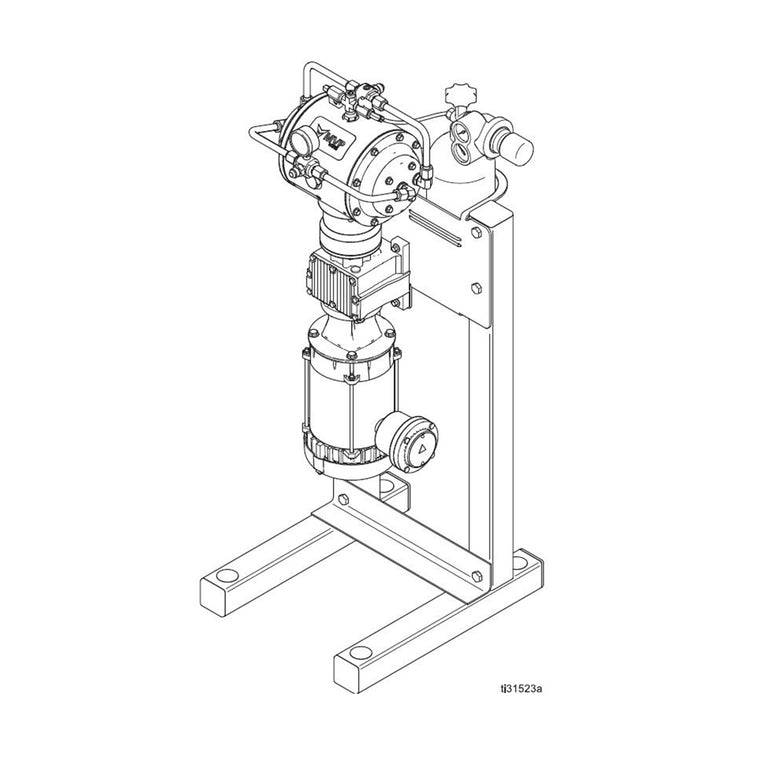

MVP Recovery Pump – 150 PSI

Engineering Specifications:

• Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
• Recover butane at up to 1.5 LB/MIN (pounds per minute)
• Recover and recondense butane at OVER 18 GPH (gallons per hour)
• Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 2 HP, 3600 RPM, 60 HZ
• Pump speed: 220 CPM (cycles per minute) at 60 HZ
• Size: 17.0” x 19.9” base x 46” tall
• Weight: 182.5 lb (82.8 kg)

Motor Option:

• Model MVP-150-1PH : Single-phase: 115/208-230V, 20/10 FLA (full load amps) – UL Certification
• Model Model MVP-150-3PH : Three-phase: 208-230/460V, 5.2/2.6A FLA, Inverter-rated – UL Certification
• Model MVP-150-ATEX : Three-phase: 240/460V , 5.44A/3.15 FLA (full load amps) – CE Certification

Compliance Details:

• Compliant with NFPA and UL standards for C1D1 motors and LPG vapor recovery
• Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
• One year manufacturer’s warranty (see Operation Manual)
• Made in the USA

Documentation:

Product Manual

Technical Data Sheet

Features and Benefits Sheet
