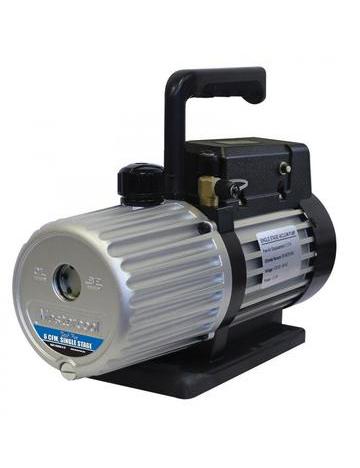

Mastercool 6CFM Single Stage Spark Free Vacuum Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$260.00

Details

90066-B-SF
SPARK FREE 6 CFM VACUUM PUMP (SINGLE STAGE)



Product Description

  • Constructed with spark free components
  • High volume fan provides cool air motor and pump
  • Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
  • Internal check valve to prevent oil back flow
  • Cooling fins to keep temperature cooler during extended motor operation
  • Thermally protected motor with on/off rocker switch
  • Large, lightweight reinforced base for stable positioning
  • Easily accessible oil drain valve
  • Large oil level sight glass with max/min oil level indicator

SPECIFICATIONS:

  • No. of Stages: 1
  • Free Air Displacement: 6 CFM
  • Ultimate Vacuum: 80 Microns
  • Pump Motor: 1/3 HP
  • Pump Speed: 1720 RPM
  • Electrical Specs: 110/120 V/60 Hz
  • Dimensions: 15 x 6.5 x 11″
  • Shipping Weight: 20.5 lbs

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

SERVICE INFORMATION:
Oil Capacity: 18 oz / 536 ml

Specification: Mastercool 6CFM Single Stage Spark Free Vacuum Pump

Weight 75 lbs
