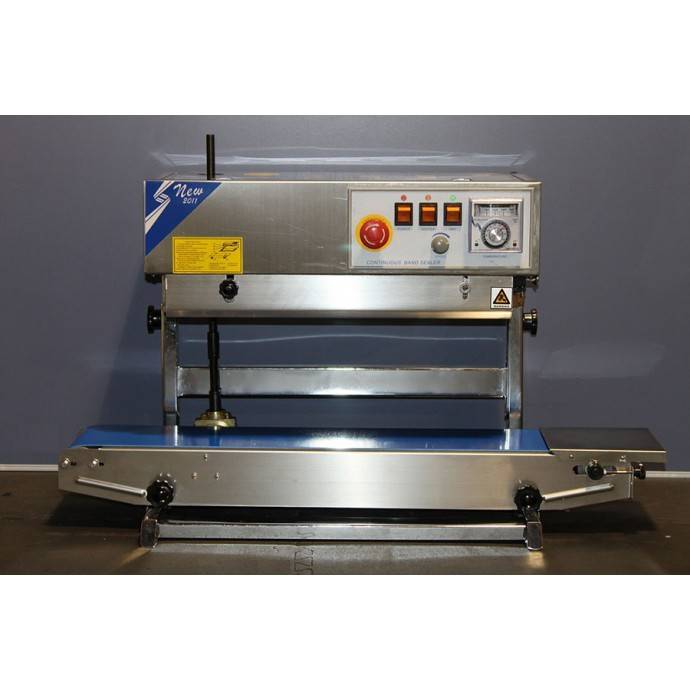

Impak Stainless Steel Vertical Band Sealer – Right to Left – RSV1525SS
This vertical tabletop RapidSealer TM unit was designed for stand up pouches, coffee bags and other large pouches that need to be vertical while sealing. Set up takes approximately 20 minutes and comes with everything you need.  This RapidSealer (band sealer) operates from right to left and can also be used horixontally when the kit has been removed.
$1,265.00 – $1,731.75
DESCRIPTION
Stainless steel frame
Solid state temperature control
Stepless speed control
Emergency stop button for operator safety
Fuse protected
Seal Speed: 0-320″ per minute (0-12m per minute)
Adjustable Seal Width: 0.125″ – 0.625″ / 3mm – 16mm
Temperature Range: 32-572º F / 0-300º C
Voltage/Hz: 110v/60Hz
Power: 500W / 4.55A
Maximum Load on Conveyor: 5.5 lbs. / 2.5 kg
Weight: 55 lbs. / 26.3 kg – Ships common carrier no pallet required
WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
The following are additional accessories which may be added-on:
(10) PTFE bands
(2) Urethane drive belts
(1) Embossing wheel and number kit containing (5) dyes each of number 0 to 9 and (3) dies each of the letters “M”, “F”, “D”, and “E”, “X”, “P”
Spare Parts Kit is HIGHLY RECOMMENDED.
Purchase spare parts kit with machine at $99.40 instead of regular price at $159.95.
VIDEOS
How to use RSV1525 Vertical Band Sealer Video
PARTS INFO
Spare Parts Kit for RSH1525 Sealer
77XSPPRKT1525
INCLUDED ITEMS:
° 2 urethane Drive Belts
° 10 *PTFE Flouropolymer Bands
° 1 Printed Circuit Board
Purchase here
Full Embossing Kit for RS1525 Series:
SPK-RSH1525
INCLUDED ITEMS:
(1) Convex Embossing Wheel
(3) each M, F, D, E, X, P
(6) each 0-8,
(5) each 9;
(3) Blank,
(6) Period
Purchase Here
PTFE Fluoropolymer is the generic name for the term Teflon®
PTFE Fluoropolymer, or Polytetrafluoroethylene, known for its strength and durability, was discovered in 1938 by Roy Plunkett, a chemist at Kinetic Chemicals. This substance has been widely used in the manufacture of bullet proof vests, munitions, wire and equipment coating at NASA, non-stick cookery, and many other applications.
Benefits of PTFE Fluoropolymer:
Teflon® is the registered trademark of the E. I. DuPont Corporation for its PTFE Fluoropolymer product line. The use of this term is restricted solely to companies selling E. I. DuPont Corporation’s products. IMPAK Corporation makes no claim and cannot guarantee this material is made with E. I. DuPont Corporation products. |
Consumables:
- 77XCRGDKNB: Corrugated Knob for RS1525 Sealers
- 77XSMLPLBRG: Small Pulley Bearing for RS1525 Sealers
- 77XTFNBD1525: 15.25″ Teflon Band for RSH1525 Sealers
- 77XBRSHKT: Set of 2 Motor Brushes for RS1525 Sealers
- 77XFDNGDE: Feeding Guide for RS1525 Sealers
- 77XKNBKT: Knob Kit for RS1525 Sealers
- 77XMBSNRLST: Embossing Roller Wheel Seat for RSH1525 Sealers
- 77XDRVNWHST: Driven Wheel Seats for RS1525 Sealers
- 77XPWRLN: Power Line for RS1525 Sealers
- 77XWSWTH: Rocker Switch for RS1525 Sealers
- 77XTLKT: Stainless Steel Tool Kit for RS1525 Sealers
- 77XHRZDRVSH: Horizontal Driveshaft for RS1525 Sealers
- 77XURTBLT: 8.5″ Urethane Belt for RSH1525 Sealers
- 77XHTNLMNT: Heating Element for RS1525 Sealers
- 77XLWPNHRLR: Lower Pinch Roller for RS1525 Sealers
- 77XSLCNWHL: Silicone Wheel for RS1525 Sealers
- 77XUPPNHRLR: Upper Pinch Roller for RS1525 Sealers
- 77XDRVNWHL: Drive Wheel for RS1525 Sealers
- 77XSFTCVR: Safety Cover for RSH1525 Sealers
- 77XLWCLNBLK: Lower Cooling Block for RS1525 Sealers
- 77XUPCLNBLK: Upper Cooling Block for RS1525 Sealers
- 77XLWHTNBLK: Lower Heating Block for RS1525 Sealers
- 77XUPHTNBLK: Upper Heating Block for RS1525 Sealers
- 77XSLCNWHLSFT: Silicone Wheel Shaft for RS1525 Sealers
- 77XNMBRKT: Number Kit for RS1525 Sealers
- 77XTMPRLFTSTL: Temperature Relay Flat Style for RSH1525 Sealers
- 77XMBSNWHL: Embossing Wheel for RS1525 Sealers
- 77XKRLCMPWH: Knurled Compression Wheel for RS1525 Sealers
- 77XCRTPLTSPD: Circuit Plate Speed for RS1525 Sealers
- 77XLTTRKT: Embossing Letter Kit for RS1525 Sealers
- 77XCLNBLK2P: Pack of 2 Cooling Blocks for RSH1525 Sealers
- 77XHTNBLK2P: Pack of 2 Heating blocks for RSH1525 Sealers
- 77XHTNLMNT2P: Set of 2 Heating Elements for the RSH1525 Sealers
- 77XVRTDRVSH: Vertical Driveshaft for RS1525 Sealers
- 77XAXLFN2010: Axial Fan 2010 for RS1525 Band Sealers
- 14PCXSPPT: Spare Parts Kit for RMH14HC
- 77XCNVRBLT: Conveyor Belt – Green/Blue for RS1525 Sealers
- 77XVRTCLKT: Vertical Conversion Kit for RSH1525 Sealers
- 77XLFRTGRBX: Left to Right Gearbox (Lower Assembly) for RS1525 Sealers
- 77XRTLFGRBX: Right to Left Gearbox (Lower Assembly) for RS1525 Sealers
- 77XSLTRTGRBX: Left to Right Gearbox (Side Assembly) for RS1525 Sealers
- 77XSRTLFGRBX: Right to Left Gearbox (Side Assembly) for RS1525 Sealers
- 77XSTNCSTR: Stand With Casters for RS1525 Sealers
- 77XMTR: Heavy Duty Motor for RS1525 Sealers
Specification: Impak Stainless Steel Vertical Band Sealer – Right to Left – RSV1525SS
|
