Impak 30″ Pneumatic Tube Sealer (PRE-ORDER) – MSTSS760
The MSTSS760 (TP-30) is an American made pneumatically operated tube sealer capable of handling up to 3,000 tubes per hour. The unique feed-through design makes it possible to remove tubes from either end, great when production lines are moved or changed based on the product being filled and sealed. Want to make sure that you are getting the right sealer for your money?
$5,232.50 – $6,820.95
DESCRIPTION
EXPEDITED LEAD TIME: 10-12 business days; Contact for current lead times on this machine.
This unit requires a separate compressed air source capable of providing 80 PSI of clean dry air
Heavy duty powder coated frame
30″ maximum seal length
Solid state heat and cool timers
Analog pressure regulator and pressure gauge
Single push botton start
Adjustable guide with height gauges
Illuminated On/Off switch
Fuse protected
Exhaust port
7′ cord
Single 0.25″ nichrome heating element
110V/60Hz (also available in 220V/50Hz)
DIMENSIONS (W x L x H)
41.0″ x 22.0″ x 29.0″
Net Weight: 78LBS
Warranty: One year parts and labor not including consumables
Made in USA
Ready to Ship Tube Racks
We have a limited supply of tube holders for your IMPAK Multi-Station Tube Sealer (model MSTSS760). Do one of these pre-drilled racks fit your tube size? Contact IMPAK for pricing and availability.
Tube Rack Schematics
| Diameter (in/mm) | Spacing (in/mm) | # of Openings per Tube Rack | Center to Center (in/mm) |
|---|---|---|---|
| 1.5″ / 38mm | 1.125″ / 29mm | 11 | 2.625″ / 67mm |
| 2.0″ / 51mm | 0.75″ / 19mm | 11 | 2.75″ / 70mm |
| 0.75″ / 19mm | 1.0″ / 25mm | 17 | 1.75″ / 44mm |
| 0.875″ / 22mm | 0.875″ / 22mm | 16 | 1.75″ / 44mm |
| 0.5″ / 13mm | 1.0″ / 25mm | 19 | 1.5″ / 38mm |
| 1.0″ / 25mm | 0.75″ / 19mm | 17 | 2.5″ / 63mm |
| 0.875″ / 22mm | 0.875″ / 22mm | 18 | 1.75″ / 44mm |
| 1.375″ / 35mm | 1.0″ / 25mm | 13 | 2.375″ / 60mm |
| 2.0″ / 51mm | 1.3125 / 33mm | 9 | 3.3125″ / 84mm |
| 4.0″ / 102mm | 1.0″ / 25mm | 6 | 5.0″ / 127mm |
| 0.875″ / 22mm | 1.0″ / 25mm | 15 | 1.875″ / 48mm |
| 0.5625″ / 14mm | 1.0″ / 25mm | 19 | 1.5625″ / 40mm |
| 1.8125″ / 46mm | 1.125″ / 29mm | 10 | 2.94″ / 75mm |
| 1.875″ / 48mm | 1.125″ / 29mm | 10 | 3.0″ / 76mm |
***All tube racks are 31″ (787mm) in length***
To ensure proper fit we recommend that you send us at least two tubes prior to purchase. We will insert your tubes for fit in the rack and send you a photo with your tubes contained in the openings.
Pneumatic Tube Sealer MSTSS760 (TP-30) Demo Presentation:
Need to fill your liquid/paste product quick and precise?
Use our Pneumatic Piston Filler PPF120 (for 10ML – 120ML) or PPF1000 (for 100ML – 1000ML)

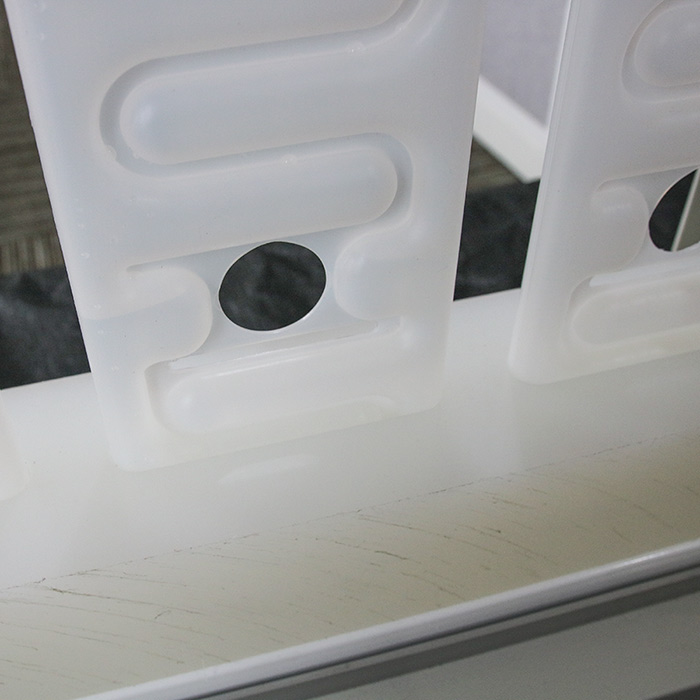

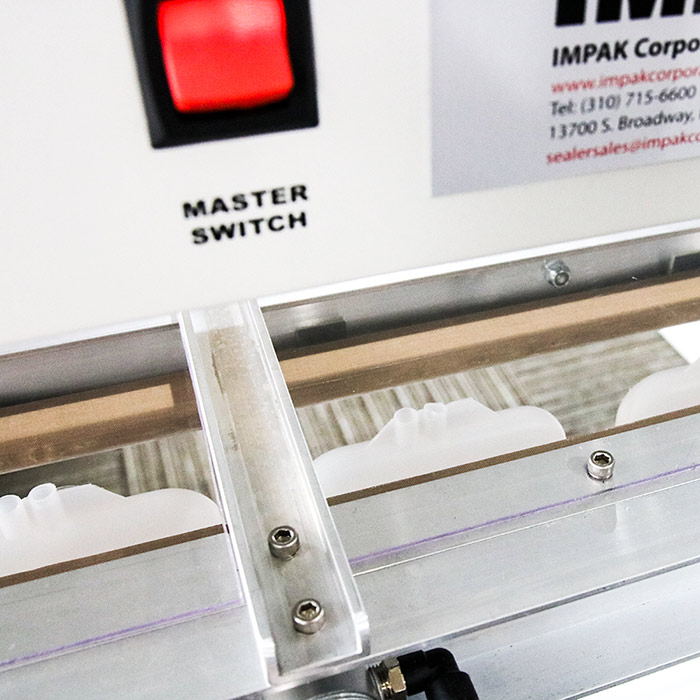

Case Study: A Tube Sealer Gets Modified for Viking Cold Solutions
Custom Upgrades to a TP-30 for Viking Cold Solutions:
Example of how IMPAK can build production tube sealers based on customer-specific applications. In this case an upgraded TP-30 tall enough to accommodate Viking Cold Solutions’ product, complete with a custom tube rack for increased production speed.
The sealing system designed for Viking Cold Solutions is an excellent example of how IMPAK’s engineering group took the basic frame of the TP-30, a unit with a 30” wide seal bar designed for sealing multiple tubes, primarily for the cosmetic industry. They then increased the height of the basic unit and machined the product rack to be a positioning block for the product that is key to Viking Cold Solution. This allows the company that was previously filling and closing them one at a time, to now put them in a rack that holds six, dramatically increasing their production.
