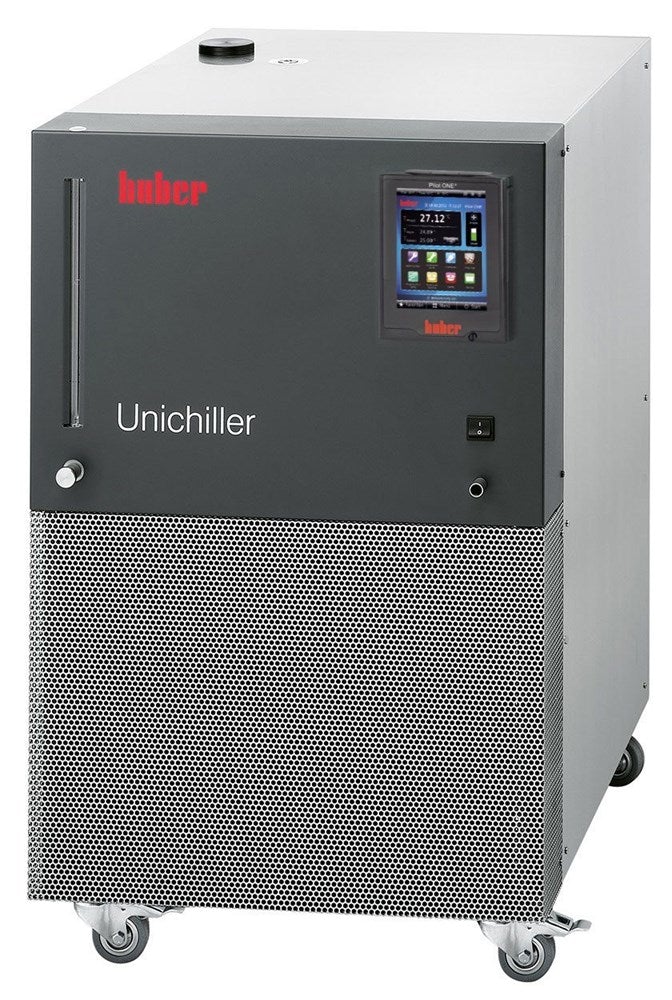

Huber Unichiller P025 with Pilot ONE
Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories.
All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.

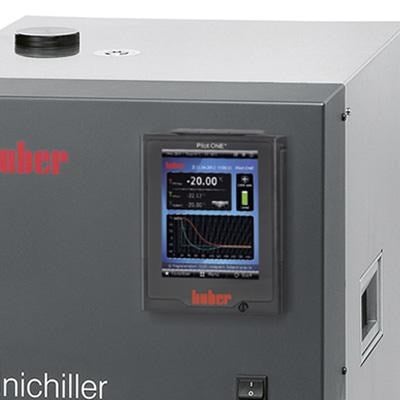

The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
FEATURES:Â
- Environmentally-friendly, economic cooling solution
- High efficiency
- Precise temperature control
- Powerful circulation pump
- Robust stainless construction
- Reliable continuously operation with warning functions
- Easy to fill and empty

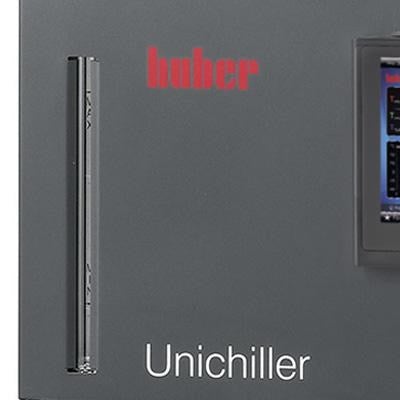

- Adjustable bypass, level indicator with sight glass and digital manometer
- Pilot ONE controller with 5.7″ touchscreen
- 2 x USB (Host and Device), Ethernet and RS232 interfaces.
| General information & temperature controller | |
|---|---|
| Temperature range | -10…40 °C |
| Temperature stability | ±0.5 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) |
| Controller | Pilot ONE (E-grade “Basic”) |
| Safety class | I / NFL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 18.11 x 23.23 x 29.25 inches |
| Weight | 175 lbs |
|
Heating / cooling capacity |
|
| Cooling capacity | 15 0 -10 °C
2,5 2 1,2 kW |
| Cooling machine | air-cooled |
| Refrigerant (ASHRAE, GHS) | R449A (A1, H280) |
|
Circulation pump |
|
| Pressure pump max. | 25 lpm ; 2.5 bar | 6.6 gpm ; 36.25 psi |
| Pump connection | G3/4 AG male |
| Connections | |
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
|
Operating data |
|
| Permissible ambient temp. | 5…40 °C |
| Noise level | 64 dB(A) |
| Filling volume min. | 3.8 Liters | 1 gal |
| Volume of expansion | 1.7 Liters | 0.45 gal |
| Power supply | 208-230V 1~/2~ 60Hz |
