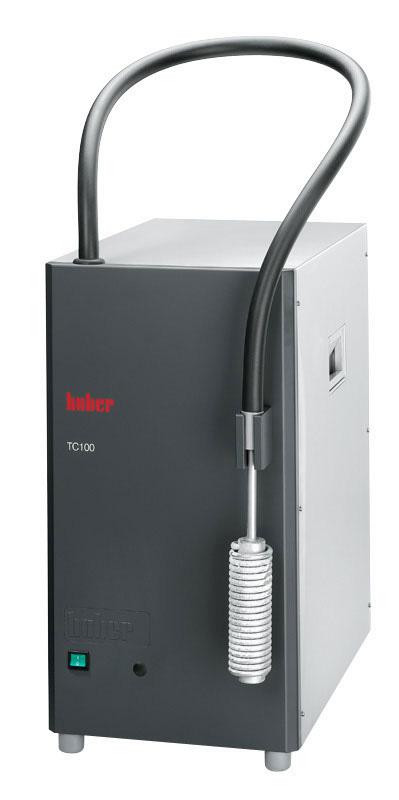

Huber TC100E

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Call for Price

SKU: N/A Category: Brand:

 Huber TC100

 (Please Note: There is up to 2 -3 weeks Shipping lead time)



The TC range of immersion coolers are a flexible solution for a variety of cooling tasks. The devices are simple and universally used for rapid cooling of fluids. Typical applications include counter-cooling for heat circulation thermostats or replacement of dry ice.

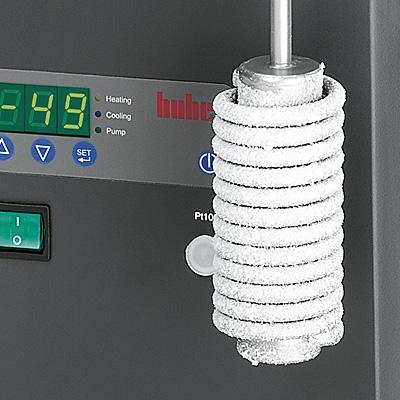

For many applications immersion coolers are also an environmentally friendly alternative to mains water cooling. The TC immersion coolers are suitable for unsupervised use, for cooling tasks which require continuous cooling or as a variant with temperature control and a Pt100 probe. The models with the type affix “E“ have an LED display with entry of nominal values and regulate with a precision of ±0.5 K. A spiral-shaped or flexible immersion cooling probe made out of stainless steel is available for all models so that fluids can be cooled in virtually all vessel types. The compact housing is made from high quality stainless steel, and is fitted with carrying grips.

FEATURES:

  • Universal solution for many cooling tasks
  • Rapid cooling of fluids
  • Ideal for counter-cooling or as a replacement of dry ice
  • LED temperature display
  • Easy operation with only three keys
  • Compact, space-saving construction
  • Robust housing with carrying grips
  • High quality stainless steel immersion probe



General information & temperature controller

Power Supply 208V 2~ 60Hz 110-120V 1~ 50/60Hz
Temperature range -100…40 °C -100…40 °C
Controller ON-OFF-Regler ON-OFF-Regler
Safety class I / NFL I / NFL
Dimensions (W x D x H) 295 x 500 x 570 mm | 11.61 x 19.69 x 22.44 inches 11.61 x 19.69 x 22.44 inches
Weight 61 kg | 134.5 pounds 134.5 pounds


Heating / cooling capacity

Cooling capacity 0 -20 -50 -60 -80 -90 -100

0,16 0,15 0,13 0,12 0,12 0,07 0,01 kW

0 -20 -50 -60 -80 -90 -100
0,16 0,15 0,13 0,12 0,12 0,07 0,01 kW
Cooling machine air-cooled air-cooled
Refrigerant 1. stage (ASHRAE, GHS) R452A (A1, H280) (0,26 kg) R452A (A1, H280) (0,26 kg)
Refrigerant 2. stage (ASHRAE, GHS) R1150 (A3, H220) (0,056 kg) R1150 (A3, H220) (0,056 kg)


Operating data

Permissible ambient temp. 5…40 °C 5…40 °C
Power supply 208V 2~ 60Hz 110-120V 1~ 50/60Hz
Current max. 6,5 A
