Huber KISS 205B

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Category: Brand:

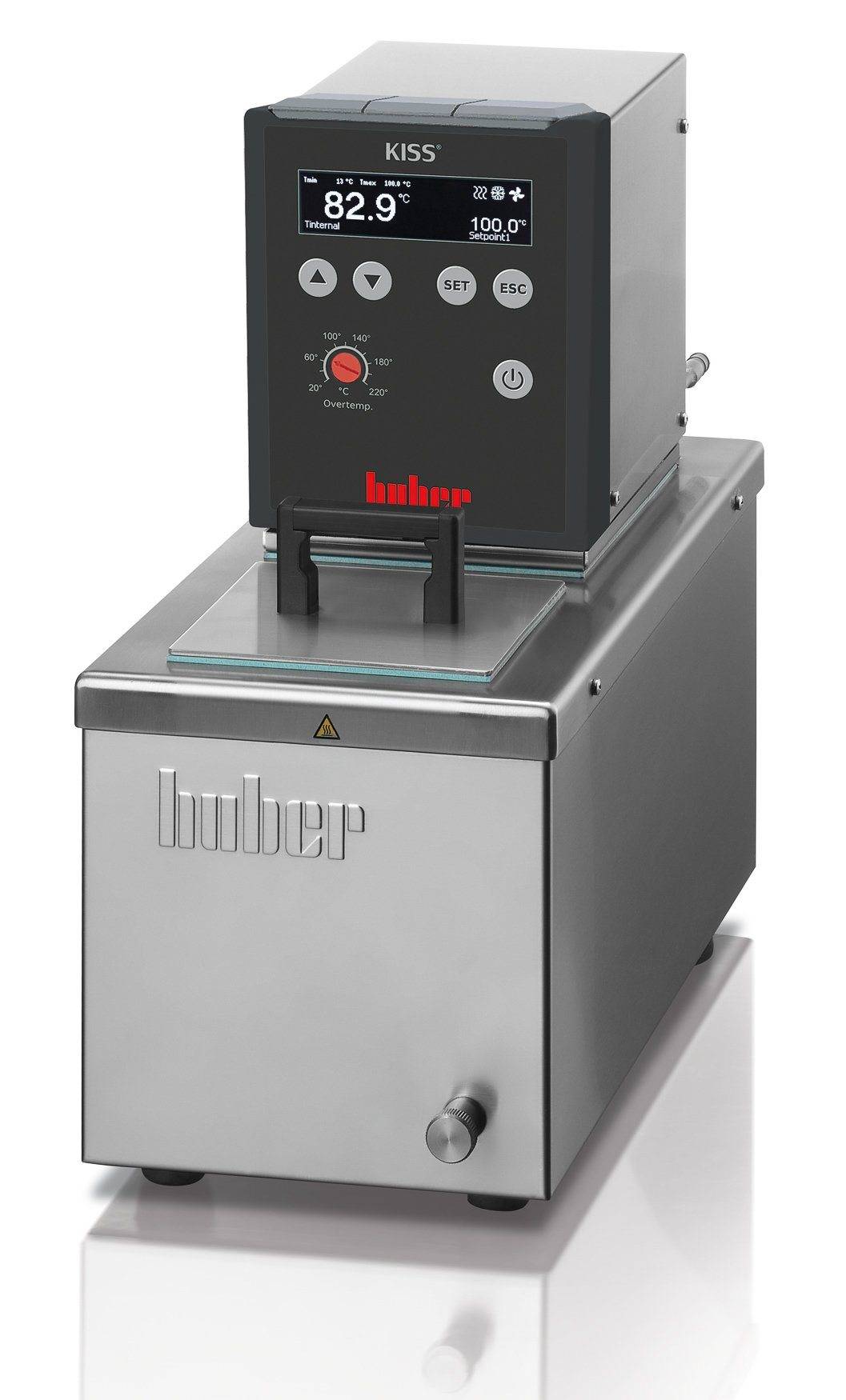

Huber KISS 205B

(Please Note: There is a 2  weeks Shipping  lead time)

Heating circulator with a stainless steel bath can be used for internal and external thermoregulation tasks. The temperature of various objects can be controlled by placing them directly within the bath. Externally connected applications can also be controlled with the addition of a pump adaptor.

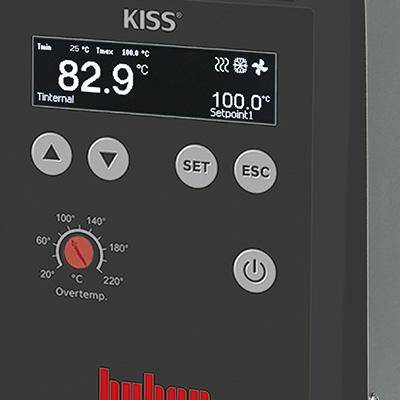

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure

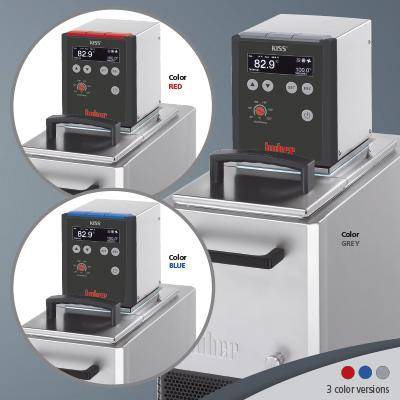

  • 3 colour versions available: grey (standard), blue, red



General Information & Temperature Controller
Temperature range (-30) 45…200 °C
Temperature stability ±0.05 °C
Temperature Display OLED Display
Alarm message optical, acoustical
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 178 x 337 x 355 mm | 7.01 x 13.27 x 13.98 inches
Weight 9 kg | 19.84 pounds
Heating / Cooling Capacity
Heating capacity 1-1,5 kW
Circulation Pump
Pressure pump max. 14 lpm ; 0.25 bar | 3.7 gpm ; 362.5 psi
Suction pump max. 10.5 lpm ; 0.17 bar | 27.74 gpm ; 246.5 psi
Pump connection M16x1 AG male
Connections
Digital interface USB, RS232
Operating Data
old sku 2040.0011.98
Permissible ambient temp. 5 to 40 °C
Bath opening W x D / BD 105 x 90 / 150 mm | 4.13 x 3.54 / 5.91 inches
Bath volume 5 Liters | 1.32 gal
Power supply 100-115V 1~ 50/60Hz
Current max. 15 A
Fusing 15 A
