Ecodyst EcoChyll X3

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$39,999.00$44,999.00

SKU: N/A Category: Brand:

Equipment

  • Dimensions (approx.) – 50″ L x 20″ W x 72″ H
  • Mobility – All components on locking wheels.

Electrical

  • Total power usage – 2.8kW
  • Heating mantle – 15 amp, 115V standard line, 1.8kW
  •  X3 EcoChyll – 10 amp, 115V standard line, 1kW
  • Vacuum pump, stirring rod, liquid transfer pump all use standard 115V (or 230V) lines

Technical

  • Evaporation flask load volume – 12L
  • Evaporation flask minimum load volume – 1L
  • Receiving keg load volume – 30L
  • EcoChyll minimum temperature – -50°C
  • Condenser single-coil surface area – ~4000 cm2
  • Heating mantle maximum temperature – 250°C
  • Overhead stirrer maximum speed – 1800rpm (recommended 150rpm)
  • Overhead stirrer maximum torque – 50 in-lbs = 800 in-oz
  • Metal parts – Stainless steel 316
  • Glass parts – Borosilicate glass
  • Sealing and tubing materials – PTFE and FEP
  • Warranty** – Two-Years Manufacturer (includes parts & labor, excludes all glass components)

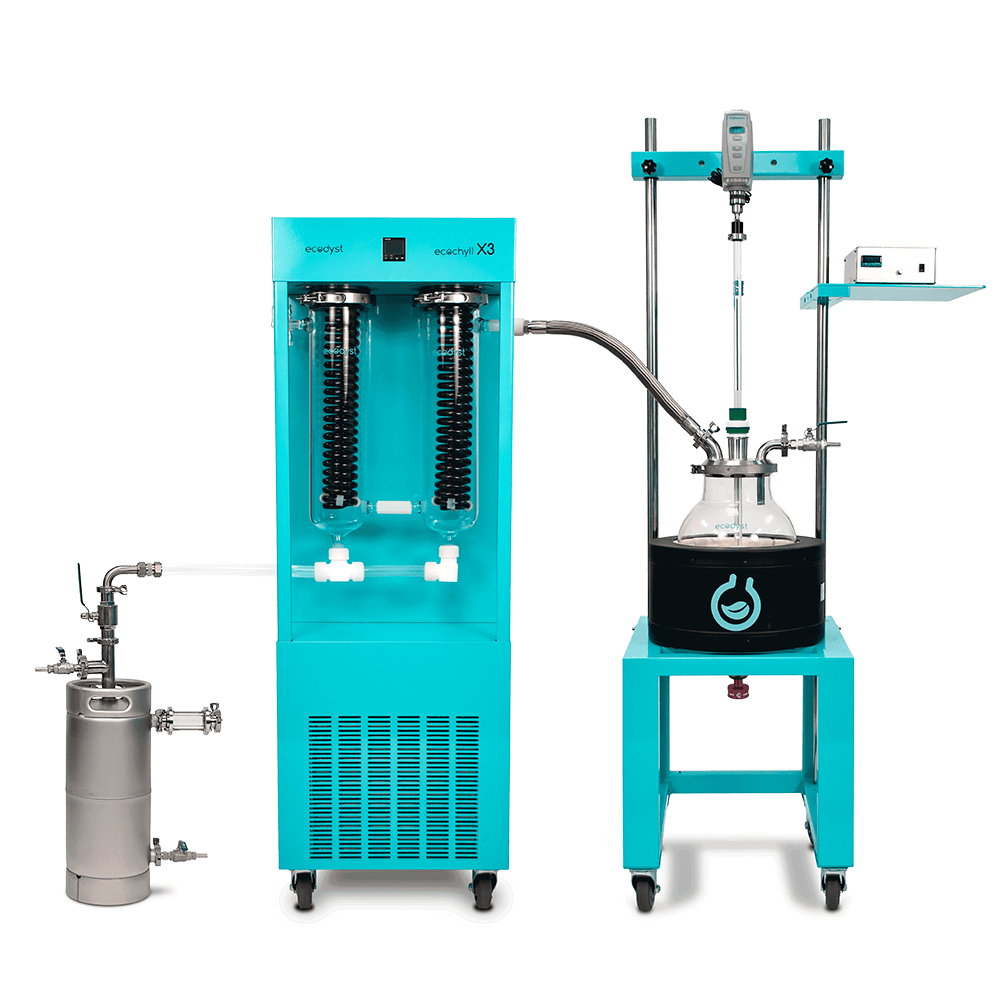

12L EcoChyll X3 Hi-Speed Evaporator

Turnkey System Designed for: Large Scale Solvent Recovery and Decarboxylation
Solvent Recovery Throughput: Up to 6L of ethanol per hour
Decarboxylation Capacity: Yes
Automation: Optional

Engineered for high-speed solvent recovery and evaporation in small- to medium-sized laboratories, the EcoChyll® X3 is our most robust cooling system for botanical extractions. Based on the same pioneering technology as our disruptive EcoChyll® range of evaporators, the EcoChyll® X3 bridges the gap between small-footprint lab equipment and the full-scale, high throughout alternatives. With a 12L capacity and compact form factor, it is the ideal supplement for rotary evaporators and short path distillation lab equipment.



The EcoChyll® X3 is routinely used downstream of botanical extractions via BHO, CO2, or ethanol. With twin metallic condenser coils, the EcoChyll® X3 carries out continuous direct-cooling of incoming vapors in an efficient and environmentally-friendly manner. A key performance indicator of the entire EcoChyll® lab equipment range is the ability to free up operator time due to low-intervention requirements. The EcoChyll® X3 enables scientists in smaller facilities to automate their processes, ultimately saving time and money without compromising the quality of your results.



Continuous Cooling Lab Equipment from Ecodyst



At Ecodyst, our primary objective is to disrupt the traditional rotovap market with a novel technology that puts efficiency and reliability front-and-center. The EcoChyll® product range is the result of dedicated research and development into continuous cooling for botanical extractions in facilities of all scales. The EcoChyll® X3 delivers on multiple fronts, satisfying the needs of operators in small- and medium-sized facilities alike.



Note: The X3 EcoChyll can be paired with 12 and 20L evaporation units.

Specification: Ecodyst EcoChyll X3

Volume

12L, 22 L
