Medium Scale Solvent Recovery
The 22L EcoChyll X5 offers a turnkey solution for solvent recovery and decarboxylation that outstrips traditional 20L rotary evaporators.
Recovers all residual solvents (below 500ppm)
Designed to handle an extremely wide range of solvents, including water and all common solvents.
No need to move glassware: The stationary evaporation flask is filled with a siphon feed valve and emptied with a drain valve for uninterrupted operation
Can be incorporated in-line with botanical extraction or winterization systems and fully automated
Heating mantle – 15 amp, 230V single phase line, 3.5kW
X5 EcoChyll – 15 amp, 230 single phase line, 1.6kW
Vacuum pump, stirring rod, liquid transfer pump all use standard 115V (or 230V) lines
Technical
Evaporation flask load volume – 22L
Evaporation flask minimum load volume – 2L
Receiving keg load volume – 60L
EcoChyll minimum temperature – -50°C
Condenser single-coil surface area – ~4,500 cm2
Heating mantle maximum temperature – 250°C
Overhead stirrer maximum speed – 1800rpm (recommended 150rpm)
Overhead stirrer maximum torque – 50 in-lbs = 800 in-oz
Metal parts – Stainless steel 316
Glass parts – Borosilicate glass
Sealing and tubing materials – PTFE and FEP
Warranty** – Two-Years Manufacturer (includes parts & labor, excludes all glass components)
Digital interfaces and data monitoring for stirring rod, vacuum pump, chiller, and heating mantle
Patented EcoChyll condensation unit reaches -40°C on the coils in under one minute
Spacious evaporation flask prevents “bumping” of solution into condensation unit
Single user operation with minimal interference required
Capable of evaporating ethanol at low temperatures (38C)
Extremely energy efficient
Safety features for automatic shutdown

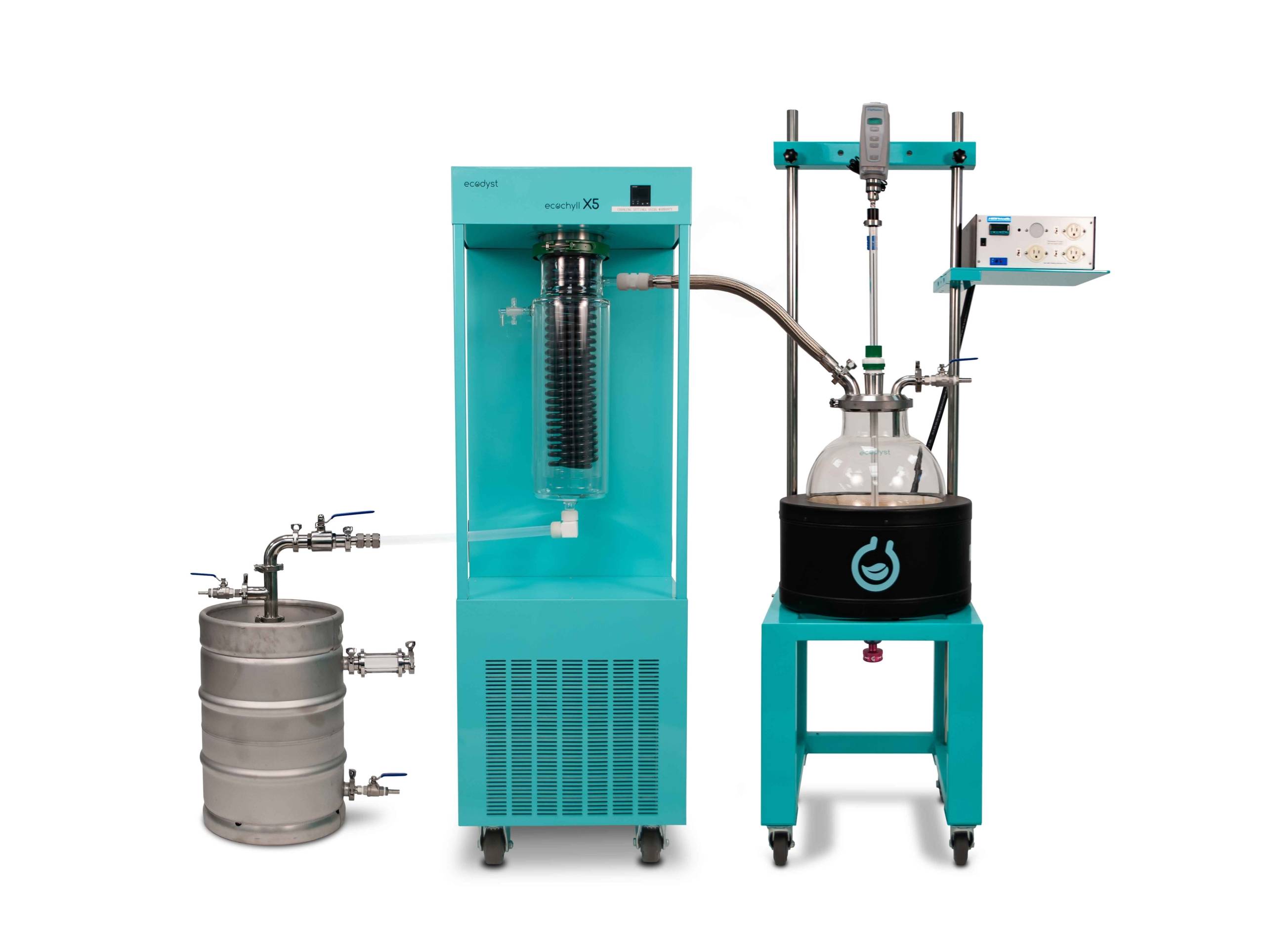

22L EcoChyll X5 Hi-Speed Evaporator
Turnkey System Designed for:
Large Scale Solvent Recovery and Decarboxylation
Solvent Recovery Throughput:
Up to 10L of ethanol per hour
True Load Volume:
22L
Decarboxylation Capacity:
Yes
Automation:
Optional
Designed for budget-conscious users of evaporation lab equipment, the EcoChyll® X5 is an extremely efficient alternative to all existing evaporative technologies. Based on the same metallic condenser coil technology that elevates each instrument in the EcoChyll line, the EcoChyll® X5 features a single coil in a robust, space-friendly unit. With a 22L capacity and a small footprint, it is a premium compromise between cost and convenience.
Our cost-competitive evaporation unit is a turn-key solution for solvent recovery and decarboxylation. Built with pioneering smart cooling technology, the EcoChyll® X5 automates the vapor cooling process to free-up user time for other operations. This method is now the preferred solution for evaporation in a wide range of botanical extraction applications.
Budget-Conscious Lab Equipment from EcoDyst
Ecodyst is the world’s first lab equipment manufacturer to use metallic condensers in evaporation and decarboxylation processes. Our disruptive approach has set a new standard of cost-efficiency and results reliability in emerging markets, like the hemp industry. The EcoChyll® X5 is a novel solution for cost-limited researchers in botanical markets like extraction.
Note: The X5 EcoChyll can be paired with 12 and 22L evaporation units. The X7 EcoChyll can be paired with 22, 50, 72, and 100 liter evaporation units.
