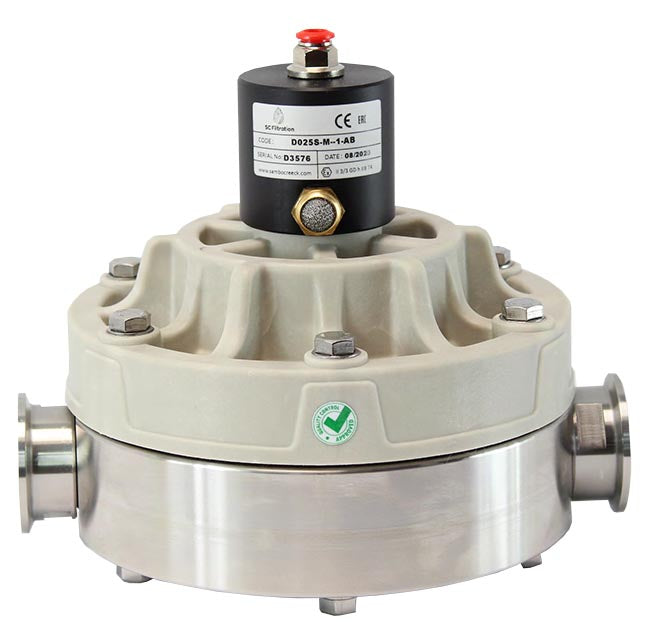

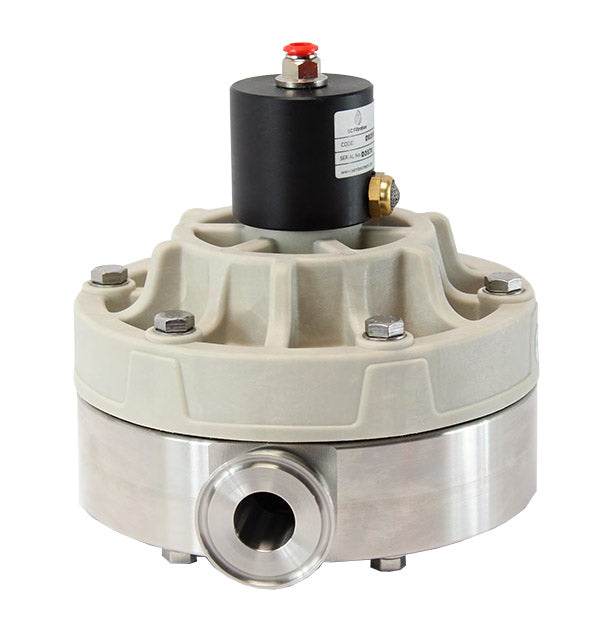

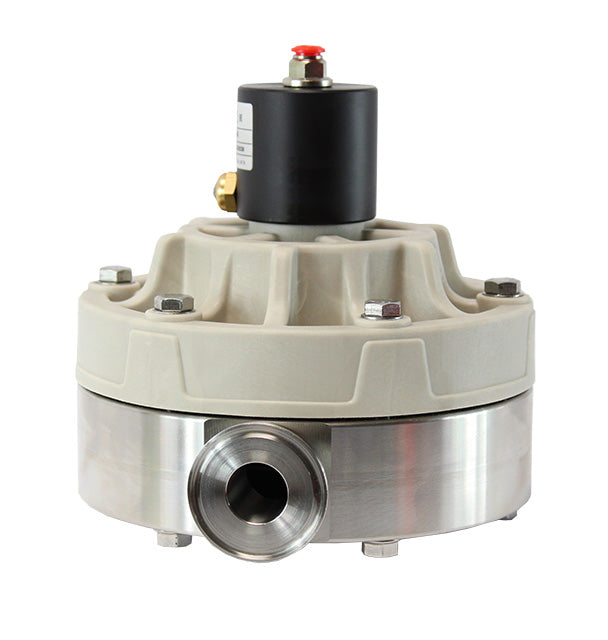

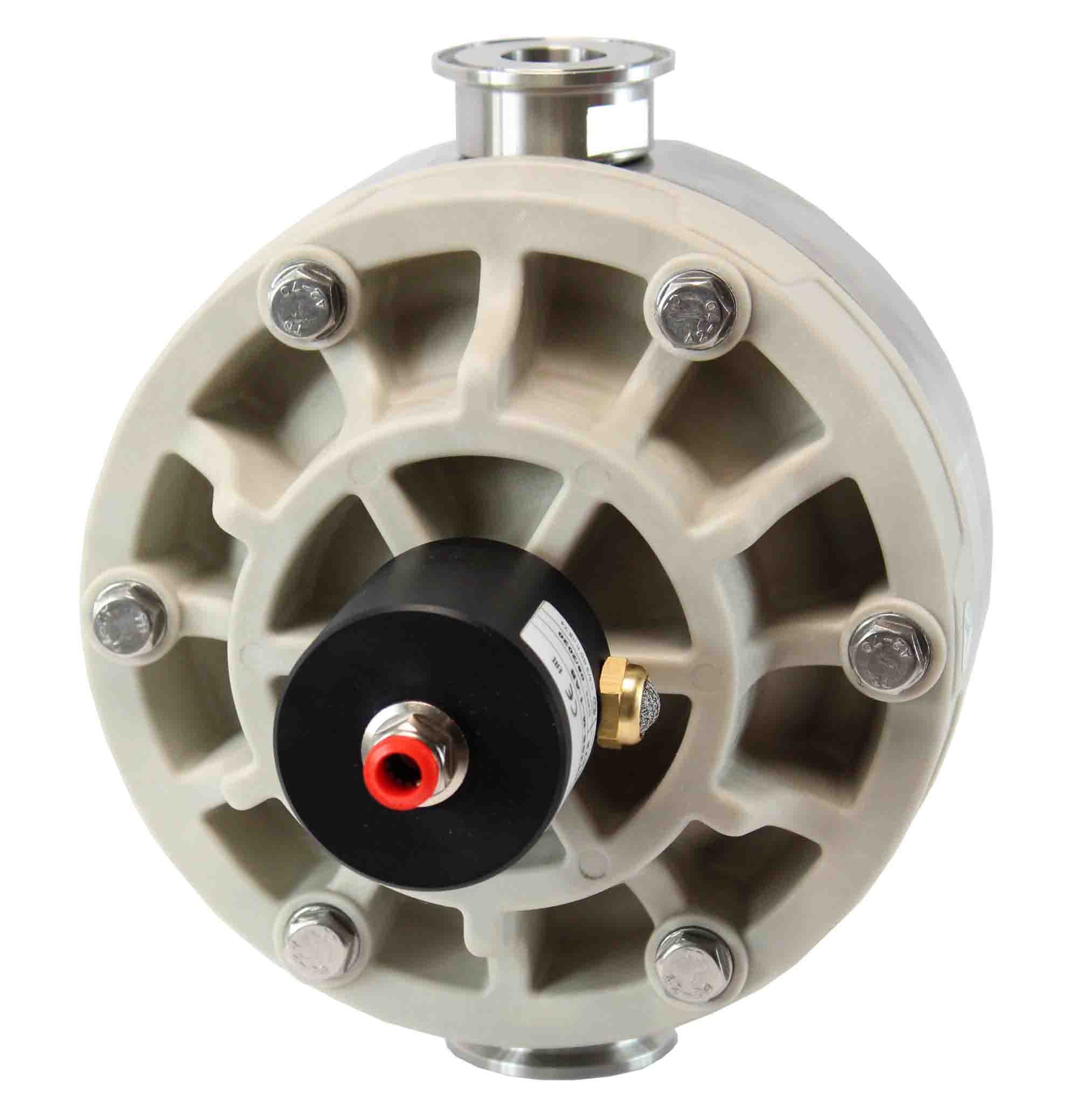

Pulsation Damper FDA Sanitary for AODD Pumps 1″

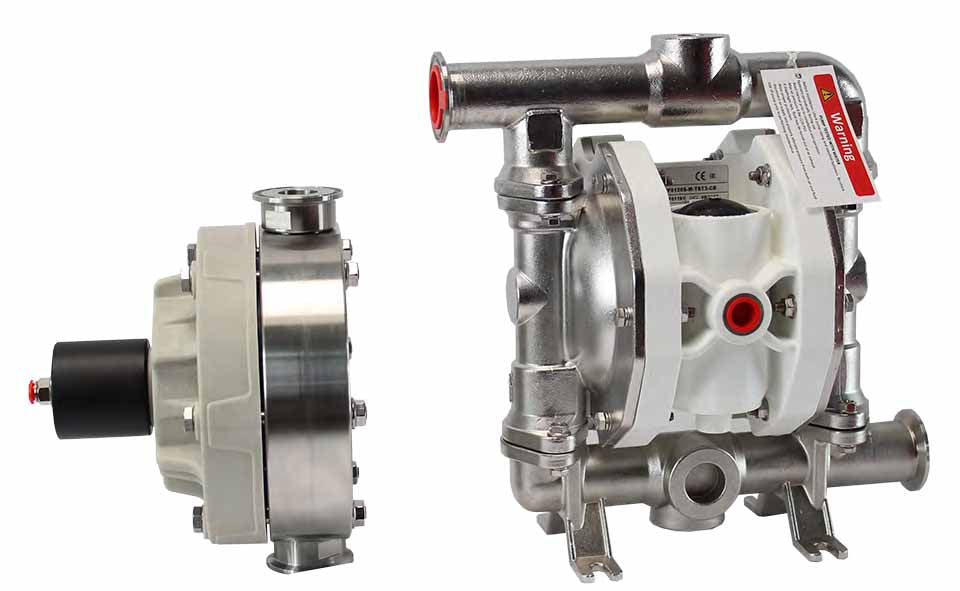

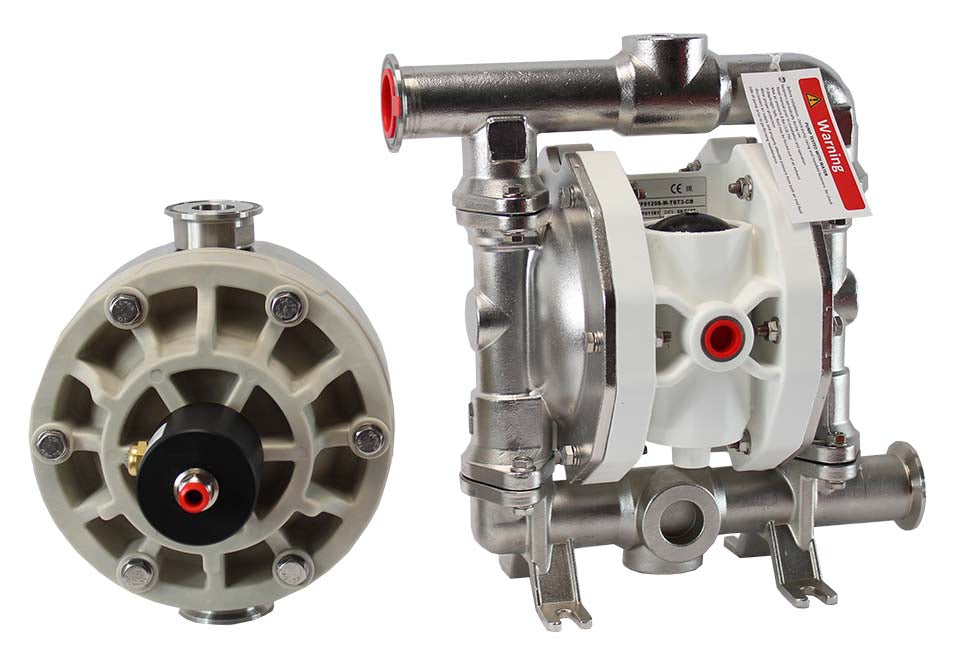

Pulsation damper for AODD diaphragm pumps. These devices help produce a steady stream on the outlet of diaphragm pumps. This version is stainless steel and includes adapters for sanitary flanges.

Fluid connections: 1″ BSP with 1.5″ Triclamp Adapter

Air connection: 8 mm

Max air pressure: 8 bar

Capacity Volume: 200 CC~

Apply to: Sambo Models 60 thru 120

Diaphragms: Santoprene

Minimum Temperature: -20C/F

Maximum Temperature: +95C

Weight: 6.5 Kg

Construction Materials: Polypropelene/Stainless Steel
