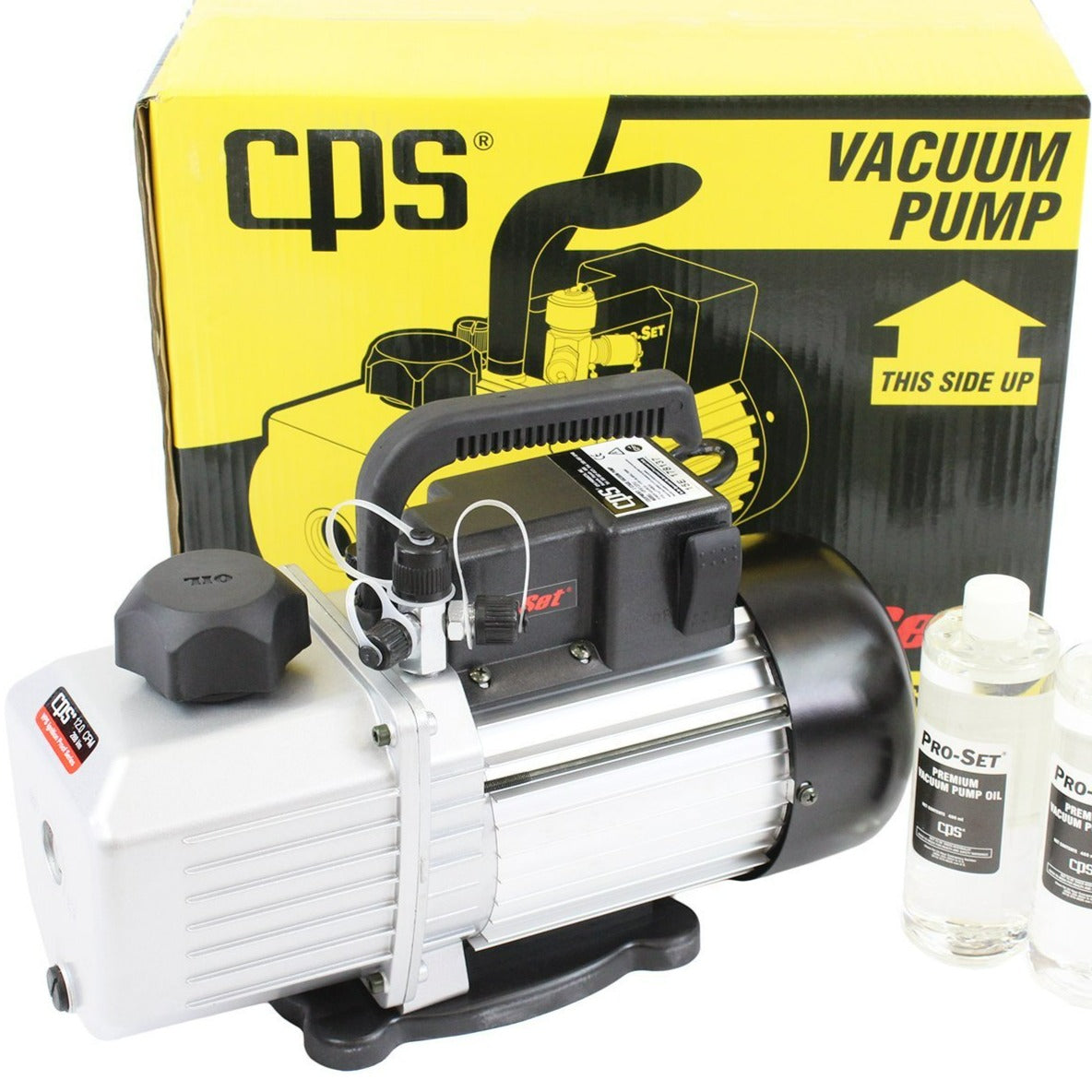

CPS VPS12DU | Pro-Set® 12 CFM Sparkless Vacuum Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$700.00

SKU: CPS-VPS12DU Category: Brand:

12 CFM Sparkless (Ignition Proof) Vacuum Pump Series

CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

CLICK HERE TO VIEW THE MANUAL INSTRUCTION

SAFETY-INSTRUCTIONS

VPS12DU Sparkless Vacuum Pump Features:

  • Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
  • For use on refrigeration systems utilizing: Class A1 (nontoxic, nonflammable), Class A2L (non-toxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
  • Air-cooled, thermally protected motors encased in a durable aluminum housing
  • Oil filled rotary vacuum pump cartridge construction
  • Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
  • Large double-sealed oil sight glass
  • Sealed start relay
  • Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
  • Ignition proof ON-OFF switch
  • Rubber lined handle, skid-resistant rubber base
  • Gas ballast valve for deeper vacuum
  • UL listed

Specifications

  • Stage: 2
  • Ultimate Vaccum: 25 microns
  • Refrigerant Class: A1, A2, A3
  • Dimensions: 14.9″ x 5.7″ x 10.6″
  • Weight: 30.9 lb (14.0 kg)
  • Free Air Displacement : 12 CFM @ 60 Hz
  • Motor Size (HP) RPM @ 50 / 60 Hz: 1 HP 3440 RPM
  • Voltage: 115V, 60 Hz
  • Power Connection: 10′ hard wired
  • Oil Capacity: 27 oz (800 ml)
