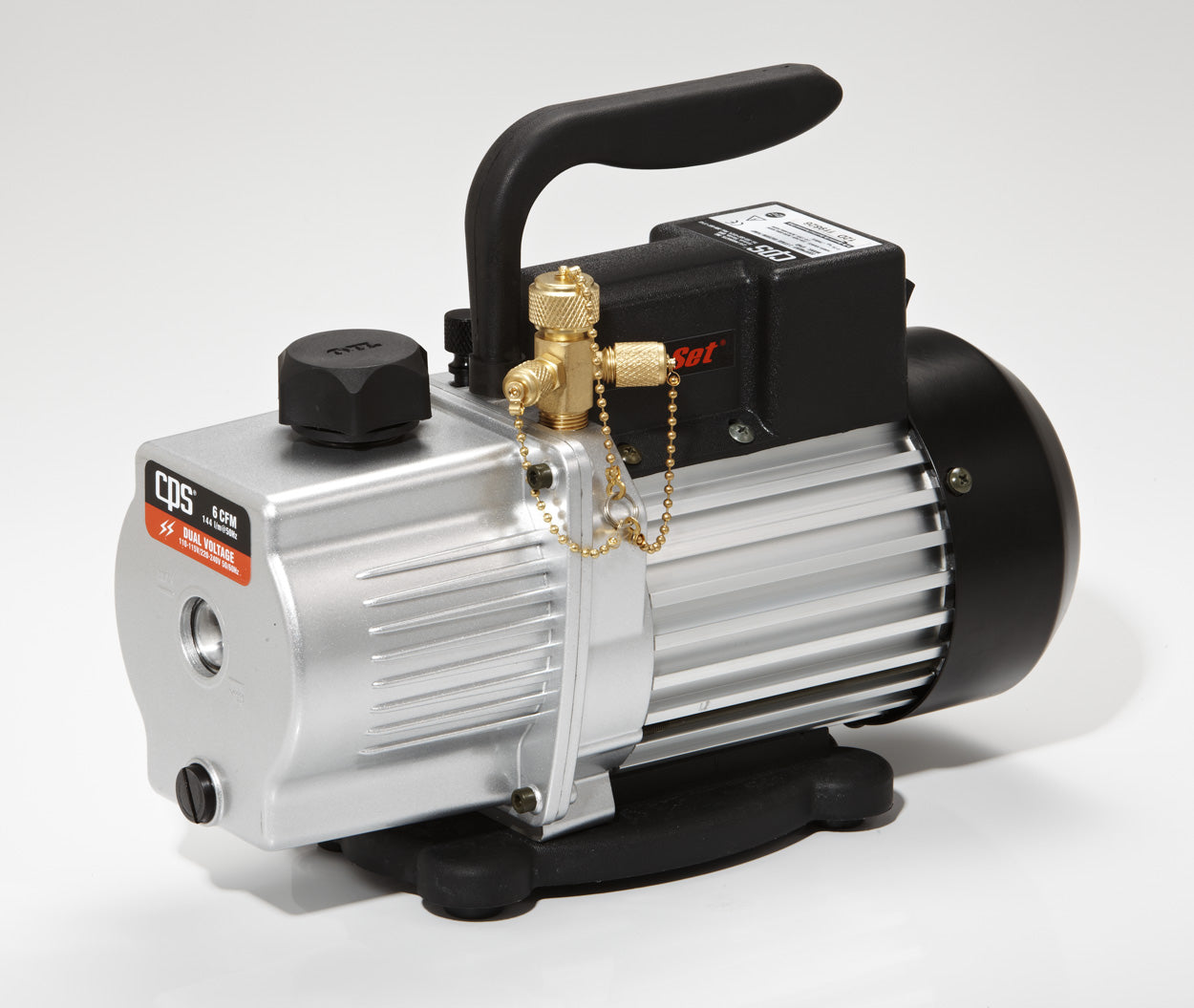

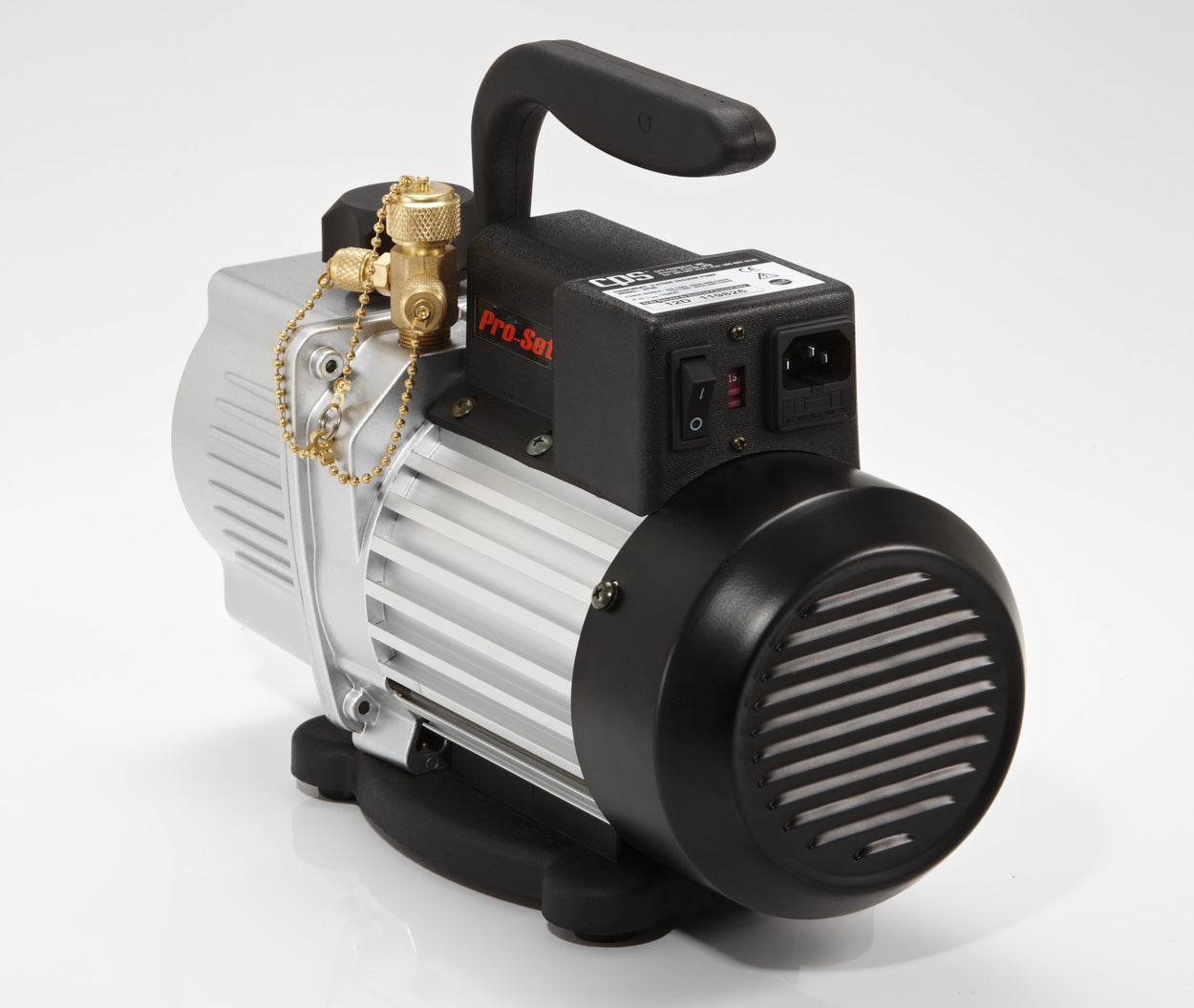

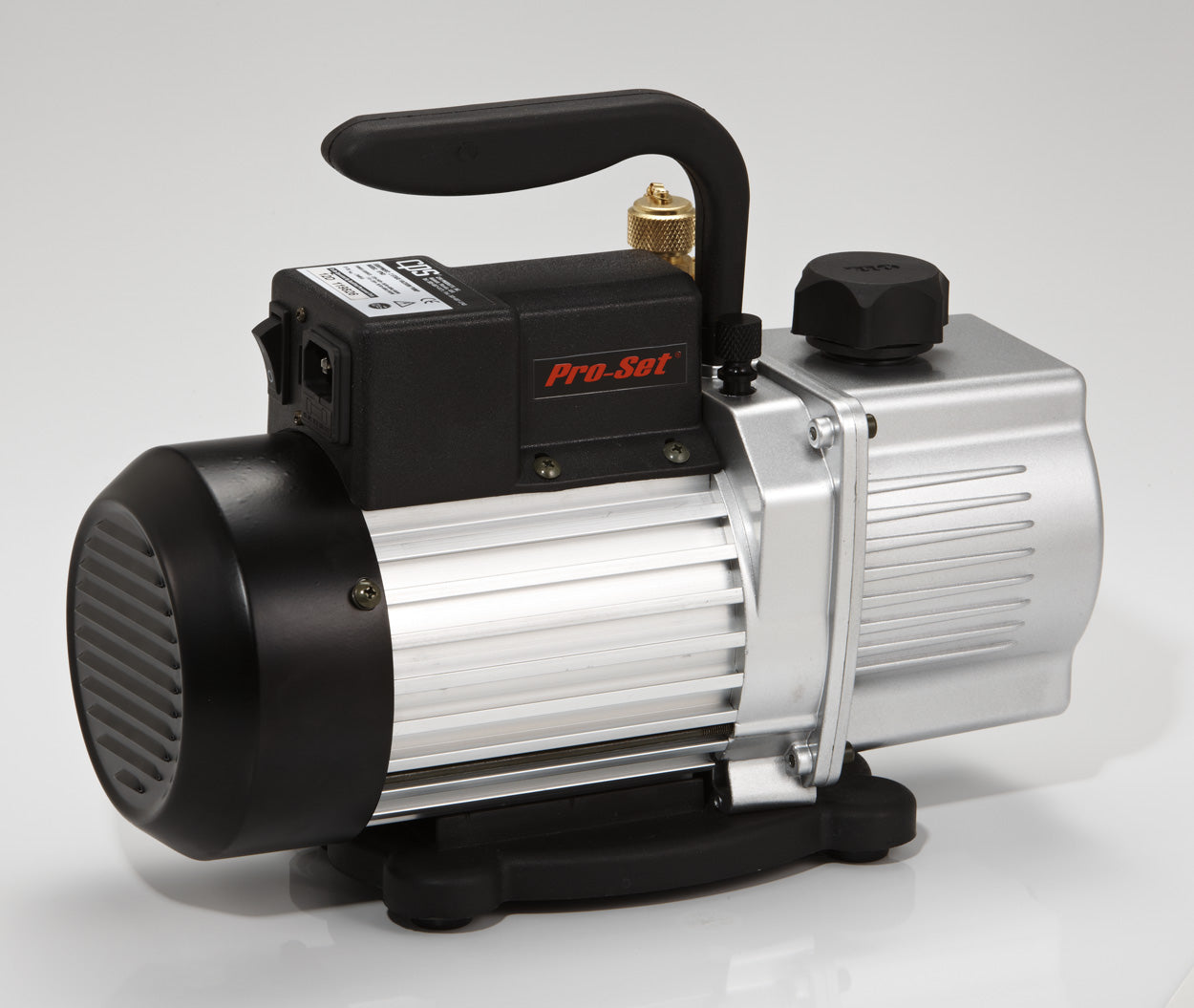

CPS VP6D | Pro-Set® 6 CFM Vacuum Pump 2 Stage

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$278.00

SKU: CPS-VP6D Category: Brand:

The VP6D Pro-Set® Premium Series vacuum pump is a 6 CFM, 2 stage unit with a versatile dual voltage 1 / 2 HP motor. The vacuum pump boasts the same high quality, high value features engineered into all of our Pro-Set® vacuum pumps providing performance excellence and years of reliable service.

CLICK HERE TO VIEW VP6D MANUAL

VP6D Pro-Set® Vacuum Pump Features:

  • Dual voltage operation 110-120V / 220V 50 / 60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for 1 / 4″, 3 / 8″ and 1 / 2″ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
  • Solid rubber base provides extreme shock resistance
  • Sure-grip handle ergonomically designed for superior comfort and portability

Specifications:

  • Power: 110V-120V / 220V 50 / 60 Hz USA plug
  • Stage: 2
  • Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 2 (HP) 2880 / 3440 RPM
  • Dimensions: 13.1″ x 5.5″ x 10″
  • Weight: 22.5 lb / 10.2 kg
  • Operating Temperature Range: 0 °C (32 °F) to 52 °C (125 °F)
  • Ultimate Vacuum: as low as 10 microns
  • Oil Capacity: 14 oz / 400 ml
  • Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse
  • Control System: On-off power switch
  • Free Air Displacement: 6 CFM @ 60 Hz, 144 l / m @ 50 Hz
  • Intake Fittings: 1 / 4″ SAE, 3 / 8″ SAE and 1 / 2″ ACME
