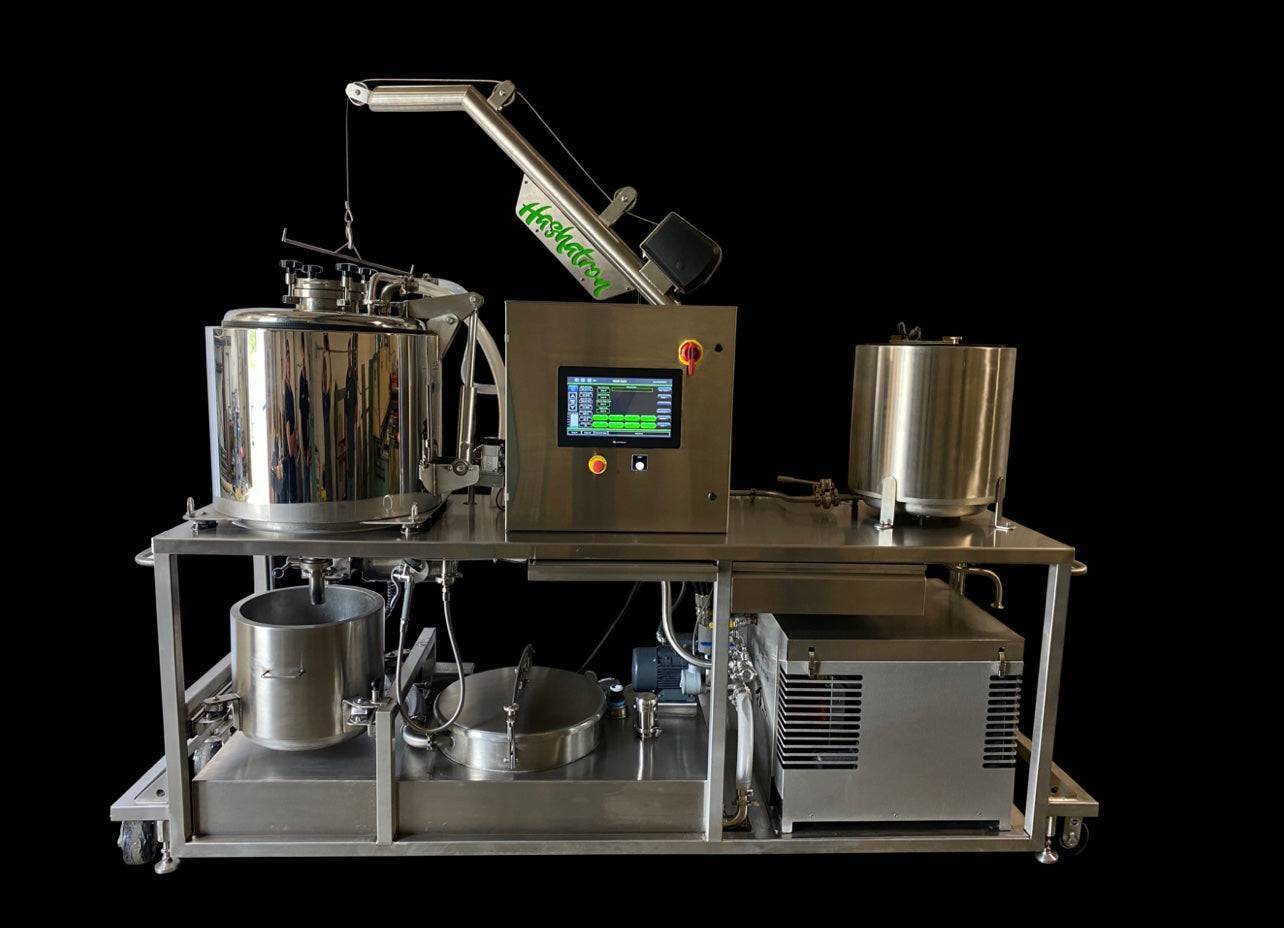

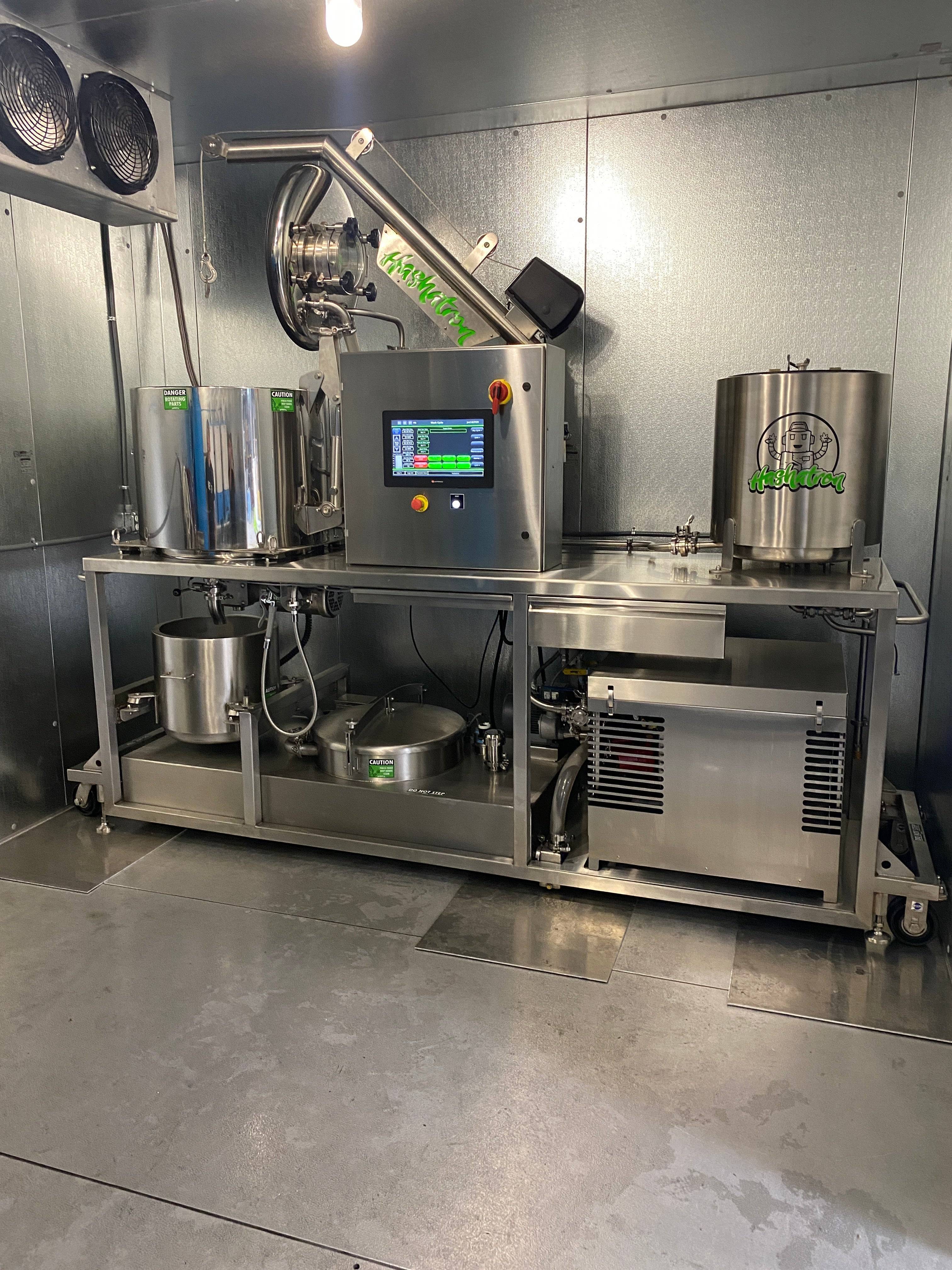

Commercial Wash Station – 80 Gallon Triple Wall With Closed Loop Collection Station, 100 Gallon Waste Holding and 120 Gallon Rapid Chill Tank
- One 80 gallon triple wall insulated & glycol jacketed washing vessel with power opening and power locking lid, 1hp stainless steel wash downgrade motor with stainless steel gear reduction box on self-contained frame & ultrasonic vibrator.
- One double wall 30-gallon stainless steel insulated collection barrel on dual lock slides out with an ultrasonic vibrator.
- One glycol chiller, pre-piped and filled.
- One 100 gallon double-wall insulated stainless steel holding tank with 1.5” recirculation/discharge pump, 18” manway, and intergraded step platform
- One 120 gallon triple wall chilled water make up the tank with intergraded VFD mixer, level sensor, auto-fill valve, temperature sensor, and 1.5” 3hp discharge pump
- Two stainless steel removable washing basket with lifting handles and internal paddle mounts
- Two sets of 4 standard removable paddles
- Intergraded storage draw
- Intergraded pull out work tray
- One 18″ color touch screen on a swivel arm. Remote mount control cabinet, controlling all lab functions and process functions. Data logging and preset fill and cycle times, high-temperature alarms, high water alarms, high freezer temp alarms, chiller auto start, Wi-Fi alerts, and wireless updating capability
- One overhead lifting arm with a powered winch
Quote (no tax) No Freight $325,000
