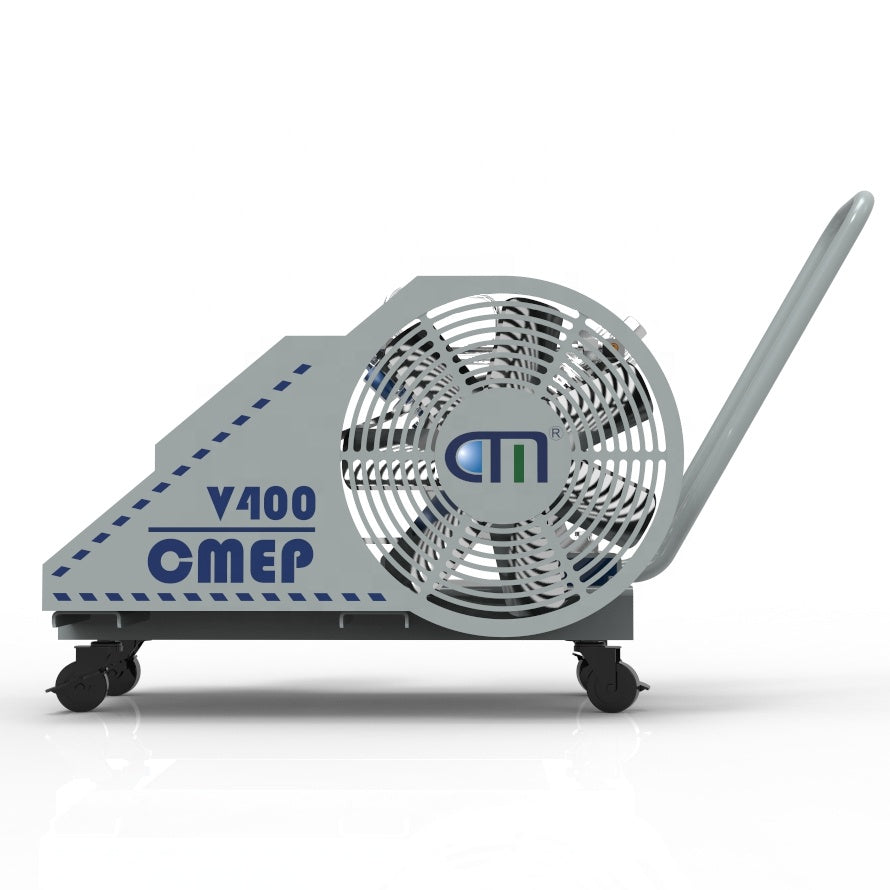

CMEP-V400 RECOVERY PUMP

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$4,000.00

SKU: CMEP-V400 Category: Brand:

Features

  • Recovery hydrocarbon solvent at 4CFM
  • Max outlet pressure 160Psi rated for butane and propane including mixture
  • Powerful 2HP UL listed C1D1 explosion proof motor
  • 2000 hours running time without maintenance
  • Air cooled design with oversized fan for high efficiency heat exchange
  • Compliant with NFPA and UL explosion proof

 CLICK HERE TO VIEW THE CMEP-V400 MANUAL

ITEM

MODEL

CMEP-V400

Performance Data

Gas Displacement

4 CFM

Propane Recovery Rate

1.1 lbs/min (based on inlet pressure 29 PSI)
0.8 lbs/min (based on inlet pressure 14.5 PSI)

Butane Recovery Rate

1.3 lbs/min (based on inlet pressure 29 PSI)
0.9 lbs/min (based on inlet pressure 14.5 PSI)

Max.Pumping-out Pressure

160 Psi

Max Inlet Pressure

70Psi

Inlet / Outlet Port Sze

1/2″ JIC Male

Ultimate Vacuum Degree

28 inHg (0.96 Bar)

Compressor Cooling Way

Air Cooling

Noise Level

70 dB

Pressure Relief Valve

217Psi

Working Temperature

0-50

Explosion Proof Motor

Horsepower

2 HP

Voltage

230V 60Hz 3PH

Max.Amperage Load

5.2A

RPM

1725

Approved

UL Class l Division l Group C&D

Material

Compressor,Vaive & Pipeline

Food grade stainless steel

Piston Ring

PTFE

Weight

Net Weight

60 Kg

Dimension

L*W*H

1020*465*680 mm
