Hose Barb x MNPT

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$7.00$12.50

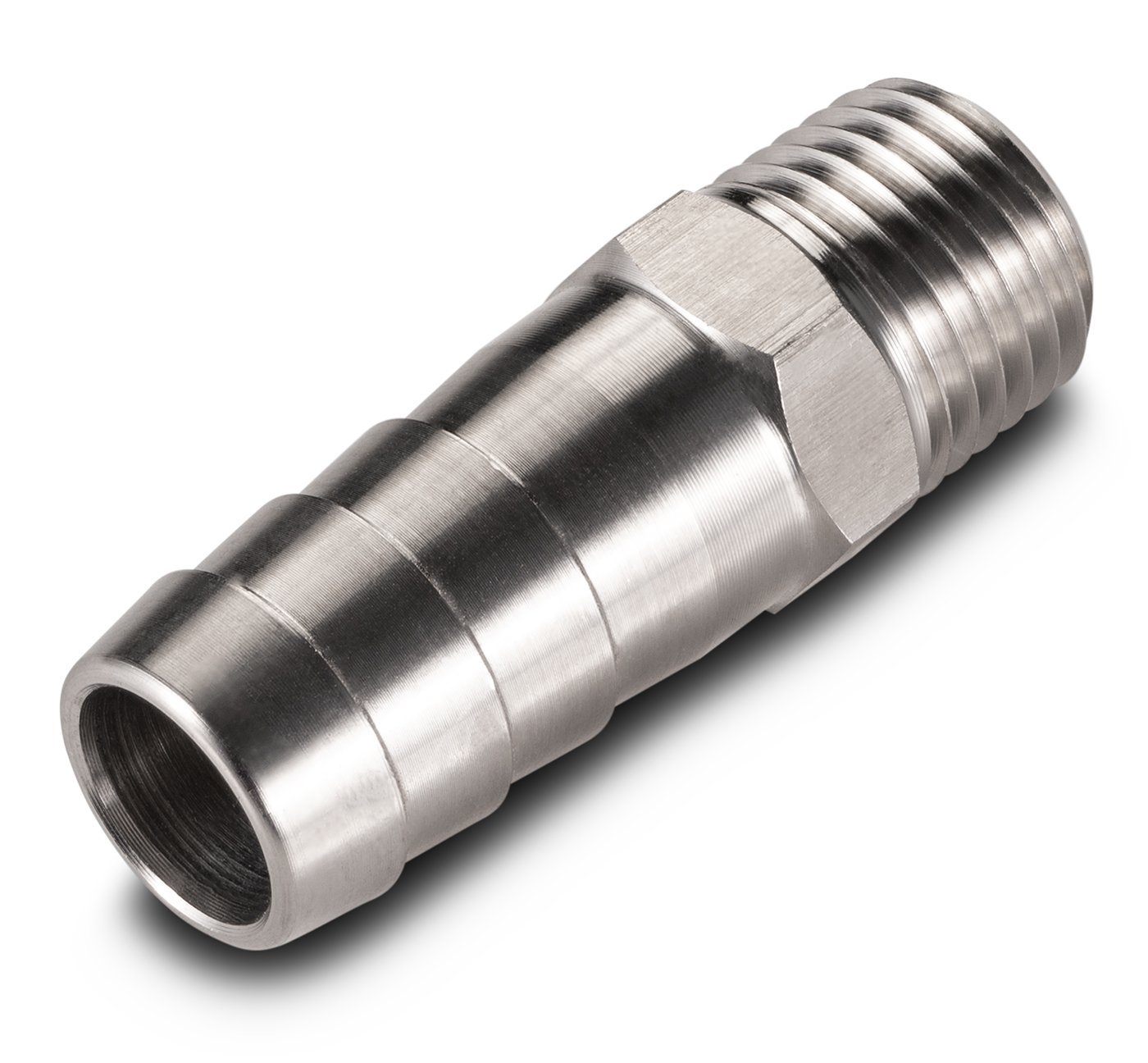

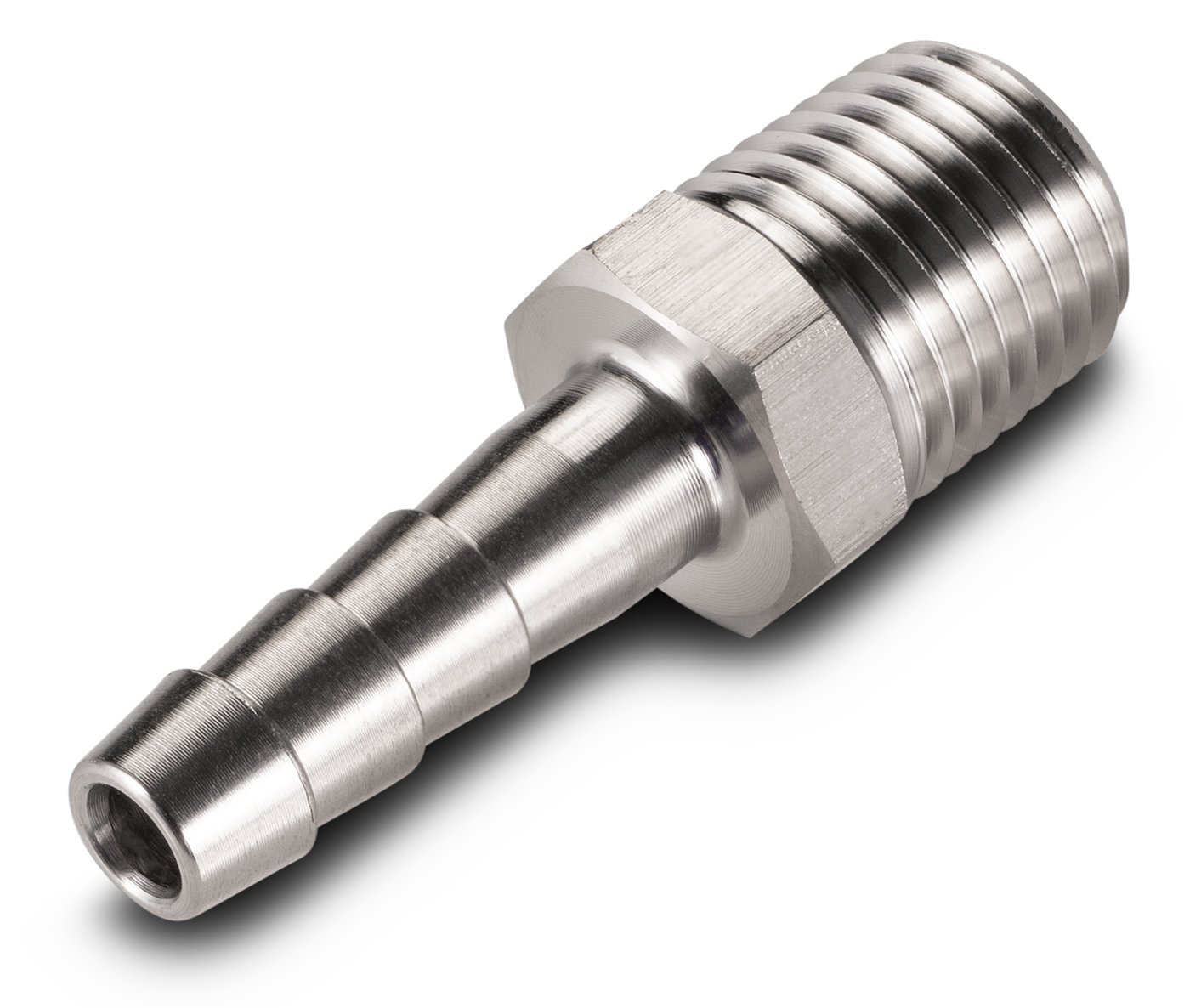

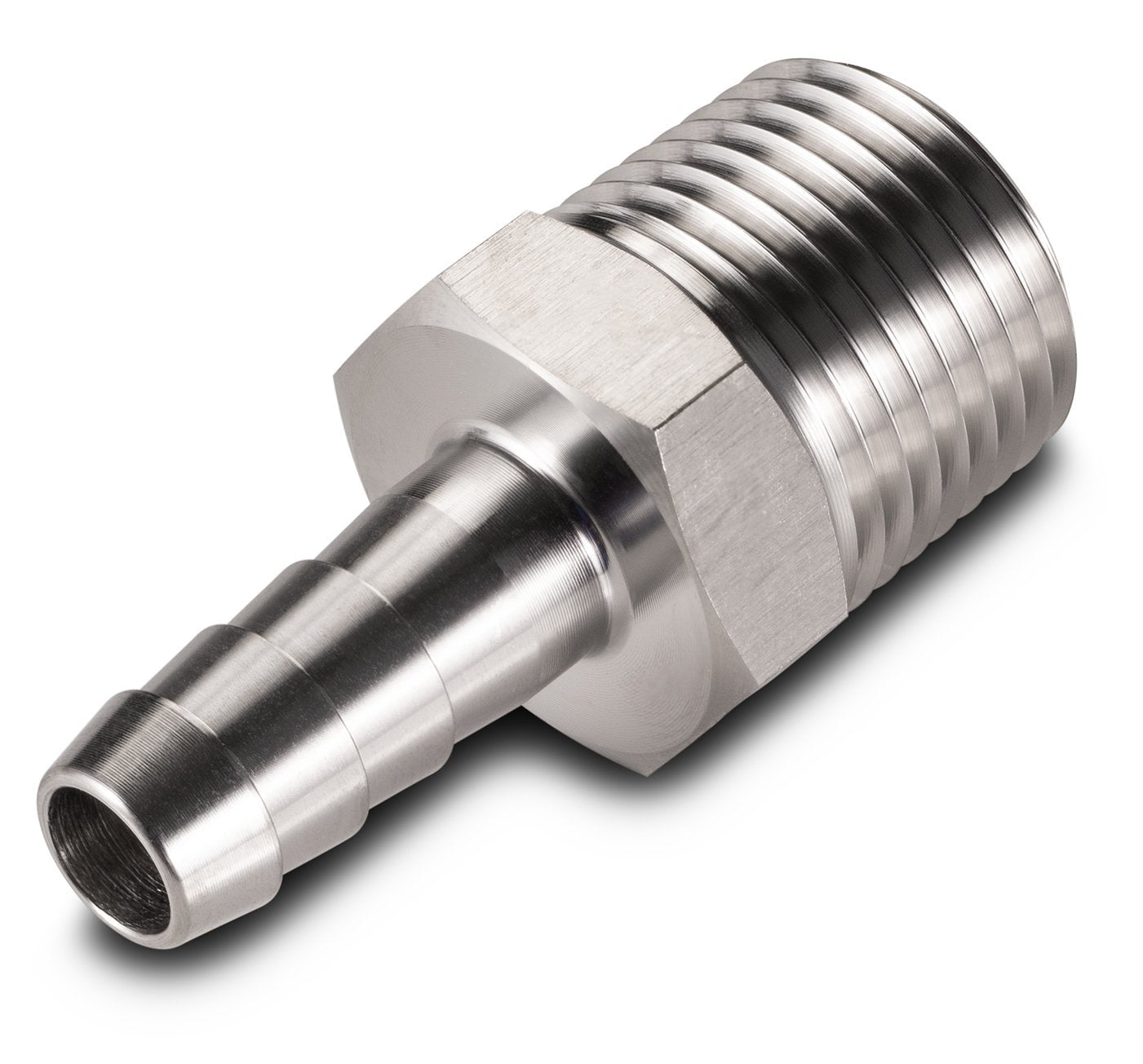

BVVâ„¢ Hose Barb x MNPT

BVVâ„¢ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are Hose Barb x NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service.

**NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.)



Hose Barb connections will allow the user to connect flexible tubing to the Hose Barb and allow the user a variety of additional options for their extraction system such as circulating fluid through a jacketed base with silicone tubing or pull a vacuum with gum rubber tubing.

BVVâ„¢ Hose Barb x MNPT- Data Sheet295 Pdf Logo Illustrations & Clip Art - iStock

Specifications
Material 304 Stainless Steel
Connection Type(s): 1/4″-18 MNPT
1/2″-14 MNPT
1/4″ Hose Barb
3/8″ Hose Barb
1/2″ Hose Barb
Sizes Available: 1/4″ Hose Barb x 1/4″ MNPT
3/8″ Hose Barb x 1/4″ MNPT
3/8″ Hose Barb x 1/2″ MNPT
1/2″ Hose Barb x 1/4″ MNPT
1/2″ Hose Barb x 1/2″ MNPT
