BVV™ 1/4″ MNPT x 1/4″ FNPT Stainless Steel Miniature Butterfly Handle Ball Valve -20 to 230C

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$31.00

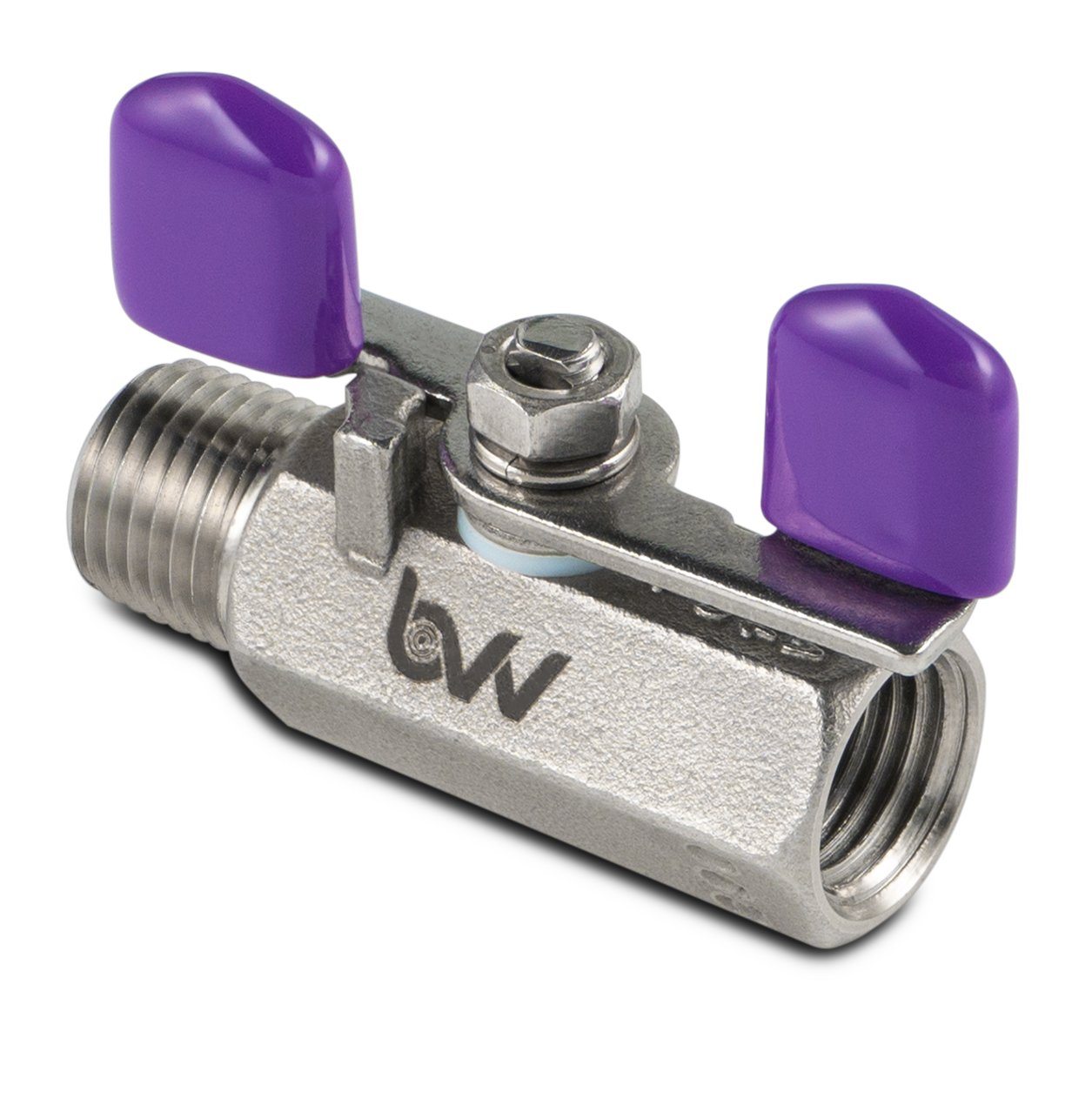

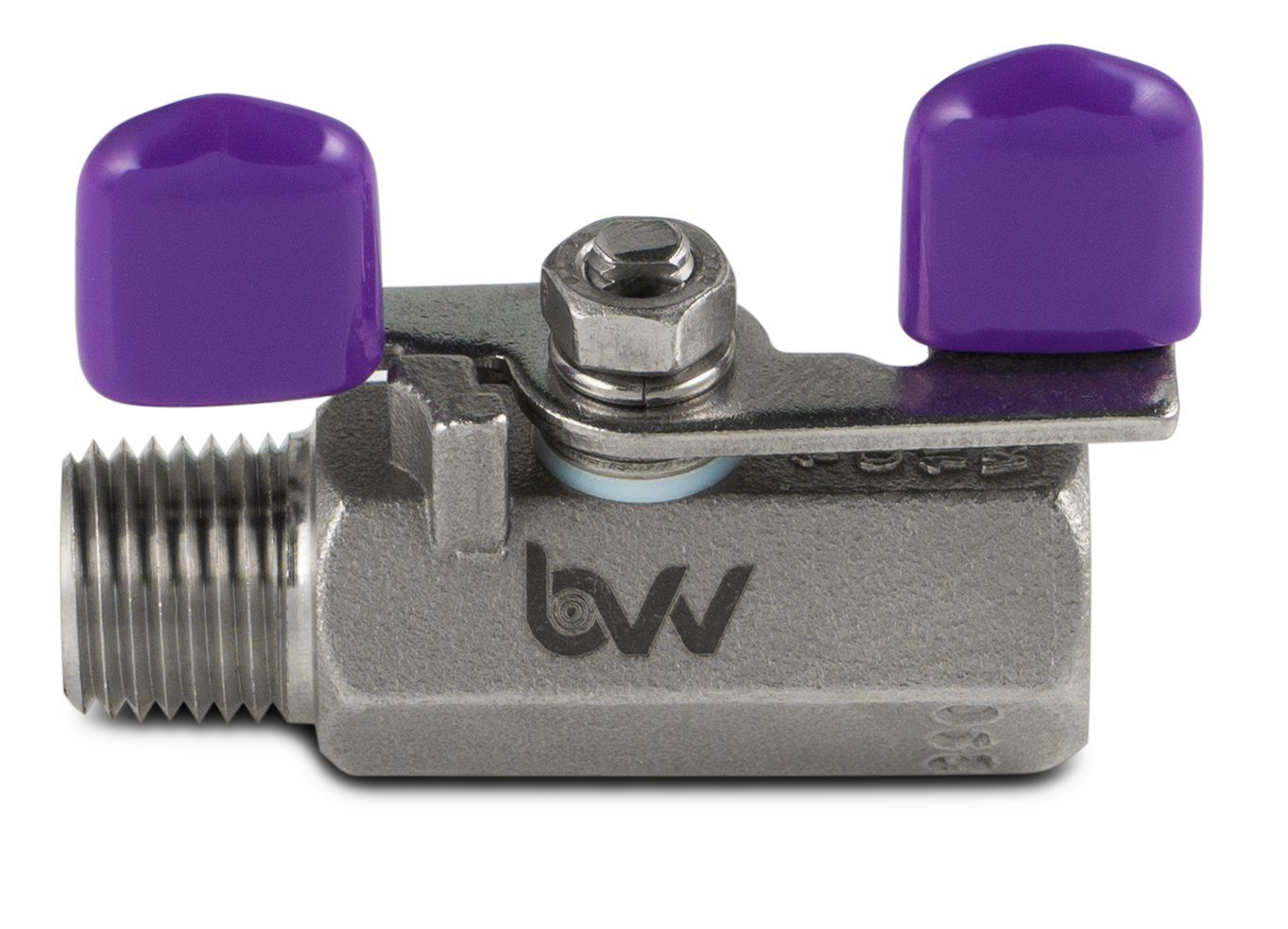

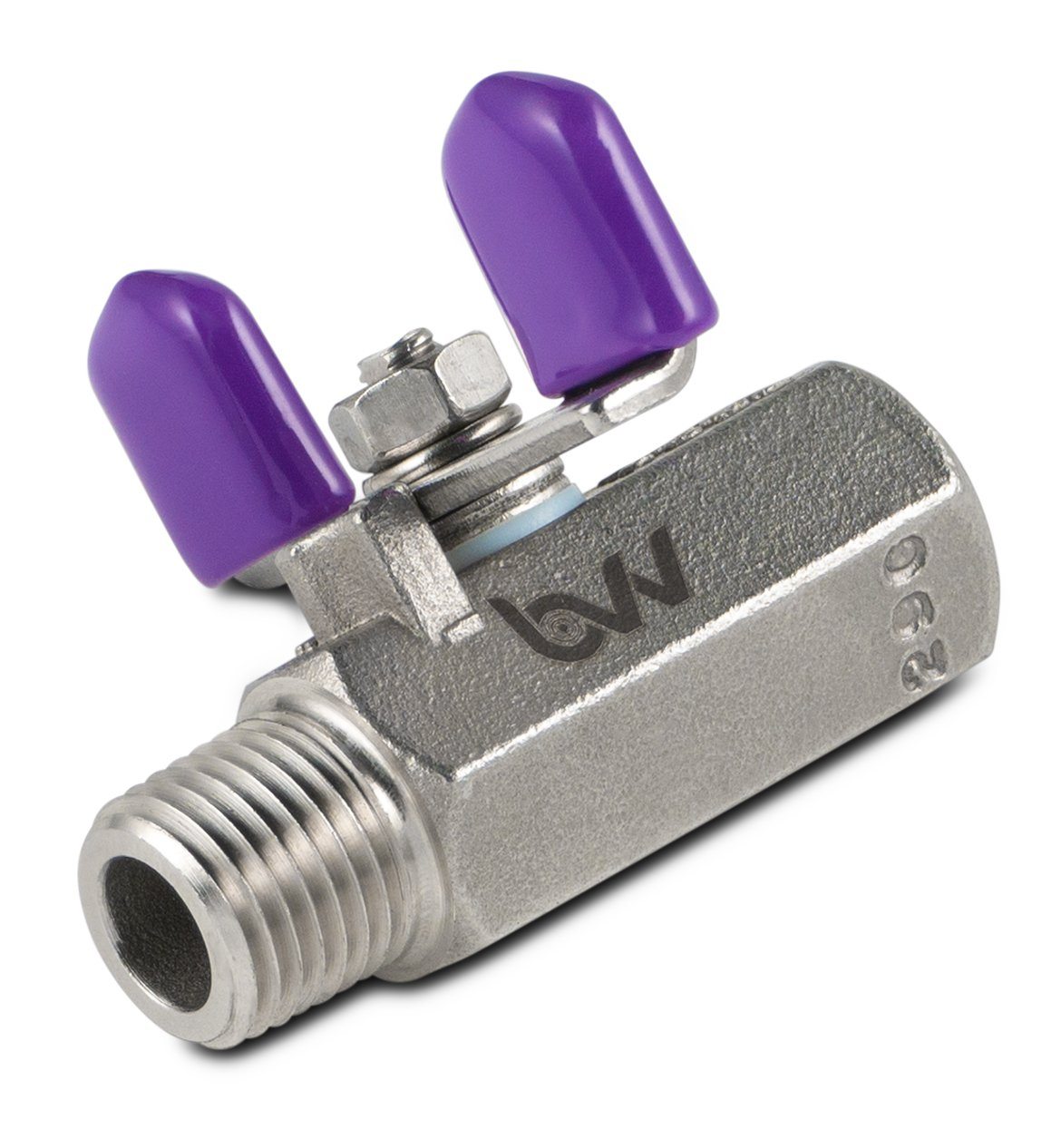

BVV™ 1/4″ MNPT x 1/4″ FNPT Stainless Steel Miniature Butterfly Handle Ball Valve



This 316 Stainless Steel Miniature Ball Valve features a stainless steel ball and Modified PTFE (Dyneon™ TFM1600) seats and packing on the inside. It has an overall length of 2-3/4″ and has a 1/4 turn butterfly style valve.

 Technical Data Sheet

Pressure Tested in compliance with API 598 Ninth Edition 2009: Sec.5 and Sec.6



Specification
Standard: ASTM A351
Stem: 316 Stainless Steel
Seat: PTFE
Temperature Rating: -20C – 230C
Pressure Rating: 1000 PSI (W.O.G. Water, Oil, Gas)
Body: Cast 316 / CF8M Stainless Steel
Cap: Cast 316 / CF8M Stainless Steel
Ball Cast 316 / CF8M Stainless Steel
Heat Treatment: Solutiom Annealed 1050-1100C
Stem Packing: PTFE
Thrust Washer: PTFE
