Beaker & Wrench Peristaltic Tubing, FDA, 20′

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$30.00

Category: Brand:

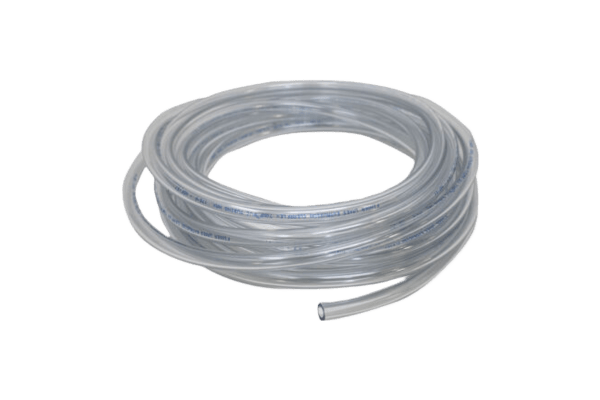

Tubing for the Peristaltic Pump

This tubing is for the Peristaltic Dosing Pump and is made of FDA approved materials, specifically PVC plastic. It is flexible with a durometer of 70A. It is suggested that the tubing is changed every other day, while some prefer to change it after every batch.

  • 1/4″ ID
  • 7/16″ OD
  • 3/32 Wall thickness
  • 20 Feet provided with every order
  • Temperature Range: -23°C to 71°C
  • GMP

If you are looking for a tubing with a temperature range that can go above 71°C, click here.

The industry standard for general purpose food, beverage, and dairy applications, this tubing is made of FDA listed materials and meets NSF/ANSI Standard 51 for food contact. Tubing doesn’t contain plasticizers like DEHP, so it won’t impart tastes or odors to the fluid passing through it. It has a non-absorbing surface, which makes it easy to clean. Tubing is clear, so you can easily monitor flow through the line. It is flexible, so it bends easily around objects.



Spec sheet
For Use With Food, Beverage, Dairy
Material PVC Plastic
Hardness Rating Soft
Hardness Durometer 70A
End Type Without Fittings
Connection Type Tube
For Connection Style Barbed
Clarity Clear
ID 1/4“
OD 7/16“
Wall Thickness 3/32“
Flexibility Flexible
Bend Radius 2″
Temperature Range -10° to 160° F
Maximum Pressure 55 psi @ 72° F
Maximum Vacuum Not Rated
Color Clear
Specifications Met Made of FDA Listed Materials, NSF/ANSI Standard 51 for Food Contact
Sterilize With Chemicals, Gas, Steam (Autoclaving)
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
Country of Origin United States
