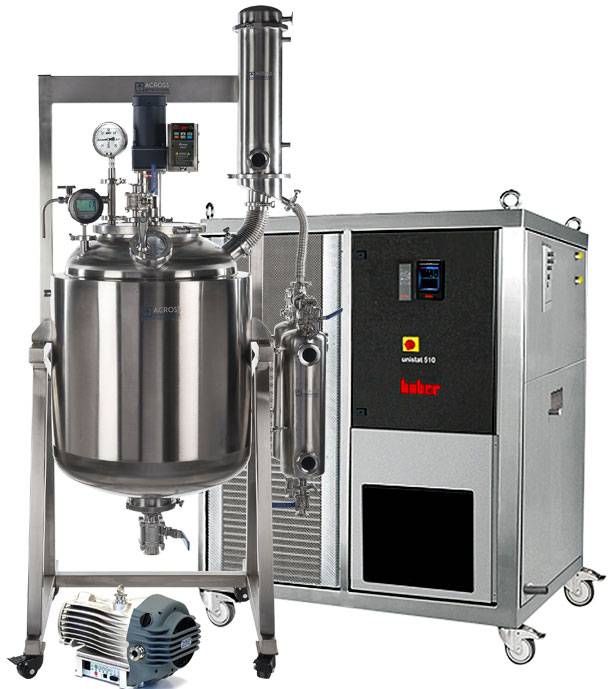

Ai Dual-Jacketed 200L 316L SST Reactor Crystallization Package
$118,573.00 – $143,802.00
?
Ai 316L Grade Stainless Steel Reactor Features
- Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
- All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
- Shell and tube heat exchanger with 70 tubes for the best condensing results
- ElectroPolished internal chamber
- Greatly reduces surface roughness by leveling micro-peaks and valleys
- Improved vacuum pressures, out-gassing rates, and pumping speed
- Prolong equipment lifespan by reducing friction and wear
- Much better sterilized and semiconductor grade surface
- Essential for the food and pharmaceutical industries
- https://hollandaptblog.com/2014/03/20/what-is-electropolishing-and-why-is-it-so-important-in-the-pharmaceutical-industry
- Detachable condenser and collection tanks
- Dual collection tanks with big sight glass allows you to drain without breaking vacuum
- High drain port clearance for easy draining or added filtration
- Large ports (top 12″ bottom 6″) allows easy chamber cleaning
- Top placed vacuum port on condenser provides better flow and condensing results
- No messy cable, with space saving integrated stirring motor controller
- Heavy-duty stainless-steel frame with swivel casters
- Built-in flashlight gives you a clear view inside the chamber
- Positive/negative pressure gauge
- Matte finish stainless steel
- Customizable lid for various application
- Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
- Choice of bolted or pin clamp for various pressure applications
- Flexible bellow condenser connection reduces shipping damage
- Electric motor and controller model is ETL certified to UL and CSA standards
- Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.
?
CAUTION!
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer’s recommended thermal fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion
- Always keep system vacuum passage or drain valve open when heating up circulation jackets
- Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits
?
?
?
?

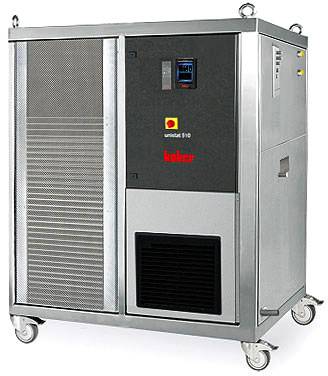

Huber Unistat 510 adapters, tubing and fluid for SR200 stainless steel reactors for Crystallization
- P/N 6165 x 1 M60 (-60 to 115) 5L – fluid
- P/N 6166 x 4 M60 (-60 to 115) 10L – fluid
- P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
- P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
- P/N 13255 x 2 M30 X 1.5 (male) to 1″ NPT (male)
?
?
?
?
?
?
