The CFE30 series centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has features such as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
Technical Parameters
ITEM
CFE30
Basket diameter (mm)
500
Volume (L)
98
Speed (r/min)
1600
Maximum separation factor
715
Loading limit (KG)
15
Motor
UL Certified 3.KW Ex-Proof
Motor Power(KW)
3.7
Machine weight (KG)
722
Dimensions: L×W×H (mm)
1360x860x1300
Withstand voltage (MPa)
≤0.4
Dry hemp
~30lbs/batch
Power
230V/60HZ/3P
Feature
304 Sanitary Stainless-Steel Construction
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
Support provided
Diagram of CFE30 centrifuge
(1)Shaft seat (2) rotary drum (3) motor (4) Case (5) Cover (6)Open power unit (7) Shock absorber (8) Frame

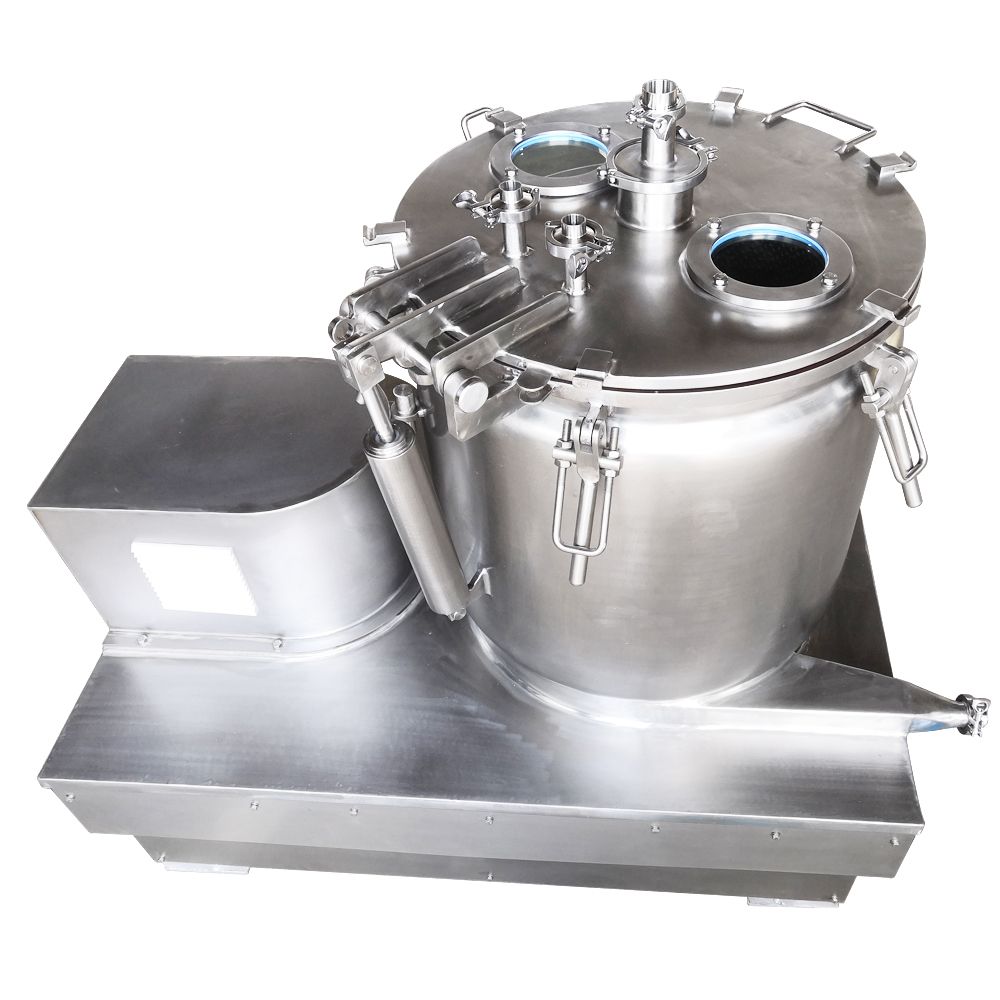

![Hardware Factory Store Inc - 98L Extraction Centrifuges HermeticSS304 230V/60HZ/3P EX Proof UL Certified - [variant_title]](https://www.scisolinc.com/wp-content/uploads/2022/08/1deb67eb-170d-50f4-be48-1a52024f013c.jpg)
