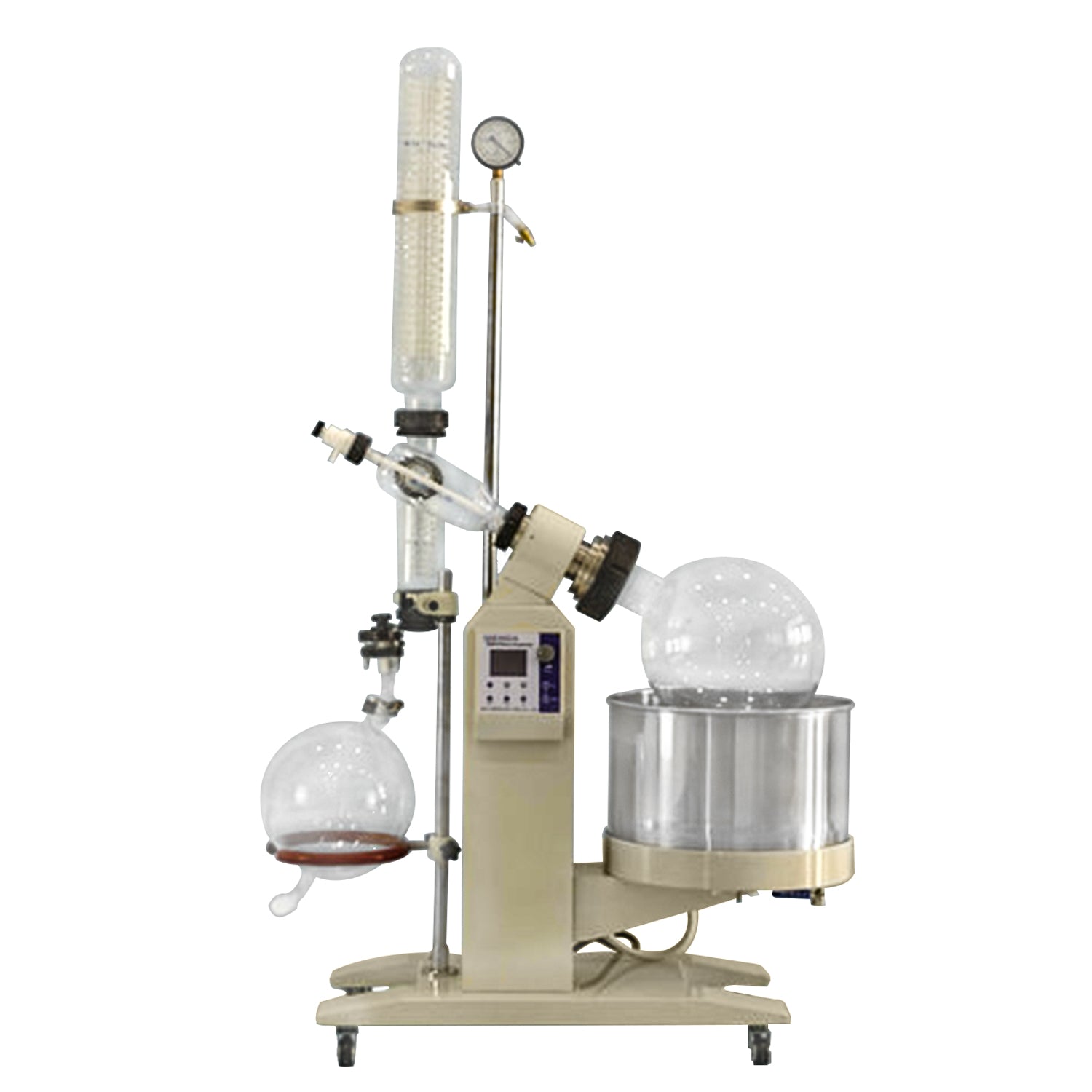

5L Rotary Evaporator

Applications

It is the suitable and ideal instrument for chemistry-based institution. A governor rotates the flask for precise control of the of its rotating speed.

Features

1. LED display.
2. Stepless speed adjustment.
3. Heating and spinning can be controlled simultaneously.
4. Can rise in temp efficiently and can obtain and sustain high temperature.

Specifications

• Capacity: 5L
• Recommended operating Load: 2.5-3 L
• Max Capacity Receiving flask 3 L
• Maximum Bath capacity: 11-13 L
• Rotating speed: 20 ~ 120 RPM
• Temperature Range: Ambient-99℃
• Glass Material: Borosilicate glass 3.3
• Bath Material: Stainless steel
• Gasket Material: PTFE
• Recommended Bath Fluid: Distilled water
• Controller: Digital
• Recirculating fluid port: GL-18 with 3/8″ Straight Hose Barb
• Heat: 2 elements
• Power of motor: 250 W
• Lifting Function: Electric
• lIfting Stroke: 120mm / 4.7 in.
• Total Power Consumption (kW): 2.2 kW
• Dimensions: 36 x 18 x 54 in.
• Weight: 90 lbs.
