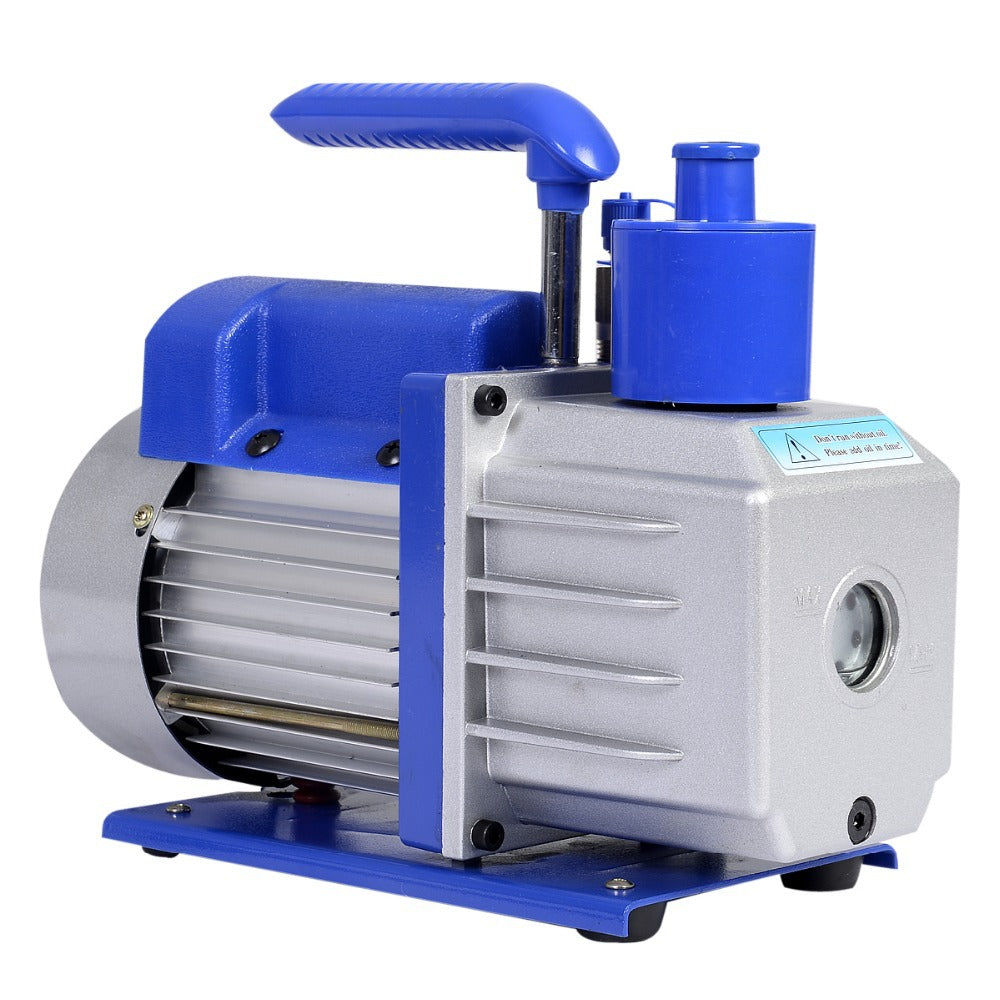

3CFM Single Stage Vacuum Pump VP130

The VP-One series of single-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container.
They are extremely useful in refrigeration repair, medical apliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.

Cilck here to see the product manual for full specs.

Features:

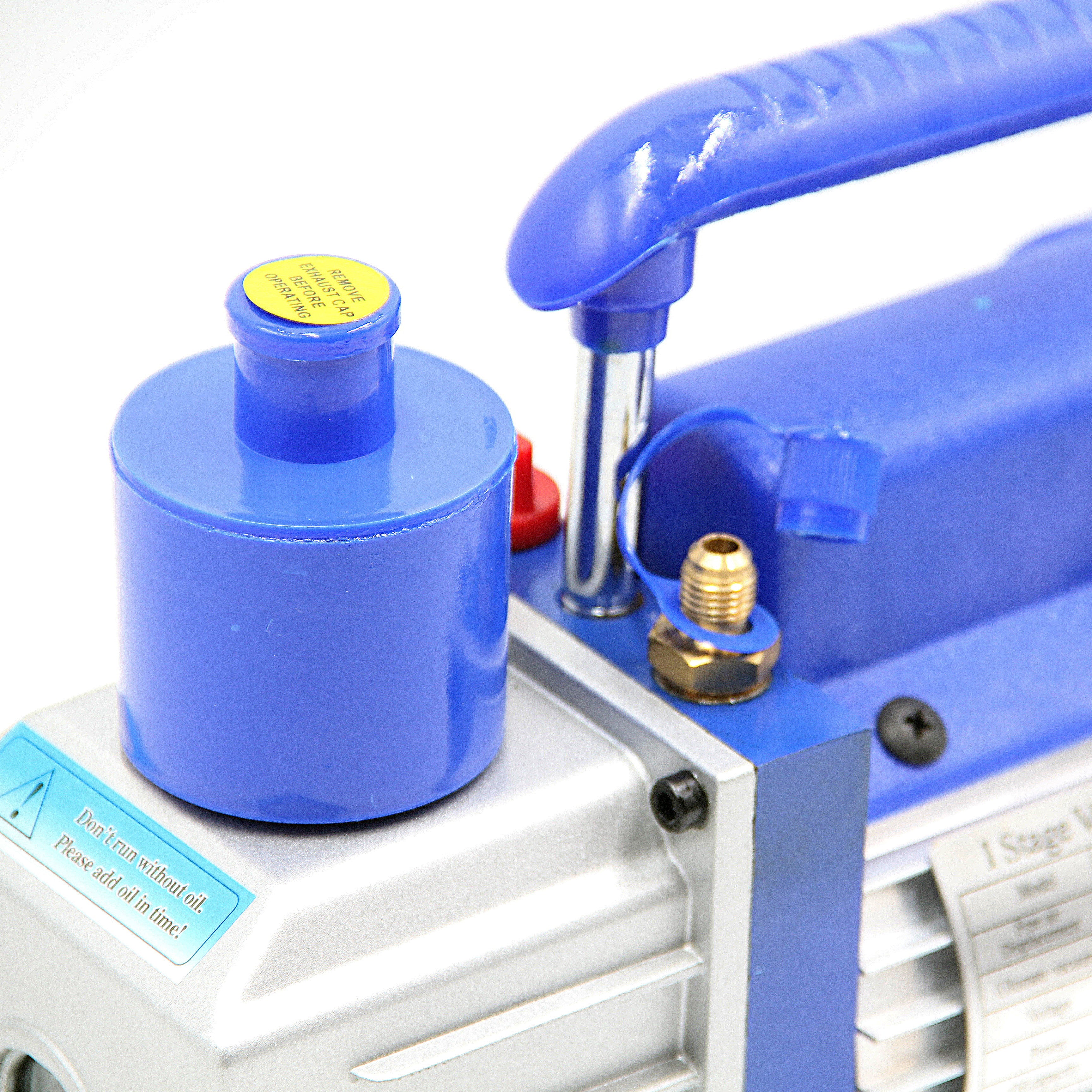

• Oil Anti Flow-Back Design – The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted
• Environmental Design – The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution
• Alloy Aluminium Casing – Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life.
• Easy start design -Starts easily even in cold temperatures
• Anti-Vibration – An electrometric coupling insert between the motor and module results in a extremely quiet and low vibration running condition.

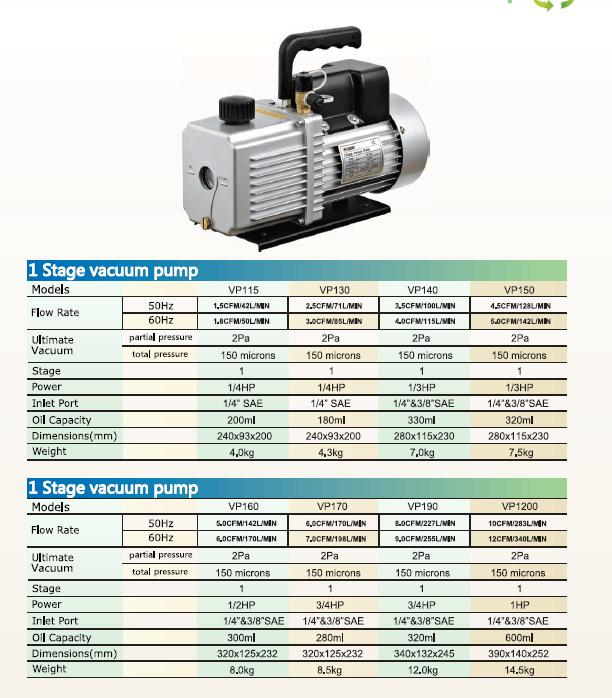

Parameter:

• Flow Rate: 3CFM 85L/min
• Ultimate Vacuum: 2Pa 150 Microns
• Power: 1/4HP
• Inlet: 1/4″ SAE
• Oil Capacity: 2300ml
• Dimensions: 240x93x200mm
• Weight: 4.3kgs
