150L 304SS Jacketed Collection and Storage Vessel with 12″ Tri-Clamp Port and Locking Casters

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$3,450.00

150L 304SS Jacketed Collection and Storage Vessel with 12″ Tri-Clamp/ Tri Clover Port and Locking Casters

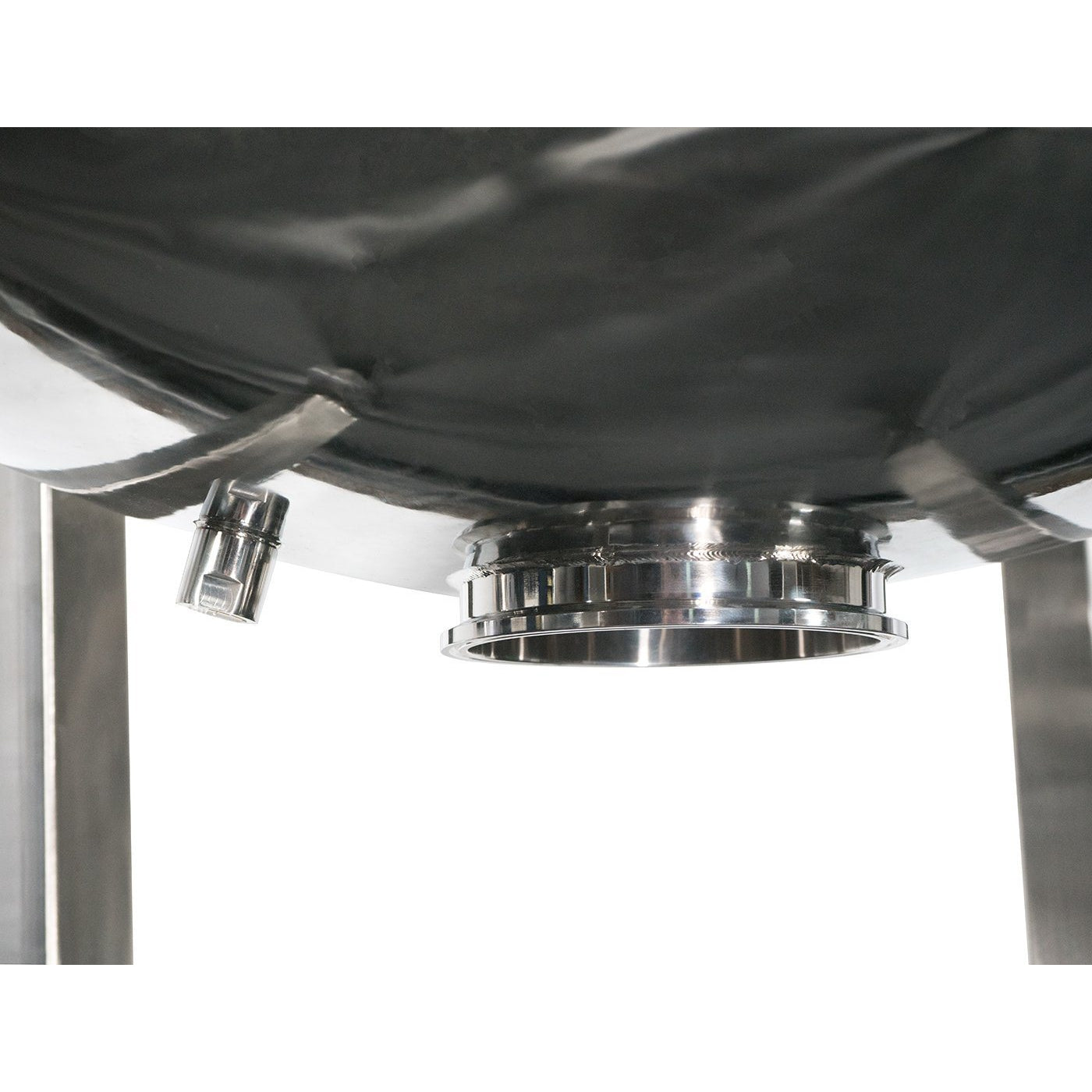

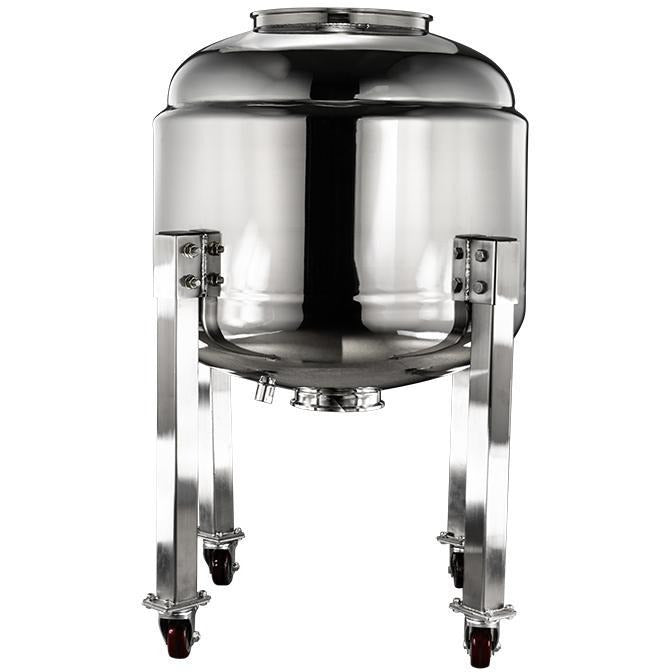

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a 12″ Tri-Clamp port on the top and a 6″ Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2″ FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.

Specifications
Material 304 Stainless Steel
Pressure Rating 150 PSI MAX
Connection Type(s): 12″ Tri-Clamp Top Port
6″ Tri-Clamp Bottom Port
(2) 1/2″ FNPT Ports on the Jacket

***Note: This item will ship via freight ONLY.
