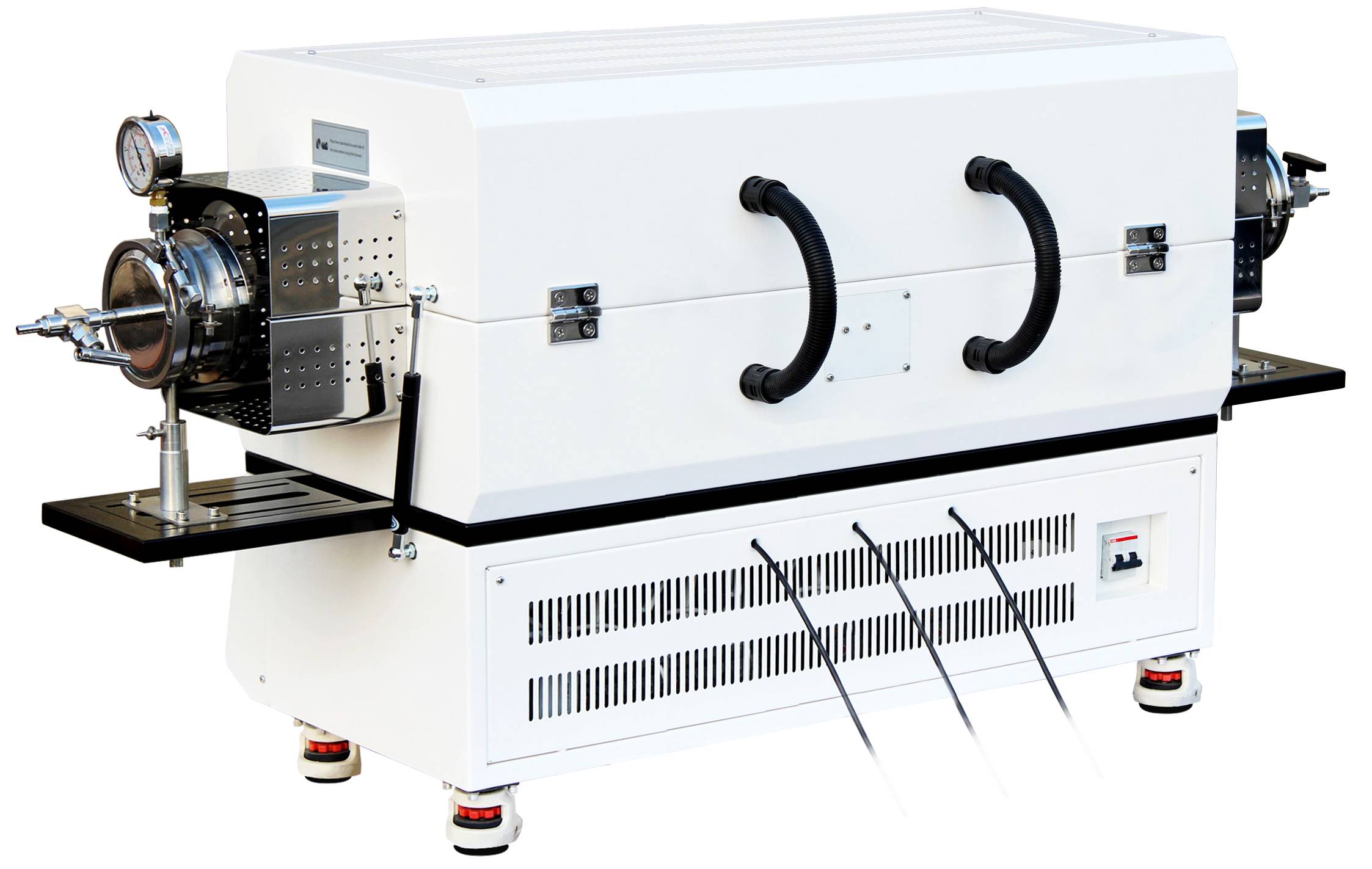

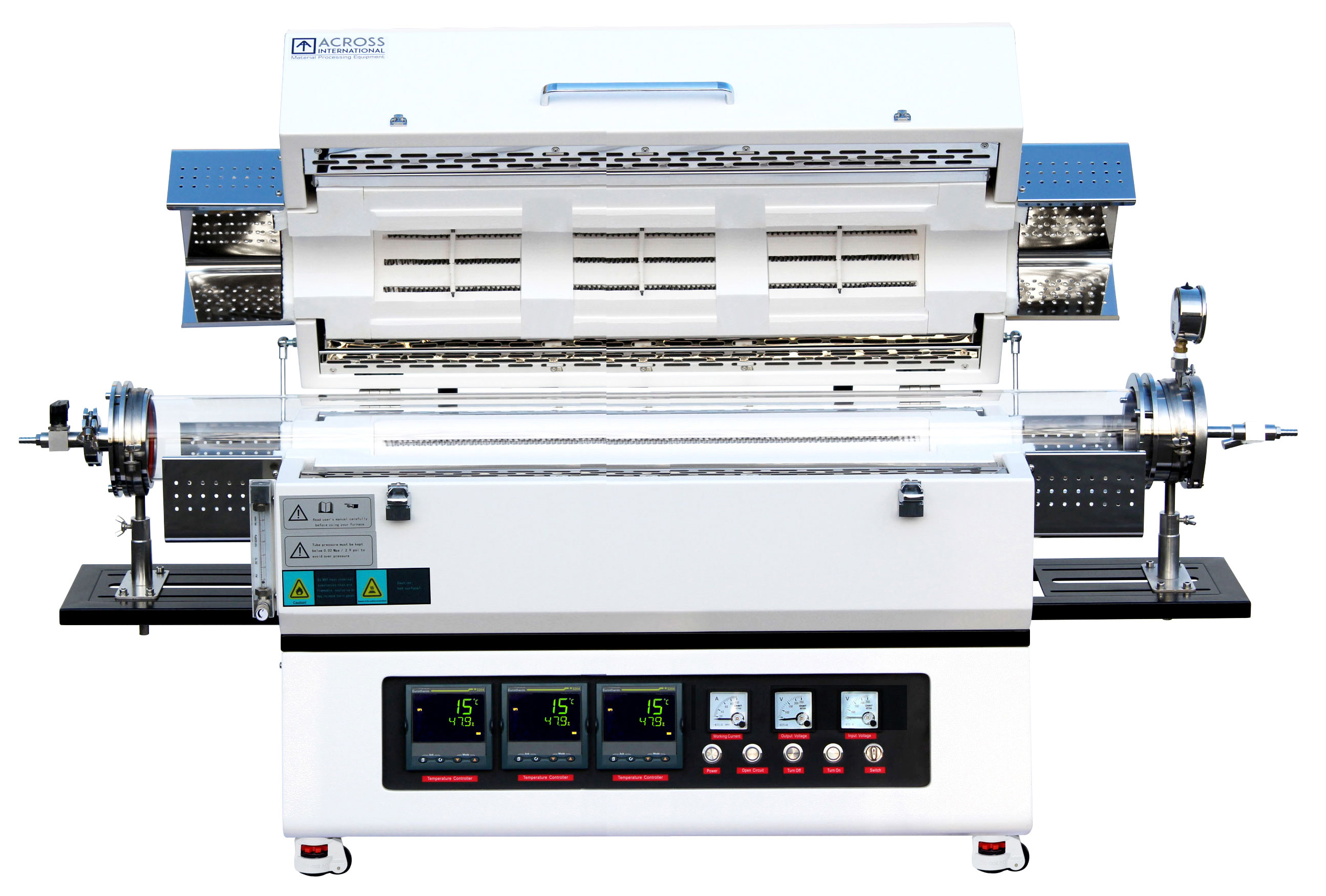

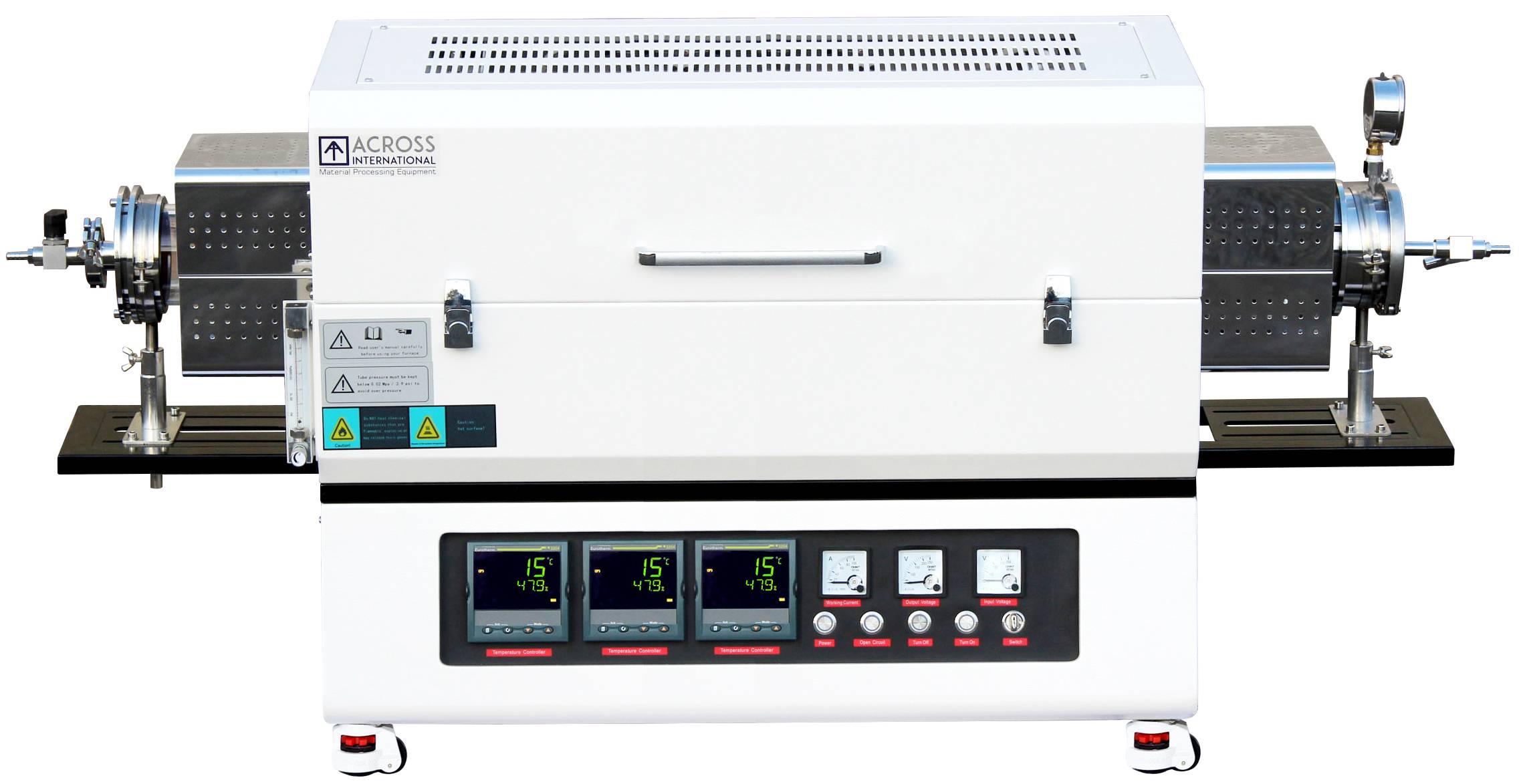

1200C 3-Zone Top-Open Tube Furnace w/ Kanthal Heating Elements

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Mitsubishi refractory lining, Shimaden 40-seg PID controller, overheat/power failure protection, PC interface, vacuum flanges, quartz tube incl. ETL available.

$9,990.00

SKU: 704 Category:



Ai TFM3 series 3-zone tube furnaces feature the famous Kanthal (Sweden) resistance wire as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.

These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes.

All our furnaces are CE certified.

Safety features

  • Furnace overheat protection cuts off power when temperature is over the desired range.
  • Thermocouple protection cuts off power when the thermocouple is broken or malfunctioned.
  • Temperature variation protection cuts off power when the difference between actual temperature and target temperature is off the desired range. (refer to controller’s manual)
  • Power failure protection resume furnace operation right after the point of failure when power is back up.
  • Stainless steel flange support makes sure the tube and flanges are secure and in their absolute position, it also longer the life of the tube.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

General specifications

 Electrical requirements  208-240VAC, 50/60 Hz, single phase
 Tube material   Quartz
 Min. working temperature  Ambient
 Max. working temperature  Zone1/Zone2/Zone3: 1200°C
 Max. constant working temperature  Zone1/Zone2/Zone3: 1100°C
 Constant working temperature under vacuum  Zone1/Zone2/Zone3: 1000°C
 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar
 Rated positive pressure  0.02 MPa / 150 torr / 3 psi
 Refractory lining  Mitsubishi (Japan) high quality 1600 grade fiber alumina
 Heating element type
 Zone1/Zone2/Zone3: Kanthal (Sweden) A1 2.0 resistance coil wire
 Thermocouple type  Zone1/Zone2/Zone3: K
 Temperature controller  Shimaden fp93 (Japan) with 4 patterns and
 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)
 Max heating rate  20°C/min
 Recommended heating rate  10°C/min
 Heating zone length  Zone1: 8 inches Zone2: 8 inches Zone3: 8 inches
 Constant temperature zone length        Zone1: 4 inches Zone2: 4 inches Zone3: 4 inches
 Temperature controller precision  +/- 1°C
 Vacuum sealing flange kit  Stainless steel vacuum sealing flanges with one vacuum gauge,
 two valves and four thermal ceramic blocks.
 Compliance
 ETL tested to UL and CSA standards (optional), CE
 Download  Product brochure


Size comparison

 Tube size (OD x length)
 60mm x 1300mm
 100mm x 1300mm
 150mm x 1300mm
 Maximum output  1.5 kW x 3
 2 kW x 3
 2.5 kW x 3


How to Program Across International Furnaces



How to Install an Across International Tube Sealing Flange









Standard Package

 Part description

 Quantity

 Part image

 TFM3 1200°C max 3-zone top-open tube furnace  1 pc

 Stainless steel vacuum sealing flange set w/ pressure meter  1 set


 Quartz tube  1 pc


 Flow meter  1 pc


 Stainless steel hook  1 pc


 Alumina ceramic thermal block  2 pairs


 Thermal gloves  1 pair

 Spare fuse 2 pcs

 USB/RS485 computer interface kit  1 set

 Furnace and Shimaden controller manual 2 pcs


Specification: 1200C 3-Zone Top-Open Tube Furnace w/ Kanthal Heating Elements

Tube size

OD 60mm L 1300mm open both ends,OD 100mm L 1300mm open both ends,OD 150mm L 1300mm open both ends,OD 200mm L 1300mm open both ends,OD 250mm L 1400mm open both ends

Vacuum setup

3/8" hose barb with no pump (no extra charge),KF25 flange port with no pump (no extra charge),Ai 110/220V EasyVac 9 cfm 2-Stage pump w/ filter,Ai 110/220V SuperVac 5.6 cfm 0.3 micron pump,Ai 110V SuperVac 11cfm 0.3 micron pump,Edwards 110/220V 6.9 cfm RV8 pump,Edwards 110/220V 21 cfm E2M28 pump,Edwards 110/220V 7.5 cfm nXDS10iC pump,Welch 2052 110V 2.3cfm diaphragm pump

Accessory

No additional accessories (no extra charge),2 quarts (1.9 L) of ultra grade 19 pump oil,EZ-Swap vacuum pump exhaust filter w/ fittings
