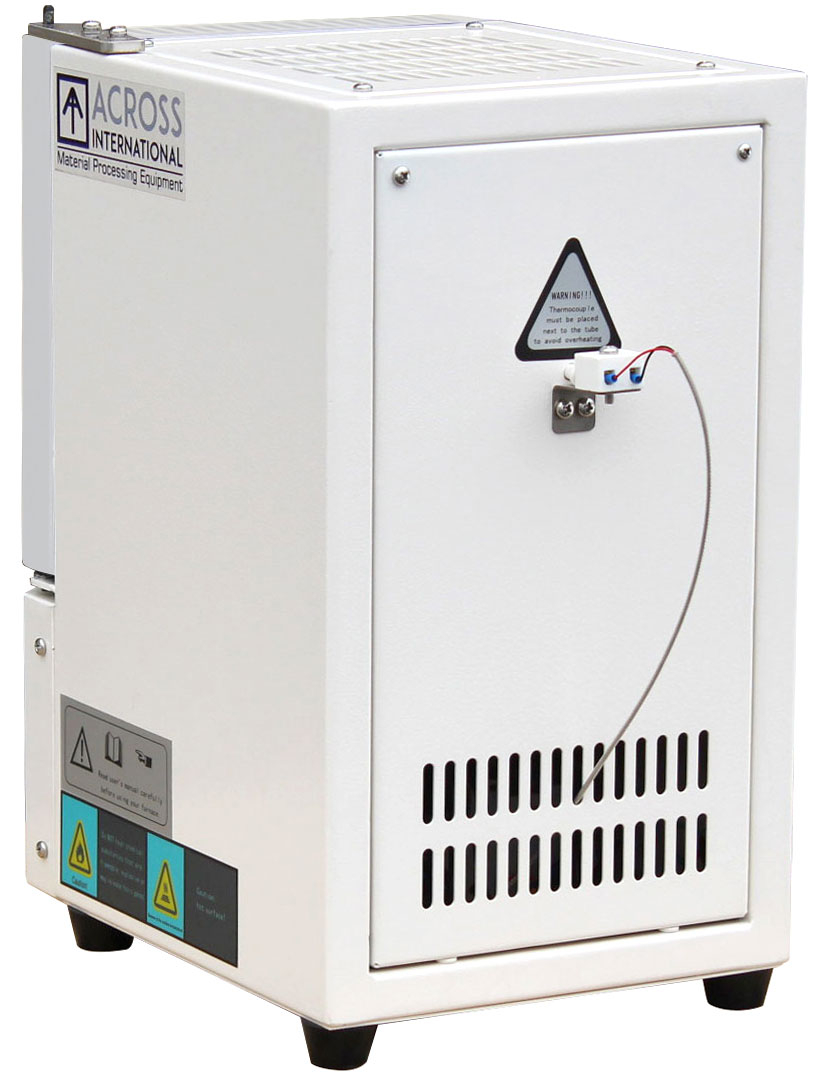

1050°C 4x4x4″ Compact Muffle Furnace w/ 30-Seg PID Controller

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Mitsubishi® refractory lining, 110 volts, overheat/power failure protections, very small foot print.


SKU: 349 Category:



CF1100 4x4x4″ compact muffle furnaces with 30 segments programmable up to 1050°C. Great for small sample heating in research or dental labs. They can also be easily placed inside a glove box if desired. All our furnaces are CE compliant.

Please note: Wire heating element DOES NOT have warranties. We test all our furnaces before shipment. If you believe there are imperfections, please contact us.


 Electrical requirements  AC 110V 60hz 700 watts
 Chamber dimensions (DxWxH)  4 x 4 x 4
 Chamber usable space (DxWxH)  3.75 x 4 x 3.25″ (with cushion block)
 Min. working temperature  Ambient
 Max. working temperature
 Max. constant working temperature  950°C
 Refractory lining
 Mitsubishi (Japan) 1500 grade fiber alumina
 Heating element
 Resistance coil wire
 Thermocouple type
 Temperature controller  UDIAN 30-segment, single PID
 Max heating rate
 30°C / min
 Temperature accuracy
 +/- 1°C (+/- 1.8°F)
 Unit dimensions (DxWxH)  10 x 8 x 15″
 Shipping dimensions (DxWxH)  15 x 14 x 21″
 Unit weight
 25 Lb
 Shipping weight  40 Lb

 ETL tested to UL and CSA standards (optional), CE


 Product brochure





Standard package

Part description



Part image

 CF1100 muffle furnace
 1 pc
 Type K thermocouple
 1 pc

 Thermal gloves  1 pair

 Thermal cushion block (3.5×3.5×0.75″)
1 pc
 Crucible tongs 1 pc
 User’s manual  1 pc
