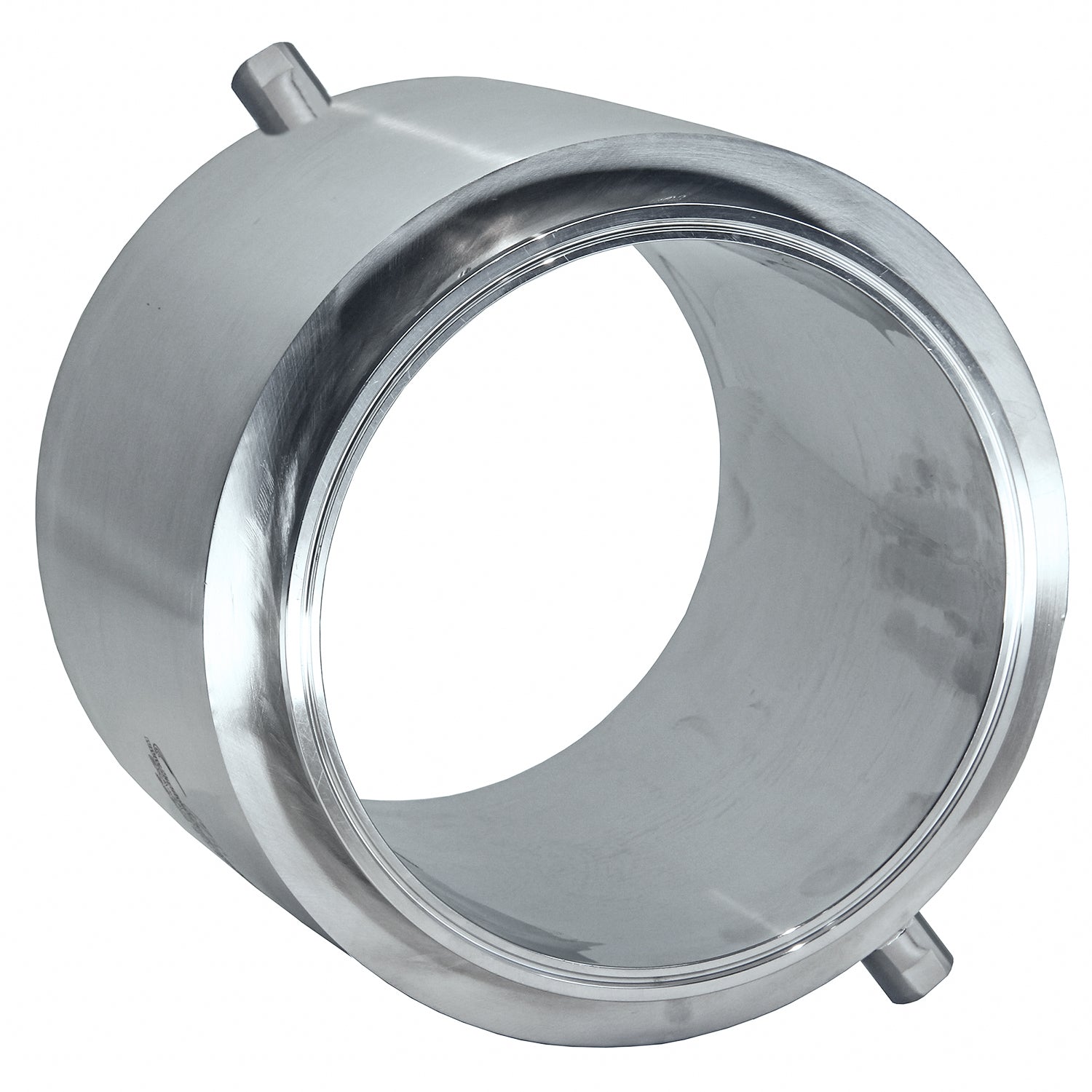

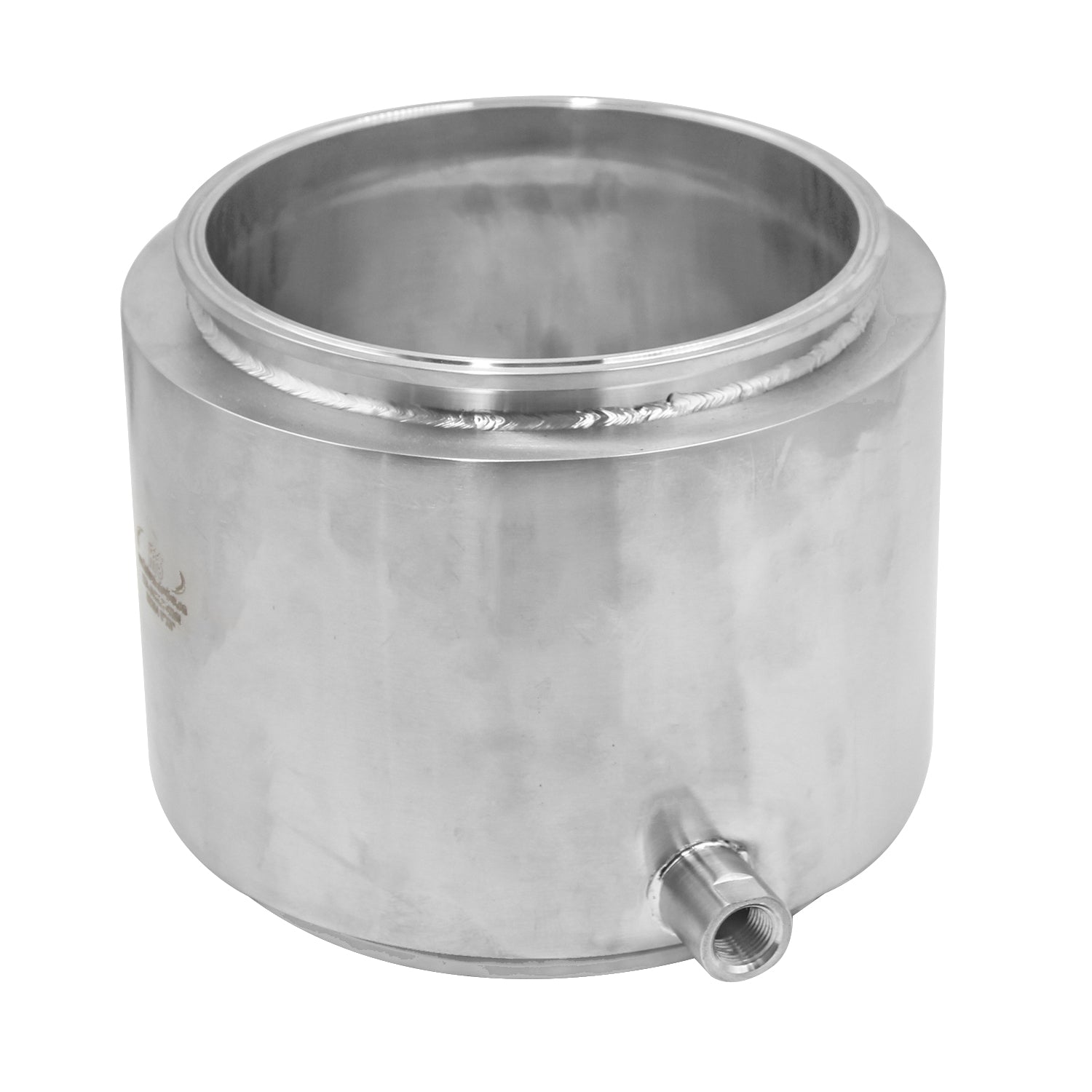

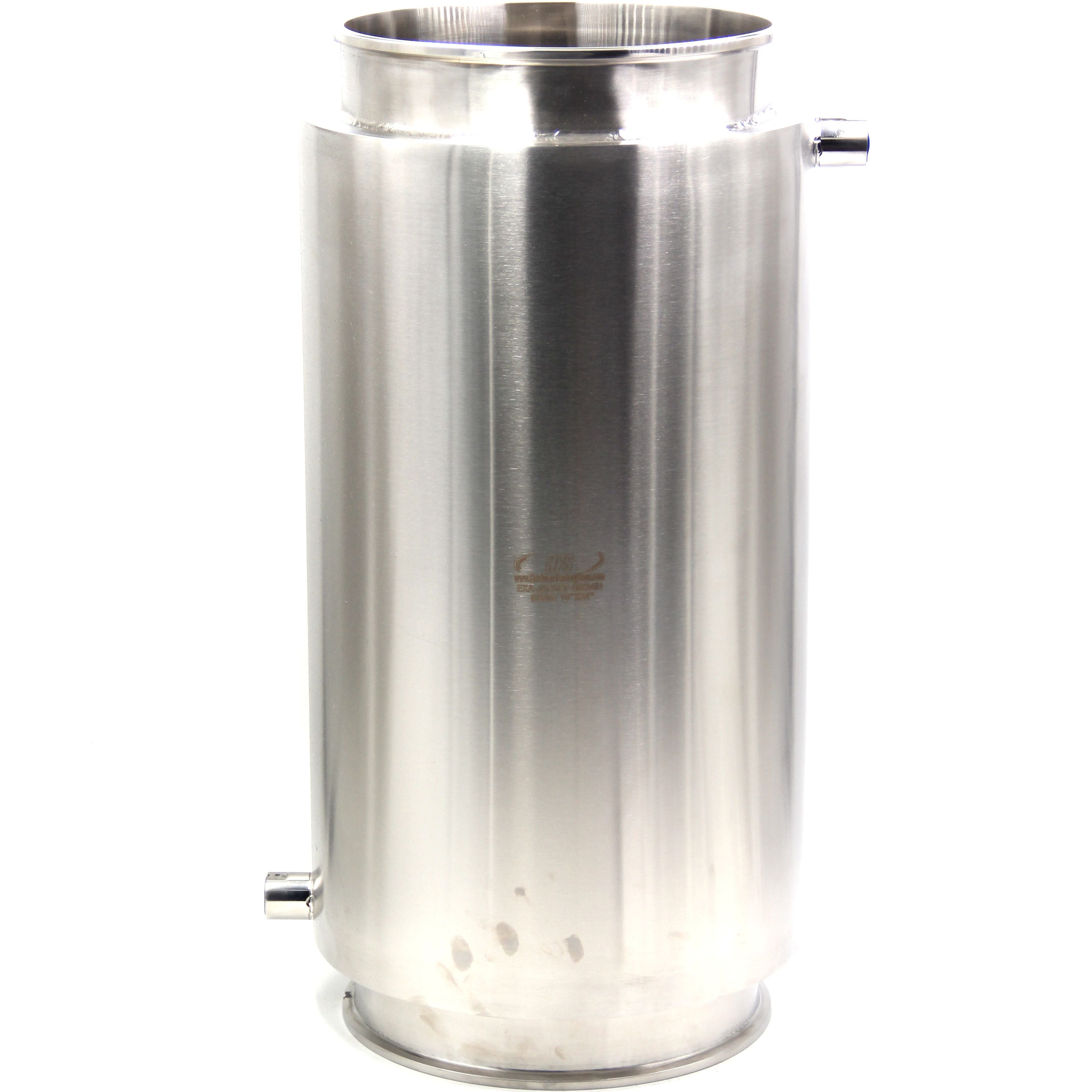

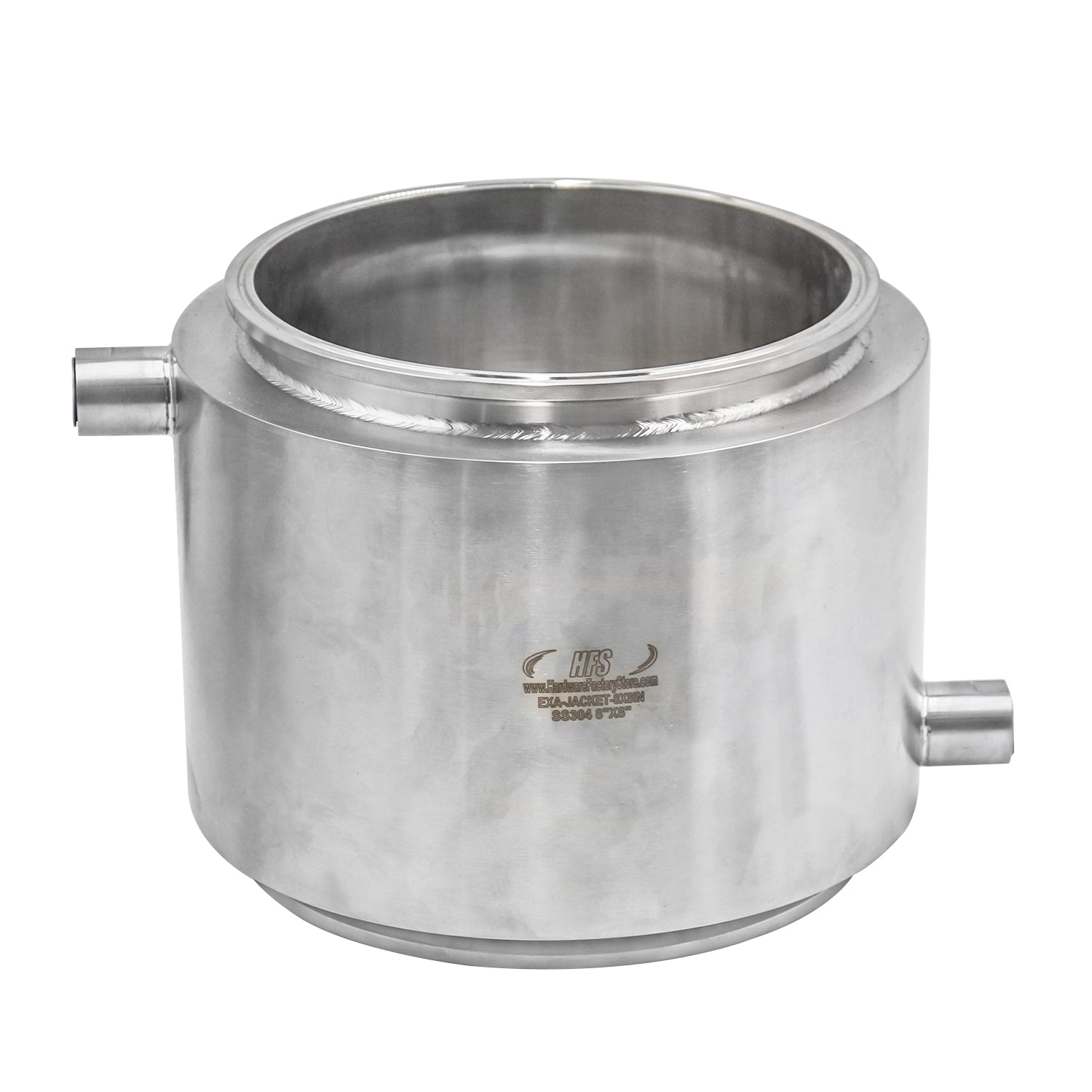

10” Jacketed Spools
$290.00 – $400.00
A jacketed spool is a standard spool but with as enclosed shell. This feature provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Thermal fluid can be circulated through the bottom and top port. The user can also choose to use the jacket as an insulation tool by isolating the jacket with valves and then evacuating it completely.

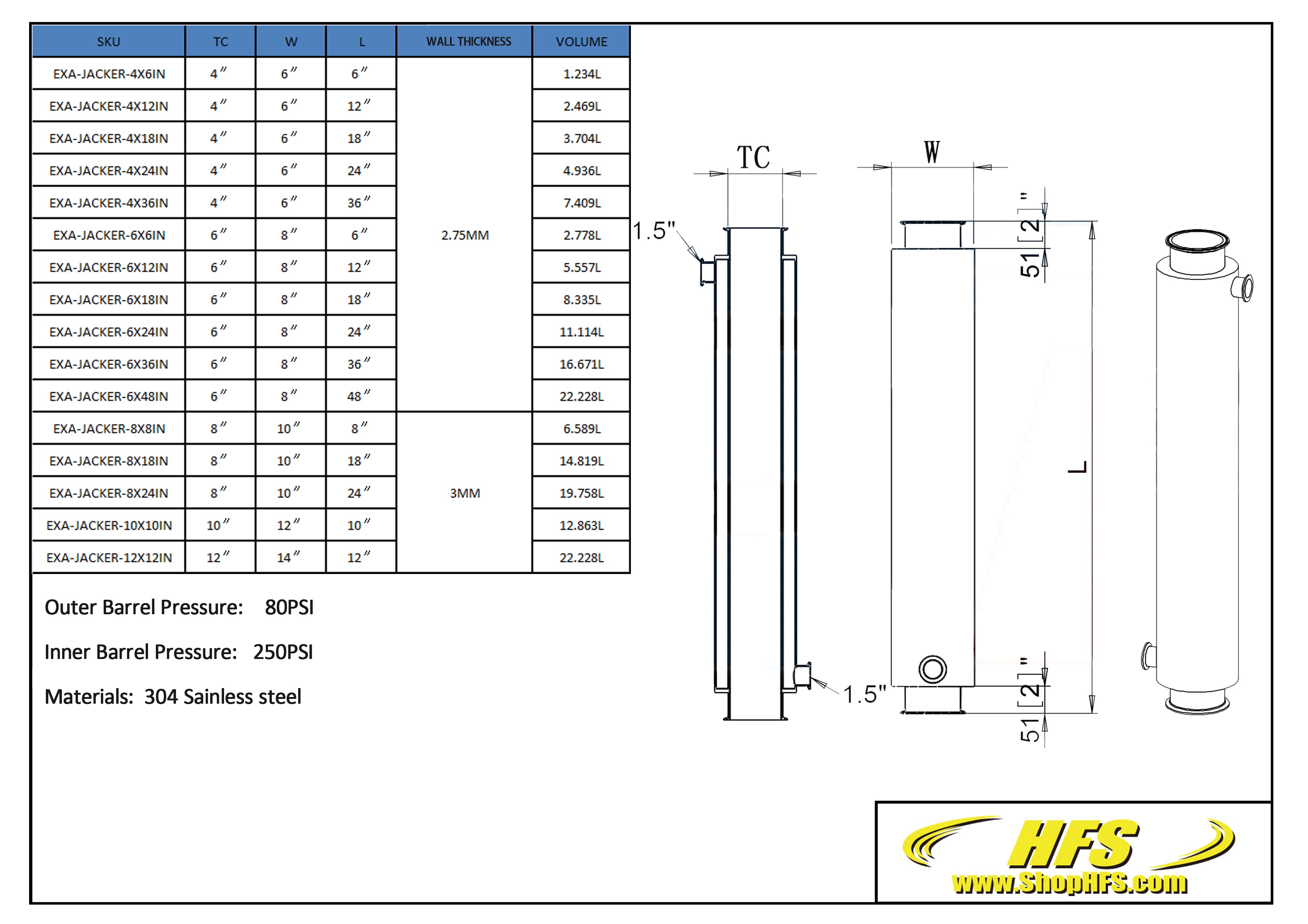

CLICK HERE TO VIEW THE SIZECHART
Feature:
- Stainless Steel: 304
- Sanitary Size (in): 10
- Flange OD (in): 10.57
- Tube ID (in): 9.782
- Tube OD (in): 10
- Jacket OD (in): 12
