USA Lab -80°C 200L Explosion Proof Closed Loop Recirculating Chiller CLC-200/80 315L/Min
| Brand: | USA Lab |
| Expansion Tank Capacity: | 230L |
| Tank Dimensions: | 53.2″ x 13.8″ x 19.7″ |
| Power Requirements: | 200-240V 60Hz 48A Three Phase – Hardwired Only |
| Temperature Accuracy: | +/- 0.5°C (PT100) |
| Inlet / Outlet Size: | 2″ FNPT with 2″ Tri-clamp adapters |
| Weight: | 948lbs |
| External Dimensions: | 58.7″ x 37.0″ x 64.6″ |
| Warranty: | 1 Year |
$49,999.00

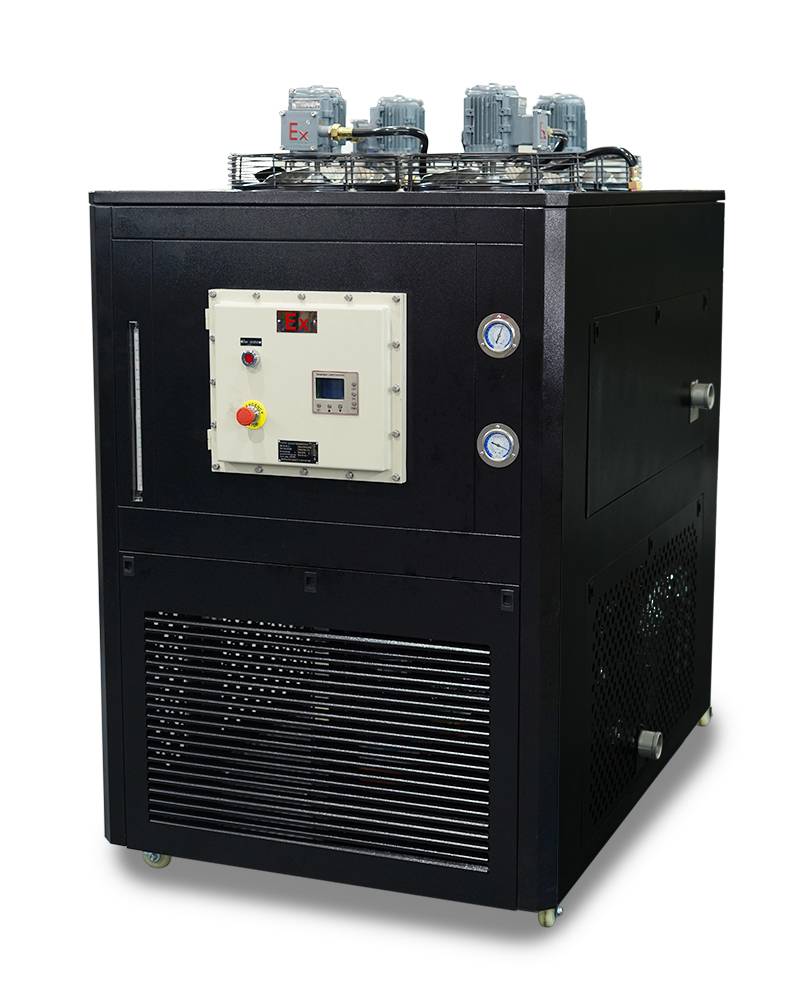

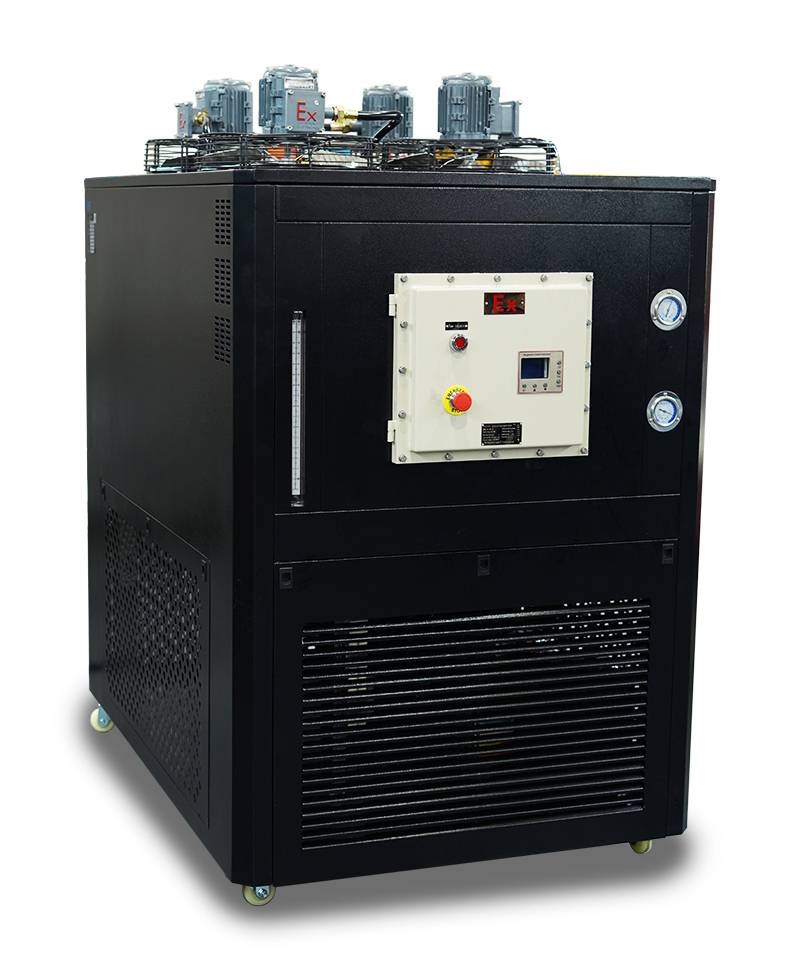

The USA Lab CLC-200/80 is a powerful -80°C Chiller with a 230L Closed Loop Reservoir. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, columns, solvent tanks, and even analytical instruments. This system is great for large 200L reactors and other large vessels.
The USA Lab CLC-200/80 Chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery.
|
CLC-200/80 Features |
|
• Powerful chilling and high BTU range |
|
• High quality UL Listed compressor |
|
• R404 refrigerant |
|
• 12ft of tubing included |
|
• 1 Year warranty with US based parts and support |
|
• Closed loop for higher thermal transfer performance |
|
• Explosion proof controller enclosure to protect against vapors |
|
CLC-200/80 Specifications |
|
|
Expansion Tank Capacity |
230L |
|
Tank Dimensions |
53.2″ x 13.8″ x 19.7″ |
|
Temperature Range |
RT to -80°C (-112°F) |
|
Power Requirements |
200-240V 60Hz 48A Three Phase – Hardwired Only |
|
Control Type |
SIEMENS PLC S7-200 Controller with External Probe |
|
Refrigeration BTUs / Wattage |
150,000BTU – 1,250BTU / 44100-735W |
|
Total Power |
Nominal: 18.02kW / 48A |
|
Plate Type Heating Area |
Heating Exchanger Surface Area 2.50m² (Quantity: 2) |
|
Compressor Type |
10HP Invotech (UL Certified) (Quantity: 2pcs) |
|
Circulating Pump Wattage |
2200W (UL Certified) |
|
Fan Wattage |
280W (Quantity: 4pcs) |
|
Temperature Accuracy |
+/- 0.5°C (PT100) |
|
Pump Flow |
83.2 gpm (315L/Min) |
|
Lift |
98.4ft (30m) |
|
Pump Pressure |
43.5 psi (3 bar) |
|
Inlet / Outlet Size |
2″ FNPT with 2″ Tri-Clamp Adapters |
|
Refrigerant |
R404 High Stage | R23 Low Stage |
|
External Dimensions |
58.7″ x 37.0″ x 64.6″ |
|
Weight |
948lbs |
|
Warranty |
1 Year |
