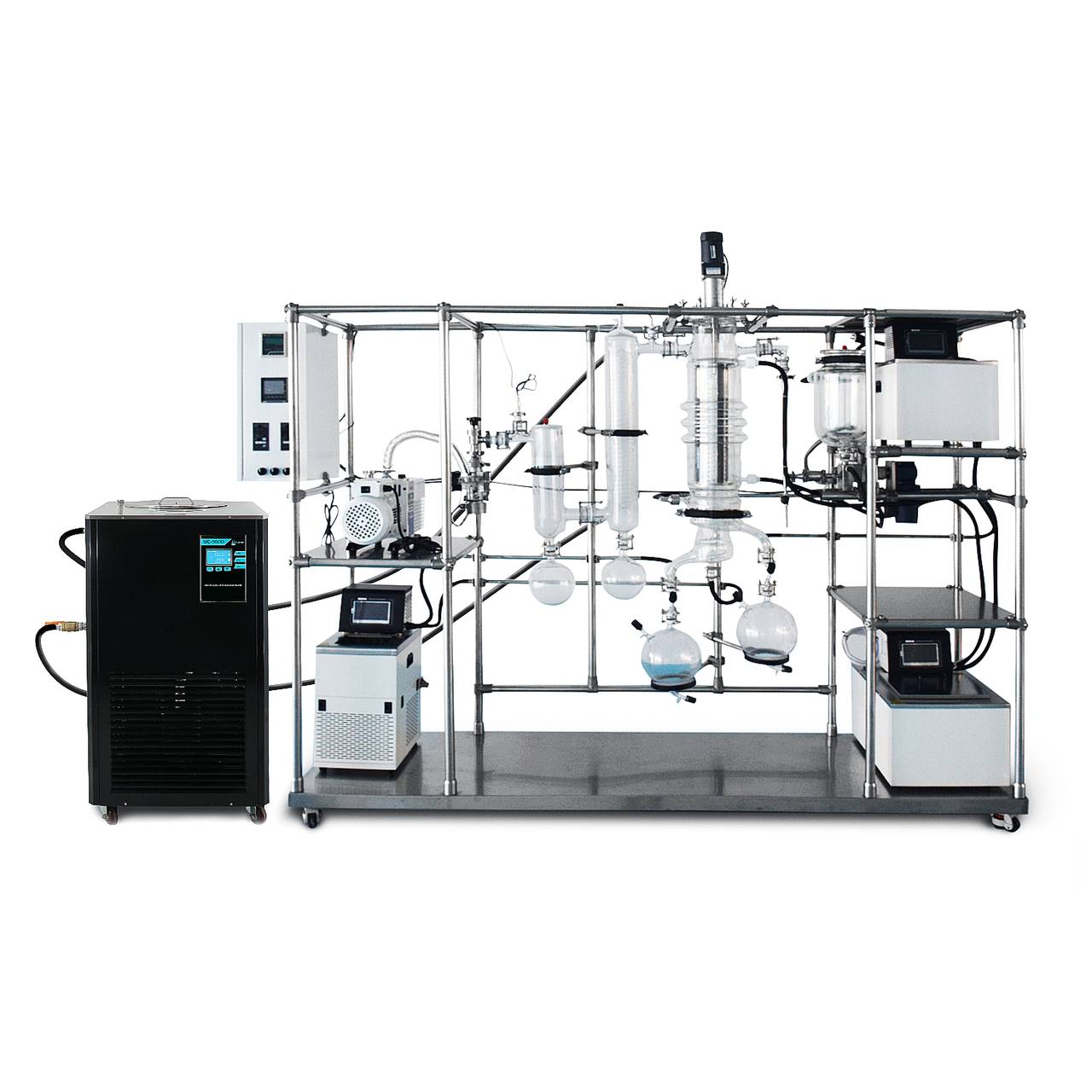

USA Lab 6″ Glass Thin / Wiped Film Distillation Turnkey System USA-150-WF

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Evaporation Surface Area: 0.25m²
Vessel Diamter: 150mm / 6″
Feeding Flask Volume: 5L
Feed Rate: 1.25L – 12.5L / hr
Throughput: 2 – 5L / hr
Max RPM Stirring Motor: 600RPM
Max RPM Gear Pump: 140RPM
Receiving Flask Volume: 5L
Recycling Flask Volume: 2L
External Dimensions: 29.9″W x 100.7″L x 80.7″H
Weight: 859lbs

$64,999.00

SKU: USA-150-WF-TK Category: Brand:

Our USA Lab 150-WF 6″ Wiped Film is a form of continuous thin film distillation which is an ongoing separation in which a mixture is continuously (without interruption) fed into the process and separated fractions are removed continuously as output streams. Distillation is the separation or partial separation of a liquid feed mixture into components or fractions by selective boiling (or evaporation) and condensation. The process produces at least two output fractions. These fractions include at least one volatile distillate fraction, which has boiled and been separately captured as a vapor condensed to a liquid, and practically always a bottoms (or residuum) fraction, which is the least volatile residue that has not been separately captured as a condensed vapor.



Our 6″ glass wiped film distillation system comes packed with features an affordable price. Upgrade today and see the USA Lab difference.

MANUAL

SPECIFICATIONS

Model

USA-150-WF-TK

Evaporation Surface Area

0.25m²

Vessel Diameter

150mm / 6″

Feeding Flask Volume

5L

Feed Rate

1.25L – 12.5L / hr

Throughput

2 – 5L / hr

Max RPM Stirring Motor

600RPM

Max RPM Gear Pump

140RPM

 Flask Volume

5L

Recycling Flask Volume

2L

Operation Pressure

Less than 10PA

Control Box Power

220-240V 15A 60HZ 1P

Stirring Motor Power

220-240V 140W 15A 60HZ 1P

Gear Pump Power

220-240V 60W 15A 60HZ 1P

GY-5A Heater Power

220-240V 2000W 15A 60HZ 1P

GY-30A Heater Power

220-240V 4500W 30A 60HZ 1P

YH-2006 Heater Chiller Power

220-240V 1450W 15A 60HZ 1P

UC-50/30 Chiller Power

220-240V 2800W 30A 60HZ 1P

UVP-21 Power

110-120V 1110W 15A 60HZ 1P

External Dimensions

 29.9″W x 100.7″L x 80.7″H

Weight

859lbs



PACKING LIST

Model

Quantity

6″ Main Vessel

1

5L Feed Tank

1

5L Receiving Flask

1

2L Receiving Flask

1

External Condenser

1

Cold Trap

1

Diffusion Pump

1

Temp Sensor

1

Vacuum Sensor

1

Control Box

1

GY-15A Heater

1

GY-30A Heater

1

YH-2006 Heater Chiller

1

UVP-21 Vacuum Pump

1

UC-50/30 Chiller

1

Stainless Steel Frame

1

Stainless Tubing

1 set

Caldera 7 – 5 Gallon

2

Propylene Glycol – 5 Gallon

2

Inland 19 Oil – 1 Gallon

1

 Manual

1

For Technical Support, Questions, or Other Issues Please Email or Call Us!
