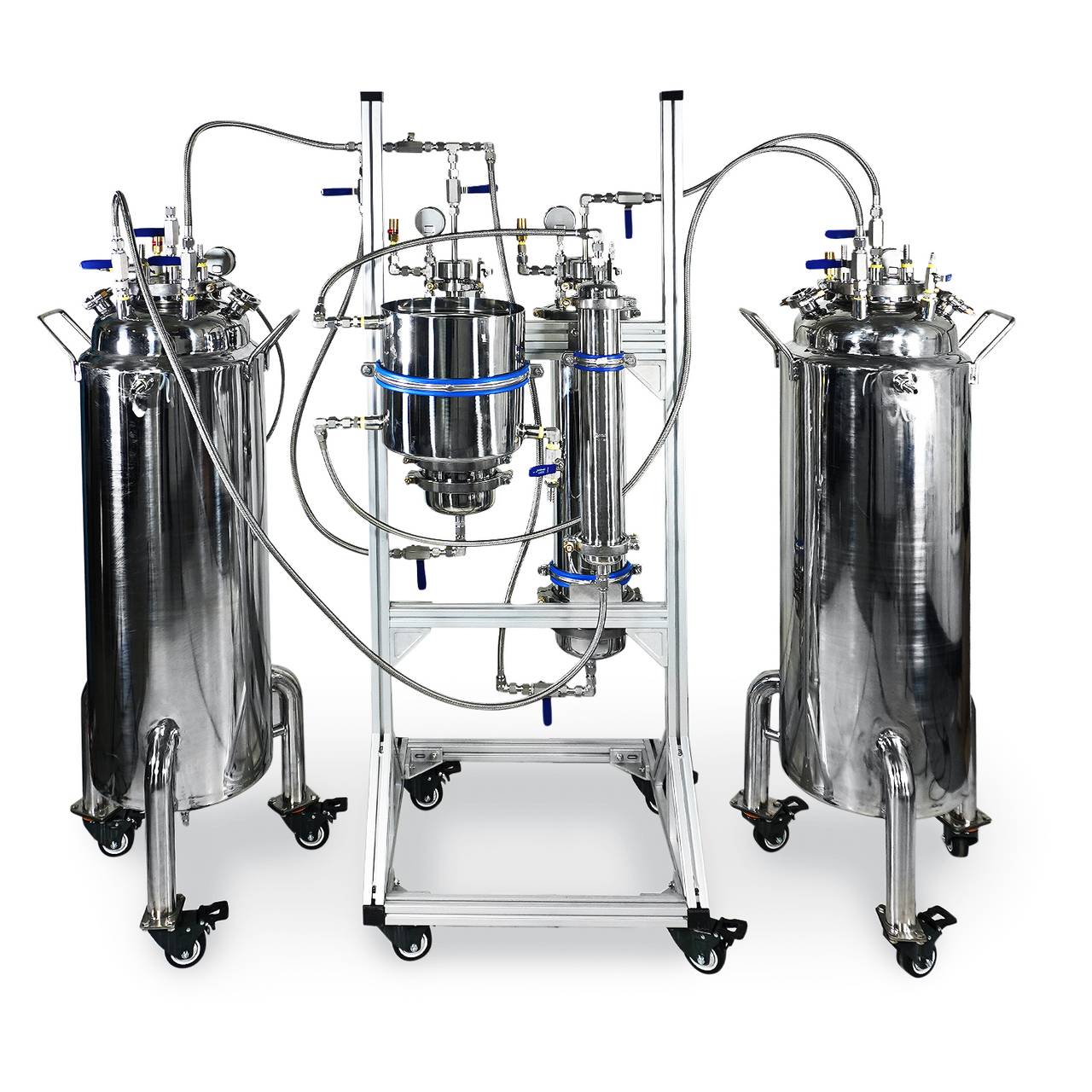

USA Lab 5LB Atlas Hydrocarbon Extraction Closed Loop Compression System Extractor

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Max Material: 5LBs of milled material
Material Column Size: 6″x24″
CRC Size: 6″x12″ 5UM
Sieve Size: 3″x18″
Coil Size: 10″x10″ Bucket
Solvent Tank Size: 100LB | 48.08lb of Butane
Collection Tank Size: 100LB | 48.08lb of Butane
External Dimensions: 74″ x 24″ x 66″
Weight: 550lbs

$14,250.00

SKU: 5LB-ATLAS Category: Brand:

The USA Lab Atlas series closed loop systems are streamlined, easy to use, high quality, and affordable. The entire system is 1/2″ compression (solvent tanks are NPT) to allow for superior quality, ease of use, and maximum flow. Each Atlas system comes with a 6″x24″ material column, 6″x12″ 5 micron CRC, 100lb Solvent tank, 100lb collection tank, and a sieve / coil combination.

Upgrade to the 5LB Atlas closed loop system today and see the USA Lab Difference.

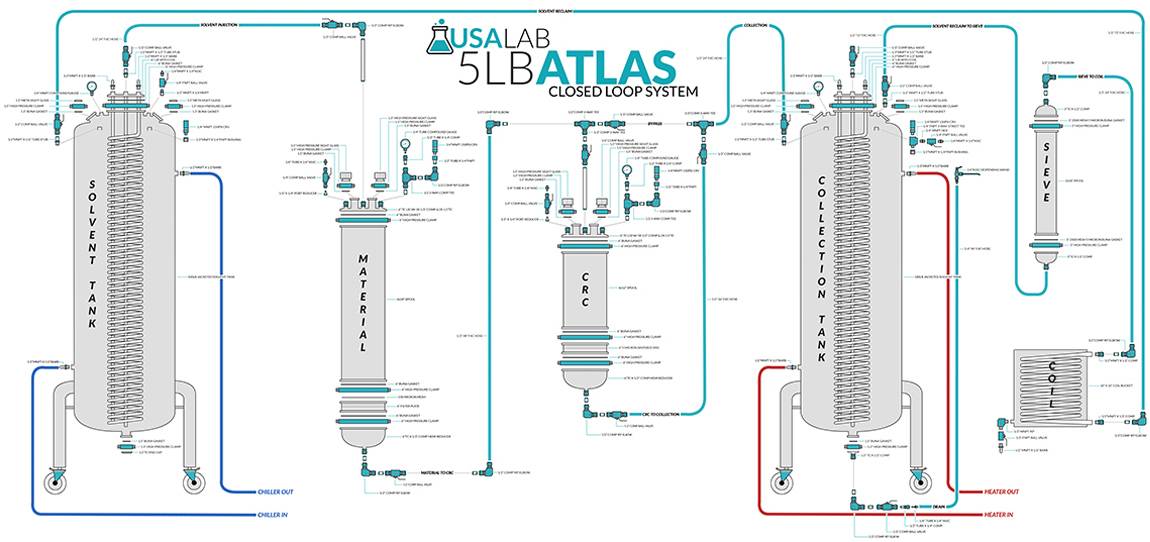

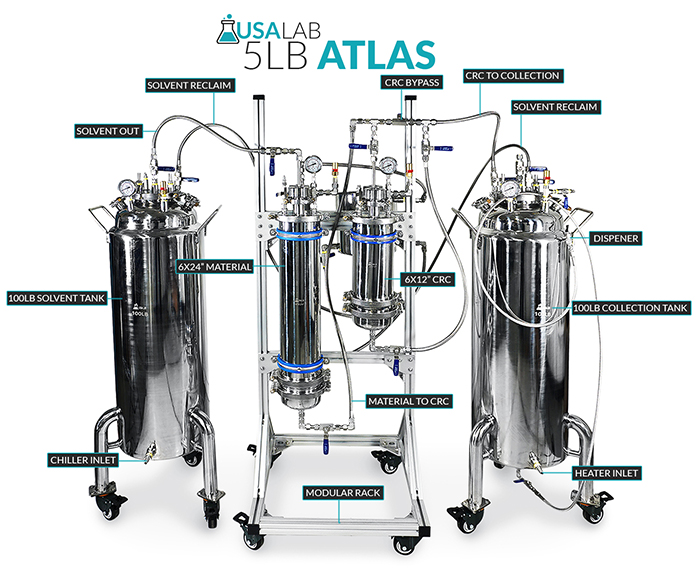

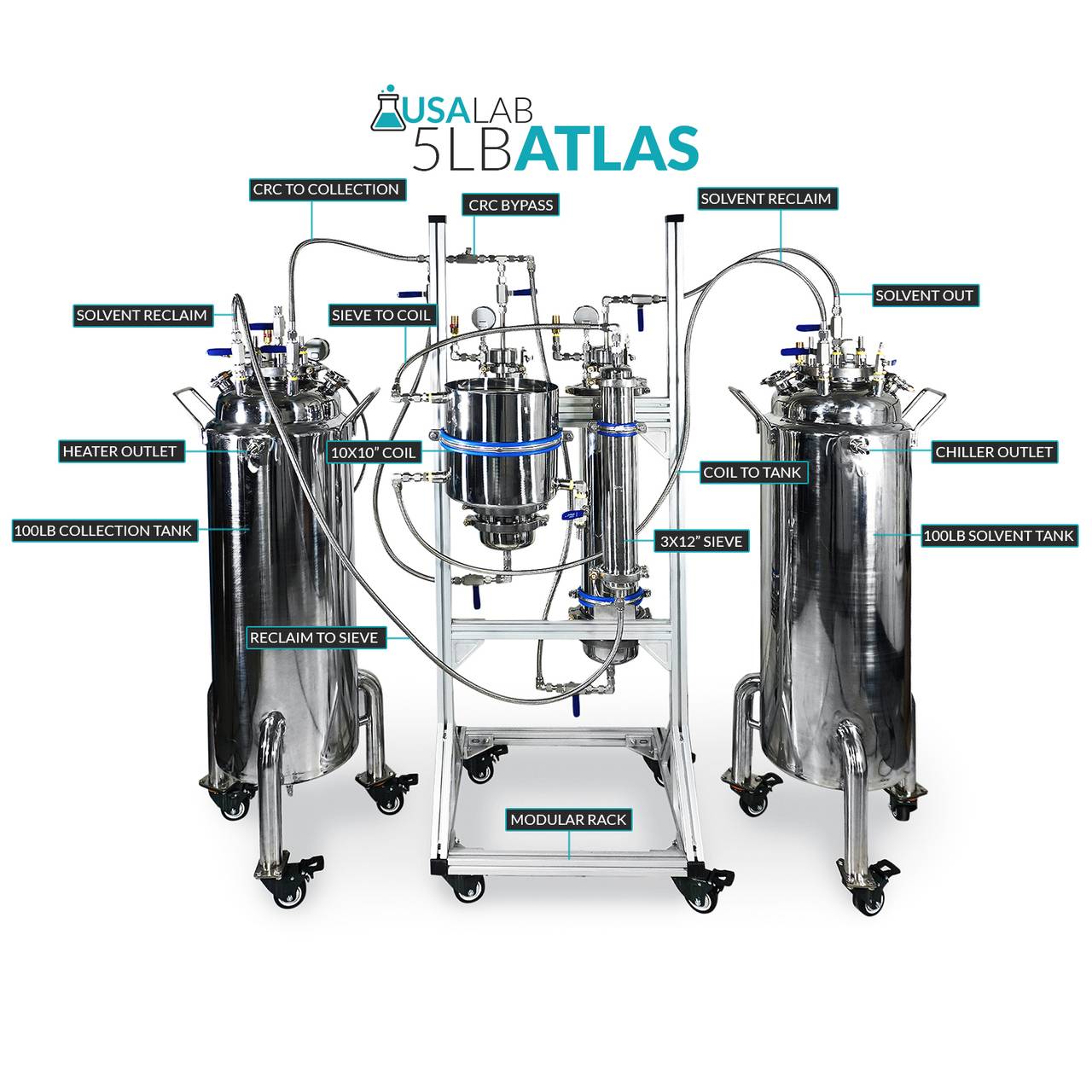

HIGH RESOLUTION DIAGRAM

FEATURES
• The material column is 6″x24″ with sight glasses to allow for viewing of up to 5lbs of milled material.

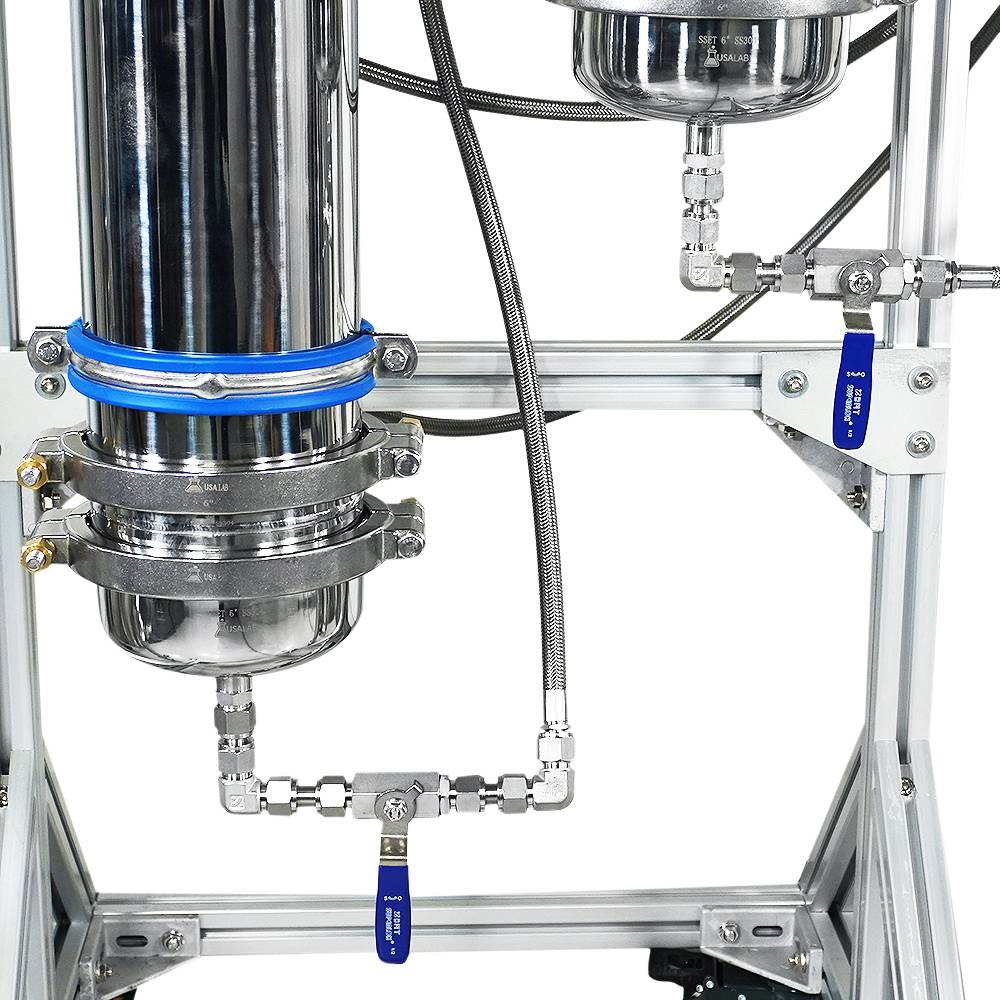

• The CRC is 6″x12″ and comes with a 5 micron sintered disc and sight glasses for clear viewing of the process.
• The CRC has a built in bypass to allow easy bypass of the CRC.

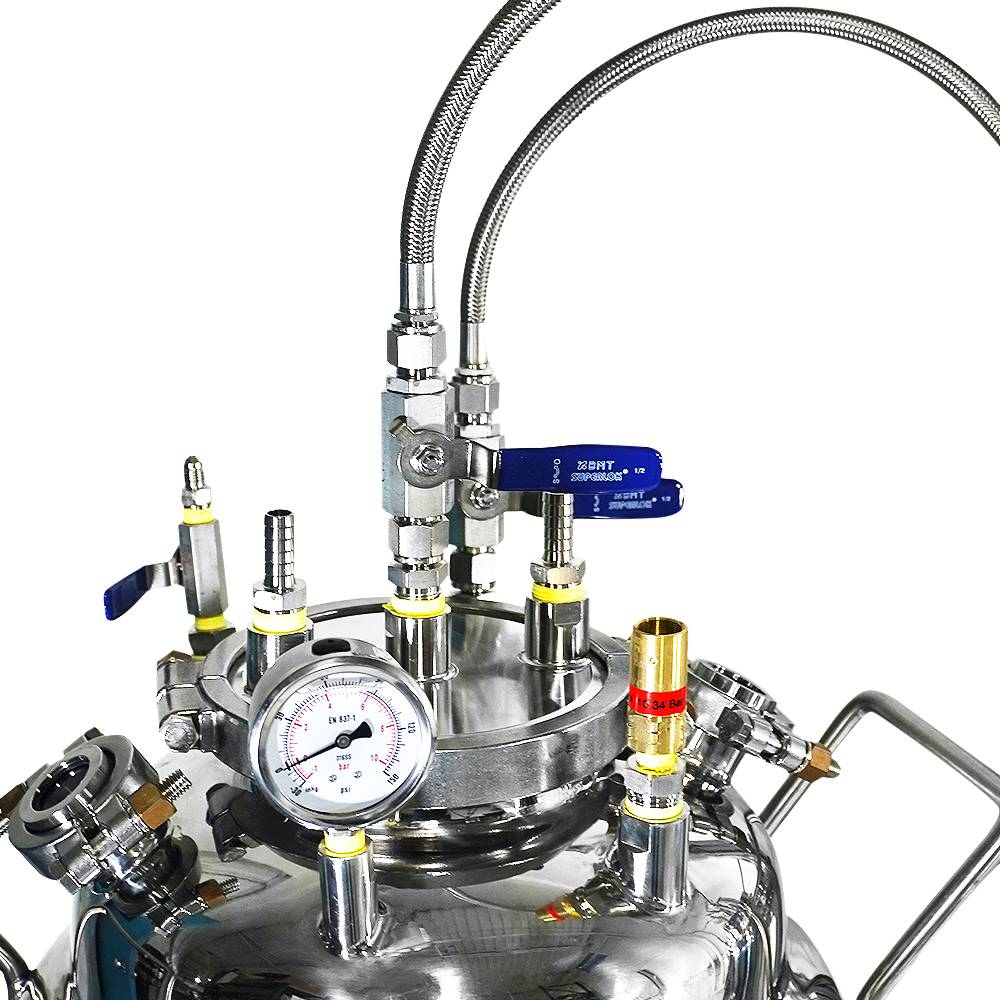

• The collection is a 100lb solvent tank to allow easy heating, and safer pressure ratings.

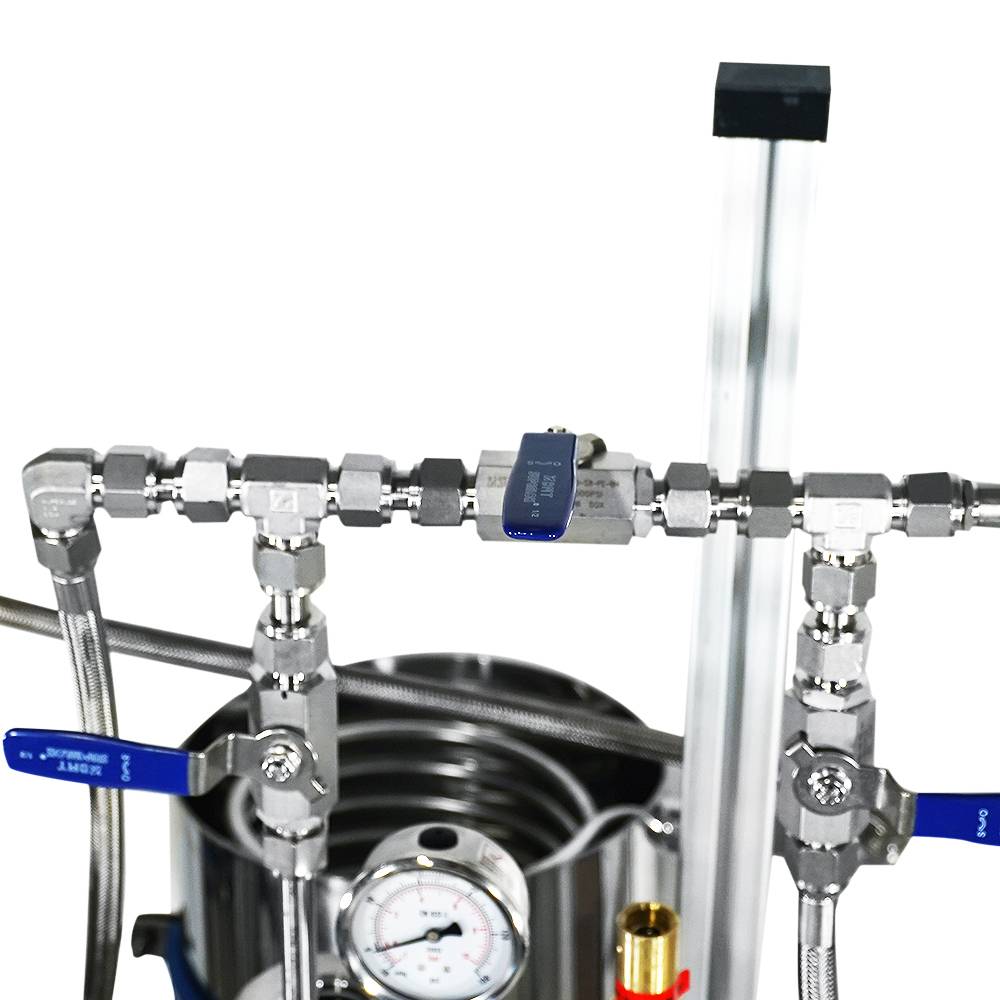

• The 3″x18″ sieve and 10″x10″ coil allow for fast and easy recovery of solvent.
• Small rack mounted footprint of 74″ x 24″ x 66″.

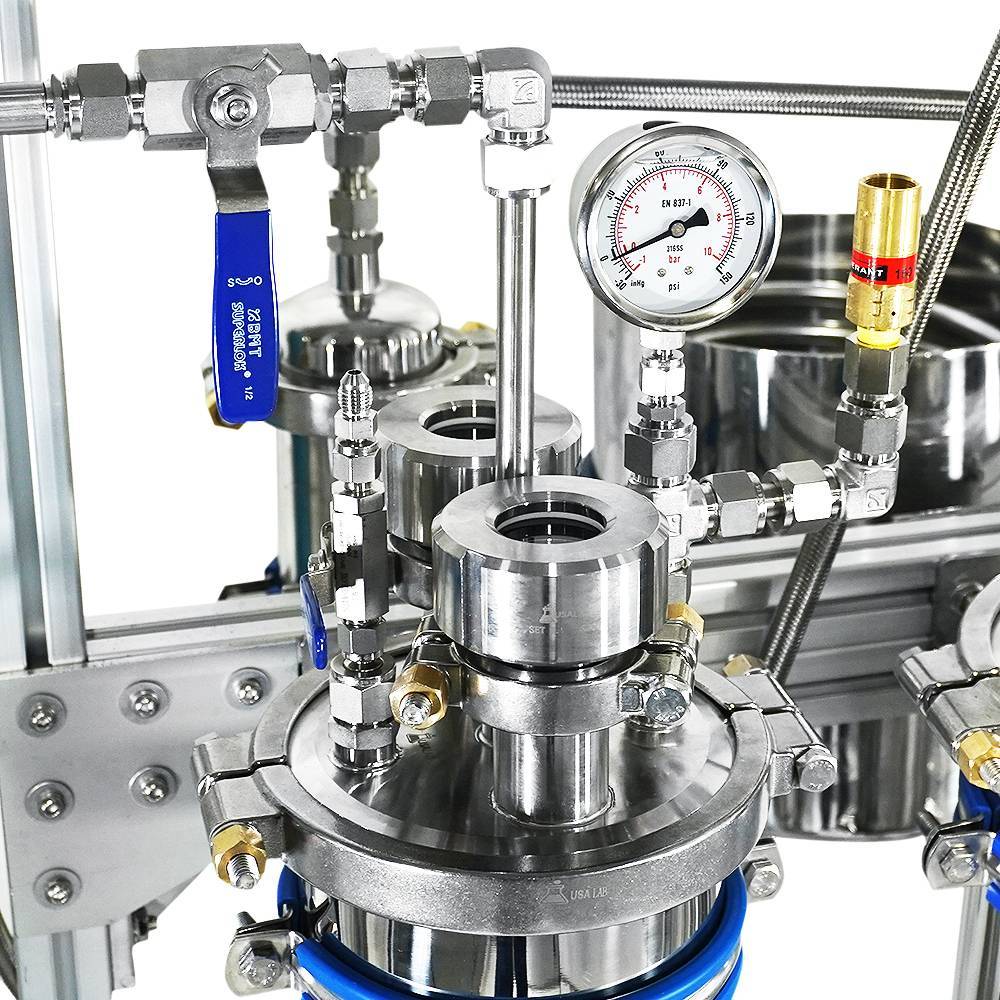

• High quality 1/2″ Compression fittings.
• Each vessel has a 1/4″ MJIC Line for connecting nitrogen lines.

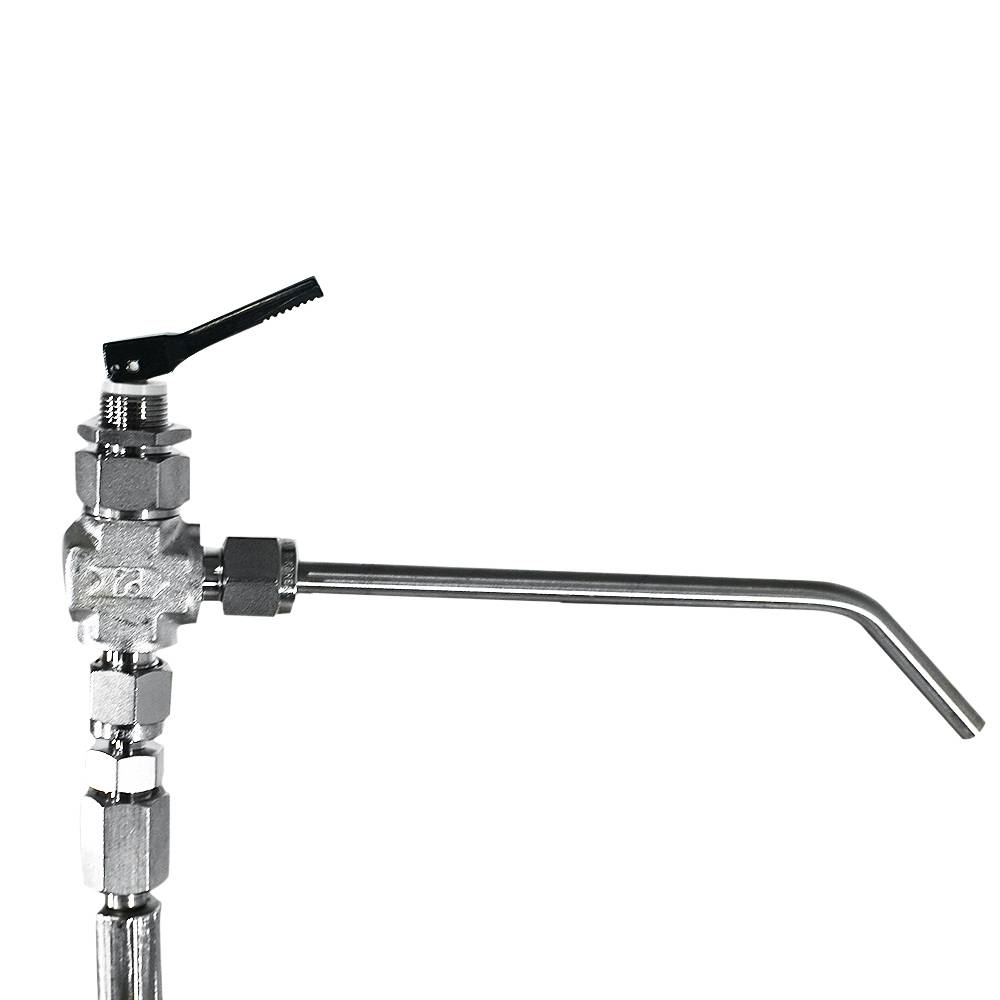

• 1/4″ Dispensing wand for easy dispensing of the collection tank.

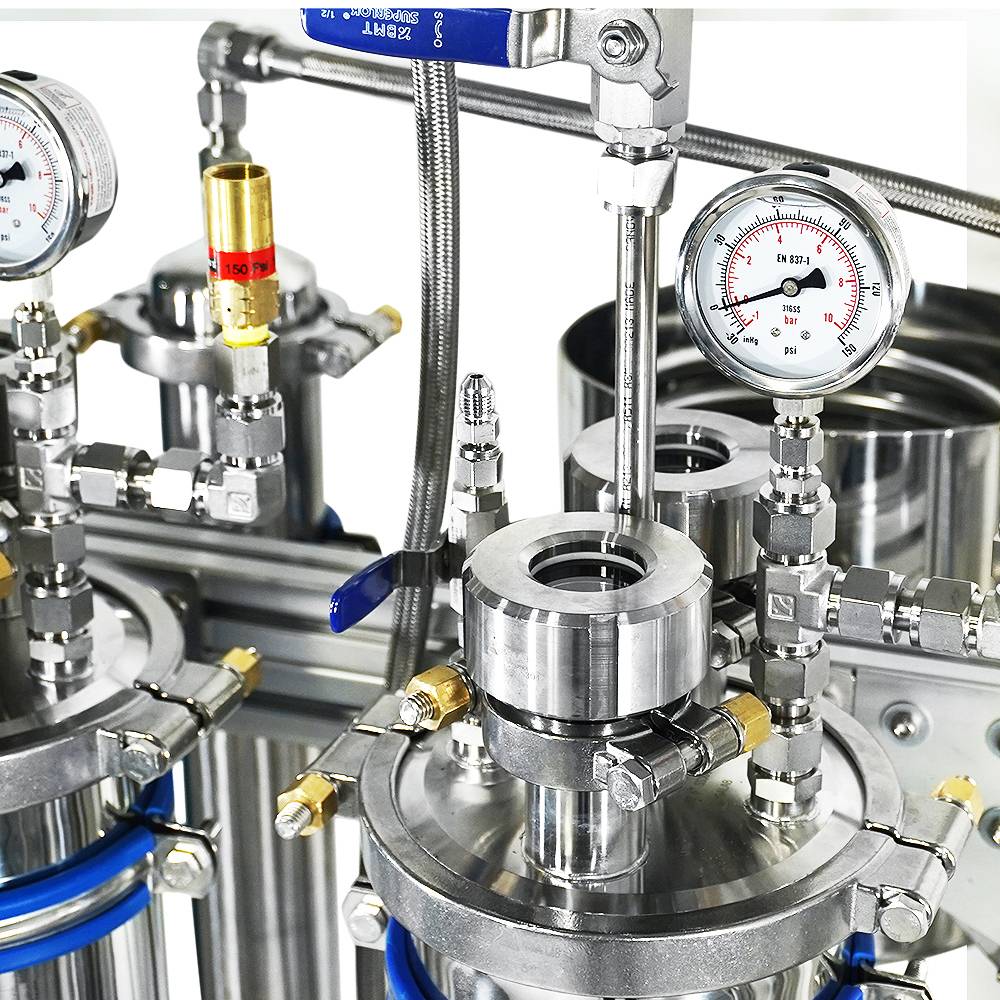

• 150psi Cryogenic Pressure relief valves for safe operation.
SPECIFICATIONS
Model 5LB-ATLAS
Max Material 5LBs of milled material
Material Column Size 6″x24″
CRC Size 6″x12″ 5UM
Sieve Size 3″x18″
Coil Size 10″x10″ Bucket
Solvent Tank Size 100LB | 48.08lb of Butane
Collection Tank Size 100LB | 48.08lb of Butane
External Dimensions 74″ x 24″ x 66″
Weight 550lbs
PACKING LIST
Model Quantity
100LB Solvent Tank 1
100LB Collection Tank 1
6″x24″ Material Column 1
6″x12″ CRC with 5 Micron Disc 1
3″x18″ Sieve 1
10″x10″ Condensing Coil 1
24″ x 24″ x 59″ Aluminum Rack 1



For Technical Support, Questions, or Other Issues Please Email or Call Us!
