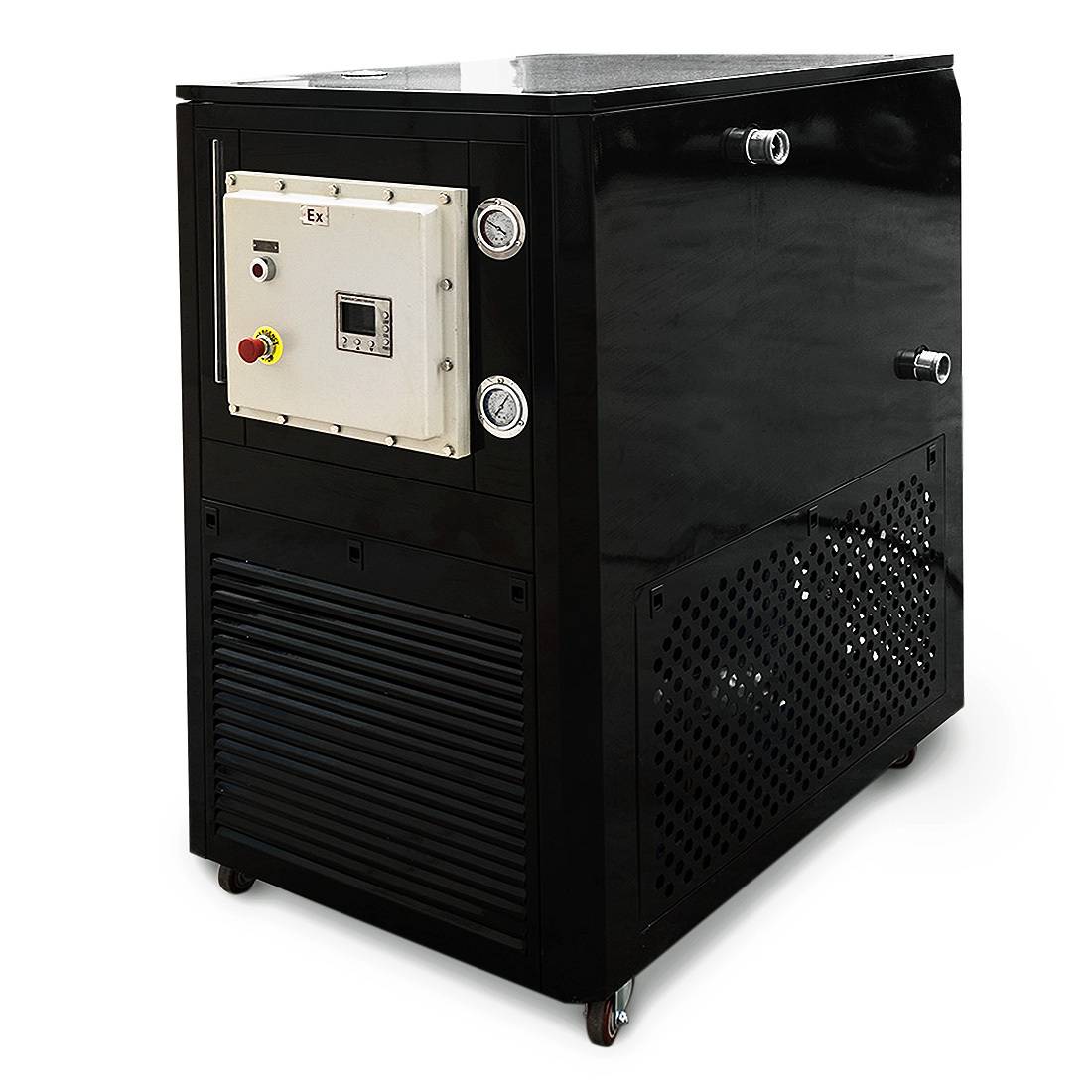

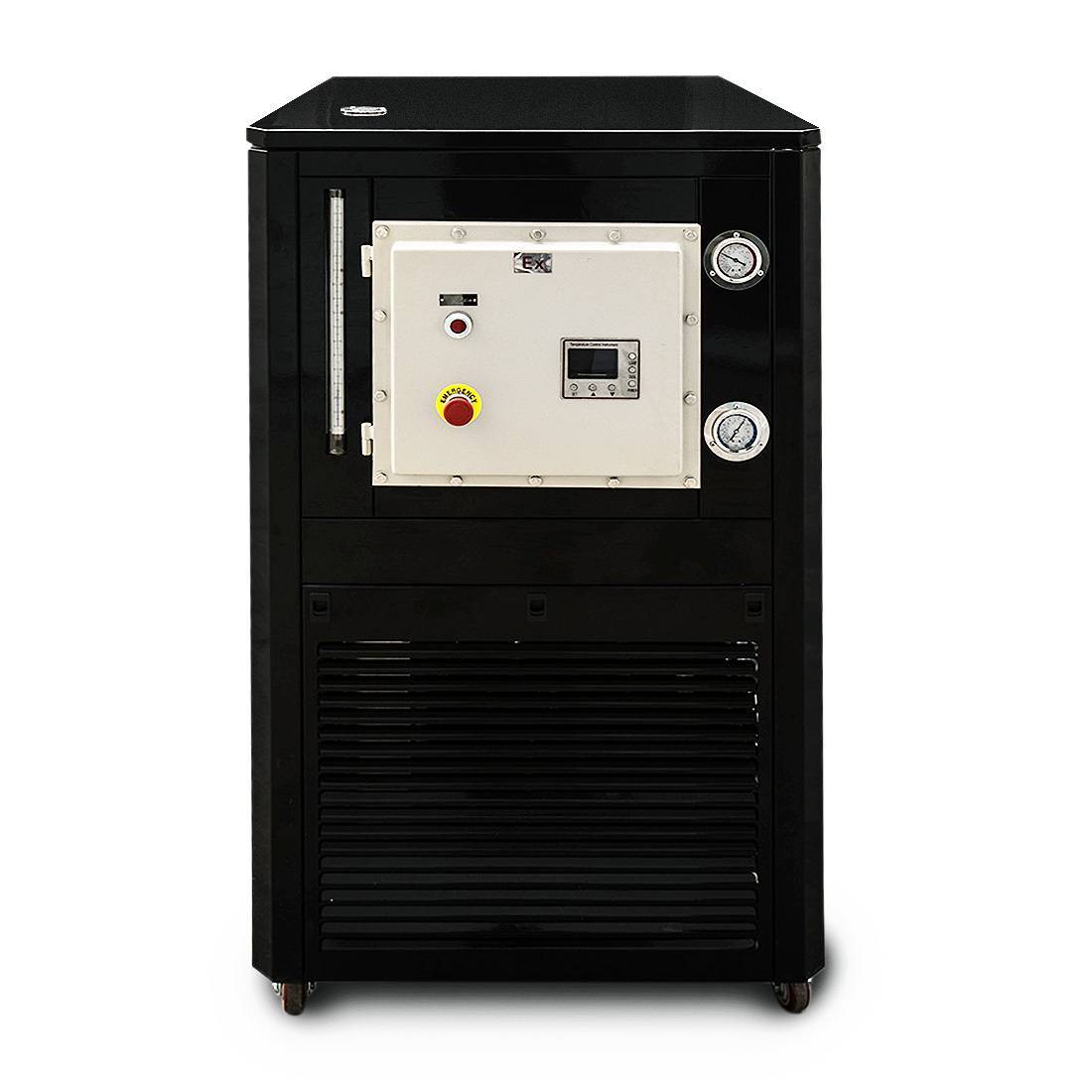

USA Lab -40°C 32L Explosion Proof Closed Loop Chiller CLC-100/40 40L/Min – For 100L Reactors & Large Vessels

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Oil Tank Capacity: 32L
Temperature Range: RT to -40°C / -40°F
Power Requirements: 240V 60Hz 20.4A Three Phase – Hardwired Only
Refrigeration BTUs / Wattage: 75,000BTU – 1,250BTU / 22050-368W
Compressor Type: 10HP Danfoss (UL Listed)
Circulating Pump Wattage: 550W (UL Listed)
Inlet / Outlet Size: 1.5″ FNPT
External Dimensions: 43.3″ x 31.4″ x 51.18″
Weight: 430lbs
Warranty: 1 Year

$19,078.80

SKU: CLC-10040 Category: Brand:

The USA Lab CLC-100/40 is a powerful -40°C Chiller with a 32L Closed Loop Reservoir. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.

The USA Lab CLC-100/40 chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.



CLC-100/40 FEATURES

• Powerful chilling and high BTU range.

• High quality UL Listed compressor.

• Easy to read LCD digital display.

• R404 refrigerant.

• 12ft of tubing included.

• 1 Year warranty with US based parts and support.

• Closed loop for higher thermal transfer performance.

• Explosion proof controller enclosure to protect against vapors.

SPECIFICATIONS

Model

CLC-100/40

Tank Capacity

32L

Tank Dimensions

15.74″ x 7.87″ x 15.74″

Temperature Range

RT to -40°C  / -40°F

Power Requirements

240V 60Hz 20.4A Three Phase – Hardwired Only – NO 208V

Control Type

Explosion Proof Digital PID

Refrigeration BTUs / Wattage

75,000BTU – 1,250BTU / 22050-368W

Total Power

8460 W / 20.4A

Plate Type Heating Area

Heating exchange area 2.50m2

Compressor Type

10HP Danfoss (UL Listed)

Circulating Pump Wattage

550 W (UL Listed)

Fan Wattage

280W x 2pcs

Temperature Accuracy

+/- 0.5°C

Pump Flow

40L/Min

Lift

19-22m

Pump Pressure

2.2bar

Inlet / Outlet Size

1.5″ FNPT

Refrigerant

R404

External Dimensions

43.3″ x 31.4″ x 51.18″

Weight

430lbs

Warranty

1 Year

PACKING LIST

Model

Quantity

USA Lab CLC-100/40 Chiller

1

Silicone Tubing

11Ft

 Manual

1

Pump Curve:
