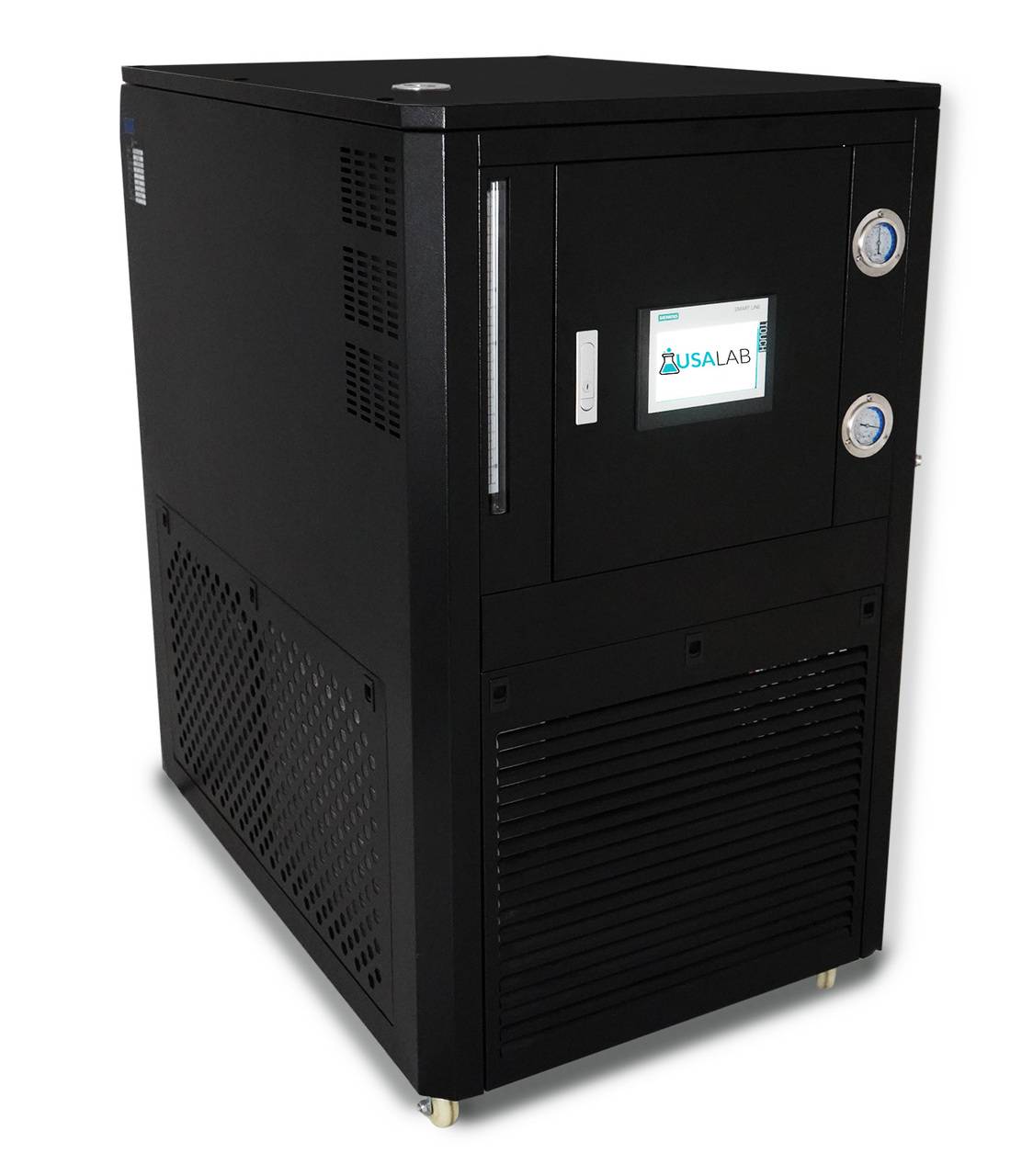

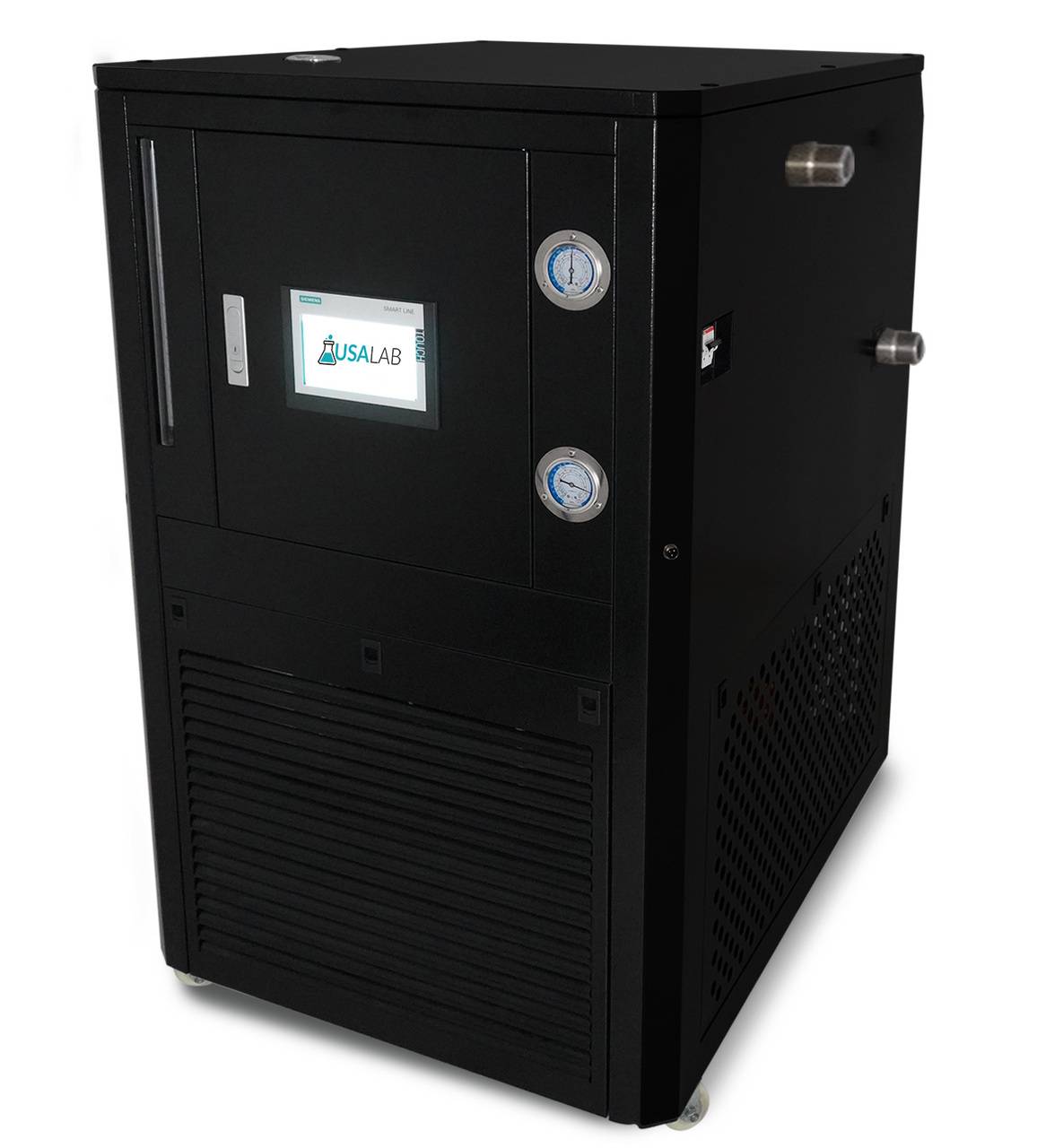

USA Lab -40°C 200L Closed Loop Recirculating Chiller W/ Touch Screen CLC-200/40-PLC 235L/Min
| Tank Capacity: | 70L |
| Temperature Range: | RT to -40°C / -40°F |
| Power Requirements: | 200-240V 60Hz 30.7A Three Phase – Hardwired Only |
| Refrigeration BTUs / Wattage: | 94,000BTU – 1,600BTU / 27563-460W |
| Compressor Type: | 12.5HP Panasonic (UL Listed) |
| Circulating Pump Wattage: | 1.5 kW (UL Listed) |
| Inlet / Outlet Size: | 1.5″ FNPT |
| External Dimensions: | 51.6″ x 35.4″ x 59.5″ |
| Weight: | 1144lbs |
| Warranty: | 1 Year |
$25,798.80
The USA Lab CLC-200/40 is a powerful -40°C Chiller with a 67L Expansion Tank. This unit is a true lab chiller that is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 200L reactors and other large vessels.
The USA Lab CLC-200/40 chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.
This unit includes a Programmable Logic Controller (PLC).
A PLC will control whether the unit will cool depending on the programmed steps and cycles over time. The PLC also has an option for a static control to operate like a standard chiller.
Not For Consistent Heat Loads e.g. Falling Film, Butane Recovery.
|

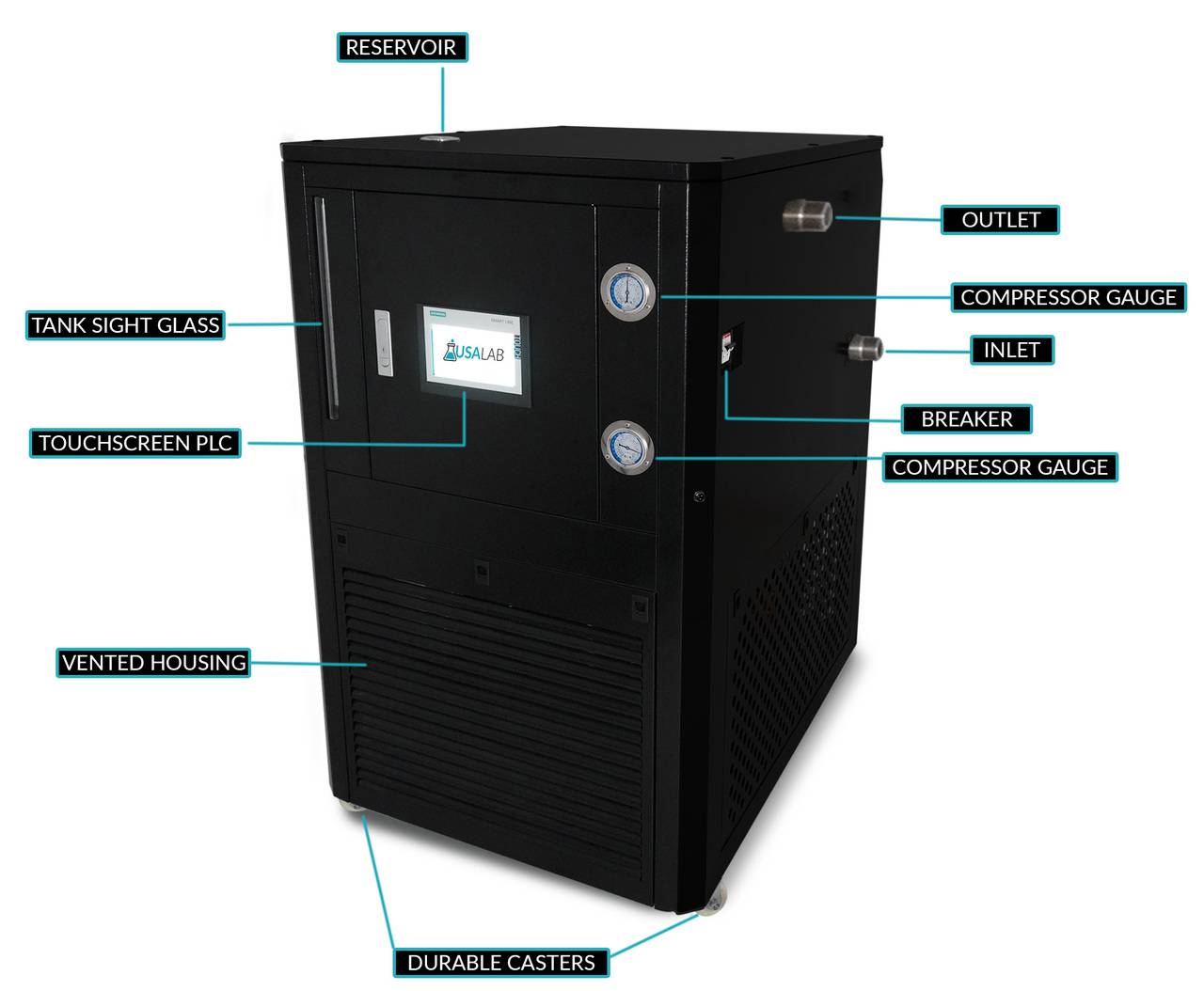

CLC-200/40 FEATURES |
||
|
• Powerful chilling and high BTU range. |
||
|
• High quality UL Listed compressor. |
||
|
• Touchscreen Siemens HMI display. |
||
|
• R404 refrigerant. |
||
|
• 12ft of tubing included with Tri-Clamp connections. |
||
|
• 1 Year warranty with US based parts and support. |
||
|
• Closed loop for higher thermal transfer performance. |
||
|
• Versatile Siemens PLC controller with external probe. |
||
|
SPECIFICATIONS |
||
|
Model |
CLC-200/40-PLC |
|
|
Oil Tank Capacity |
70L |
|
|
Oil Tank Dimensions |
19.7″ x 13.8″ x 15.8″ |
|
|
Temperature Range |
RT to -40°C / -40°F |
|
|
Power Requirements |
200-240V 60Hz 30.7A Three Phase – Hardwired Only |
|
|
Control Type |
SIEMENS PLC S7-200 controller with external probe |
|
|
Refrigeration BTUs / Wattage |
94,000BTU – 1,600BTU / 27563-460W |
|
|
Total Power |
12,748W / 30.7A |
|
|
Plate Type Heating Area |
Heating exchange area 4.06m2 |
|
|
Compressor Type |
12.5HP Panasonic (UL Listed) |
|
|
Circulating Pump Wattage |
1.5 kW (UL Listed) |
|
|
Fan Wattage |
280W x 2pcs |
|
|
Temperature Accuracy |
+/- 0.5°C (PT100) |
|
|
Pump Flow |
62 gpm (235L/Min) |
|
|
Lift |
131.2ft (40 m) |
|
|
Pump Pressure |
58psi (4 bar) |
|
|
Inlet / Outlet Size |
1.5″ FNPT |
|
|
Refrigerant |
R404A |
|
|
External Dimensions |
51.6″ x 35.4″ x 59.5″ |
|
|
Weight |
1144lbs |
|
|
Warranty |
1 Year |
|
|
PACKING LIST |
||
|
Model |
Quantity |
|
|
USA Lab CLC-200/40 Chiller |
1 |
|
|
Tri-Clamp Tubing |
12ft Total (2x 6ft) |
|
|
Manual |
1 |
|
Pump Curve:
