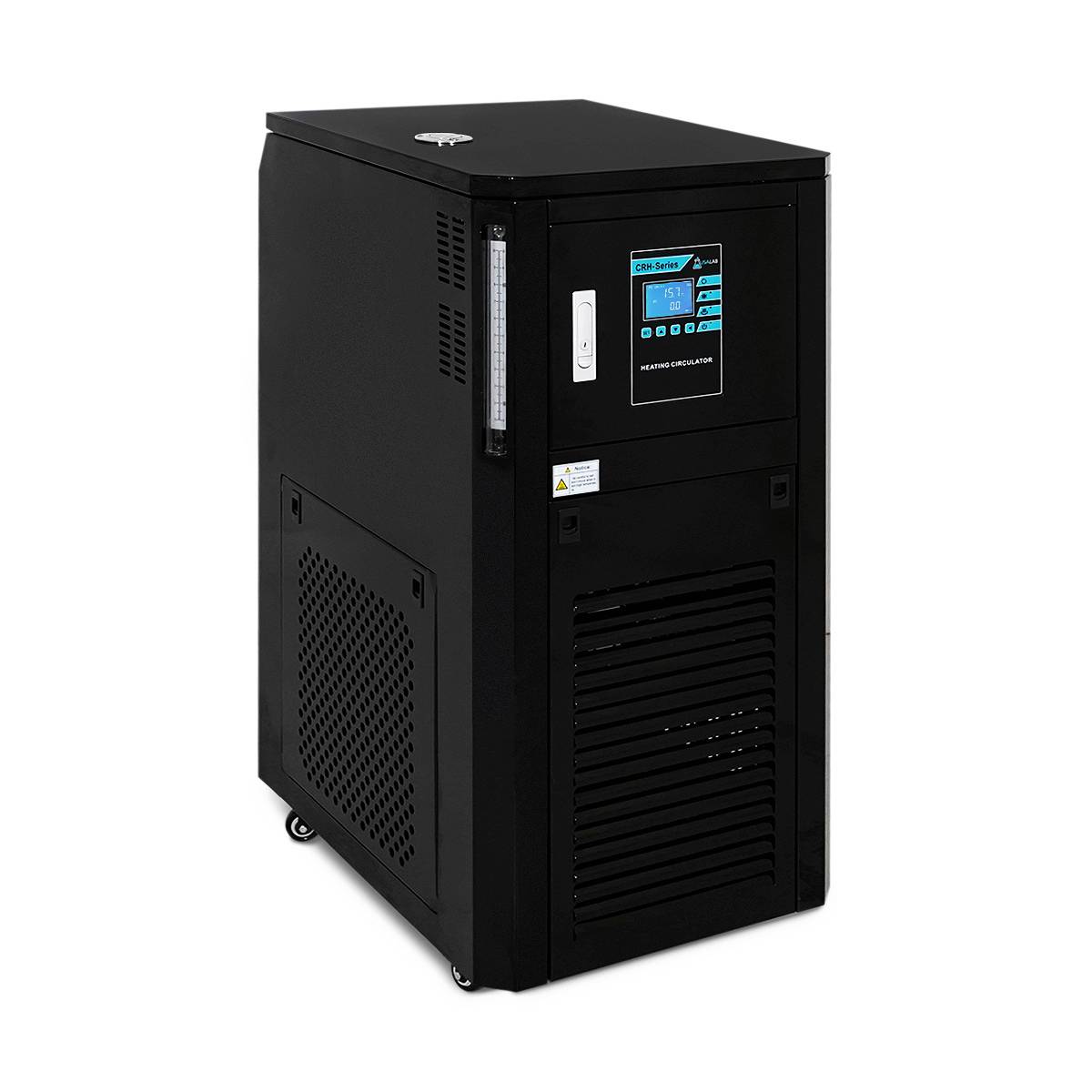

USA Lab 30L 200°C 6KW or 3KW Closed Loop Heater CRH-30L 15L/min
3KW Power Requirements: | 220-240V 50-60hz 15A Single Phase 6-20P Plug |
6KW Power Requirements: | 220-240V 50-60hz 28A Single Phase 6-30P Plug |
Temperature Range: | RT to 200°C |
Oil Tank Capacity: | 21L |
Circulating Pump Wattage: | 250W |
Temperature Accuracy: | +/- 1°C |
Pump Flow & Lift: | 35L/Min & 25m |
Inlet / Outlet Size: | 3/4″ MNPT |
External Dimensions: | 25.2″ x 18.1″ x 37.0″ |
Weight: | 117lbs |
Warranty: | 1 Year |
$5,998.00 – $6,598.00
The USA Lab CRH heater is a powerful 200°C heater with a 20L expansion tank. Our CRH heater comes with a high powered stainless steel heater, and a strong pump for constant flow and high performance. The closed loop system allows for higher thermal transfer performance than open loop heaters, and provides superior heating capabilities. This unit is a true lab heater that is ideal for applications involving vacuum systems, jacketed reactors, columns, solvent tanks, and even analytical instruments. This system is great for larger columns, tanks, and high heat applications.
The USA Lab CRH heater offers unbeatable performance, ease of use and high reliability. These closed loop heaters are the best on the market for demanding applications and precision heating.

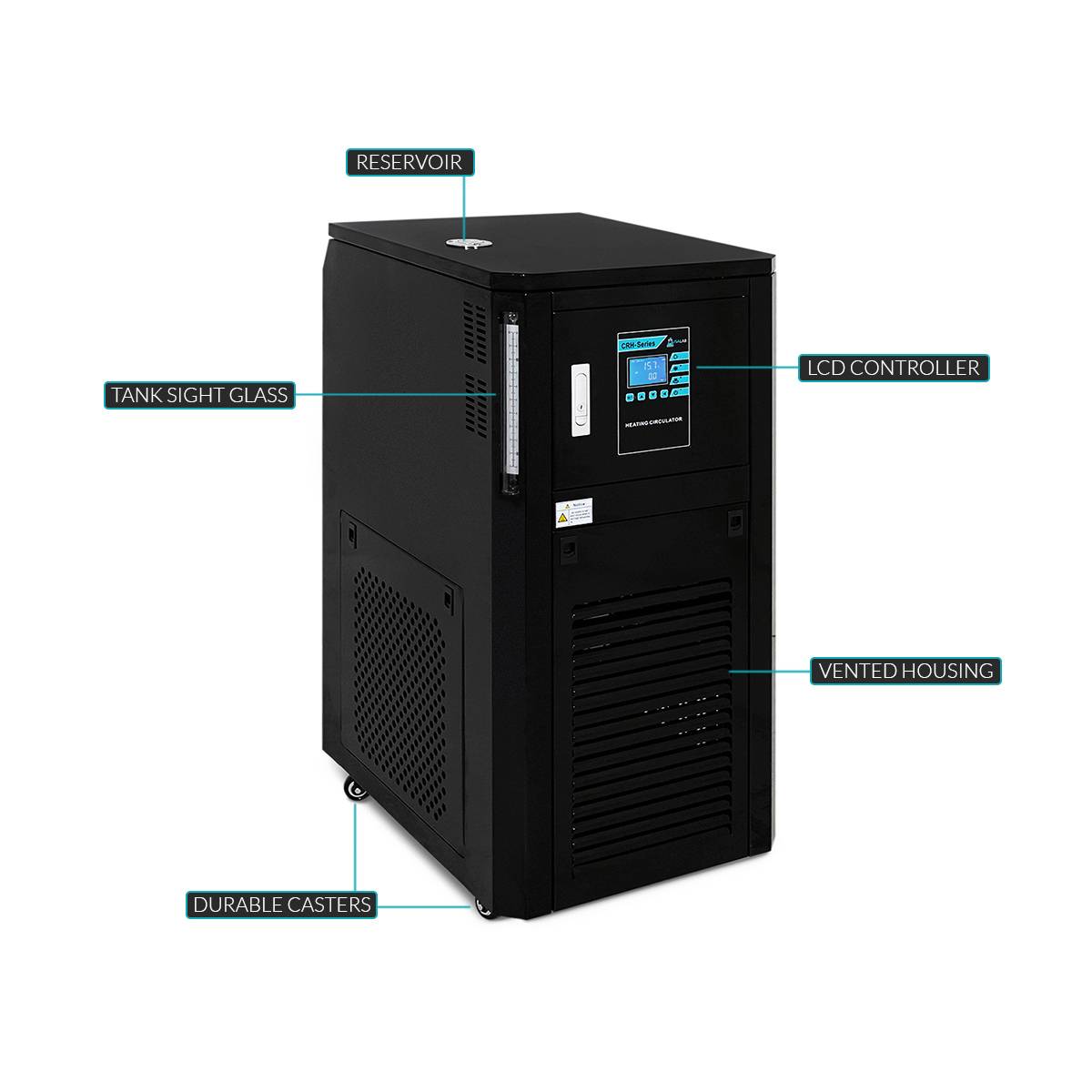

CRH-30 FEATURES |
||
• Powerful high wattage heating up to 200°C. |
||
• Easy to read LCD digital display. |
||
• Stainless steel heating elements. |
||
• Strong oil pump. |
||
• 12ft of insulated tubing included. |
||
• 1 Year warranty with US based parts and support. |
||
• Closed loop for higher thermal transfer performance. |
||
|
|
|
SPECIFICATIONS |
||
Model |
CRH-30 3KW |
CRH-30 6KW |
Oil Tank Capacity |
20L |
|
Oil Tank Dimensions |
390 x 280 x 180mm |
|
Temperature Range |
RT to 200°C |
|
Power Requirements |
220-240V 50-60hz 15A Single Phase 6-20P Plug |
220-240V 50-60hz 28A Single Phase L6-30 Plug |
Control Type |
LCD Digital Display |
|
Heating BTUs / Wattage |
10236 BTU / 3000W |
20472 BTU / 6000W |
Total Power |
3250W / 15A |
6250W / 28A |
Circulating Pump Wattage |
250W |
|
Temperature Accuracy |
+/- 1°C |
|
Pump Flow |
35L/Min |
|
Lift |
25m |
|
Inlet / Outlet Size |
3/4″ MNPT |
|
External Dimensions |
25.2″ x 18.1″ x 37.0″ |
|
Weight |
117lbs |
|
Warranty |
1 Year |
|
|
|
|
PACKING LIST |
||
Model |
Quantity |
|
USA Lab CRH-30 Heater |
1 |
|
3/4″ FNPT Insulating Tubing – 6ft |
2 |
|
Manual |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
