USA Lab 20L Rotary Evaporator RotoVap RE-1020 (Optional ETL Certification to UL and CSA Standards)

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab

$5,399.00$6,699.00

SKU: RE1020-ROTO Category: Brand:
The USA Lab 20L RE Series Rotary Evaporator recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price. With GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.



RE-1020 Specifications

Glass Material

GG-17 Borosilicate Glass

Evaporation Flask Capacity

20L

Collection Flask Capacity

10L

Rotary Speed

20-120RPM

Bath Temperature Range

Room Temp to 180°C (356°F)

Lifting Mechanism

Electric

Power Requirements

220-240V 60Hz 30A Single Phase

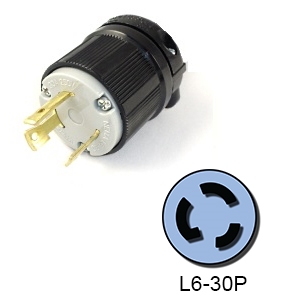

5000W L6-30P Plug Installed

Temperature Control Accuracy

+/-1°C

Motor Wattage

100W

Heater BTUs

17,000BTU

Achievable Vacuum

399.9Pa

Evaporating Capability

Water≥5L/H

Alcohol≥12L/H

Water Bath Volume

41L

Dimensions

43″L x 30″W x 80″H

Condensing Glass Volume

Main: 0.8m²

Auxiliary: 0.39m²

Speed Regulation

Digital Step-Less

Vacuum Barb

13.3mm

Condenser Barb

15.5mm










RE-1020 Packing List

Item

Quantity

20L RE-1020 Rotary Evaporator Base

1 set

Main Condenser

1 pc

Auxiliary Condenser

1 pc

20L Boiling Flask

1 pc

10L Receiving Flask

1 pc

Three-Way Bump Trap

1 pc

Vapor Duct with Seal (Pre-Installed)

1 pc

PTFE Vacuum Sealing Kit (Pre-Installed)

1 pc

Glass Vacuum Port with PTFE Valve

4 sets

Glass Feeding Tube with PTFE Valve

2 sets

PTFE Feeding Tube with Extension Hose

1 pc

Vertical Stand

1 pc

Vacuum Gauge

1 pc

Support Ring

2 pcs

Rubber Strap for Condenser

Specification: USA Lab 20L Rotary Evaporator RotoVap RE-1020 (Optional ETL Certification to UL and CSA Standards)

ETL to UL and CSA

No, Yes
