USA Lab 20L Centrifuge Turnkey System – XTC-20-TK

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Material: 304 Stainless
Power Requirements: 240V 5A 3Ph 1.5 kW Explosion Proof Motor

$42,799.00

SKU: XTC-20-TK Category: Brand:

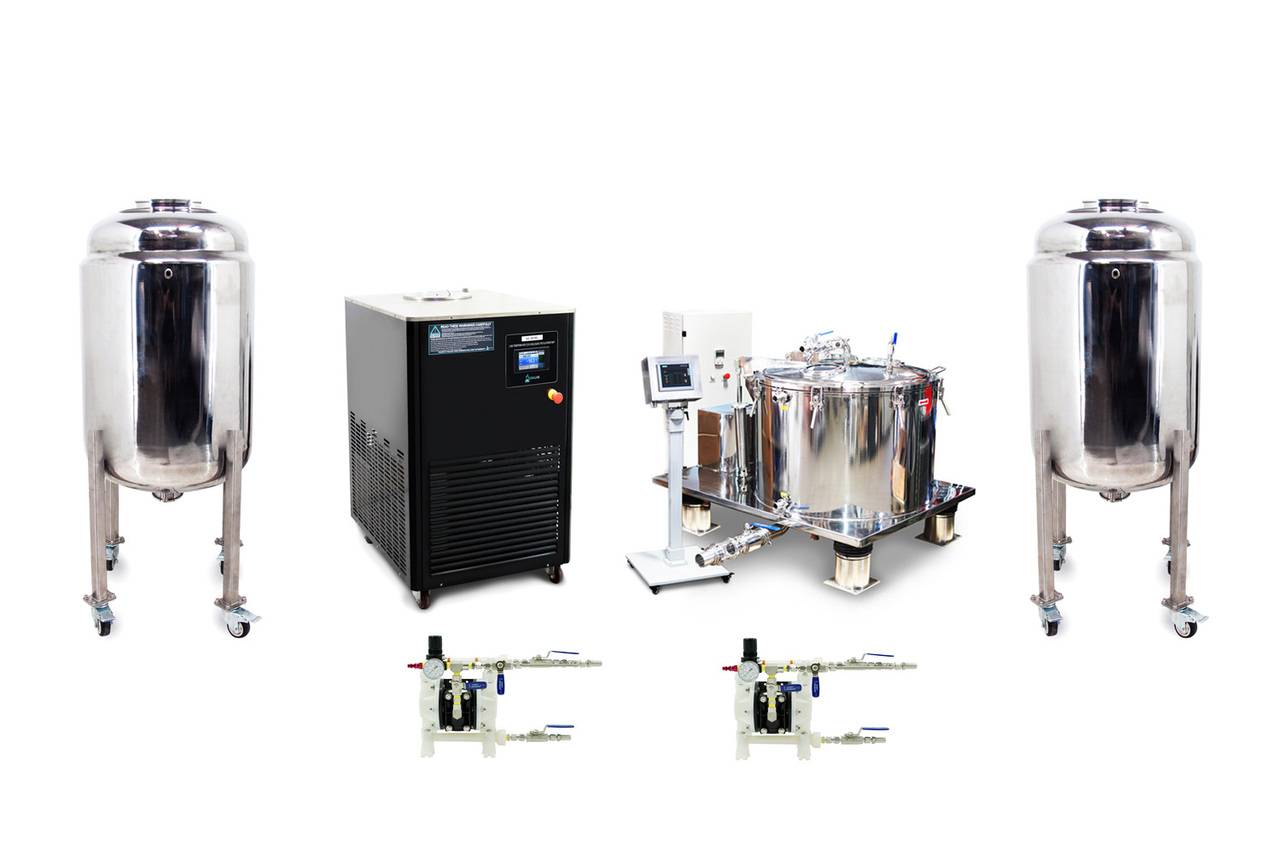

Our XTC-20-TK 100L Centrifuge Turnkey System allows users the ability to extract botanical compounds to achieve superb results and separation while maintaining a closed-loop system. The XTC-20 System takes 520lbs of biomass and 25-40 gallons of ethanol per batch for approximately 192-300lbs of dry material per 8-hour shift with a single operator. The XTC system comes with 2 x 150L Storage Vessels for ethanol pre-storage as well as ethanol mixture post storage.

Each tank is fully jacketed and fully assembled to allow for fluids circulation with temperatures of up to -80°C, a 12” lid connection for numerous port connections, and a 6” bottom for ease of cleaning/draining. Fluid can transfer from each vessel via two diaphragm operated fluid pumps being operated by an air compressor. These pumps are easily operated and allow for up to 10 gallons per minute of fluid transfer. Each pump has a bypass which allows full line clear when the units are not in operation as well as easily adjustable air inlet, and inlet/outlet valves.

The XTC system also comes packed with one of USA Lab’s most advanced chillers, the UC-30/80 30L -80°C chiller. This chiller can be run in tandem with the inlet ethanol storage tank that then is connected to the centrifuge jacket allowing for ultimate temperature control of the ethanol and mixture. The XTC-20-TK system is an easy-to-use turnkey ethanol extraction system that can fit into any lab setting with ease. This system fits in perfectly pre-filtration and recovery to act as a modular fit for a full system.






XTC-20L Turnkey Packing List

ITEM

QTY

20L Jacketed Stainless Steel Centrifuge

1

-80°C 30L Recirculating Chiller UC-30/80

1

USA Lab 150L Stainless Steel Jacketed Storage Vessel

2

Hemispherical Reducer – Tri Clamp 6″ to 1/2 FNPT – S

2

USA Lab 12″ Hemispherical Lid – (2x 2″ TC), (1x 3″ TC), (2x 1/2″ MNPT), (1x 1/4″ FNPT), (1x 3/8 MNPT)

2

ARO Diaphragm Fluid Transfer Pump, Kynar® Fully Assembled

2

Superlok FNPT 210 Series Ball Valve – 1/2″

6

3/8″ Superlok FNPT 210 Series Ball Valve – 3/8″

2

Glycerin Compound Gauge -1/4″

2

MNPT To Barb Adapter [ 1/2″ Barb x 1/2″ MNPT ]

10

MNPT to FNPT Street Elbow [ 1/2″ X 1/2″ ]

4

1/2″ Male Elbow NPT 90 Degrees

2

MNPT To Barb Adapter [ 3/8″ Barb x 3/8″ MNPT ]

2

2″ Polycarbonate Sight Glass

4

3″ Solid Tri Clamp End Cap

2

Buna – 2″

4

Buna –  3″

2

Buna – 6″

2

Buna – 12″

2

SPTC – 2″

4

SPTC – 3″

2

SPTC – 6″

2

SPTC – 12″

2

1/2 ” Silicone Hose Tubing – 10FT

2






****THIS IS NOT CERTIFIED AND CARRIES NO UL, NRTL, OR C1D1 RATING. PLEASE KEEP THIS IN MIND PRIOR TO PURCHASING****


***DISCLAIMER*** Our closed loop systems are intended for legal purposes only.
They are to be used in well ventilated areas and under accordance with local laws.

USA Lab 20L Jacketed Stainless Steel Centrifuge XTC-20
comes with 4 bags 100 microns

**Our XTC Centrifuges come standard with an explosion proof motor**

Our 20L Centrifuge system allows users to perform botanical extraction while maintaining a closed loop system, exposing no solvents to the air.  Our systems is designed for easy material loading and unloading.  2″ Tri-clamp drain.  Reinforced sight glass.  Bi-Directional agitation.  Variable speed control.  No expense has been spared with this system to provide high quality parts at an affordable price.


XTC-20 Specifications

Material

304 Stainless Steel

Electrical

240V 3-Phase 1.5kW 5A Explosion Proof Motor

Max RPM

1900 rpm

Max Plant Load

15-20lbs

Basket Volume

20L

Jacket Size

20L

Lid Connections

3x 1.5″ Tri-Clamp

Jacket Connections

2x 1.5″ Tri-Clamp

Drain Connections

1.5″ Tri-Clamp

Gasket Material

PTFE

Lid Gasket Material

Silicone

Basket Diameter

450mm

Exterior Dimensions

37.4″L x 23.6″W x 34.2″H

Weight

661lbs





**Will need to add explosion proof conduit from centrifuge to controller. Not included.

The USA Lab UC-30/80 is a powerful -80°C Chiller with a 30L Reservoir. This chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.

The USA Lab UC-30/80 chillers offer unbeatable performance, ease of use, and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.

SPECIFICATIONS

Model

UC-30/80

Reservoir Capacity

30L

Reservoir Dimensions

13.7″ x 13.7″

Temperature Range

Room Temp to -80°C / -112°F

Power Requirements

220-240V 60Hz 30A 5250W Single Phase

Control Type

PLC Touchscreen

Refrigeration BTUs

16,000BTU – 1,450BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Lift (Max Pumping Height)

4m (12ft)

Pump Pressure

2.2bar

Barb Size

5/8″

Refrigerant

R404

External Dimensions

39″ x 31.9″ x 48.4″

Weight

473lbs

Warranty

1 Year



PACKING LIST

Model

Quantity

USA Lab UC-30/80 -80°C Chiller

1

5/8″ Insulated Tubing

11ft

5/8″ Barbed Valve

1

PTFE Sealing Tape

1

 Manual

1





 Our 300L Stainless Steel Jacketed Storage Vessel come with a 12″ opening and a 6″ bottom for ease of use and access. Each vessel is fully jacketed with 1/2″ FNPT inlet ports to allow circulation of warm or cold fluids. These reactors are great for filtrationchilling solvents, mixing, winterization, and even ethanol extraction!




300L-JSSR SPECIFICATIONS

Material/Rating: 304SS/150PSI

Exterior Dimensions: 24″ L x 24″ W x 63″ H

Lid size: 12″ Tri-clamp

Bottom size: 6″ Tri-clamp

Jacket Connections: 1/2″ FNPT

Ground to Bottom: 14″

Jacket Capacity: 35L





Offering high volume delivery even at low air pressure this ARO® double diaphragm pump features maximized flow rates with minimal pulsation and air consumption. This air-operated, double-diaphragm model utilizes a pressure differential in the air chambers to alternately create suction and a positive fluid pressure in the fluid chambers, and ball checks to help insure a positive fluid flow. Pump can provide reliable operation with innovative, lube-free differential valve both on the major air valve and Simulshift™ pilot valve for worry-free operation.



*We recommend an Air Compressor with 8 CFM or more.*




ARO Specifications

Item
